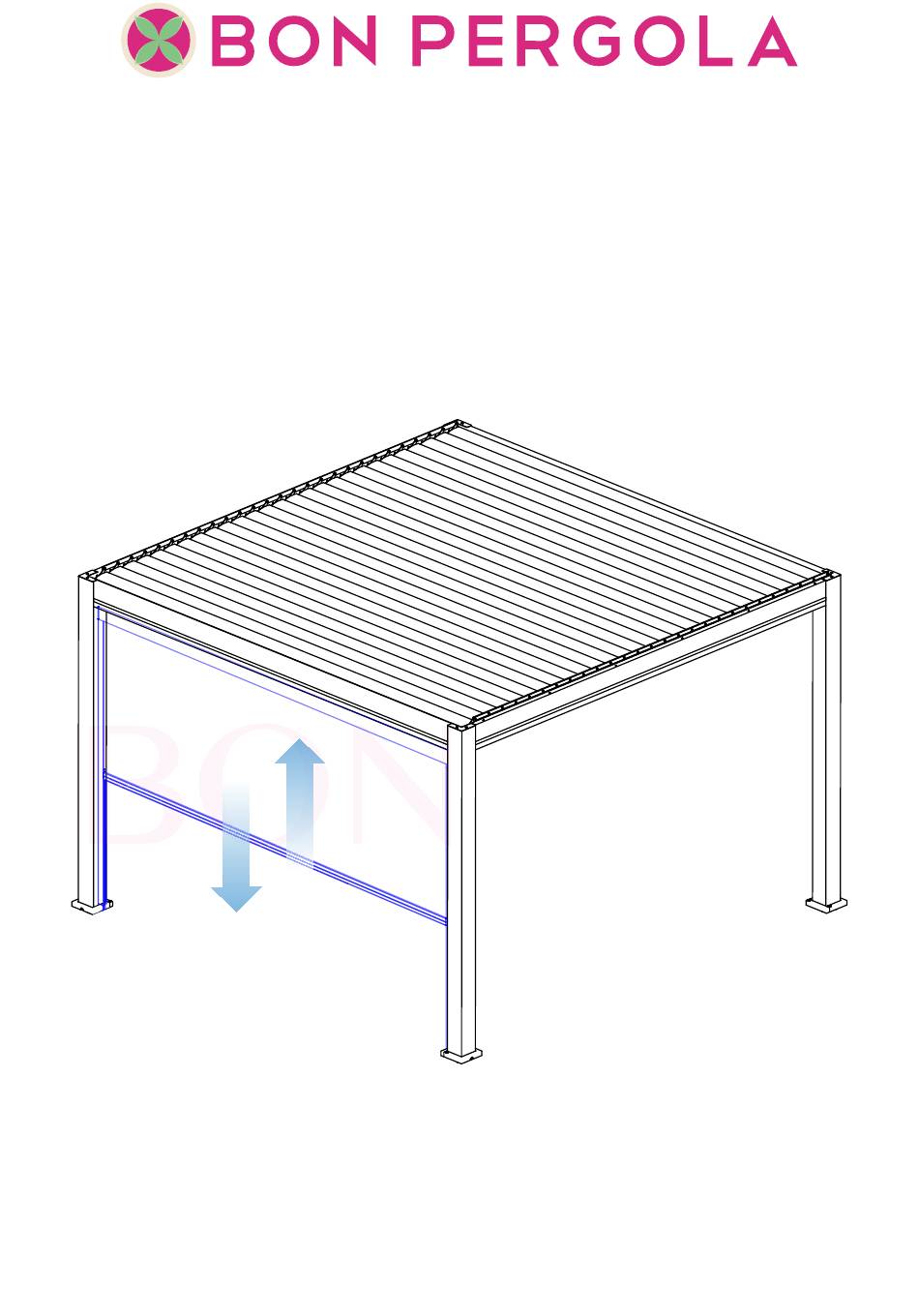

- Page 1 Manual Zipper Screen Installation Instruction v2024.01...
-
Page 2: Tools Required
Tools required >1.5m Step 1 Before installing your screen / shade, measure the three width to make sure they are equal before starting. This is important to make sure the screen will function properly. (as Screen is a rectangle that goes up and down) 1-1/6±1/9mm 1-1/6±1/9mm... - Page 3 Top Roller Cassette Side Rail Side Rail Step 2 Remove the side rail cover off from its body.
- Page 4 Step 3 Assemble Top Roller Cassette and side rail together.
- Page 5 Step 4 Drill 3 holes evenly spaced through the first layer of the side rail first layer first layer Side Rail Side Rail Step 5 Fit the Screen into the inner side of pergola, then attach it with self tapping screw on each side.
- Page 6 Step 6-1 & 6-2 Slide the zipper guide into the fabric zipper and set into the side rails. Test the unit out at this time to see if the fabric is rolling properly or not. Step 6-2 Step 6-1 比例 1.000...
- Page 7 Step 7 Put the side rail cover back with rubber hammer 1.4” Note: If you want to secure the smaller part 比例 1.000 of the rail, holes can be drilled here and can be fixed with tapping screws. (Screws are not supplied). ***If you want better waterproofing, please apply silcone to all the gaps AFTER testing out.
- Page 8 Step 8 Test by push up and down to check if it function properly.
