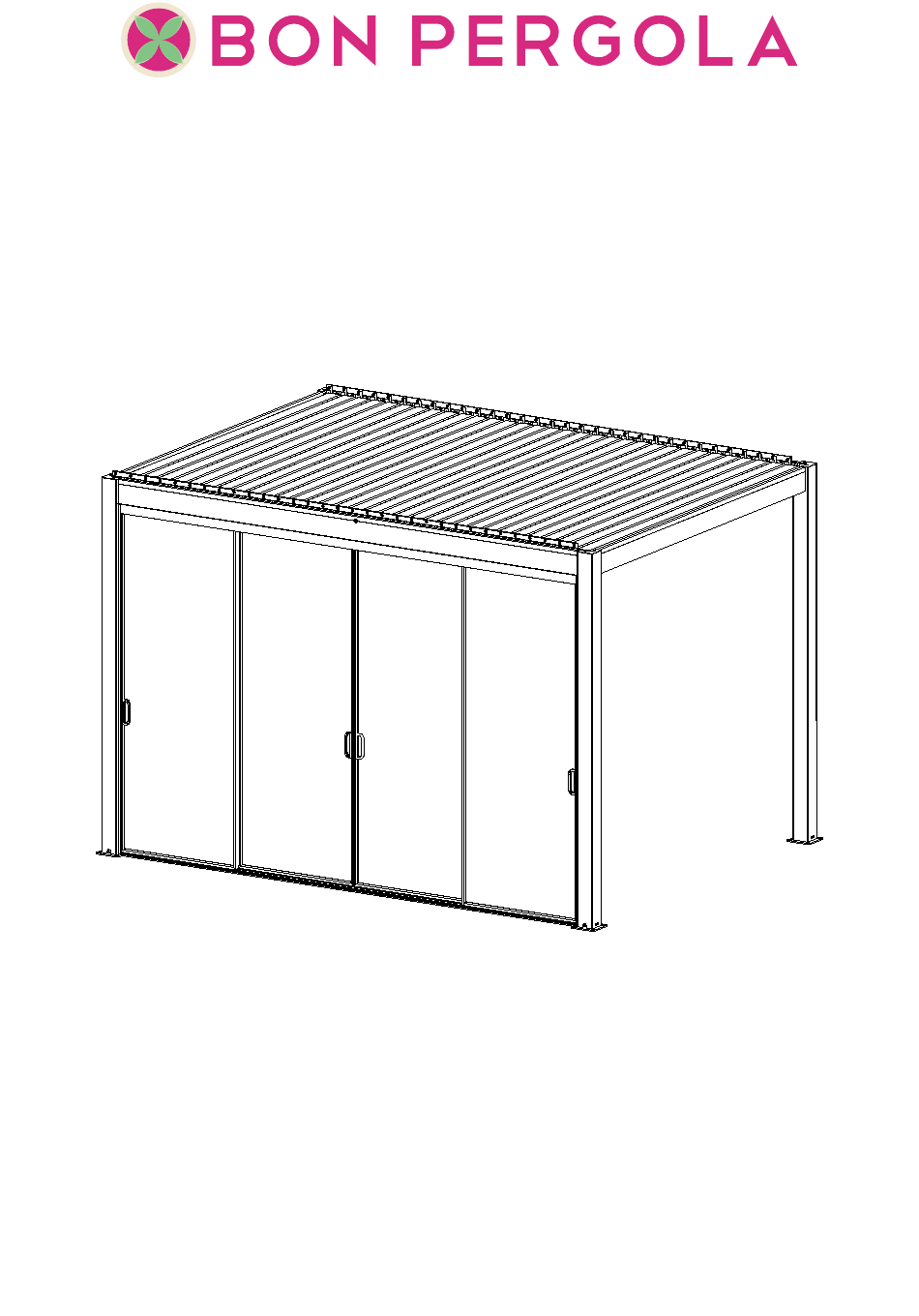

- Page 1 Premium Sliding Glass Installation Instruction v2024.01...
- Page 2 ×20 ×4 ×1 比例 ×1 比例 1.000 ×2 比例 1.000 ×1 ×1 ×1 ×1 Parts: ST4.2x25 Countersunk Screw 2 M4x90 Countersunk Screw Paenl D Upper Rail Panel E Bottom Rail Paenl F Side Rail Paenl G...
- Page 3 Step 1 Before installing your screen / shade, measure the three width to make sure they are equal before starting. This is important to make sure the screen will function properly.
- Page 4 Step2 Unassemble Decorative Strip Step3 Assemble A & C with 1 Decorative Cover Step 2 Step 3...
- Page 5 Step4 Install the assembled frame onto the inner side of pergola Step5 Align B To the footing plate and the frame Step 4 Step 5...
- Page 6 Step6 Mark location then remove B to drill into the ground. Step7 Insert Plastic Plug and align B back Step 6 Step 7...
- Page 7 Step8 Use 1 and 2 to fix the frame into the pergola. 1 x4 2 x4 Step 8...
-
Page 8: Decorative Cover
Not included Step9 Assemble the decorative bar back onto the side rail Step10 Use silcone to seal all around the frame (this can be done at the end) Step 9 Decorative Cover Step 10... - Page 9 Step11 Insert upper side of panel D into the top D x1 rail A close to the the OUTER side, then bottom side onto the bottom rail track B Outer side Step 11-1 Inside Outside Outer side Step 11-2...
- Page 10 Step12 Insert upper side of panel E into the top rail A close to E x1 the the INNER side, then bottom side onto the bottom rail track B Inside Step 12-1 Inside Outside 比例 1.000 Inner Side Step 12-2...
- Page 11 Step13 Insert upper side of panel F into the top rail A close to F x1 the the INNER side (opposite side), then bottom side onto the bottom rail track B Inside Step 13-1 Inside Outside Inner Side Step 13-2...
- Page 12 Step14 Insert upper side of panel G into the top rail A close to G x1 the the Ourter side (opposite side), then bottom side onto the bottom rail track. Outer side Step 14-1 Inside 比例 1.000 Outside Outer side Step 14-2...
- Page 13 Adjustment Setting: 1.Tightness adjustment done through the top screw 2. Balance adjustment done through the bottom screw Adjustment Adjustment...
- Page 14 LOCK OPEN...
