Summary of Contents for Bon Pergola VP-4325

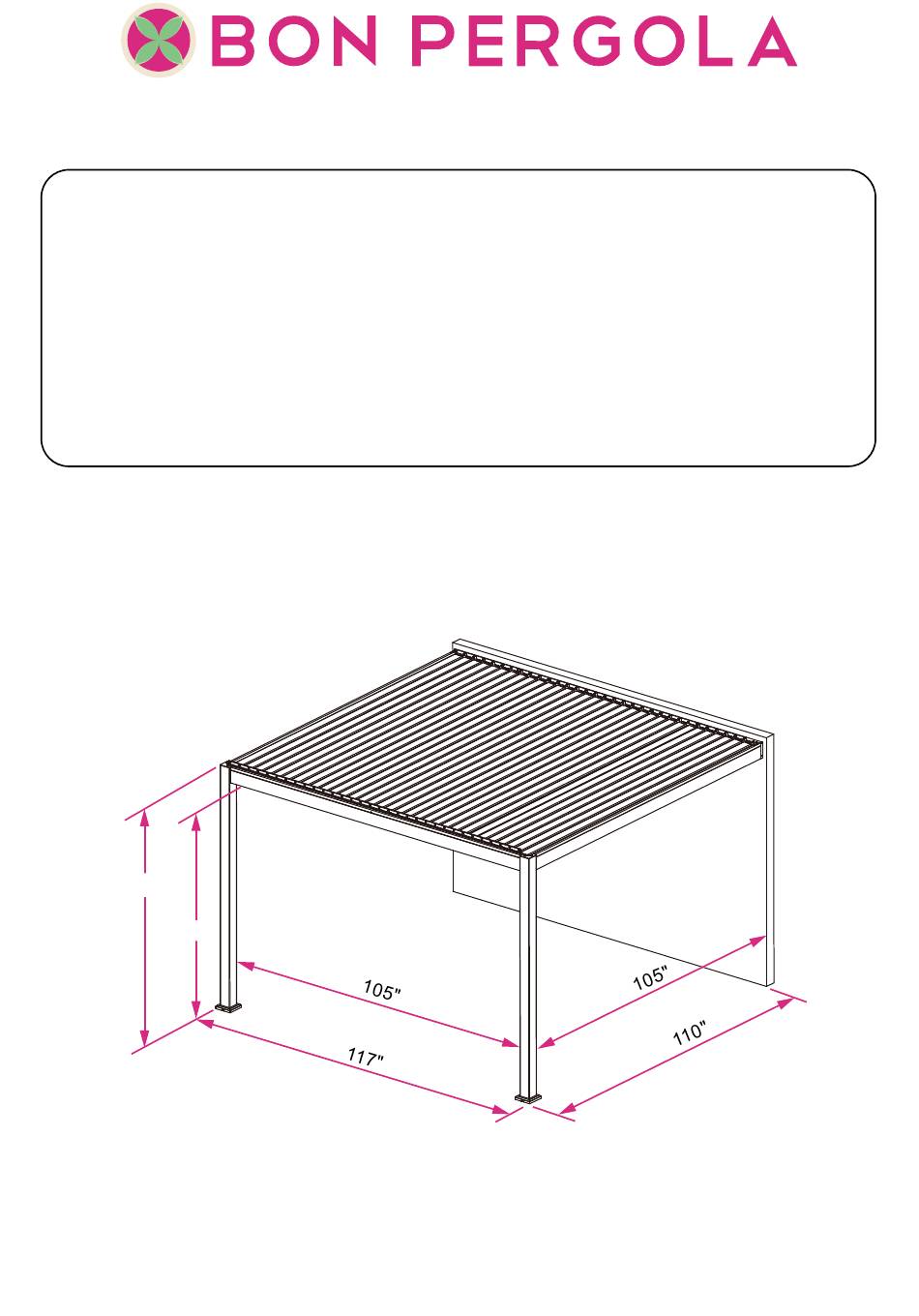

- Page 1 User Instructions Villa Pergola motorized operation Size: 10’x10’(300x300cm) 10’x13’(300x400cm) 13’x13’(400x400cm) *Please visit www.bonpergola.com for the latest instruction under Q&A section* Size: 10’x10’ 104" 97 1/2" v2023.02...
- Page 2 Size: 10’x13’ 104" 97 1/2" Size: 13’x13’ 104" 97 1/2"...
-
Page 3: Table Of Contents
Content Tools and man force ................3 Parts List....................4-6 Product Description................7 Safety Instruction..................7 Mounting....................8-20 Dismounting...................22 Storage....................22 Disposal....................22 Attention: Read this instruction manual carefully and completely before mounting and usage. Keep this manual for future reference. Dear Customer, Congratulations and welcome to our Villa Pergola family. To enjoy your Villa Pergola for its lifetime and for you and other’s safety, please follow the assembly instructions. -
Page 4: Parts List
Parts List *Please check all parts against the parts list before commencing construction of pergola.* SIZE:10’x10’ or 300X300CM PARTS LIST: M8x20 countersunk screw M10 screw cap Motor with motor bracket L bracket Cover plate 50 to 40 connector M8x22.4 Hexagon bolt Gutter connector M8X100 expansion bolt Base plate... - Page 5 SIZE:10’x10’ or 300X300CM PARTS LIST: *Please check all parts against the parts list before commencing construction of pergola.* Louver beam Wall mount louver beam with motorize connection Beam Beam Post + post connector Post + post connector Common louver Center louver Driving louver Gutter Gutter...
- Page 6 SIZE:10’x13’ or 300X400CM and 13’x13’ or 400X400CM PARTS LIST: *Please check all parts against the parts list before commencing construction of pergola.* Louver beam Wall mount louver beam with motorize connection Beam Beam Post + post connector Post + post connector Common louver Center louver Driving louver...
-
Page 7: Product Description
Product Description: Make the most of your outdoor living area with your pergola. Relax and enjoy the outdoors while being protected from sun. The coated aluminum frame pergola is perfect for shading your garden, deck, courtyard and swimming pool. Important Safety Instructions: Warning: For the safety of you and other persons it is important to follow below instructions and obey warnings. -
Page 8: Mounting
Step 1 ③ ① Attach base plate x2 to the bottom of posts ( D1 x1, D2 x1 ,and ),use bolts x8 to attach with hex key or electric drill D1 D2 posts should be installed diagonally as below Optional Post + post connector Post +... - Page 9 Step 2 According the height of D1 to measure the height of 11 ,use anchor to fasten Louver beam Wall Bracket M8X100 expansion bolt...
- Page 10 Step 3 Use bolts 12 x4 to fasten beam B1 Wall mount louver beam with motorize connection Slider...
- Page 11 Step 4 Insert the A1 / C2 into D1 ,then connect B1 with 13 ,fasten the screws. M8x22.4 Hexagon bolt Beam L bracket...
- Page 12 Step 5 Connect the C1 and C2 into B1 with 13 , fasten the screws. Cover the beam on both sides with 14 ,fasten the screws ④ ⑥ Attach upright cover x2,use bolts x4 to fasten M8x22.4 Hexagon bolt Beam Upright cover L bracket Cover plate...
- Page 13 Step 6 ⑨ Slide the motor into E1 gutter before hooking onto the beam in the direction as shown below. Motor with motor bracket Gutter...
- Page 14 Step 7 ⑩ 1. Fasten x2 gutter connector ② 2. If motor wire is running downward through the post, use to connect ⑩ with as shown below to not allow water drain through this post. 50 to 40 connector Gutter connector...
- Page 15 Step 8 ⑨ Fasten motor x1 with its screws as shown below. Motor with motor bracket...
- Page 16 Step 9 Connect the female and male plugs for the LED lighting (DC24V to DC24V) and motor (DC24V to DC24V) and Motor with motor bracket Plug the power cable into local socket. ***Note: You can test your motor at this stage. Plug in and use its remote. Poqwe plug Main power DC24V...
- Page 17 Step 10 Located holes in centre of beams( A1 and B1 ) Place Centre louver H into 12th slot, lining up with the holes for 300x300 cm size. * Place Centre louver H into 16th slot, lining up with the holes for 300x400 cm and 400x400 cm size. ⑤...
- Page 18 Step 11 Fix J x 2 (flat L-shaped aluminum profile). One for each other of the slats is required. ⑥ ⑦ ⑧ *Use bolt x46, plastic spacer x46 and nut x46 to tighten for 300x300 cm and 400x400cm size*. ⑥ ⑦...
- Page 19 Step 12 *Check for diagonal distance in between the posts A1/A2 and B1~B4 are equal. *Please note, this step is very important to ensure the pergola are in a rectangle shape in any angle. It’s extremely important if you are installing a screen before anchor the pergola down or afterward. Wall Post Post...
- Page 20 Step 13 Mark holes for Wedge Anchor/Bolt x8 for each post Note the drill size should be 12 mm. Insert the bolts. Use a hammer drill if necessary. Place the posts over the bolts. Tighten the nuts. Once installed, make sure any remaining plastic is removed and silicone is used along all corners and gutters to be waterproof.
-
Page 21: Motor Setup
Motor set up 1.Function and Features ※ 86mm*86mm, in accordance with international installation standard; ※ The electric structure is partial conformity with the standard fire protection requirement of the electrician; ※ Industrial grade microcomputer chip is used to improve product quality and reliability greatly; ※... -
Page 22: Dismounting
Dismounting If you want to disassemble the Pergola, please follow the following process. Attention! At least two people are needed for this step. • Keep the Pergola louvers open before you begin with dismounting. Bind the Louvers of the Pergola together to avoid unintended unfolding. This might cause damage and injury. You can use the protection band that was fixed on the Pergola when purchasing it.
