Villa Pergola for motorized operation
Size: Size: 13'x13' / 13' x15' /13'x19'
*Please visit www.bonpergola.com for the
latest instruction under Q&A section*
Size: 13'x13'
MOTOR
97.5"
106"
v2024.02
01

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Villa Pergola and is the answer not in the manual?

Questions and answers

Related Manuals for Bon Pergola Villa Pergola

Summary of Contents for Bon Pergola Villa Pergola

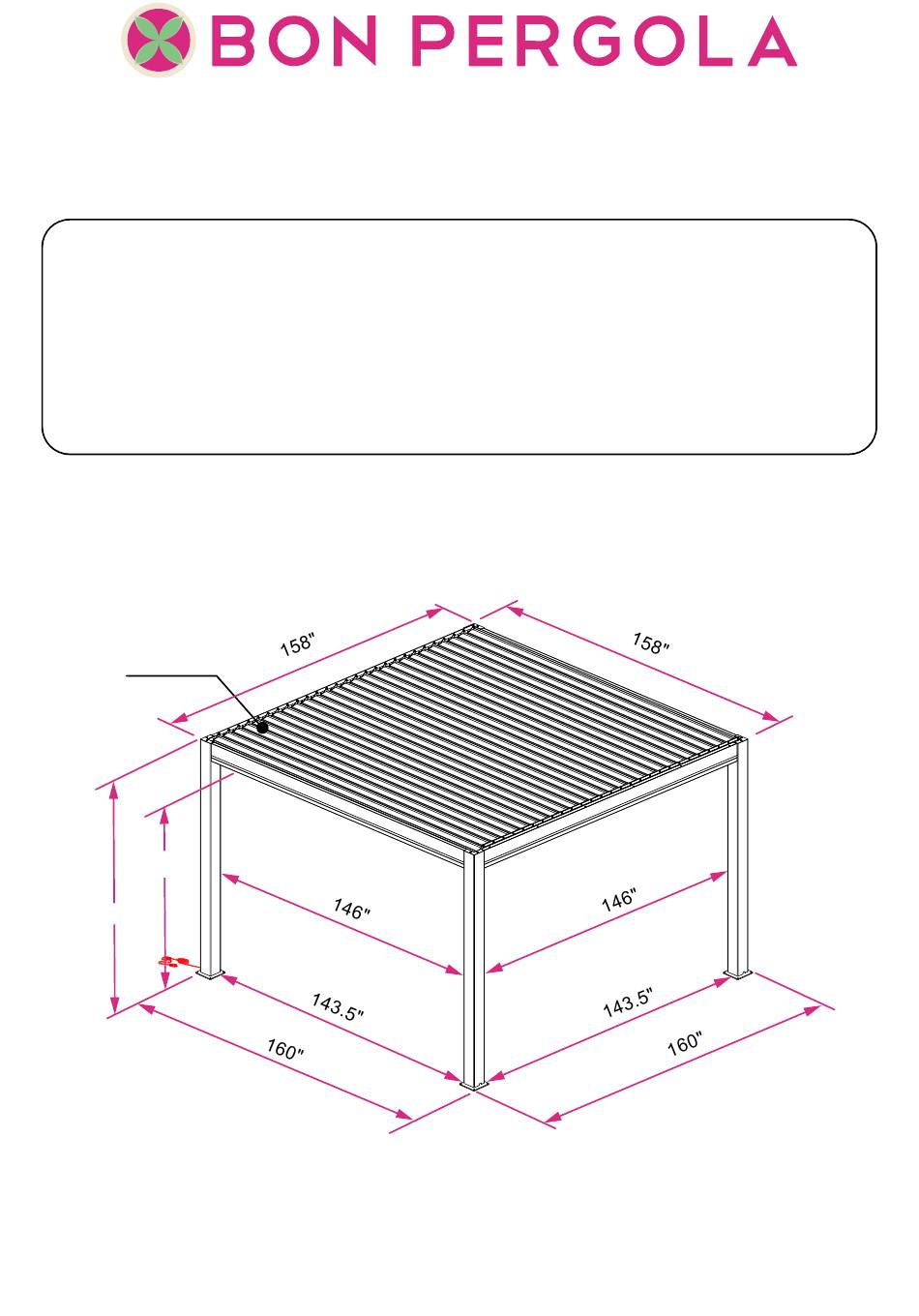

  • Page 1 User Instructions Villa Pergola for motorized operation Size: Size: 13’x13’ / 13’ x15’ /13’x19’ *Please visit www.bonpergola.com for the latest instruction under Q&A section* Size: 13’x13’ MOTOR 97.5" 106" v2024.02...
  • Page 2 Size: 13’x15’ MOTOR 97.5" 106" Size: 13’x19’ MOTOR 97.5" 106"...

  • Page 3: Table Of Contents

    Keep this manual for future reference. Dear Customer, Congratulations and welcome to our Villa Pergola family. To enjoy your Villa Pergola for its lifetime and for you and other’s safety, please follow the assembly instructions. Before you start the assembly process and using the Pergola, we suggest you are best to get familiar with this product.

  • Page 4: Tools And Man Force

    Tools and man force Recommended: 2 or 3 people Additional tools : 1. Ladder 2. M10/13 open wrench supplied 3. Rubber mallet 4. Tape measure 5. 5mm hexagon wrench supplied 6. Pencil 7. Spirit level >1.5m 8. Electric drill SIZE: 13’x13’ Parts List *Please check all parts against the parts list before commencing construction of pergola.* Louver base cover...

  • Page 5: Parts List

    SIZE: 13’x15’ Parts List *Please check all parts against the parts list before commencing construction of pergola.* Louver base cover Footing Plate M8x22.4 Hexagon bolt ST4.2*20 self-tapping screw Plastic Spacer M8x25 countersunk screw expansion bolt Note, Drill size will depend on Locking nut your final anchor bolts.
  • Page 6 SIZE: 13’x13’ Parts List *Please check all parts against the parts list before commencing construction of pergola.* Louver Beam W / Motor Connection Louver Beam Beam Post Post Common Louver Driver Louver Connecting Rod Louver Beam Cover...
  • Page 7 SIZE: 13’x15’ Parts List *Please check all parts against the parts list before commencing construction of pergola.* Louver Beam W / Motor Connection Louver Beam Beam Post Post Common Louver Driver Louver Connecting Rod Louver Beam Cover...
  • Page 8 SIZE: 13’x19’ Parts List *Please check all parts against the parts list before commencing construction of pergola.* Louver Beam W / Motor Connection Louver Beam Beam Post Post Common Louver Driver Louver Connecting Rod Louver Beam Cover...
  • Page 9 Structure layout Louver Beam W Post / Motor Connection Beam Louver Beam Post Motor...

  • Page 10: Product Description

    Product Description: Make the most of your outdoor living area with your pergola. Relax and enjoy the outdoors while being protected from sun. The coated aluminum frame pergola is perfect for shading your garden, deck, courtyard and swimming pool. Important Safety Instructions: Warning: For the safety of you and other persons it is important to follow below instructions and obey warnings.
  • Page 11 Step 1 Attach footing plate to Post With Screw Post M8x25 countersunk screw Footing Plate Post...
  • Page 12 Step 2 ④ Attach Beam with & with its Screw. Beam M8x20 Hexagon bolt Note: M8x20 bolts are on post. Remove them before attaching And this is not in the accessories pack ④...
  • Page 13 Step 3 Attach Louver Beam & with & with its Screw. ④ Louver Beam W Louver Beam M8x20 Hexagon bolt / Motor Connection Note: M8x20 bolts are on post. Remove them before attaching And this is not in the accessories pack ④...
  • Page 14 Step 4 Use motor set screws to connect motor onto Louver Beam Motor with motor bracket...
  • Page 15 Step 5 Connect Motor set with lighting cable Main power...
  • Page 16 Step 6 1. Install driver louver onto louver beam & on 5th and 6th slot. 2. Use louver base cover onto the 5th and 6th slot. Louver base cover Driver Louver ***If needed to remove, pry outward.
  • Page 17 Step 7 1. use motor screw and washer to connect Motor front bracket with driver louver on 5th and 6th slot 2. Test run the motor up and down with light onbefore wiring 3. Wire routing method Motor with motor bracket Main power...
  • Page 18 Step 8 1. Unassembled the screw after test run the motor Motor with motor bracket...
  • Page 19 Step 9 1. Install common louver onto louver beam & 2. Use louver base cover onto rest of the slots. Driver Louver Louver base cover 13’x13’ 13’x15’ 13’x19’ ***If needed to remove, pry outward.
  • Page 20 Step 10 use Screw to install post top cover onto the post M8x20 Hexagon bolt Post Top Cover...
  • Page 21 Step 11 Align Louver Beam Cover onto louver beam and use self tapping screw to install onto the louver beam ST4.2*20 self-tapping screw Louver Beam Cover 13’x13’ 13’x15’ 13’x19’...
  • Page 22 Step 12 to connect louvers with connecting rod Connecting Rod M8x22.4 Hexagon bolt Plastic Spacer Locking nut 13’x13’ 13’x15’ 13’x19’...
  • Page 23 Step 13 1.Before connect to the motor and driver louver together test the louver manually open and close 2.use motor screw and washer to connect Motor 8 front bracket with driver louver on 5th and 6th slot...
  • Page 24 Step 14 *Check for cross diagonal distance A are equal. *Check for diagonal distance in between the posts B and C are equal. *Please note, this step is very important to ensure the pergola are in a rectangle shape in any angle. It’s extremely important if you are installing a screen before anchor the pergola down or afterward.
  • Page 25 Step 15 Mark holes for Wedge Anchor/Bolt x16 for each post Note, Drill size will depend on your final anchor bolts. Insert the bolts. Use a hammer drill if necessary. Place the posts over the bolts. Tighten the nuts. Once installed, make sure any remaining plastic is removed and silicone is used along all corners and gutters to be waterproof.
  • Page 26 Step 16 Use 2 piece footing plate cover to cover the footing plate with its 2 hand tighten screw Footing plate cover hand tighten screw footing plate...
  • Page 27 Step 17 Apply silicone to all connecting between with silicone...
  • Page 28 Motor set up 1.Function and Features ※ 86mm*86mm, in accordance with international installation standard; ※ The electric structure is partial conformity with the standard fire protection requirement of the electrician; ※ Industrial grade microcomputer chip is used to improve product quality and reliability greatly; ※...

  • Page 29: Dismounting

    Dismounting If you want to disassemble the Pergola, please follow the following process. Attention! At least two people are needed for this step. • Keep the Pergola louvers open before you begin with dismounting. Bind the Louvers of the Pergola together to avoid unintended unfolding. This might cause damage and injury. You can use the protection band that was fixed on the Pergola when purchasing it.
