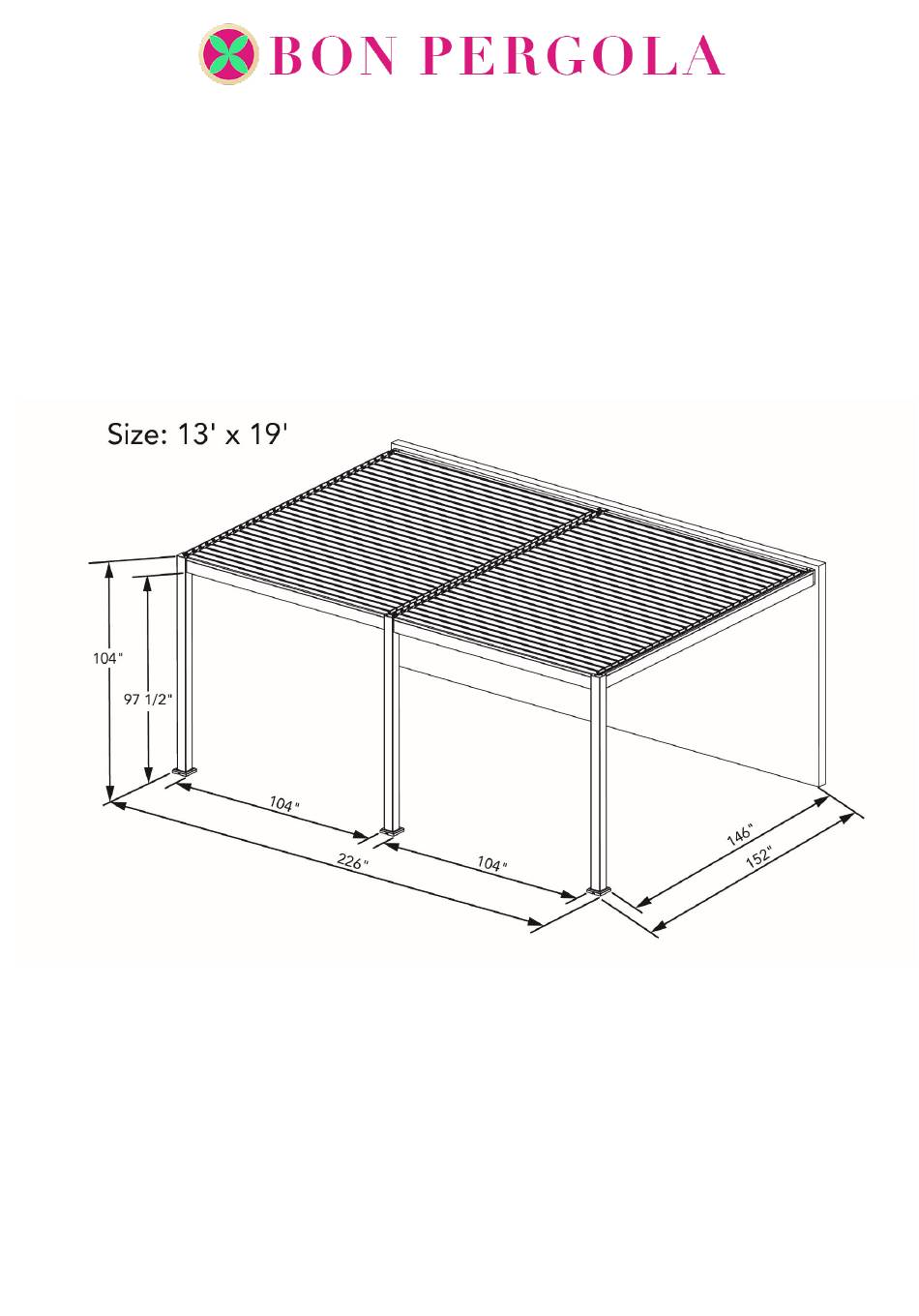

- Page 1 User Instructions Villa Pergola motorized operation Size: 13’x19’ Double Bay ( 400 x 600cm )
-
Page 2: Table Of Contents
Content Tools and man force ................1-2 Parts List.....................2-5 Product Description................6 Safety Instruction..................6-7 Mounting....................8-17 Dismounting...................18 Storage....................19 Disposal....................19 Attention: Read this instruction manual carefully and completely before mounting and usage. Keep this manual for future reference. Dear Customer, Congratulations and welcome to our Villa Pergola family. To enjoy your Villa Pergola for its lifetime and for you and other’s safety, please follow the assembly instructions. -
Page 3: Tools And Man Force
Tools and man force Recommended: 2 or 3 people Additional tools : 1.Ladder 2. M10/13 open wrench supplied 3.Rubber mallet 4.Tape measure 5. 5mm hexagon wrench supplied 6.Pencil 7.Spirit level 8.Electric drill... -
Page 4: Parts List
Parts List Please check all parts against the parts list before commencing construction of pergola. SIZE ： 13’x19’ or 400X600CM (double bay) PARTS LIST... - Page 5 Aluminum profile parts list: (A1) Beam (A2 ) Beam (B1) Beam (B2) Beam (C1) Beam (C2) Beam (C3) Middle Beam (D1) Post + post connector (D2) Post + post connector (D3) Middle Post + post connector (E1) Gutter (E2) Gutter (F1) Gutter (F2) Gutter (G) Common Louver...
-
Page 6: Product Description
Product Description Make the most of your outdoor living area with your pergola. Relax and enjoy the outdoors while being protected from sun. The coated aluminum frame pergola is perfect for shading your garden, deck, courtyard and swimming pool. Important Safety Instructions Warning: For the safety of you and other persons it is important to follow below instructions and obey warnings. - Page 7 Keep children and pets out of the working area during assembly and adjustments. This product and its fixing parts are only suitable for installation on a plain cement wall or stable brickwork. If the wall/brickwork shows cracks you have to consult a professional.
-
Page 8: Mounting
Mounting and usage Step 1 ○ Attach base plate ③ x3 to the bottom of posts (D1 /D2/D3),use bolts 1 x 12 to attach with hex key or electric drill. D1 ,D2, D3 posts should be installed diagonally as below. Please make sure all posts on the same horizontal plane. - Page 9 Step 2 ○ ○ According the height of C2 to measure the height of 15 ,use anchor to fasten...
- Page 10 Step3 ○ ○ ○ Use bolts 12 x6 to fasten beam B1 & beam B2 .
- Page 11 Step 4 ○ ○ ○ ○ ○ Insert the A1 / C1 into D1 ,then connect B1 with 13 ,fasten the screws.
- Page 12 Step 5 ○ ○ ○ ○ Connect A2 / B2 with 13 ,fasten the screws,and insert the middle beam Lock the screws...
- Page 13 Step 6 ○ ○ ○ ○ Connect the B1 and B2 , insert C1 into D3 , fasten the screws.
- Page 14 Step 7 ○ Cover the post with 4 x2,fasten the screws.
- Page 15 Step 8 ○ Cover the beam on both sides with 14 ,fasten the screws...
- Page 16 Step 9 ○ ○ ○ ○ Placed all gutter F2 in proper position as picture E1 , E2 , F1 ,...
- Page 17 Step 10 Fasten motor ⑨ x2 with its screws as shown below.
- Page 18 Step 1 ○ 1. Fasten 10 x2 gutter connector ○ 2. If motor wire is running downward through the post, use② to connect with as shown below to not allow water drain through this post.
- Page 19 Step 12 Connect the female and male plugs for the LED lighting (DC24V to DC24V) and motor (DC24V to DC24V) and plug the power cable into local socket. ***Note: You can test your motor at this stage. Plug in and use its remote.
- Page 20 Step 13 Place center louver Ⓗ into 16th slot, lining up with the holes Using M10 nut ⑤ X2, secure the louver in place ○ ○ Place Steering louvers Ⓘ X2 in line with 7th slot on the beam A1 and A2 .
- Page 21 Step 14 ○ J x 4 (flat L-shaped aluminum profile). One for each other of the slats is required. Use bolt ⑥ x124, plastic spacer ⑦ x124 and nut ⑧ x124 to tighten for 600X400cm size. Secure the louvers at each end. Tip: Do one sections of louvers first, then when installing the other side, screw, and bolt per louver one by one (especially the side that is at the center).
- Page 22 Step 15 ○ Mark holes for expansion bolt 16 x12 on each post. Note the drill size should be 12 mm. Insert the bolts. Use an hammer drill if necessary. Place the posts over the bolts. Tighten the nuts.Once installed, make sure any remaining plastic is removed and silicone is used along all corners and gutters to waterproof.
- Page 23 Motor setup...
-
Page 24: Dismounting
Dismounting If you want to disassemble the Pergola, please follow the following process. Attention! At least two people are needed for this step. ¨ Keep the Pergola louvers open before you begin with dismounting. Bind the Louvers of the Pergola together to avoid unintended unfolding.
