O P E R A T I N G I N S T R U C T I O N S
FTMg
Thermal gas flow sensor

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the FTMG-lSD15AXX and is the answer not in the manual?

Questions and answers

Related Manuals for SICK FTMG-lSD15AXX

Summary of Contents for SICK FTMG-lSD15AXX

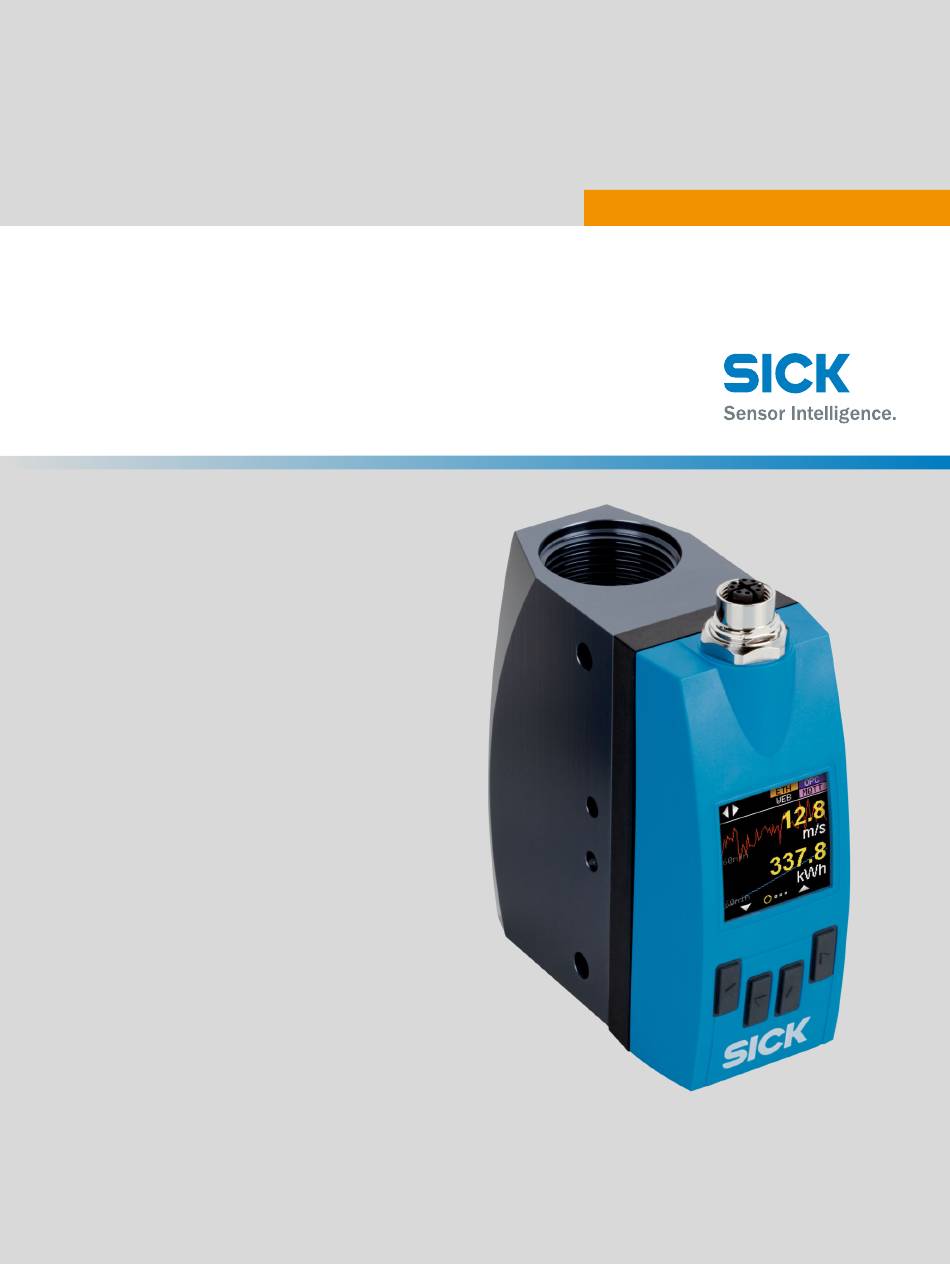

  • Page 1 O P E R A T I N G I N S T R U C T I O N S FTMg Thermal gas flow sensor...
  • Page 2 This work is protected by copyright. Any rights derived from the copyright shall be reserved for SICK AG. Reproduction of this document or parts of this document is only permissible within the limits of the legal determination of Copyright Law. Any modi‐...

  • Page 3: Table Of Contents

    Limitation of liability................. Modifications and conversions..............Operational safety and specific hazards..........Repair......................Qualification of personnel................ Cybersecurity.................... Product description................10 Product identification via the SICK product ID........Type code....................Product features..................Product features and functions............... Transport and storage............... 13 Transport....................Transport inspection.................
  • Page 4 10.3.4 Pressure configuration............10.3.5 Temperature configuration............10.3.6 Signal quality................O P E R A T I N G I N S T R U C T I O N S | FTMg 8024344.1NS6/2024-10-23 | SICK Subject to change without notice...
  • Page 5 16.2 Ethernet variant..................Annex....................71 17.1 Conformities and certificates..............8024344.1NS6/2024-10-23 | SICK O P E R A T I N G I N S T R U C T I O N S | FTMg Subject to change without notice...

  • Page 6: About This Document

    Information on this can be found in the operating instructions for the machine or system. Further information You can find the product page with further information via the SICK Product ID: pid.sick.com/{P/N}/{S/N} (see "Product identification via the SICK product ID", page 10).
  • Page 7 ✓ The tick denotes the results of an action. 8024344.1NS6/2024-10-23 | SICK O P E R A T I N G I N S T R U C T I O N S | FTMg Subject to change without notice...

  • Page 8: Safety Information

    O P E R A T I N G I N S T R U C T I O N S | FTMg 8024344.1NS6/2024-10-23 | SICK Subject to change without notice...

  • Page 9: Modifications And Conversions

    Repair Repair work on the sensor may only be performed by qualified and authorized person‐ nel from SICK AG. Interference with or modifications to the sensor on the part of the customer will invalidate any warranty claims against SICK AG.

  • Page 10: Product Description

    The SICK product ID comprises the host name pid.sick.com, the part number (P/N), and the serial number (S/N), each separated by a forward slash. For many products, the SICK product ID is displayed as text and QR code on the type label and/or on the packaging.

  • Page 11: Product Features

    Operating buttons The sensor is operated using the display and the operating buttons. 8024344.1NS6/2024-10-23 | SICK O P E R A T I N G I N S T R U C T I O N S | FTMg Subject to change without notice...

  • Page 12: Product Features And Functions

    PRODUCT DESCRIPTION NOTE The industrial version can be parameterized via SICK SOPAS ET, among other things. The Ethernet variant has its own web server and can be parameterized using an Internet browser, among other things. For the Ethernet variant, the sensor can also be parameterized via OPC UA.

  • Page 13: Transport And Storage

    For storage periods of longer than 3 months, check the general condition of all components and packaging on a regular basis. 8024344.1NS6/2024-10-23 | SICK O P E R A T I N G I N S T R U C T I O N S | FTMg...

  • Page 14: Mounting

    Suitable flow conditioning pipes are available for the FTMg with nominal diameters DN15, DN20 and DN25, see figure 21, page O P E R A T I N G I N S T R U C T I O N S | FTMg 8024344.1NS6/2024-10-23 | SICK Subject to change without notice...
  • Page 15 Inlet zone Outlet zone Pipe diameter (DN) Probe center axis 8024344.1NS6/2024-10-23 | SICK O P E R A T I N G I N S T R U C T I O N S | FTMg Subject to change without notice...
  • Page 16 100 x DN inlet conditions are recommended so that an optimum flow profile can form. We recommend using SICK flow conditioning pipes (for the DN15, DN20, DN25 var‐ iants) directly in front of the sensor as they connect to the measuring channel without a shoulder.

  • Page 17: Electrical Installation

    • Carefully mount the M12 plug connection to ensure the IP67 enclosure rating. 8024344.1NS6/2024-10-23 | SICK O P E R A T I N G I N S T R U C T I O N S | FTMg Subject to change without notice...

  • Page 18: Electrical Connection Of The Flow Sensor

    RX (+) - POE RxData+ RX (-) - POE RxData- WH/BU PoE+ O P E R A T I N G I N S T R U C T I O N S | FTMg 8024344.1NS6/2024-10-23 | SICK Subject to change without notice...
  • Page 19 Contact RJ45 Color Labels 10/100 Mbit PoE+ WH/BN PoE- PoE- 8024344.1NS6/2024-10-23 | SICK O P E R A T I N G I N S T R U C T I O N S | FTMg Subject to change without notice...

  • Page 20: Commissioning

    In the event of problems during commissioning see "Troubleshooting", page O P E R A T I N G I N S T R U C T I O N S | FTMg 8024344.1NS6/2024-10-23 | SICK Subject to change without notice...

  • Page 21: Operation Industrial Variant

    (SP1) is reached. high high 8024344.1NS6/2024-10-23 | SICK O P E R A T I N G I N S T R U C T I O N S | FTMg Subject to change without notice...
  • Page 22 0 V (NPN switched) vated Pulldown only. Pullup only. Flow O P E R A T I N G I N S T R U C T I O N S | FTMg 8024344.1NS6/2024-10-23 | SICK Subject to change without notice...

  • Page 23: Q2 Menu

    Select the Polarity submenu and choose between normally closed and normally open. Flow 8024344.1NS6/2024-10-23 | SICK O P E R A T I N G I N S T R U C T I O N S | FTMg Subject to change without notice...

  • Page 24: Set Q2 As Analog Output

    Select Analog in the Q2 function menu and set accordingly. O P E R A T I N G I N S T R U C T I O N S | FTMg 8024344.1NS6/2024-10-23 | SICK Subject to change without notice...

  • Page 25: Set Q2 As A Frequency Output

    • In the Low submenu, enter the start of the measuring range (4 mA). 8024344.1NS6/2024-10-23 | SICK O P E R A T I N G I N S T R U C T I O N S | FTMg Subject to change without notice...
  • Page 26 Set a predefined current value in the Simulate submenu. O P E R A T I N G I N S T R U C T I O N S | FTMg 8024344.1NS6/2024-10-23 | SICK Subject to change without notice...

  • Page 27: Operation Ethernet Variant

    Requests outside your own network are sent to the gate‐ way. 8024344.1NS6/2024-10-23 | SICK O P E R A T I N G I N S T R U C T I O N S | FTMg Subject to change without notice...

  • Page 28: Web Server

    A REST API interface is available as a machine interface. O P E R A T I N G I N S T R U C T I O N S | FTMg 8024344.1NS6/2024-10-23 | SICK Subject to change without notice...

  • Page 29: Settings

    Depending on the setting, it can vary between 60 minutes and up to 7 days. 8024344.1NS6/2024-10-23 | SICK O P E R A T I N G I N S T R U C T I O N S | FTMg...

  • Page 30: Simple Network Time Protocol (Sntp)

    The UnixTime is synchronized with the SNTP client every 60 minutes (if active). O P E R A T I N G I N S T R U C T I O N S | FTMg 8024344.1NS6/2024-10-23 | SICK Subject to change without notice...

  • Page 31: Troubleshooting (Sntp)

    If MQTT is not used, the recommendation is to deactivate the serv‐ ice. 8024344.1NS6/2024-10-23 | SICK O P E R A T I N G I N S T R U C T I O N S | FTMg Subject to change without notice...

  • Page 32: Settings: Process Data

    The process data can be transmitted in a different process data format and update interval. The following settings are available: O P E R A T I N G I N S T R U C T I O N S | FTMg 8024344.1NS6/2024-10-23 | SICK Subject to change without notice...
  • Page 33 Send Pressure Send Additional Information Send App Statis‐ tics (complex) 8024344.1NS6/2024-10-23 | SICK O P E R A T I N G I N S T R U C T I O N S | FTMg Subject to change without notice...

  • Page 34: Mqtt-Json Responses

    "Settings: (Legacy v1 / v2) cal output Process data", page 32 O P E R A T I N G I N S T R U C T I O N S | FTMg 8024344.1NS6/2024-10-23 | SICK Subject to change without notice...
  • Page 35 /counter sage reset ✓ 8024344.1NS6/2024-10-23 | SICK O P E R A T I N G I N S T R U C T I O N S | FTMg Subject to change without notice...

  • Page 36: Mqtt Troubleshooting

    It is vendor and platform independent, thereby enabling easy integration. O P E R A T I N G I N S T R U C T I O N S | FTMg 8024344.1NS6/2024-10-23 | SICK Subject to change without notice...

  • Page 37: Sensor

    Number of monitored items per subscription 9.5.2 Settings The following settings can be configured: 8024344.1NS6/2024-10-23 | SICK O P E R A T I N G I N S T R U C T I O N S | FTMg Subject to change without notice...
  • Page 38 The desired parameters can be dragged and dropped from the address space into the Data Access View field. O P E R A T I N G I N S T R U C T I O N S | FTMg 8024344.1NS6/2024-10-23 | SICK Subject to change without notice...

  • Page 39: Opc Ua Troubleshooting

    OPC UA troubleshooting Check the states of OPC UA State and OPC UA Detailed State: 8024344.1NS6/2024-10-23 | SICK O P E R A T I N G I N S T R U C T I O N S | FTMg...
  • Page 40 Delete unneeded subscriptions be made per connection has been exceeded O P E R A T I N G I N S T R U C T I O N S | FTMg 8024344.1NS6/2024-10-23 | SICK Subject to change without notice...

  • Page 41: Operation Industrial And Ethernet Version

    Display units The units for the different measurands can be selected in the Units submenu: 8024344.1NS6/2024-10-23 | SICK O P E R A T I N G I N S T R U C T I O N S | FTMg...

  • Page 42: Display Pages

    Up to 6 different measured values can be displayed vertically (Disp1, Disp2, Disp3). O P E R A T I N G I N S T R U C T I O N S | FTMg 8024344.1NS6/2024-10-23 | SICK Subject to change without notice...

  • Page 43: Other Display Configurations

    The product is currently not compatible with helium, this is a purely conceptual setting. 8024344.1NS6/2024-10-23 | SICK O P E R A T I N G I N S T R U C T I O N S | FTMg...

  • Page 44: Setting The Reference Standard

    O P E R A T I N G I N S T R U C T I O N S | FTMg 8024344.1NS6/2024-10-23 | SICK Subject to change without notice...

  • Page 45: Pressure Configuration

    Older data is aggregated and stored in a long-term memory at a lower resolution. 8024344.1NS6/2024-10-23 | SICK O P E R A T I N G I N S T R U C T I O N S | FTMg...

  • Page 46: Statistics

    With the Ethernet version, it is also possible to reset the counter automatically. O P E R A T I N G I N S T R U C T I O N S | FTMg 8024344.1NS6/2024-10-23 | SICK Subject to change without notice...

  • Page 47: System

    • Set the geohash tag in the Geohash submenu. 8024344.1NS6/2024-10-23 | SICK O P E R A T I N G I N S T R U C T I O N S | FTMg Subject to change without notice...
  • Page 48 Set user-specific tags in the User Def 1/2/3 submenu. O P E R A T I N G I N S T R U C T I O N S | FTMg 8024344.1NS6/2024-10-23 | SICK Subject to change without notice...

  • Page 49: Troubleshooting

    Temperature of the process medium out‐ side the permissible temperature range 8024344.1NS6/2024-10-23 | SICK O P E R A T I N G I N S T R U C T I O N S | FTMg Subject to change without notice...
  • Page 50 Internal temperature too high. Check ambi‐ high! ent conditions. O P E R A T I N G I N S T R U C T I O N S | FTMg 8024344.1NS6/2024-10-23 | SICK Subject to change without notice...

  • Page 51: Repair

    The return form is available at our Internet address (www.sick.com). 8024344.1NS6/2024-10-23 | SICK O P E R A T I N G I N S T R U C T I O N S | FTMg...

  • Page 52: Disposal

    O P E R A T I N G I N S T R U C T I O N S | FTMg 8024344.1NS6/2024-10-23 | SICK Subject to change without notice...

  • Page 53: Technical Data

    Response time < 0.3 s Measuring accuracy (temperature) ± 2 °C Repeatability (temperature) ± 0.5 °C 8024344.1NS6/2024-10-23 | SICK O P E R A T I N G I N S T R U C T I O N S | FTMg Subject to change without notice...

  • Page 54: Electrical Connection Values Industrial Version

    Connection type 1 x M12 round connector, 8-pin, X-coded O P E R A T I N G I N S T R U C T I O N S | FTMg 8024344.1NS6/2024-10-23 | SICK Subject to change without notice...

  • Page 55: Mechanics/Materials

    31 °C; installation altitude: max. 3,000 m above sea level. 14.7 Dimensional drawings All dimensions in mm [inch] 8024344.1NS6/2024-10-23 | SICK O P E R A T I N G I N S T R U C T I O N S | FTMg Subject to change without notice...

  • Page 56: Ftmg Dn15, Dn20, Dn25

    Ø 27.3 [Ø 1.07] Ø 33.5 [Ø 1.32] 13.4 [ 0.53] O P E R A T I N G I N S T R U C T I O N S | FTMg 8024344.1NS6/2024-10-23 | SICK Subject to change without notice...

  • Page 57: Ftmg Dn40, Dn50

    2111055 273.0 136.5 25.0 24.1 Ø 34.0 1'' NPT 8024344.1NS6/2024-10-23 | SICK O P E R A T I N G I N S T R U C T I O N S | FTMg Subject to change without notice...

  • Page 58: Accessories

    ACCESSORIES Accessories You can find accessories online at www.sick.com/FTMg. O P E R A T I N G I N S T R U C T I O N S | FTMg 8024344.1NS6/2024-10-23 | SICK Subject to change without notice...

  • Page 59: Menu Overview

    Simulate Normal Active Inactive abort store 8024344.1NS6/2024-10-23 | SICK O P E R A T I N G I N S T R U C T I O N S | FTMg Subject to change without notice...
  • Page 60 Fail 3.5mA 21.5mA abort store O P E R A T I N G I N S T R U C T I O N S | FTMg 8024344.1NS6/2024-10-23 | SICK Subject to change without notice...
  • Page 61 Temperature °C °F abort store Pressure abort store 8024344.1NS6/2024-10-23 | SICK O P E R A T I N G I N S T R U C T I O N S | FTMg Subject to change without notice...
  • Page 62 ISO6358 abort store RefPress ## # bar abort store O P E R A T I N G I N S T R U C T I O N S | FTMg 8024344.1NS6/2024-10-23 | SICK Subject to change without notice...
  • Page 63 Flow Velocity abort store Reset (action required) abort store 8024344.1NS6/2024-10-23 | SICK O P E R A T I N G I N S T R U C T I O N S | FTMg Subject to change without notice...
  • Page 64 Calibration (read only) BLVersion (read only) HWVersion (read only) O P E R A T I N G I N S T R U C T I O N S | FTMg 8024344.1NS6/2024-10-23 | SICK Subject to change without notice...

  • Page 65: Ethernet Variant

    Details (read only) Port ##### abort store 8024344.1NS6/2024-10-23 | SICK O P E R A T I N G I N S T R U C T I O N S | FTMg Subject to change without notice...
  • Page 66 Temperature active inactive abort store O P E R A T I N G I N S T R U C T I O N S | FTMg 8024344.1NS6/2024-10-23 | SICK Subject to change without notice...
  • Page 67 ScreenSaver 1min 2min 5min 10min 30min 60min abort store 8024344.1NS6/2024-10-23 | SICK O P E R A T I N G I N S T R U C T I O N S | FTMg Subject to change without notice...
  • Page 68 ## # bar abort store Filter 100ms 200ms 500ms abort store O P E R A T I N G I N S T R U C T I O N S | FTMg 8024344.1NS6/2024-10-23 | SICK Subject to change without notice...
  • Page 69 FactReset (action required) abort store SerialNumber (read only) 8024344.1NS6/2024-10-23 | SICK O P E R A T I N G I N S T R U C T I O N S | FTMg Subject to change without notice...
  • Page 70 User Def 1 User Def 2 User Def 3 O P E R A T I N G I N S T R U C T I O N S | FTMg 8024344.1NS6/2024-10-23 | SICK Subject to change without notice...

  • Page 71: Annex

    You can obtain declarations of conformity, certificates, and the current operating instructions for the product at www.sick.com. To do so, enter the product part number in the search field (part number: see the entry in the “P/N” or “Ident. no.” field on the type label).
  • Page 72 Phone +65 6744 3732 Phone +30 210 6825100 Phone +65 6744 3732 E-Mail sales.gsg@sick.com E-Mail office@sick.com.gr E-Mail sales.gsg@sick.com Hong Kong Slovakia Phone +852 2153 6300 Phone +421 482 901 201 E-Mail ghk@sick.com.hk E-Mail mail@sick-sk.sk Detailed addresses and further locations at www.sick.com SICK AG  |  Waldkirch  |  Germany  |  www.sick.com...

This manual is also suitable for:
