Hella 2SD 959 010-2 Series Mounting Instructions

INSTRUCTION SHEET
2SD 959 010-2xx / 2VB 959 010-8xx / 2399
for:
ADR - APPLICATION AND
MOUNTING INSTRUCTIONS
83mm ROUND STOP, REAR POSITION & INDICATOR LAMP
MULTIVOLT 12 / 24V DC
Lens Marking and ADR 13/00 Installation Requirements
This Stop / Rear Position / Indicator Lamp, identified by lens marking 9010 and the
comply with
ADR 49/00 Rear Position (Side) / Stop Lamps
ADR 6/00 Cat 2a Rear Direction Indicator Lamps
A tolerance of +/-3 degrees applies on all mounting details.

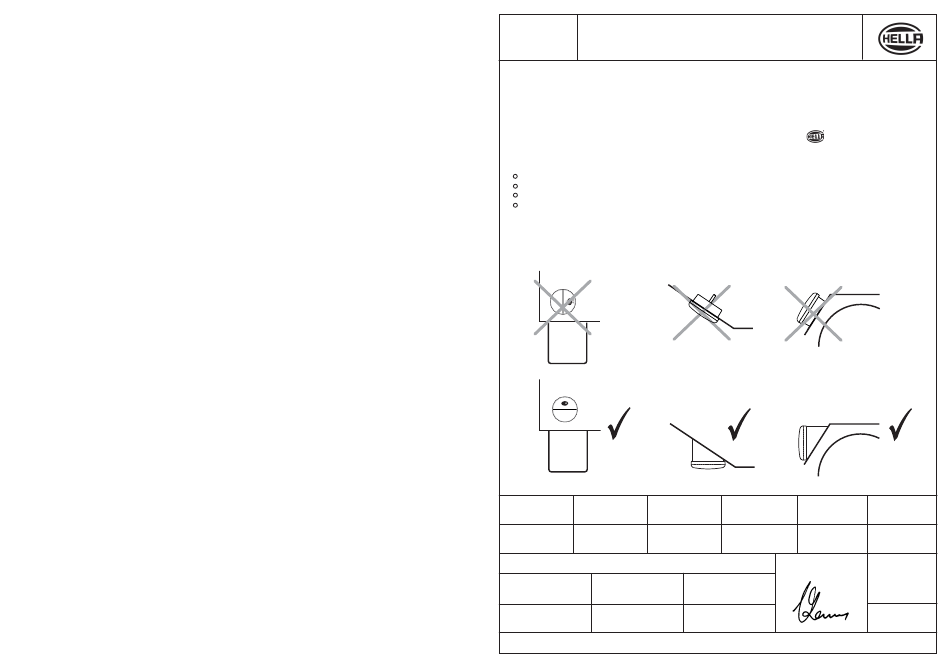

Lamp mounting surface must be vertical to the ground, and at right angles to the longitudinal axis of the vehicle.
Lamp must be visible from 45° inboard and 80° outboard, as well as from 15° above and below the horizontal axis.
Lamp is approved to be mounted only with lens engraving "TOP" located correctly.
Note: Lamp does not include a reflex reflector
Please refer to ADR 13/00 for more details.
Rear View
TOP
9010
LENS IDENTIFICATION NUMBER: 9010
CATALOGUE ENGINEERING CRN
NUMBER NUMBER NUMBER
37114
2399 959 010-20 37115
37716
AMENDMENTS
01/07 10/08
Hella-New Zealand Limited, Auckland
logo was manufactured to
Side View
Top View
COMPLIANCE ADR 51/00
NUMBER GLOBE
N/A
8-2399-17
LED
ADR COMPLIANCE
VERIFIED
ADR
APPLICABLE
ADR 49/00
ADR 6/00 Cat 2a
ISSUE DATE:
10/06
959 150-30
