INSTRUCTION SHEET
2PT 980 860-8xx / 5630 / 5630-24V
for:
APPLICATION AND MOUNTING INSTRUCTIONS
15° LED SAFETY DAYLIGHTS™ - DRL KIT
2PT 980 860-8xx / 5630: 12V DC Only
Lens Marking and Installation Requirements
This lamp, identified by lens marking E24 5863 and the
Regulation No. 87 for Daytime Running Lamps.
• The reference axis of the lamp must be parallel to the longitudinal axis of the vehicle (i.e. The 15° line
marked on the bracket top should be perpendicular to the direction of travel).
• The centre line of the lamp module must be parallel to the ground.
• The arrow engraved on lens surface must always be pointing away from longitudinal axis of the vehicle.
• Lamp must be visible from 20° inboard and outboard, as well as from 10° above and below the horizontal
axis.
• Lamps must be mounted no less than 250 mm and no more than 1500 mm above the ground.
• Lamps should not be mounted closer than 600 mm together (400 mm if vehicle width is less than 1300 mm).
Notes: Please refer to ECE Regulation No. 48 for more details.

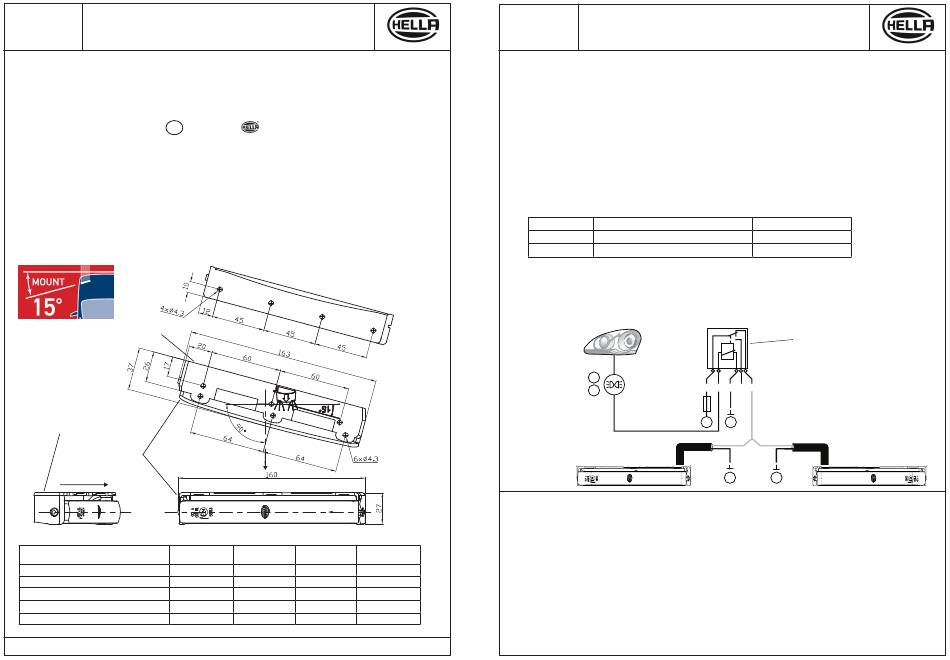

Bracket mounting
surface - Back
Bracket mounting
surface - Top
Outer end of lamp
Direction of travel
Centre
Line
Product Contents
2PT 980 860-841/
Description
15° LED Safety DayLight™ with 2.5 m cable
Mounting Bracket
Mounting Screw
5 Pin Change-over Relay
x1 (P/N 3080)
Safety DayLights™ Smart Controller (P/N 3090)
Hella-New Zealand Limited, Auckland
5630-24V: 24V DC Only
logo was manufactured to comply with ECE
Reference
Axis
2PT 980 860-842/ 2PT 980 860-871/ 2PT 980 860-872/
5630 5630-BL 5630-24V 5630-24VBL
x2 x2 x2
x2 x2 x2
x6 x6 x6
- x1 (P/N 3081)
- x1 -
Mounting Instructions
• Drill three Ø3 mm mounting holes through the desired mounting surface to allow fitment of each mounting bracket.
Please note there are left and right hand side mounting brackets, see previous page for correct positioning or
use the mounting brackets as templates.
• Tighten the mounting screws to secure the mounting bracket (Maximum torque 1.5Nm).
• Push the outer end of the lamp module into the hole at one end of the mounting bracket.
• Adjust the angle of the lamp module inside the mounting bracket so that its centre line is parallel with the ground.
• Push the inner end of the lamp module into the slot of the mounting bracket until it clicks into place.
Wiring Instructions
• It is a legal requirement for daytime running lamps to illuminate only when the ignition is switched ON and the
vehicle lighting is switched OFF.
• To meet this requirement it is recommended that a 5 pin change-over relay is utlilised as per the wiring diagram
below. For blister packed Safety DayLight™ DRL kits also refer to the mounting instructions included with the
Safety Daylights™ Smart Controller.
Wire Colour
Black
Red
Note 1: Lamps and relay must be protected by a fuse rated at 5 amperes maximum.
Note 2: Lamp is polarity conscious. The reversal of the polarity will not damage this product but will inhibit its function.
Note 3: Daytime running lamps are not a substitute for dipped beam headlights at dusk/dawn or during darkness.
Signal from
vehicle
lighting (+)
Congratulations! The product you have selected comes from Hella - one of the world's leading manufacturers of lighting products. The product
comes with a 5 year warranty from end user purchase covering faults in materials, components or workmanship.
In the unlikely event that you should experience a confirmed warranty related problem with your purchase, Hella will, at its discretion, either repair,
replace or refund the purchase price of the product.
Warranty services may be obtained by returning the product within the warranty period to the Hella Dealer where the product was originally
purchased. This warranty is in addition to and does not preclude any other rights or remedies available to the consumer under any local
x2
legislation related to the provision of goods or services.
x2
Our goods come with guarantees that cannot be excluded under the Australian Consumer Law. You are entitled to a replacement or refund for
x6
a major failure and for compensation for any other reasonably foreseeable loss or damage. You are also entitled to have the goods repaired or
replaced if the goods fail to be of acceptable quality and the failure does not amount to a major failure.
-
This warranty does not cover:
x1
1.) Claim/s as a result of normal wear and tear or of any modifications and / or alterations to the product in any shape or form.
2.) Claim/s as a result of non-compliance of the assembly, service and operating instructions and/or any unfit or improper use.
3.) Any expenses incurred in the process of making the claim.
For general comments about Hella's products please contact us on E-mail at techfeedback@hella.co.nz
958 780-18 / 11.20
INSTRUCTION SHEET
2PT 980 860-8xx / 5630 / 5630-24V
for:
Connect to Power Consumption
Terminal 31: Earth (-)
Terminal 87a: DRL signal (+)
58
30 86 85 87 87a
56
5A
Ignition (+)
15 31
Earth (-)
31
Warranty Statement
-
2 watts
Change-over Relay
31
