Hella DuraLED 2JA 959 700 Series Instruction Sheet

Warranty / Garantie / Garantie
DuraLED
Congratulations! The product you have selected comes from HELLA – one of the world's leading manufacturers of lighting products.
The product comes with a 5 year warranty from end user purchase covering faults in materials, components or workmanship.
In the unlikely event that you should experience a confirmed warranty related problem with your purchase, HELLA will, at its discretion, either
repair, replace or refund the purchase price of the product. Warranty services may be obtained by returning the product within the warranty
period to the HELLA dealer where the product was originally purchased.
This warranty is in addition to and does not preclude any other rights or remedies available to the consumer under any local legislation related
to the provision of goods or services.
Our goods come with guarantees that cannot be excluded under the Australian Consumer Law. You are entitled to a replacement
or refund for a major failure and for compensation for any other reasonably foreseeable loss or damage. You are also entitled to
have the goods repaired or replaced if the goods fail to be of acceptable quality and the failure does not amount to a major failure.
This warranty does not cover:
1. Claim/s as a result of normal wear and tear or of any modifications and / or alterations to the product in any shape or form.
2. Claim/s as a result of non-compliance of the assembly, service and operating instructions and/or any unfit or improper use.
3. Any expenses incurred in the process of making the claim.
Note: For lamps sold in Australia, warranty services are provided by Hella Australia Pty Ltd., 4 Hargrave Place, Mentone, Victoria, 3194 Australia.
Customer Service 1800 061 729 email: custservice@hella.com https://www.hella.com/hella-au/assets/media_global/IAM_Statement_of_Warranty.pdf
For general comments about HELLA'S products please contact us on E-mail at techfeedback@hellamarine.com
Herzlichen Glückwunsch! Das von Ihnen erworbene Qualitätsprodukt kommt von HELLA, einem der führenden Hersteller von
Beleuchtungssystemen weltweit, und ist mit einer Garantie von 5 Jahren ausgestattet. Diese deckt Fehler in Materialien, Komponenten
und Verarbeitung ab und gilt ab Kaufdatum.
In dem unwahrscheinlichen Fall, dass ein Produkt tatsächlich fehlerhaft ist und ein Garantiefall vorliegt, wird HELLA Ihr Produkt nach eigenem
Ermessen reparieren, ersetzen oder den Kaufpreis zurückerstatten.
Garantieleistungen können durch Rücksendung der Ware innerhalb der Garantiezeit an den HELLA-Händler, bei dem das Produkt ursprünglich
gekauft wurde, erhalten werden.
Diese Garantie gilt zusätzlich zu allen anderen Rechten oder Rechtsmitteln, die dem Verbraucher im Rahmen einer lokalen Gesetzgebung
in Bezug auf die Bereitstellung von Waren oder Dienstleistung zur Verfügung stehen und schließt diese nicht aus.
Diese Garantie gilt nicht für:
1. Ansprüche, die aus normalem Verschleiß des Produktes oder etwaigen Änderungen oder Modifikationen am Produkt in irgendeiner Form entstehen.
2. Ansprüche, die als Folge aus Nichteinhaltung der Montage-, Service-, oder Bedienungsanleitung oder durch unsachgemäßen Gebrauch entstehen.
3. Jegliche Kosten, die durch Inanspruchnahme der Garantie entstehen.
Wenn Sie Fragen oder Anmerkungen zu HELLA Produkten haben, kontaktieren Sie uns bitte per E-Mail: techfeedback@hellamarine.com
Félicitations ! Le produit que vous venez d'acquérir est conçu et fabriqué par HELLA, l'un des premiers fabricants mondiaux
d'éclairage. Ce produit est couvert par une garantie de 5 ans à partir de la date d'achat par l'utilisateur final, cette garantie couvrant
tout défaut lié à la fabrication, aux matériaux ou aux composants utilisés.
Dans l'éventualité peu probable que où rencontriez un cas avéré de garantie sur le produit acheté, HELLA pourra, à sa discrétion, soit réparer,
soit remplacer le produit ou encore rembourser celui-ci à hauteur de sa valeur d'achat.
Pour toute demande de prise en charge d'un produit sous garantie, veuillez retourner celui-ci dans les délais impartis auprès du revendeur
HELLA où l'achat a été effectué.
Cette garantie s'applique en complément et ne s'oppose pas à tous autres droits ou recours dont le consommateur pourrait bénéficier au
terme de la législation locale en vigueur relative à la prestation de biens ou de services.
La garantie ne couvre pas:
1. les réclamations découlant d'une usure normale du produit ou faisant suite à toute modification ou altération du produit sous quelque forme que ce soit.
2. toute réclamation résultant du non-respect des instructions de montage, d'entretien ou d'utilisation ou encore d'un usage inadapté ou détourné du produit.
3. tout frais engendrés par la demande de prise en charge.
Pour tout commentaire ou suggestion sur les produits HELLA, nous vous invitons à nous contacter par email: techfeedback@hellamarine.com
ENGLISH
DEUTSCH
FRANCAIS

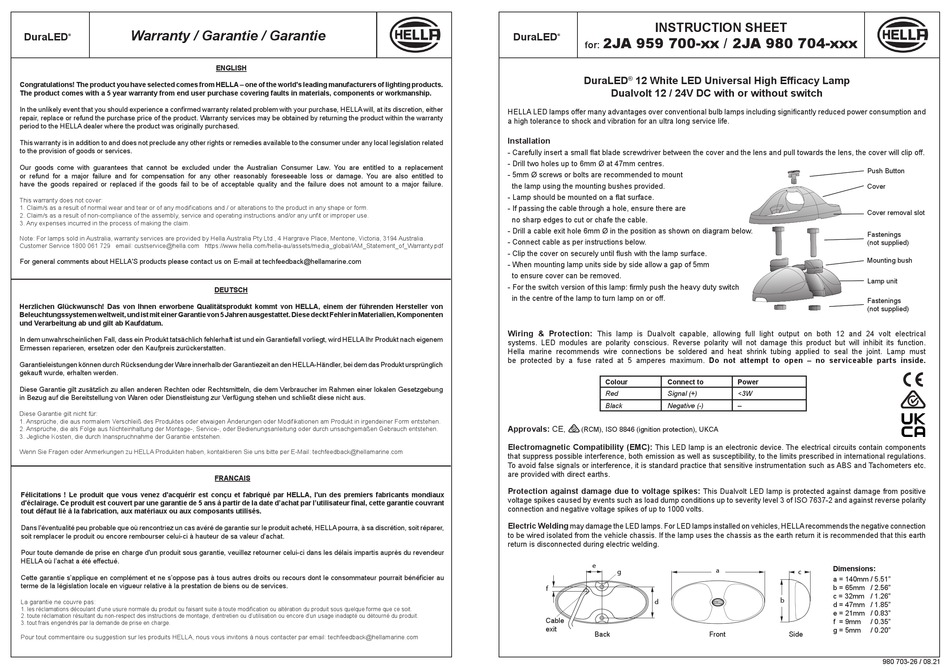

INSTRUCTION SHEET
DuraLED
2JA 959 700-xx / 2JA 980 704-xxx
for:

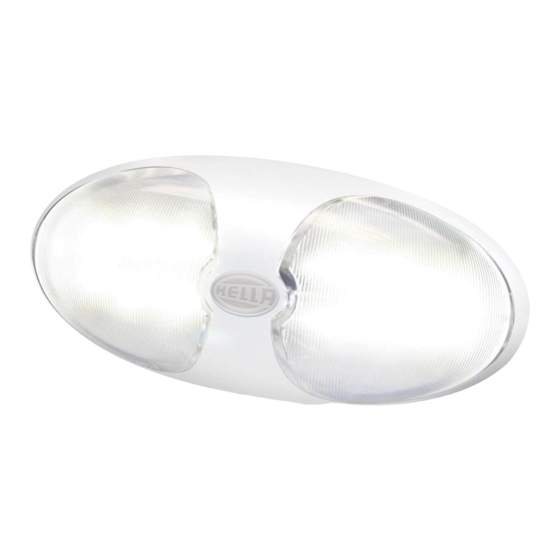

DuraLED 12 White LED Universal High Efficacy Lamp
®
Dualvolt 12 / 24V DC with or without switch
HELLA LED lamps offer many advantages over conventional bulb lamps including significantly reduced power consumption and
a high tolerance to shock and vibration for an ultra long service life.

Installation

- Carefully insert a small flat blade screwdriver between the cover and the lens and pull towards the lens, the cover will clip off.
- Drill two holes up to 6mm Ø at 47mm centres.
- 5mm Ø screws or bolts are recommended to mount
the lamp using the mounting bushes provided.
- Lamp should be mounted on a flat surface.
- If passing the cable through a hole, ensure there are
no sharp edges to cut or chafe the cable.
- Drill a cable exit hole 6mm Ø in the position as shown on diagram below.
- Connect cable as per instructions below.
- Clip the cover on securely until flush with the lamp surface.
- When mounting lamp units side by side allow a gap of 5mm
to ensure cover can be removed.
- For the switch version of this lamp: firmly push the heavy duty switch
in the centre of the lamp to turn lamp on or off.
Wiring & Protection: This lamp is Dualvolt capable, allowing full light output on both 12 and 24 volt electrical
systems. LED modules are polarity conscious. Reverse polarity will not damage this product but will inhibit its function.
Hella marine recommends wire connections be soldered and heat shrink tubing applied to seal the joint. Lamp must
be protected by a fuse rated at 5 amperes maximum.
Colour Connect to
Red Signal (+)
Black Negative (-)
Approvals: CE,
(RCM), ISO 8846 (ignition protection), UKCA

Electromagnetic Compatibility (EMC):

This LED lamp is an electronic device. The electrical circuits contain components
that suppress possible interference, both emission as well as susceptibility, to the limits prescribed in international regulations.
To avoid false signals or interference, it is standard practice that sensitive instrumentation such as ABS and Tachometers etc.
are provided with direct earths.

Protection against damage due to voltage spikes:

voltage spikes caused by events such as load dump conditions up to severity level 3 of ISO 7637-2 and against reverse polarity
connection and negative voltage spikes of up to 1000 volts.

Electric Welding

may damage the LED lamps. For LED lamps installed on vehicles, HELLA recommends the negative connection
to be wired isolated from the vehicle chassis. If the lamp uses the chassis as the earth return it is recommended that this earth
return is disconnected during electric welding.
e
g
f
d
Cable
exit
Back
Push Button
Cover
Cover removal slot
Fastenings
(not supplied)
Mounting bush
Lamp unit
Fastenings
(not supplied)
Do not attempt to open – no serviceable parts inside.
Power
<3W
–
This Dualvolt LED lamp is protected against damage from positive
Dimensions:
a
c
a = 140mm / 5.51"
b = 65mm / 2.56"
c = 32mm / 1.26"
b
d = 47mm / 1.85"
e = 21mm / 0.83"
f = 9mm / 0.35"
g = 5mm / 0.20"
Front Side
980 703-26 / 08.21
