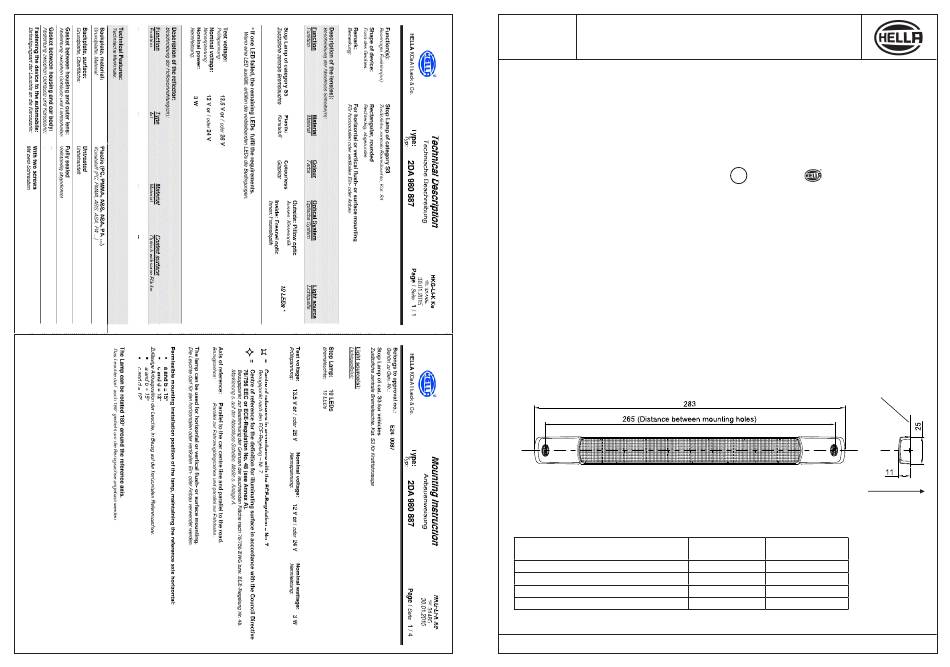

Hella 2DA 980 887 Series Mounting Instructions

INSTRUCTION SHEET
2DA 980 887-xxx / 5245
for:
APPLICATION AND
MOUNTING INSTRUCTIONS
LED HIGH LEVEL BRAKE LIGHT
2DA 980 887-3xx / 5245:
2DA 980 887-4xx / 5245-24V:
Lens Marking and Installation Requirements
This High Level Brake Light identified by lens marking E
to comply with:
ECE Regulation No. 7 Rear Position (side) / Stop Lamp (Category S3)
• A tolerance of +/-3° applies on all mounting details.
• Lamp mounting surface must be vertical to the ground, and at right angles to the longitudinal axis of
the vehicle.
• Lamp module must be visible from 10° inboard and outboard, as well as from 10° above and 5°
below the horizontal axis.
• Lamp module must be fitted at a height of no more than 150mm below the lower edge of the rear
• window, and no less than 850mm above the road surface.
• Lamp module must be placed above the existing stop lamps and as close to the centreline of the
vehicle as physically possible.
• Lamp is approved to be mounted horizontally and vertically with an allowable rotation shown in the
diagram over page.
Note: Please refer to ECE Regulation No. 48 for more details.
Centre
Line
LENS IDENTIFICATION NUMBER: 0880 A
Product Contents
Description
LED High Level Brake Light with 2.5 m cable
Screw Cap
Mounting Screw
Application and Mounting Instructions
Hella-New Zealand Limited, Auckland
12V DC Only
24V DC Only
0087 and the logo was manufactured
24
Lamp mounting surface
Reference
2DA 980 887-3xx 2DA 980 887-4xx
5245 5245-24V
x1 x1
x2 x2
x2 x2
x1 x1
Axis
Direction of travel
