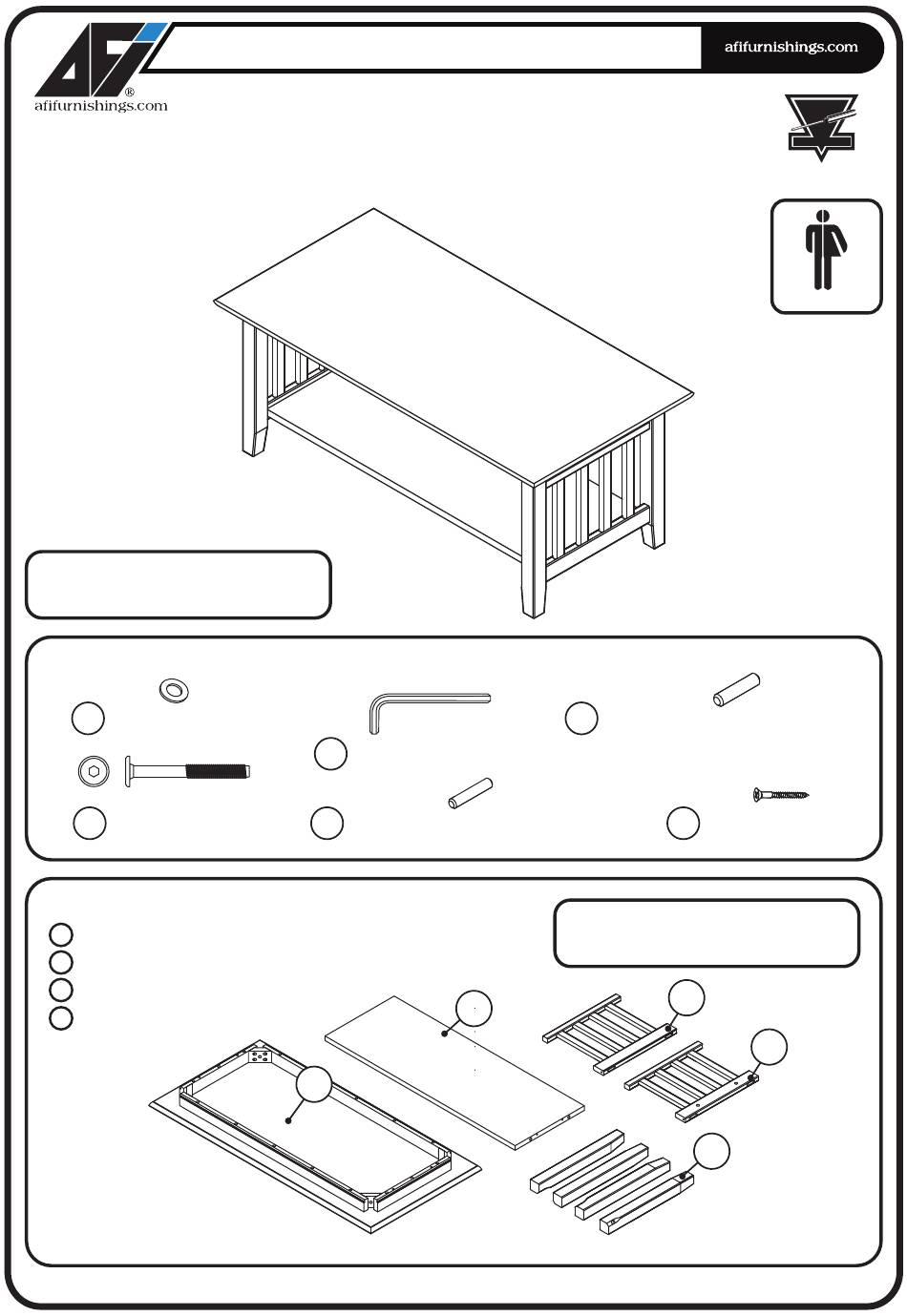

AFi TB-CF-MSN Assembly Instructions

Coffee table

Advertisement

Quick Links

Before assembling your coffee table, please read through these
instructions carefully and familiarize yourself with the different parts.
please contact afifurnishings at customerservice@afifurnishings.com or 1-800-955-3726
CODE
ITEM
TB-CF-MSN
H-7823X
NOTE: WE INCLUDE SPARE HARDWARE IN CASE DAMAGE OCCURS DURING ASSEMBLY.
A
Flat washer - 4 pcs
B
JCB M8 - 4 pcs
Spare - 1 pc
TOP PANEL
01
LEG
02
SIDE PANEL
03
LOWER SHELF
04
COFFEE TABLE
ASSEMBLY INSTRUCTIONS
ATTENTION! If you receive a damaged or defective item,
C
Allen wrench - 1 pc
D
Wooden dowel 1/4" X 1 1/4" - 4 pcs
PARTS LIST
1 PC
4 PCS
2 PCS
1 PC
01
E
Wooden dowel 3/8 X 1 1/4" - 4 pcs
Spare - 1 pc
PO:
04
READY
TO
ASSEMBLE
Adult assembly
Adult assembly
Spare - 1 pc
F
Wood screw - 8 pcs
Spare - 2 pcs
03
03
02
Page 1 of 3

Advertisement

loading
Need help?

Need help?

Do you have a question about the TB-CF-MSN and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for AFi TB-CF-MSN

  • Page 1 1-800-955-3726 Adult assembly Adult assembly CODE ITEM TB-CF-MSN H-7823X NOTE: WE INCLUDE SPARE HARDWARE IN CASE DAMAGE OCCURS DURING ASSEMBLY. Flat washer - 4 pcs Wooden dowel 3/8 X 1 1/4” - 4 pcs...
  • Page 2 Attach the legs (02) to the top panel (01) using flat washers (A) and JCB (B), tighten Step 1 with Allen wrench (C), as shown below. Adult assembly Adult assembly STEP 2 STEP 3 Attach first side panel (03) to coffee table Install wooden dowels (D) and (E) into the aligning the dowels with the holes in the locator holes on (03) and (04) as shown below.
  • Page 3 Attach second side panel (03) the same as the first but place the lower shelf (04) in Step 4 position by aligning the wooden dowels with the holes in the side panel. Adult assembly Adult assembly Apply presure to eliminate any gap between the lower shelf Step 5 and the side panel and fix in place using wood screw (F).
