please contact afifurnishings at customerservice@afifurnishings.com or 1-800-955-3726
PARTS LIST
1
FOOT RAIL
2
LEFT LEG
3
RIGHT LEG
4
SIDE RAILS
5
SLAT KIT
NOTE: WE INCLUDE SPARE HARDWARE IN CASE DAMAGE OCCURS DURING ASSEMBLY.
Step 1
Attach the legs (2) and (3)
to foot rail (1), using wood dowel
(C) JCB M6 X 100mm (A) and
barrel nut (B).
Tighten with the Allen wrench (F).
Cover holes with wood button (D) as shown.
Step 2
Attach the side rails (04) to the headboard and footboard (1) using
the bed hook as shown below.
4
1
PO:

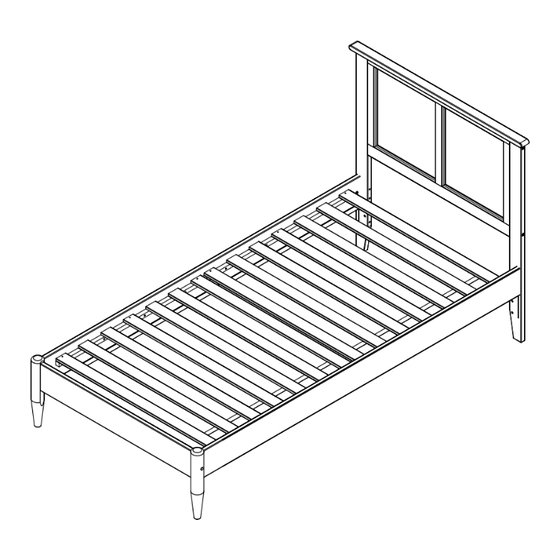

BED FRAME
ASSEMBLY INSTRUCTIONS
Before assembling your bed frame, please read through these
instructions carefully and familiarize yourself with the different parts.
ATTENTION! If you receive a damaged or defective item,
A
JCB M6 X 70mm (2 3/4") - 2 pcs
1 PC
B
Barrel nut - 2 pcs
1 PC
1 PC
C
Wood dowel 10 X 30mm( 1 1/4") - 4 pcs
2 PCS
2 SET
D
Wood button - 2 pcs
A
2
4
TWIN XL
Spare - 1 pc
Spare - 1 pc
Spare - 1 pc
C
1
B
HARDWARE
E
Wood screw(1 1/4") - 12 pcs
F
Allen wrench M4 - 1pc
wood button
D
C
A
B
3
Center set of pins.
CODE
ITEM
FR-PDA-STO
R-21031X
READY
TO
ASSEMBLE
Spare - 1 pc
Spare - 1pc
Adult assembly
A
JCB M6 X 70mm
B
Barrel nut
C
Wood dowel
D
Wood button
Page 1 of 2
