instructions carefully and familiarize yourself with the different parts.
please contact afifurnishings at customerservice@afifurnishings.com or 1-800-955-3726
NOTE: WE INCLUDE SPARE HARDWARE IN CASE DAMAGE OCCURS DURING ASSEMBLY.
A
Flat washer - 4 pcs
B
JCB M8 - 4 pcs
Spare - 1 pc
TOP PANEL
01
LEG
02
SIDE PANEL
03
LOWER SHELF
04

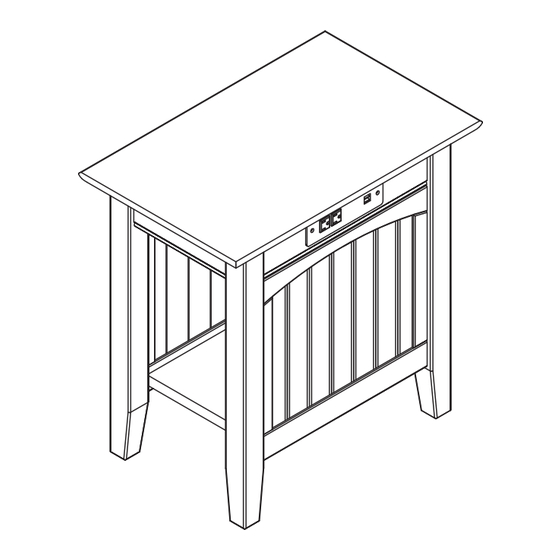

SIDE TABLE CHARGING STATION
ASSEMBLY INSTRUCTIONS
Before assembling your side table, please read through these
ATTENTION! If you receive a damaged or defective item,
C
Allen wrench - 1 pc
D
Wooden dowel 1/4" X 1 1/4" - 4 pcs
PARTS LIST
1 PC
4 PCS
2 PCS
1 PC
01
03
E
Spare - 1 pc
PO :
04
03
Wooden dowel 3/8 X 1 1/4" - 4 pcs
Spare - 1 pc
F
Wood screw - 8 pcs
Spare - 2 pcs
CODE
ITEM
TB-SD-NKT
H-7806X
02
READY
TO
ASSEMBLE
Adult assembly
Page 1 of 3
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for AFi H-7806X
Summary of Contents for AFi H-7806X
- Page 1 Wood screw - 8 pcs Spare - 1 pc Spare - 2 pcs Spare - 1 pc PARTS LIST PO : TOP PANEL 1 PC 4 PCS SIDE PANEL 2 PCS CODE ITEM LOWER SHELF 1 PC TB-SD-NKT H-7806X Page 1 of 3...
- Page 2 Attach the legs (02) to the top panel (01) using flat washers (A) and JCB (B), tighten STEP 1 with allen wrench (C), as shown below. Adult assembly STEP 2 STEP 3 Attach first side panel (03) to side table Install wooden dowels (D) and (E) into the aligning the dowels with the holes in the locator holes on (03) and (04) as shown below.
- Page 3 Attach second side panel (03) the same as the first but place the lower shelf (04) in STEP 4 position by aligning the wooden dowels with the holes in the side panel. Adult assembly Apply presure to eliminate any gap between the lower shelf STEP 5 and the side panel and fix in place using wood screw (F).
