Bloomfield 2790TF Series Owner's Manual

Dual thermal coffee brewers with e-max control
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
664
10 Sunnen Drive
St. Louis, MO 63143
telephone: 314-678-6336
fax: 314-781-2714
OWNERS MANUAL
www.bloomfieldworldwide.com
for
2790TF-SERIES
DUAL THERMAL
COFFEE BREWERS
with
E-Max
CONTROL
MODEL:
2790TF
Includes:
Installation
Operation
Use & Care
Servicing Instructions
IL2839

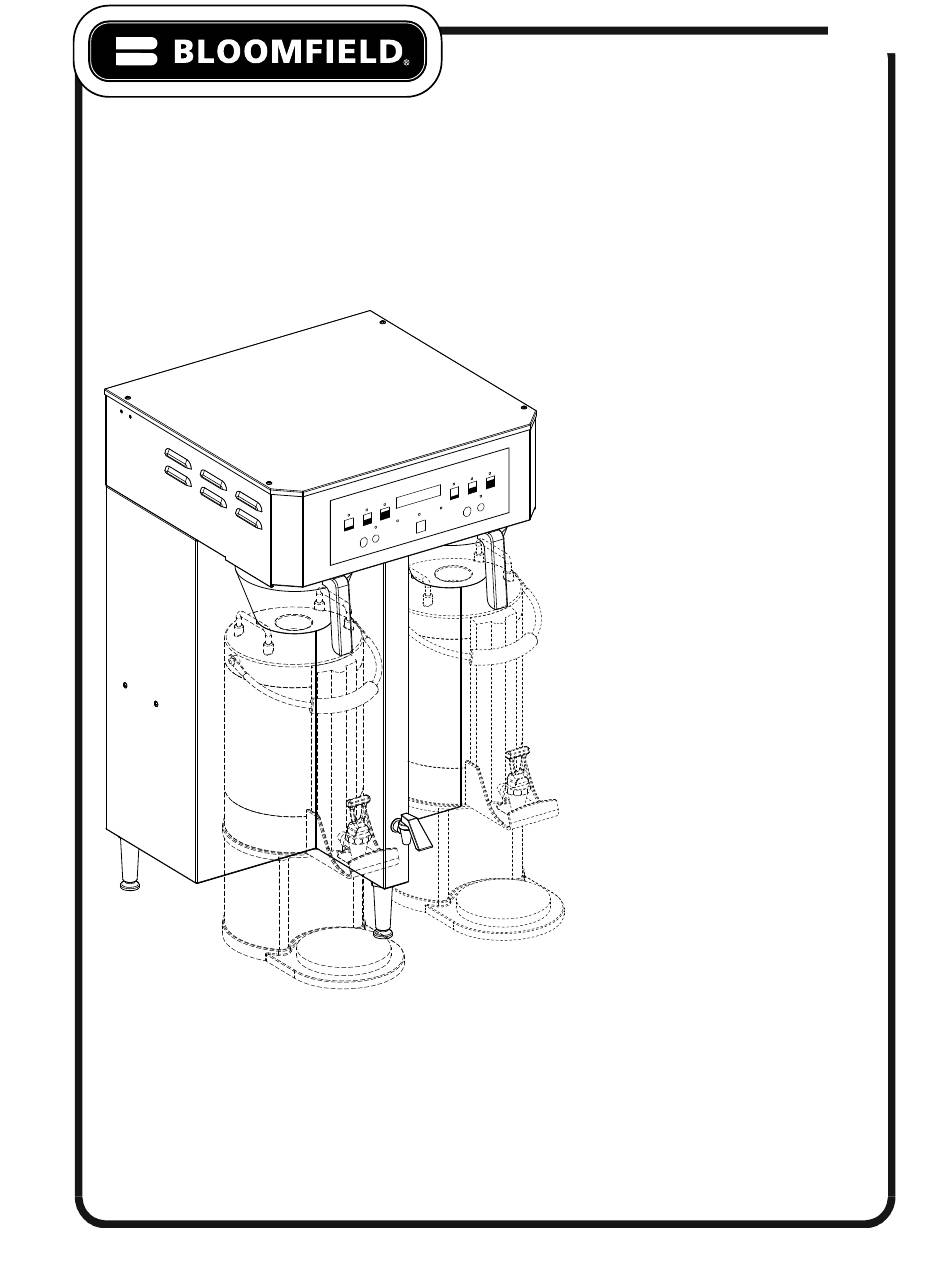

Model 2790TF Dual Thermal E-Max Brewer
2M-Z18642
14
p/n
Rev.-
M664
0624

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 2790TF Series and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Bloomfield 2790TF Series

Summary of Contents for Bloomfield 2790TF Series

  • Page 1 10 Sunnen Drive St. Louis, MO 63143 telephone: 314-678-6336 fax: 314-781-2714 OWNERS MANUAL www.bloomfieldworldwide.com 2790TF-SERIES DUAL THERMAL COFFEE BREWERS with E-Max CONTROL MODEL: 2790TF Includes: Installation Operation Use & Care Servicing Instructions IL2839 Model 2790TF Dual Thermal E-Max Brewer 2M-Z18642 Rev.- M664 0624...
