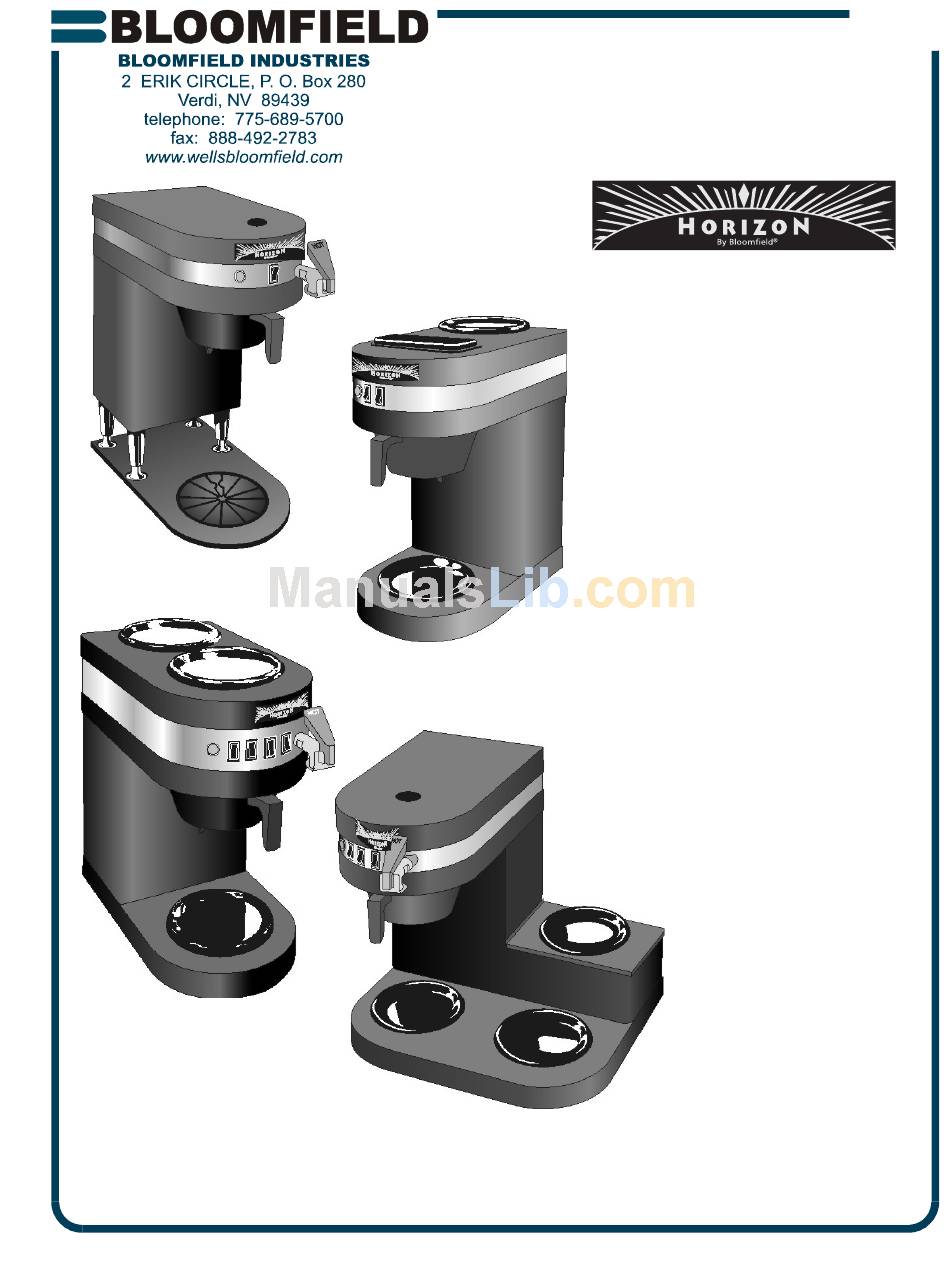

Model: 0482 Airpot Brewer
Model: 0412 In-Line
Decanter Brewer
77110
p/n
Rev.D ECN-12903
Model: 0443 Pour-Over
Decanter Brewer
Model: 0472 Stepped –Right
Decanter Brewer
PRINTED IN CHINA
OWNERS MANUAL
For
COFFEE BREWERS
MODELS:
0412 Decanter (In-Line)
0443 Decanter (In-Line
Pour-Over)
0471 Decanter (Step-up
Pour Over)
0472 Decanter (Step-Up)
0482 Airpot/Thermal
Server
Includes:
Installation
Operation
Use & Care
Servicing Instructions
685
05
M685
0809 cps

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Horizon 0412 and is the answer not in the manual?

Questions and answers

Related Manuals for Bloomfield Horizon 0412

Summary of Contents for Bloomfield Horizon 0412

  • Page 1 Model: 0482 Airpot Brewer Model: 0412 In-Line Decanter Brewer Model: 0472 Stepped –Right Decanter Brewer 77110 Rev.D ECN-12903 0412 Decanter (In-Line) 0443 Decanter (In-Line 0471 Decanter (Step-up 0472 Decanter (Step-Up) 0482 Airpot/Thermal Model: 0443 Pour-Over Decanter Brewer PRINTED IN CHINA...

  • Page 2: Warranty Statement

    It also does not apply if the serial nameplate has been removed or unauthorized service personnel perform service. The prices charged by Bloomfield Industries for its products are based upon the limitations in this warranty. obligation under this warranty is limited to the repair of defects without charge by a Bloomfield Industries Authorized Service Agency or one of its sub-agencies.

  • Page 3: Specifications

    POUR-OVER DECANTER STEP-UP 0471CA 0472 AUTOMATIC DECANTER STEP-UP 0472CA 0482 AUTOMATIC AIRPOT 0482CA meets Canadian Standards This manual applies to the following Bloomfield Industries products: 0412 0443 0471 0472 0482 SPECIFICATIONS FEATURES VOLTS WATTS 1800 3 WARMER FAUCET 1500 1700...
  • Page 4 FEATURES AND OPERATING CONTROLS - AUTOMATIC BREWERS Fig. 1 Features & Operating Controls for Automatic Brewers...
  • Page 5 FEATURES AND OPERATING CONTROLS - POUR-OVER BREWERS Fig. 2 Features & Operating Controls for Pour-Over Brewers...

  • Page 6: Precautions And General Information

    PRECAUTIONS AND GENERAL INFORMATION WARNING: ELECTRIC SHOCK HAZARD All servicing requiring access to non-insulated components must be performed by qualified service personnel. Do not open any access panels which require the use of tools. Failure to heed this warning can result in electrical shock. WARNING: INJURY HAZARD All installation procedures must be performed by qualified personnel with full knowledge of all...

  • Page 7: Installation

    READ THIS CAREFULLY BEFORE STARTING THE INSTALLATION Unpack the unit. Inspect all components for completeness and condition. Ensure that all packing materials have been removed from the unit. Verify that the Spray Head Gasket and Spray Disk are properly installed. LEVELING THE UNIT Verify that an adjustable leg is installed at each corner of the brewer.
  • Page 8 NOTE: Water supply inlet line must meet certain minimum criteria to insure successful operation of the brewer. Bloomfield recommends 1/4" copper tubing for installation of less than 12 feet and 3/8" for more than 12 feet from a 1/2" water supply line.
  • Page 9 ELECTRICIAN’S INSTALLATION INSTRUCTIONS REFER TO ELECTRICAL SPECIFICATIONS - Page 1 Check the nameplate to determine correct electrical service required for the Brewer to be installed. IMPORTANT: Before connecting to electricity, make sure automatic brewers are connected to the water supply. NOTE: Does not apply to 0443 and 0471 pour-over brewers.

  • Page 10: Operation

    2. Remove the FILL PLUG from the fill hole. NOTE: On Model 0412, insert provided funnel in the fill hole. Pour three (3) full decanters of water into the FILL HOLE. When water flows from the brew head, the tank is full.

  • Page 11: Brewing Coffee

    A. PREPARATION Place one (1) genuine Bloomfield paper filter in the brew chamber. Add a pre-measured amount of fresh coffee grounds. Gently shake the brew chamber to level the bed of grounds. Slide the brew chamber into place under the brew head.

  • Page 12: Cleaning Instructions

    CLEANING INSTRUCTIONS CAUTION: BURN HAZARD Brewing and serving temperatures of coffee are extremely hot. Hot coffee will cause serious skin burns. CAUTION: SHOCK HAZARD Do not submerge or immerse brewer in water. IMPORTANT: DO NOT use steel wool, sharp objects, or caustic, abrasive or chlorinated cleansers to clean the brewer, decanters or airpots.

  • Page 13: Troubleshooting Suggestions

    Allow to cool hi-limit will self- reset Examine wiring & connectors, thermostat and heating element Repair/replace as needed Adjust timer Use one (1) genuine Bloomfield filter per brew Thoroughly clean brew chamber Use correct grind and amount of coffee Check/reinstall gasket on...

  • Page 14: Servicing Instructions

    Top panel is held by screws around the edge. FRONT PANEL: Remove front panel to access timer. Models 0412 and 0443: Front panel and main warmer panel are one piece, and are held by screws around the edge and a retaining lip at the top.

  • Page 15: Temperature Adjustment

    SERVICING INSTRUCTIONS (continued) TEMPERATURE ADJUSTMENT Disconnect brewer from electric power. Remove top panel. Remove button plug from front panel. Pull vent tube out of tank lid and insert a thermometer of known accuracy in hole. Reconnect brewer to electrical power. Place empty container under brew chamber.
  • Page 16 SERVICING INSTRUCTIONS (continued) IMPORTANT: Water pressure must be between 20 p.s.i and 90 p.s.i. flowing pressure. If water pressure exceeds this value, or if water pressure varies greatly, a pressure regulator must be installed in the water supply line. NOTE: DELAY is the amount of time before a second brew can be initiated, and is factory set for 5 minutes.

  • Page 17: Replace Solenoid

    REPLACE SOLENOID Symptom: Automatic brewer will not flow water; or, automatic brewer drips continuously from brew head. NOTE: Wrench p/n 86660 is designed to allow easy removal of the hoses from the plastic solenoid valve. IMPORTANT: Shut-off water and disconnect brewer from electric power before removing hoses or wiring.

  • Page 18: Replace Timer Assembly

    Reassemble in reverse order. NOTE: This faucet body is not interchangeable with the faucets in other families of Bloomfield brewers. If the entire faucet is to be changed, use p/n 87123. Internal components may be interchanged, however.
  • Page 19 NOTE: Repeat steps 4 thru 5 as required to remove all scale and lime build-up. NOTE: Normally, silicone hoses do not need to be delimed. Should deliming hoses become necessary, Bloomfield recommends replacing the hoses.

  • Page 20: Exploded View And Parts List

    EXPLODED VIEW & PARTS LIST PLUMBING & RELATED COMPONENTS - AUTOMATIC BREWERS MODELS: 0412, 0472, 0482...
  • Page 21 EXPLODED VIEW & PARTS LIST (continued) PLUMBING & RELATED COMPONENTS - POUR-OVER BREWERS MODELS: 0443, 0471...
  • Page 22 EXPLODED VIEW & PARTS LIST (continued) CABINET & ELECTRICAL COMPONENTS - AUTOMATIC IN-LINE DECANTER BREWER MODEL: 0412...
  • Page 23 EXPLODED VIEW & PARTS LIST (continued) CABINET & ELECTRICAL COMPONENTS - POUR-OVER IN-LINE DECANTER BREWER MODEL: 0443...
  • Page 24 EXPLODED VIEW & PARTS LIST (continued) EXPLODED VIEW & PARTS LIST (continued) CABINET & ELECTRICAL COMPONENTS - AUTOMATIC STEP-UP DECANTER BREWER MODEL: 0472...
  • Page 25 EXPLODED VIEW & PARTS LIST (continued) CABINET & ELECTRICAL COMPONENTS - POUR-OVER STEP-UP DECANTER BREWER MODEL: 0471...
  • Page 26 EXPLODED VIEW & PARTS LIST (continued) CABINET & ELECTRICAL COMPONENTS - AUTOMATIC AIRPOT/THERMAL BREWER MODEL: 0482...
  • Page 27 SERVICE KITS FAUCET REPAIR KITS 82573 Handle (item 12a) 82575 Seat Cup (item 12c) 82576 Faucet Repair Kit (Includes 12a Handle, 12c Seat Cup, 12d Spring, 12h Stem, 12j Pin & 12k Bonnet 82682 Retainer Clip (item 12b) 84804 Aerator Replacement Kit (Includes 12e O-Ring, 12f Aerator Disk & 12g Aerator Cap 84870 Aerator Repair Kit (Includes 12e O-Ring &...

  • Page 28: Wiring Diagram

    WIRING DIAGRAM AUTOMATIC BREWERS...
  • Page 29 WIRING DIAGRAM (continued) POUR-OVER BREWERS...
  • Page 30 Bloomfield Industries proudly supports CFESA Commercial Food Equipment Service Association Bloomfield Industries, Inc. Division of Carrier Commercial Refrigeration In US and Canada Telephone: 775-689-5700 Fax: 888-492-2783 Fax: 800-356-5142 ( for orders only website: www.wellsbloomfield.com PRINTED IN CHINA...
