655
10 Sunnen Drive
St. Louis, MO 63143
telephone: 314-678-6336
fax: 314-781-2714
OWNERS MANUAL
www.bloomfieldworldwide.com
for
2795TF- SERIES
THERMAL
COFFEE BREWER
with
E-Max
CONTROL
MODEL:
2795TF
Includes:
Installation
Operation
Use & Care
Servicing Instructions
Exploded View & Parts List

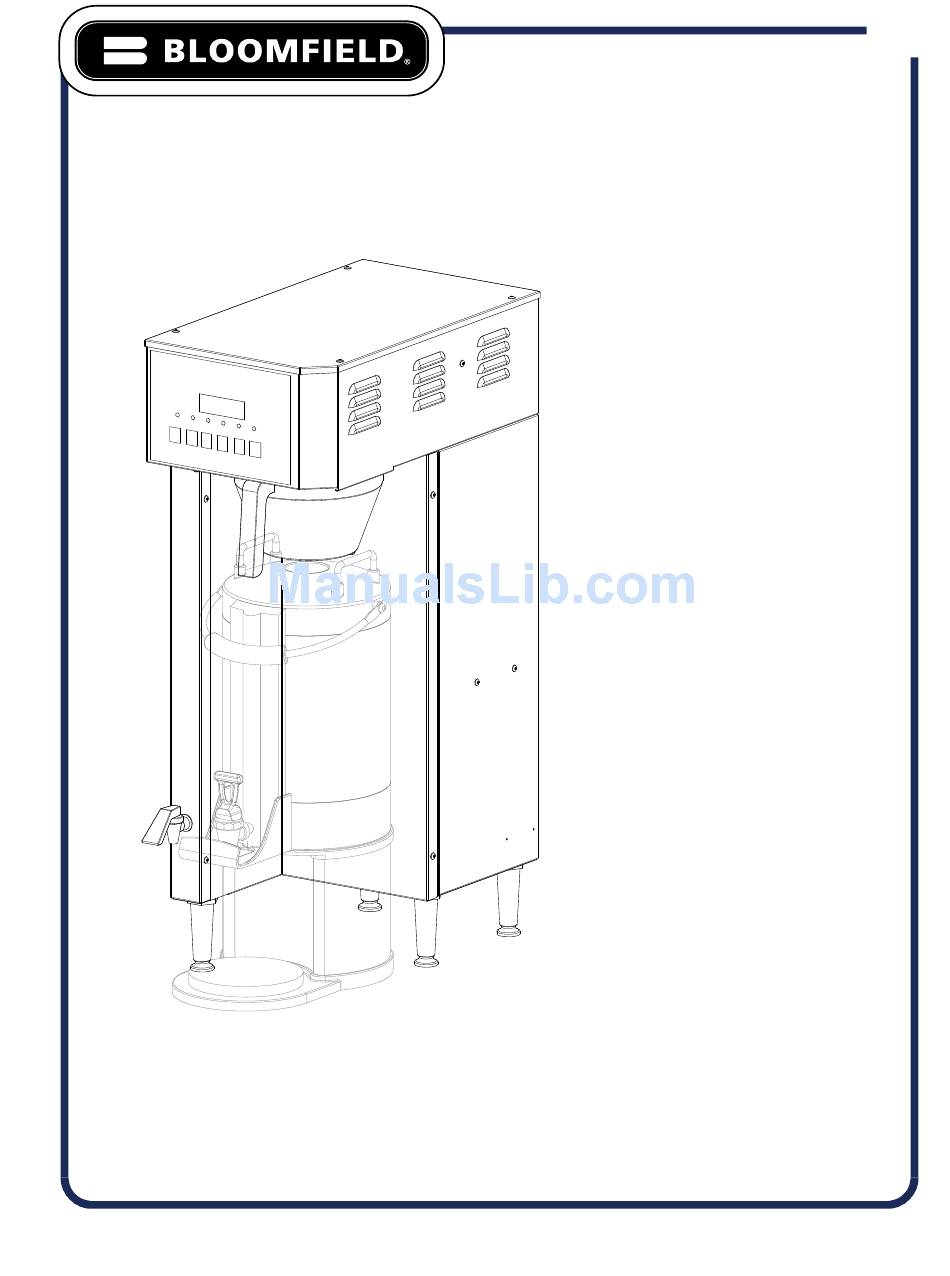

Model 2795TF Single E-Max Thermal Brewer
(Servers Sold Separately)
Z17970
14
0422
p/n 2M-
Rev. A
M655
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Bloomfield 2795TF
Summary of Contents for Bloomfield 2795TF
-
Page 1: Servicing Instructions
2795TF- SERIES THERMAL COFFEE BREWER with E-Max CONTROL MODEL: 2795TF Includes: Installation Operation Use & Care Servicing Instructions Exploded View & Parts List Model 2795TF Single E-Max Thermal Brewer (Servers Sold Separately) Z17970 0422 p/n 2M- Rev. A M655... -
Page 2: Warranty Statement
Bloomfield for its products are based upon the limitations in this warranty. Seller’s obligation under this warranty is limited to the repair of defects without charge by a Bloomfield Authorized Service Agency or one of its sub-agencies. This service will be provided on customer’s premises for non-portable models. -
Page 3: Table Of Contents
SPECIFICATIONS Model Volts Watts Amps Phase Power Cord 2795 120/240V 3/W N 50/60 3050 12.7 None 11 13/16” 35 1/2” 23 9/16” 23 7/16” Water Inlet Electrical Inlet On / Off Switch IL2719 2795TF SHOWN ABOVE... -
Page 4: Features & Operating Controls
FEATURES AND OPERATING CONTROLS BREWER BYPASS Model 2795 DIVERTER CONTROL PANEL BREW CHAMBER BREW ACCESSORIES CHAMBER ON / OFF THERMAL SWITCH SERVER HOT WATER DRIP TRAY HOT WATER FAUCET BREW HEAD WATER (BREW CHAMBER CONNECTION REMOVED) BREW NOZZLE SPRAY HEAD GASKET SPRAY DISK... - Page 5 FEATURES AND OPERATING CONTROLS (continued) Brewer Adjustable Legs Allows brewer to be leveled. Also allow clearance for cleaning underneath brewer. Brewing Controls Start or stop brew and select brew volume. Dilution water flows into brew chamber channel from here. Bypass Valve Dilution water DOES NOT flow through the coffee grounds.
-
Page 6: General Information & Precautions
GENERAL INFORMATION AND PRECAUTIONS WARNING: This appliance is intended for use in commercial establishments SHOCK HAZARD only. This appliance is intended to brew hot beverage, specifically coffee, All servicing requiring access for human consumption. No other use is recommended or authorized to non-insulated electrical by the manufacturer or its agents. -
Page 7: Installation
Plumbing installer must supply the regulator. Brewer must be connected to a portable water supply. ADJUST Bloomfield recommends not less than 1/4” copper tubing for HEIGHT installations of 12’ or less, and not less than 3/8” copper tubing IL2596 for installations exceeding 12’. -
Page 8: Operation
OPERATION OPERATING INSTRUCTIONS 1. Energizing the Brewer: When electricity has been connected IMPORTANT: to the unit, there will be a momentary flash of the power light. All E-Max T brewers are Turn the brewer on by pressing the POWER tested and set at the factory. If key. - Page 9 USER’S GUIDE 1. Remove the brew chamber from WARNING: under the spray head. Place one Burn Hazard PAPER (1) genuine Bloomfield paper FILTER This appliance dispenses filter into the brew chamber. Add very hot liquid. Serious your choice of pre-measured tea...
- Page 10 OPERATION (continued) PROGRAMMING FEATURES AND OPTIONS 1. View Water Temperature in Tank: To view the water temperature on the screen, E-Max T brewer must be ON, and not brewing or in the filling mode. Press and hold the 4th key, and depress the 6th key.
- Page 11 OPERATING (continued) 8. Clock A. Time – Battery Backup. The E-Max T has a battery backup system which will maintain the proper time during power failures, or when the brewer is unplugged (even for very prolonged periods of time). Normally there will not be a need to set the time except for Daylight Saving Time changes, or moving the brewer to different time zones.
- Page 12 OPERATING INSTRUCTIONS (continued) 12. View Filter Statistics: To view filter statistics, turn the brewer off. Press and hold the 1st key (Brew), and depress the 3rd (ON/OFF) key. Total water volume will be displayed (TotalVol.). Press the 3rd key to view the Filter Life (FltrLife:). Press the 3rd key to view the percentage of the filter that has been used.
- Page 13 OPERATING INSTRUCTIONS (continued) WATER FLOW WATER LEVEL PROBE VENT (TO BREW HEAD) BREW VALVE BYPASS NOZZLE BREW HEAD WATER TANK INLET VALVE HOT WATER FAUCET BREW CHAMBER W/BYPASS CHANNEL IL2307 COLD WATER HOT WATER INLET The hot water faucet is fed by the hot water tank, but The INLET VALVE is controlled by a signal from the CONTROL is otherwise independent of...
-
Page 14: Cleaning Instructions
CLEANING INSTRUCTIONS CLEANING INSTRUCTIONS CAUTION: PROCEDURE: Clean Coffee Brewer BURN HAZARD PRECAUTIONS: Press POWER key to OFF. Allow brewer to cool. Brewing and serving temperatures of coffee are FREQUENCY: Daily extremely hot. Hot coffee will cause serious TOOLS: Mild Detergent, Clean Soft Cloth or Sponge skin burns. - Page 15 CLEANING INSTRUCTIONS (continued) PROCEDURE: Clean Thermals CAUTION: BURN HAZARD PRECAUTIONS: Drain Thermal before Cleaning Brewing and serving FREQUENCY: Daily temperatures of coffee are extremely hot. TOOLS: Sanitizer, Soft Clean Cloth, Bucket Hot coffee will cause serious skin burns. IMPORTANT: DO NOT submerge thermals in water.
-
Page 16: Servicing Instructions
SERVICING INSTRUCTIONS PROCEDURE: Delime the Water Tank CAUTION: CHEMICAL BURN HAZARD PRECAUTIONS: Disconnect brewer from electric power. Allow brewer to cool. Deliming chemicals may be caustic. Wear appropriate FREQUENCY: As required (Brewer slow to heat) protective gloves and goggles during this procedure. Never TOOLS: Deliming Solution siphon deliming chemicals or... - Page 17 Should deliming hoses hold-down clamps. become necessary, Bloomfield 11. Remove spray disks and gaskets. Rinse both brew heads recommends replacing the with clean water. Using a stiff brush, scrub spray disk to hoses.
- Page 18 11. Brewer is ready to use. NOTE: Repeat steps 4 thru 7 as required to remove all scale and lime build-up. NOTE: Normally, silicone hoses do not need to be de-limed. Should de-liming hoses become necessary, Bloomfield Industries recommends replacing the hoses.
-
Page 19: Troubleshooting Suggestions
TROUBLESHOOTING SUGGESTIONS If the E-Max T goes into the error mode as outlined below, it will likely be necessary to reset the brewer in order to test individual components. Note the reset procedure below: • For the first four error modes, press and hold CANCEL for 3 seconds, or RE-ENERGIZE the brewer by disconnecting from electric power for 5 seconds, then reconnecting. -
Page 20: E-Max Ttm Test Program
Test 1st key by pressing the “BREW” key. Y u will hear a beep, and the display will change to “Test Switch 2”. Note: Bloomfield recommends that, should Test 2nd key by pressing the “CANCEL” key. You will hear a beep, and the display will change to “Test Switch 3”... - Page 21 155 indicate a defective probe.) H. Test Done. Indicates completion, press ON/OFF to reset controller. The controller should restart with the message “BLOOMFIELD”, then return to the OFF mode.
- Page 22 EXPLODED VIEW ; 2795TF CABINET AND EXTERIOR COMPONENTS SEE DETAIL 1 27 28 29 Model: 2795TF SK2731, Rev. - 12/23/13 E-Max Thermal Brewer...
- Page 23 PARTS LIST ; 2795TF CABINET AND EXTERIOR COMPONENTS Model: 2795TF E-Max Thermals Brewer Fig No. Parts List Description 2C-6349 SCREW #8X3/8 B THP STL NP D7-Z16539 TOP COVER 2V-73388 VALVE ADJ. WATER OUTLET D7-Z17807 BRACKET, BYPASS D7-76576 BRKT OUTLET VALVE...
-
Page 24: Exploded Views
EXPLODED VIEW ; 2795TF INTERIOR COMPONENTS DETAIL Model: 2795TF SK2732, Rev. - 12/23/13 E-Max Thermal Brewer: Tank Assy... - Page 25 PARTS LIST: 2795TF INTERIOR COMPONENTS Detail A: 2795 Tank Assy Fig No Part No. Q t y Description D7-73414 SHIELD HI-LIMIT 2C-73415 NUT 6-32 HEX 1.00 LG ALUM 2T-73312 THERMO HI LIMIT DBL POLE D7-WL0347 TANK COVER ASSY 2N-76571UL ELEM HEATIN 120V 1500W HW...
-
Page 26: Wiring Diagram
WIRING DIAGRAM BYPASS VALVE HEATING HEATING ELEMENT ELEMENT RIGHT LEFT 120V 1500W 120V 1500W DUMP VALVE INLET VALVE 1 WP3 HI-LIMIT 2 WP2 THERMOSTAT TRIAC 3 WP1 1 HEATER (LINE) POWER SWITCH 2 INLET (LINE) 3 DUMP (LINE) 4 POWER (HOT) 6 DUMP (NEUT) 7 POWER (NEUT) 8 INLET (NEUT) - Page 27 NOTES...
- Page 28 10 Sunnen Drive, St. Louis, MO 63143 telephone: 314-678-6336 fax: 314-781-2714 www.bloomfieldworldwide.com...
