658
10 Sunnen Drive
St. Louis, MO 63143
telephone: 314-678-6336
fax: 314-781-2714
OWNERS MANUAL
www.bloomfieldworldwide.com
for
SINGLE
SATELLITE
COFFEE BREWER
with
E-MAX
CONTROL
and
EXTERNALLY HEATED
SATELLITE SERVERS
MODEL:
2121
Includes:
Installation
Operation
Use & Care
Servicing Instructions
IL2725

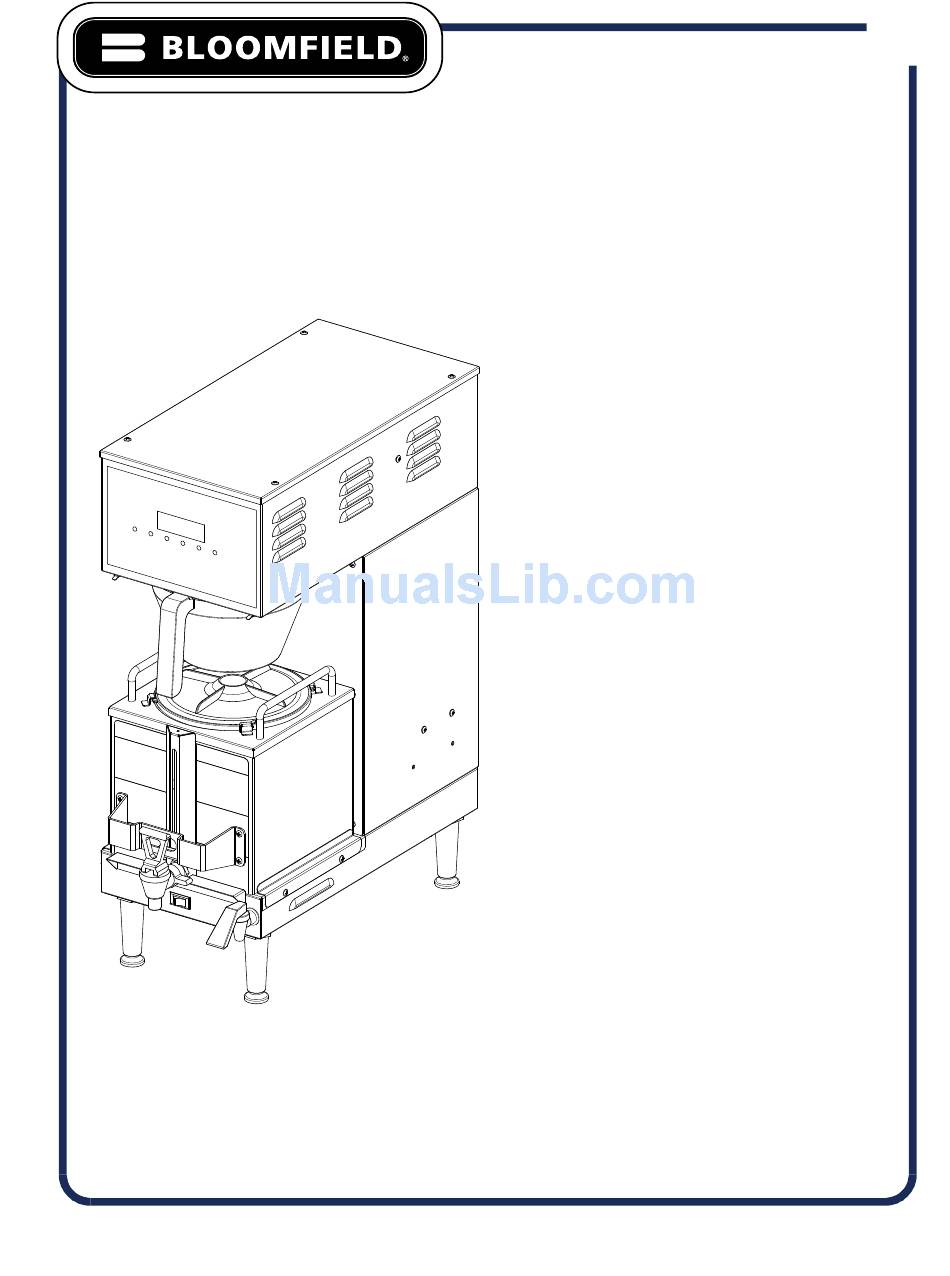

Model 2121 Single Satellite Brewer
Z17969
14
0422
p/n 2M-
Rev. A
M658
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Bloomfield 2121
Summary of Contents for Bloomfield 2121
-
Page 1: Servicing Instructions
314-678-6336 fax: 314-781-2714 OWNERS MANUAL www.bloomfieldworldwide.com SINGLE SATELLITE COFFEE BREWER with E-MAX CONTROL EXTERNALLY HEATED SATELLITE SERVERS MODEL: 2121 Includes: Installation Operation Use & Care Servicing Instructions IL2725 Model 2121 Single Satellite Brewer Z17969 0422 p/n 2M- Rev. A M658... -
Page 2: Warranty Statement
Bloomfield for its products are based upon the limitations in this warranty. Seller’s obligation under this warranty is limited to the repair of defects without charge by a Bloomfield Authorized Service Agency or one of its sub-agencies. This service will be provided on customer’s premises for non-portable models. -
Page 3: Table Of Contents
TABLE OF CONTENTS Thank You for purchasing this WARRANTY STATEMENT Bloomfield appliance. SPECIFICATIONS Proper installation, professional FEATURES & OPERATING CONTROLS operation and consistent PRECAUTIONS & GENERAL INFORMATION maintenance of this appliance will AGENCY APPROVAL INFORMATION ensure that it gives you the very... -
Page 4: Features & Operating Controls
CONTROL PANEL VIEW SCREEN INDICATORS 1st KEY 6th KEY (START BREW) (LARGE VOLUME) 2nd KEY 5th KEY (CANCEL BREW) (SMALL VOLUME) 3rd KEY 4th KEY (POWER ON/OFF) (STANDARD VOLUME) IL2727 M658 Fig 1. 2121 Satellite Brewing System Features & Operating Controls... - Page 5 FEATURES AND OPERATING CONTROLS (continued) Brewer Adjustable Legs Allows brewer to be leveled. Also allow clearance for cleaning underneath brewer. Brewing Controls Start or stop brew and select brew volume. Dilution water flows into brew chamber channel from here. Bypass Valve Dilution water DOES NOT flow through the coffee grounds.
-
Page 6: Agency Approval Information
GENERAL INFORMATION AND PRECAUTIONS WARNING: This appliance is intended for use in commercial establishments SHOCK HAZARD only. This appliance is intended to brew hot beverage, specifically coffee, All servicing requiring access for human consumption. No other use is recommended or authorized to non-insulated electrical by the manufacturer or its agents. -
Page 7: Installation
NOTE: If water pressure varies greatly, or exceeds 90 psi at any FRAME time, a water pressure regulator must be installed. Plumbing installer must supply the regulator. Brewer must be connected to a potable water supply. Bloomfield ADJUST recommends not less than 1/4” copper tubing for installations of HEIGHT 12’... -
Page 8: Operation
OPERATION OPERATING INSTRUCTIONS 1. Energizing the Brewer: When electricity has been connected IMPORTANT: to the unit, there will be a momentary flash of the power light. All E-Max brewers are tested Turn the brewer on by pressing the POWER and set at the factory. If key. - Page 9 USER’S GUIDE 1. Remove the brew chamber from WARNING: under the spray head. Place one Burn Hazard PAPER (1) genuine Bloomfield paper FILTER This appliance dispenses filter into the brew chamber. Add very hot liquid. Serious your choice of pre-measured tea...
- Page 10 OPERATION (continued) PROGRAMMING FEATURES AND OPTIONS 1. View Water Temperature in Tank: To view the water temperature on the screen, E-Max brewer must be ON, and not brewing or in the filling mode. Press and hold the 4th key, and depress the 6th key.
- Page 11 OPERATION (continued) 8. Clock A. Time – Battery Backup. The E-Max has a battery backup system which will maintain the proper time during power failures, or when the brewer is unplugged (even for very prolonged periods of time). Normally there will not be a need to set the time except for Daylight Saving Time changes, or moving the brewer to different time zones.
- Page 12 OPERATION (continued) 10. Pulse or Pre-Infusion Volume Options: these three (3) volumes have been preset at the factory as the following sample programs. To change these settings refer to E-Max Programming Manual 2M-73674. refer to E-Max Programming Manual, Brew Settings Menu. If a particular brew volume has utilized the pulse or pre-infusion option, that volume will be displayed with an asterisk (*) after the volume.
- Page 13 OPERATION (continued) 13. Diagnostic Messages – Programmed Safety Features: When E-Max senses a problem, it will automatically turn off all elements and valves, flash lights, display the message “Call For Service” and display one of the messages below. (Additionally: a service phone number may appear if it has been programmed into the system.) * To reset the brewer it can be re-energized (or press and hold CANCEL for 3 seconds for all faults except the Valve Fault, which must be reset by re-energizing).
- Page 14 INSTALLATION INSTRUCTIONS (continued) INITIAL SET-UP INSTRUCTIONS IMPORTANT: Initial set-up must be performed Plumber’s and Electrician’s installation procedures must be by a qualified installer or completed before proceeding with the set-up. qualified service technician. Improper set-up will damage the Be sure all electrical connections are secure, and that all brewer and void the warranty.
- Page 15 OPERATING INSTRUCTIONS (continued) WATER FLOW WATER LEVEL PROBE VENT (TO BREW HEAD) BREW VALVE BYPASS NOZZLE BREW HEAD WATER TANK INLET VALVE HOT WATER FAUCET BREW CHAMBER W/BYPASS CHANNEL IL2307 COLD WATER HOT WATER INLET The hot water faucet is fed by the hot water tank, but The INLET VALVE is controlled by a signal from the CONTROL is otherwise independent of...
-
Page 16: Cleaning Instructions
CLEANING INSTRUCTIONS CLEANING INSTRUCTIONS CAUTION: PROCEDURE: Clean Coffee Brewer BURN HAZARD PRECAUTIONS: Press POWER key to OFF. Allow brewer to cool. Brewing and serving temperatures of coffee are FREQUENCY: Daily extremely hot. Hot coffee will cause serious TOOLS: Mild Detergent, Clean Soft Cloth or Sponge skin burns. - Page 17 CLEANING INSTRUCTIONS (continued) PROCEDURE: Clean Satellite CAUTION: BURN HAZARD PRECAUTIONS: Drain Satellite before Cleaning Brewing and serving FREQUENCY: Twice Weekly temperatures of coffee are extremely hot. TOOLS: Sight Glass Brush, Sanitizer Hot coffee will cause Soft Clean Cloth, Bucket serious skin burns. IMPORTANT: DO NOT submerge satellite in water.
-
Page 18: Servicing Instructions
SERVICING INSTRUCTIONS PROCEDURE: Delime the Water Tank CAUTION: CHEMICAL BURN HAZARD PRECAUTIONS: Disconnect brewer from electric power. Allow brewer to cool. Deliming chemicals may be caustic. Wear appropriate FREQUENCY: As required (Brewer slow to heat) protective gloves and goggles during this procedure. Never TOOLS: Deliming Solution siphon deliming chemicals or... -
Page 19: Draining Hot Water Tank
Should deliming hoses down clamps. become necessary, Bloomfield 11. Remove spray disks and gaskets. Rinse both brew heads recommends replacing the with clean water. Using a stiff brush, scrub spray disk to hoses. -
Page 20: Troubleshooting Suggestions
Replace inlet valve Brew valve damaged Replace brew valve Tank water boiling Adjust or replace thermostat Too many paper filters or wrong filter Use one genuine Bloomfield paper filter used. per brew Chamber discharge hole plugged Clean brew chamber Brew chamber overflows... -
Page 21: Exploded Views
SATELLITE EXPLODED VIEW & PARTS LIST SATELLITE MODEL 9440 4.4 4.5 PART OF ITEM 4 4 PL 2 PL P/N: BLSRLH 74337 Rev. D 02/12/04 IL1855b SATELLITE ASSEMBLY 9440 Fig No Part No Quantity Description D7-76657 WELDMENT SATELLITE ASSY 2L-73863 TANK LID ASSY, SRL-DP 2R-74313 HANDLE FAUCET GUARD... - Page 22 EXPLODED VIEW 2121 MAIN ASSEMBLY SEE DETAIL Model: 2121 E-Max Single Satellite Brewer SK2734, Rev. - 1/07/14...
- Page 23 PARTS LIST : 2121 MAIN ASSEMBLY Model: 2121 Single E-Max Satellite Brewer Fig No Part No Description 2C-76007 SCREW 8AX1/2 SS TR PH SMS D7-Z16698 TOP COVER 2V-73388 VALVE ADJUST WATER OUTLET D7-Z17807 BRACKET, BYPASS 2K-74364 TEE PLASTIC 1/2 BARB...
- Page 24 EXPLODED VIEW: 2121 TANK ASSEMBLY DETAIL Model: 2121 SK2735, Rev. - 1/07/14 E-Max Satellite Brewer: Tank Assy...
- Page 25 PARTS LIST: 2121 TANK ASSEMBLY Detail A: 2121 Tank Assy Fig No Part No. Description D7-73414 SHIELD HI-LIMIT 2C-73415 NUT 6-32 HEX 1.00 LG ALUM 2T-73312 THERMO HI LIMIT DBL POLE D7-WL0347 TANK COVER ASSY 2N-76571UL ELEM HEATIN 120V 1500W HW 2J-73313 PROBE THERMISTOR PASSIVATE 10-1/2”...
-
Page 26: Wiring Diagram
WIRING DIAGRAM: 2121-120/240V SINGLE E-Max SATELLITE BREWER BYPASS VALVE HEATING HEATING ELEMENT ELEMENT RIGHT LEFT 120V 1500W 120V 1500W DUMP VALVE INLET VALVE 1 WP3 HI-LIMIT 2 WP2 THERMOSTAT TRIAC 3 WP1 1 HEATER (LINE) POWER SWITCH 2 INLET (LINE) - Page 27 NOTES...
- Page 28 10 Sunnen Drive, St. Louis, MO 63143 telephone: 314-678-6336 fax: 314-781-2714 www.bloomfieldworldwide.com...
