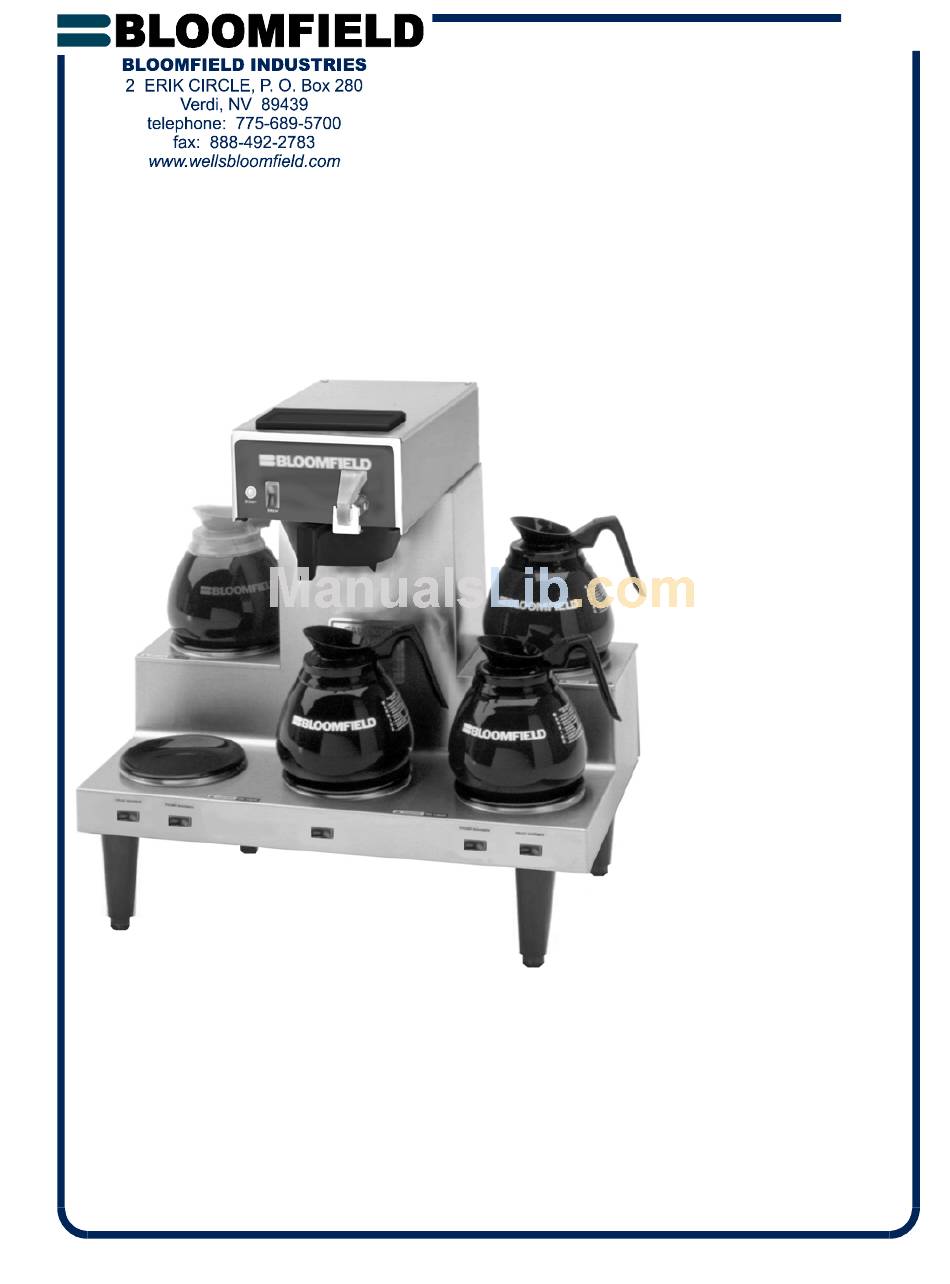

- Page 1 OWNERS MANUAL INTEGRITY™ 5-WARMER COFFEE BREWERS MODEL: 8752 8752KFT Includes: Installation Operation Use & Care Servicing Instructions Model 8752 Brewer with optional 8900-Series Decanters PRINTED IN UNITED STATES OF AMERICA 70988 Rev. B ECN-12887 M605 0617 cps...
-
Page 2: Warranty Statement
It also does not apply if the serial nameplate has been removed or unauthorized service personnel perform service. The prices charged by Bloomfield Industries for its products are based upon the limitations in this warranty. obligation under this warranty is limited to the repair of defects without charge by a Bloomfield Industries Authorized Service Agency or one of its sub-agencies. -
Page 3: Table Of Contents
MODEL STYLE 8752 Decanter Brewer 8752KFT 5 Warmers This manual applies to the following Bloomfield Industries products: Model 8752 Integrity 5-Warmer Coffee Brewer Model 8752KFT 5-Warmer Coffee Brewer Thank You for purchasing this Bloomfield Industries appliance. Proper installation, professional operation and consistent... -
Page 4: Features & Operating Controls
FEATURES AND OPERATING CONTROLS Fig. 1 Model 8752 Features and Operating Controls... -
Page 5: Precautions & General Information
WARNING: ELECTRIC SHOCK HAZARD All servicing requiring access to non-insulated components must be performed by qualified service personnel. Do not open any access panels which require the use of tools. Failure to heed this warning can result in electrical shock. WARNING: INJURY HAZARD All installation procedures must be performed by qualified personnel with full knowledge of all... -
Page 6: Installation Instructions
NOTE: Water supply inlet line must meet certain minimum criteria to insure successful operation of the brewer. Bloomfield recommends 1/4" copper tubing for installation of less than 12 feet and 3/8" for more than 12 feet from a 1/2" water supply line. - Page 7 75ºC. This brewer requires a dedicated electric circuit. Models 8752 must be wired by an electrician, and require a 115/230V 20A circuit (50/60 Hz, 2 hot legs / 1 neutral leg, plus ground). Remove rear panel to gain access to terminal block.
-
Page 8: Operation
OPERATION Fig. 4 Brewer Operation Diagram IMPORTANT: Tank must be full of water before pressing TANK HEATER SWITCH " ". Heating elements will be damaged if allowed to operate without being fully submerged in water. Damage caused by operating the brewer without water in the tank is NOT COVERED BY WARRANTY. -
Page 9: Water Flow
OPERATION (continued) Water temperature is sensed by a thermobulb inserted into the water tank. This temperature signal is fed to the thermostat, which controls line power to the heating element. The setpoint temperature is adjustable at the thermostat. The element is protected from over- temperature by a hi-limit thermostat. -
Page 10: Brewing Coffee
However, overuse of the faucet during a brew may lower the temperature of the brew water. A. PREPARATION Place one (1) genuine Bloomfield paper filter in the brew chamber. Add a pre-measured amount of fresh coffee grounds. Gently shake the brew chamber to level the bed of grounds. -
Page 11: Cleaning Instructions
PROCEDURE: Clean Coffee Brewer PRECAUTIONS: Disconnect brewer from electric power. Allow brewer to cool. FREQUENCY: Daily TOOLS: Mild Detergent, Clean Soft Cloth or Sponge Bristle Brush, Bottle Brush 1. Disconnect brewer from electric power. Allow brewer to cool before cleaning. 2. -
Page 12: Troubleshooting Suggestions
Be sure to add sufficient water prior to energizing Increase water amount Adjust amount of grounds Adjust timer Use one (1) genuine Bloomfield filter per brew Thoroughly clean brew chamber Adjust coffee amount and grind Check/reinstall gasket on INSIDE of brew head... -
Page 13: Servicing Instructions
ACCESS PANELS TOP PANEL: Remove top panel to access hot water tank, thermostat, heating elements, brew circuit tubing and faucet tubing. Top panel is held by two screws at the front and a retaining lip at the rear. FRONT PANELS: Remove upper front panel to access timer and hi-limit. -
Page 14: Temperature Adjustment
SERVICING INSTRUCTIONS (continued) TEMPERATURE ADJUSTMENT Unplug power cord or turn circuit breaker OFF. Remove top panel. Pull vent tube out of tank lid and insert a thermometer of known accuracy in hole. Reconnect brewer to electrical power. Place empty container under brew chamber. Energize brewer and allow unit to heat. - Page 15 TIMER ADJUSTMENT The amount of water dispensed automatically during a brew cycle is controlled by the timer. Place empty decanter under brew chamber. Press BREW button. Brewer should dispense one decanter of water. To adjust amount: Remove brew chamber and button plug. Adjust knob on timer; clockwise increases time.
-
Page 16: Replace Solenoid
SERVICING INSTRUCTIONS (continued) REPLACE SOLENOID Symptom: Automatic brewer will not flow water; or, automatic brewer drips continuously from brew head. Unplug power cord or turn circuit breaker OFF. Turn OFF and disconnect water supply from brewer inlet fitting. Unscrew water inlet fitting from solenoid. Remove two screws holding access door in place. -
Page 17: Replace Timer Assembly
REPLACE TIMER ASSEMBLY Unplug power cord or turn circuit breaker OFF. Remove front panel. Remove knob and three screws holding timer to bracket. Disconnect wiring to timer. Reassemble in reverse order. Adjust timer as described on page 13 REPLACE HOT WATER FAUCET COIL Symptom: Brewer drips continuously from brew head, except when faucet valve is turned OFF. -
Page 18: Deliming Instructions
SERVICING INSTRUCTIONS (continued) CAUTION: CHEMICAL BURN HAZARD Deliming chemicals may be caustic. Wear appropriate protective gloves and goggles during this procedure. Never siphon deliming chemicals or solutions by mouth. This operation should only be performed by qualified and experienced service personnel. IMPORTANT: DO NOT spill, splash or pour water or deliming solution into... - Page 19 Run at least three full brew cycles and discard all water generated. 12. Brewer is ready to use. SERVICING INSTRUCTIONS (continued) NOTE: Normally, silicone hoses do not need to be delimed. Should deliming hoses become necessary, Bloomfield recommends replacing the hoses.
-
Page 20: Exploded View & Parts List
PLATE, BOTTOM, 8750-SERIES ASSEMBLY, BODY 8750-SERIES COVER, UPPER LEFT COVER, UPPER RIGHT COVER, FRONT UPPER COVER, FRONT LOWER ACCESS, TERMINAL BLOCK BRACKET, HI-LIMIT MOUNTING LABEL, BASIN FRONT (8752) LABEL, BASIN FRONT (8752KFT) BREW CHAMBER, BLACK PLASTIC FILTER PAPER (CS 1000) -
Page 21: Electrical Components
ELECTRICAL COMPONENTS ITEM PART NUMBER 8572-18 8707-55 8528-40 8738-2 8718-1 8552-18 86945 85685 86280 8552-50 8716-1 EXPLODED VIEW & PARTS LIST (continued) DESCRIPTION ELEMENT, WARMER 120V 100W SWITCH, BREW (MOMENTARY) SWITCH, TANK HEATER 240V 20A INDICATOR LIGHT 120V GREEN TIMER W/KNOB 2-MIN TERMINAL BLOCK 4P SWITCH, WARMER SOLENOID 120V W/ BYPASS .75GPM... - Page 22 EXPLODED VIEW & PARTS LIST HOT WATER TANK ASSEMBLY ITEM PART NUMBER 8043-5 8942-92 86280 8043-12 8043-28 8043-30 8941-21 8540-6 8043-8 8043-15 8043-11 8514-68 8043-24 8543-73 8543-74 8716-1 8043-10 DESCRIPTION HOLD-DOWN STRAP NUT 8-32 HEX KEPS THERMOSTAT 199ºF GASKET, TANK COVER NUT, HEX 1/2-20 BRASS GASKET, SEAL NUT, HEX 7/16-20 BRASS...
-
Page 23: Plumbing Components
PLUMBING COMPONENTS ITEM PART NUMBER 8540-3 86904 80154 82556 8043-26 8043-13 82680 8551-100B 82681 85778 8543-42 82727 8543-85 86905 85685 8043-8 8043-15 8043-11 8541-21 * For REPAIR KITS see page 22. EXPLODED VIEW & PARTS LIST (continued) DESCRIPTION ASSEMBLY, FORMED TUBE FAUCET SUPPLY TUBE, FORMED ASSEMBLY 1/4FF x 1/4 FF FITTING, UNION 1/4MF x 1/4MF ASSEMBLY, FAUCET... - Page 24 EXPLODED VIEW & PARTS LIST (continued) SERVICE KITS FAUCET REPAIR KITS 82573 Handle (item 12a) 82575 Seat Cup (item 12c) 82576 Faucet Repair Kit (Includes 12a Handle, 12c Seat Cup, 12d Spring, 12h Stem, 12j Pin & 12k Bonnet 82682 Retainer Clip (item 12b) 84804 Aerator Replacement Kit (Includes 12e O-Ring, 12f Aerator Disk &...
-
Page 25: Wiring Diagrams
WIRING DIAGRAM... - Page 26 Bloomfield Industries proudly supports CFESA Commercial Food Equipment Service Association Bloomfield Industries, Inc. Division of Carrier Commercial Refrigeration In US and Canada Telephone: 775-689-5700 Fax: 888-492-2783 Fax: 800-356-5142 ( for orders only website: www.wellsbloomfield.com PRINTED IN UNITED STATES OF AMERICA...
