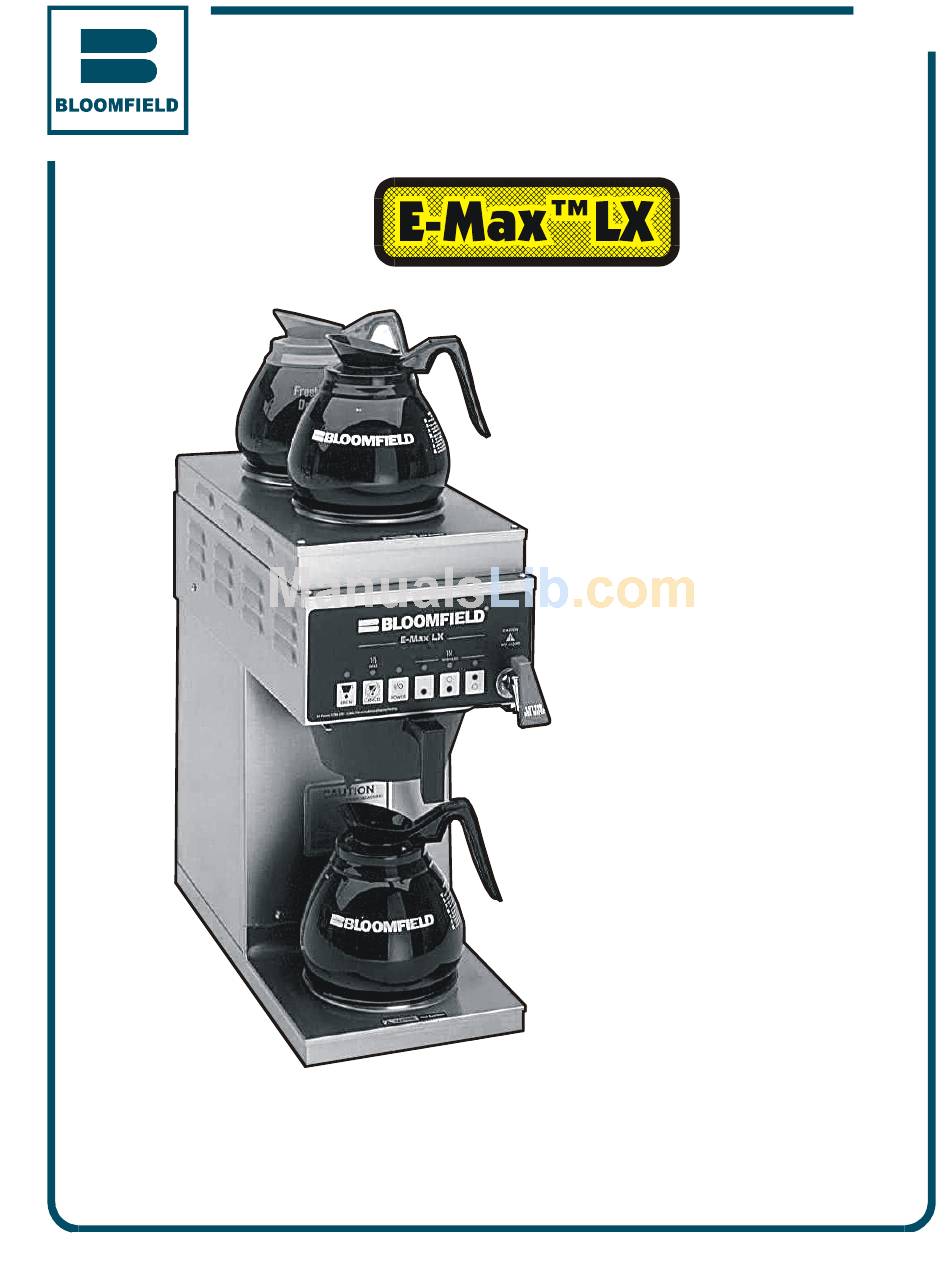

  • Page 1 Model 2216 shown with optional decanters 74733 Rev. D BLOOMFIELD INDUSTRIES 2 ERIK CIRCLE, P.O.Box 280 Verdi, NV 89439 U.S.A. Customer Service (775) 345-0444 Ext.502 fax (775) 345-0569 www.wellsbloomfield.com OWNERS MANUAL DECANTER BREWER MODELS 2212 2216 2216EX 2272 2274EX Includes...

  • Page 2: Warranty Statement

    It also does not apply if the serial nameplate has been removed or unauthorized service personnel perform service. The prices charged by Bloomfield Industries for its products are based upon the limitations in this warranty. obligation under this warranty is limited to the repair of defects without charge by a Bloomfield Industries Authorized Service Agency or one of its sub-agencies.

  • Page 3: Electrical Specifications

    3 Warmer Step-Up for complete information regarding specifications and dimensions, please consult the GLD (General Layout Data) for the appliance ( 2212 & 2216 GLD p/n 75038, 2272 GLD p/n 75046 ). Thank You for purchasing this Bloomfield Industries appliance.

  • Page 4: Features & Operating Controls

    FEATURES & OPERATING CONTROLS DECANTER (IN BREWING POSITION) Brew Indicator Heat Indicator Power Indicator Warmer Indicators Brew Key Cancel Key Power Key Main Warmer Key Front Warmer Key Rear Warmer Key Hot Water Faucet Glows during brew cycle, flashes in “Brew Wait” Glows when heating elements are energized Glows when power is on Glow when individual warmers are turned on...

  • Page 5: Precautions And General Information

    WARNING: Electric Shock Hazard All servicing requiring access to non-insulated components must be performed by qualified service personnel. Do not open any access panels which require the use of tools. Failure to heed this warning can result in electrical shock. WARNING: Injury Hazard All installation procedures must be performed by qualified personnel with full knowledge of all applicable electrical and plumbing codes.

  • Page 6: Leveling The Unit

    NOTE: Water supply inlet line must meet certain minimum criteria to insure successful operation of the brewer. Bloomfield recommends 1/4" copper tubing for installation of less than 12 feet and 3/8" for more than 12 feet from a 1/2" water supply line.

  • Page 7: Agency Approval Information

    Check the nameplate to determine correct electrical service required for the Brewer to be installed. NOTE: Models 2212 & 2272 require a 115 - 125 V 15A circuit (50/60 Hz, 2 wire plus earth ground, with NEMA 5-15R or 5-20R Receptacle) Model 2216 requires a 120/240V 20A circuit (50/60 Hz, 2 hot legs / 1 neutral leg, plus earth ground).

  • Page 8: Operating Instructions

    OPERATION To over-ride the Brew 1. Energizing the Brewer: When electricity has been connected to Wait mode, press and hold the BREW key for 3 seconds when the brewer is in Brew Wait mode (i.e. when brew light is flashing). The brew will proceed immediately regardless of water temperature.
  • Page 9 1. Remove the brew chamber from under the spray head. Place one (1) genuine Bloomfield paper filter into the brew chamber. Add your choice of pre-measured ground coffee. Shake the brew chamber gently to level the coffee. Slide the brew chamber back into place.

  • Page 10: Cleaning Instructions

    CLEANING INSTRUCTIONS CAUTION: Burn Hazard Brewing and serving temperatures of coffee are extremely hot. Hot coffee will cause serious skin burns. CAUTION: Electric Shock Hazard Do not submerge or immerse brewer in water. Do not pour or splash water into or over air vents, control panel or warmer plates.
  • Page 11 BREW BREW QUALITY TIMER TEMP TIMER (IN SECONDS) (IN °F) (IN 5 MIN INCR) CAUTION: Electric Shock Hazard Unplug or disconnect the brewer from electric power before removing the top cover IMPORTANT: Adjustments must be performed by qualified service personnel ONLY. 1.
  • Page 12 SERVICING INSTRUCTIONS — ELECTRICAL CONTROLLER SOLENOID FILL BREW DRIP OUT TIME TIME CONTROLLER SOLENOID BREW BREW BREW CANCEL BREW LINE TEMP VOLTAGE HI-LIMIT CONTROLLER STAT TRIAC HEATING ELEMENT WATER TEMPERATURE QUALITY TIMER CONTROLLER WARMER PLATES WARMER OPERATION SEE PAGE 11 FOR COMPONENT NAMES / NUMBERS 1.
  • Page 13 WARMER MOUNTING 120/240V UNITS SERVICING INSTRUCTIONS — ELECTRICAL 3 PROBE, TEMPERATURE (THERMISTOR) 4 THERMOSTAT, HI-LIMIT 5 GROMMET 7 PROBE, WATER LEVEL 8 SLEEVE, WATER LEVEL PROBE 15 ELEMENT, WATER HEATING 17 ASSEMBLY, TRIAC & HEAT SINK 18 BREW SOLENOID 20 CONTROLLER 27 COVER PLATE, WARMER 28 ELEMENT, WARMER 32 FILL SOLENOID...
  • Page 14 SERVICING INSTRUCTIONS — PLUMBING OPERATION SEE PAGE 13 FOR COMPONENT NAMES/NUMBERS 1. Water enters at the inlet fitting of the fill solenoid (32). The solenoid admits water via a command from the controller. NOTE: The solenoid has an internal strainer. To clean the strainer: Shut off water supply.
  • Page 15 SOLENOID, BREW (DUMP) ELBOW, BREW GASKET, SPRAY HEAD SPRAY DISK SOLENOID, FILL ELBOW, VENT INSERT, SPRAY HEAD SERVICING INSTRUCTIONS — PLUMBING PART N0. USED ON 8783-1 83500 2212, 2272 83753 2216 83499 83504 83506 86014 83538 83384 86013 83540 83388...
  • Page 16 NOTE: Normally, silicone hoses do not need to be de-limed. Should de-liming hoses become necessary, Bloomfield Industries recommends replacing the hoses. 1. Disconnect brewer form the electrical supply. Turn off the water supply and disconnect water supply from the brewer inlet fitting.
  • Page 17 SERVICING INSTRUCTIONS — DIAGNOSTICS & TROUBLESHOOTING) If the E-Max™ LX goes into an error mode as outlined below, it will probably be necessary to reset the brewer in order to test individual components. Note the reset procedure below: FOR “LOW WATER” OR “OVERHEAT” ERRORS: PRESS &...
  • Page 18 EXPLODED VIEW — IN-LINE MODELS...
  • Page 19 PARTS LIST — IN-LINE MODELS...
  • Page 20 EXPLODED VIEW — STEP-UP MODELS...
  • Page 21 PARTS LIST — STEP-UP MODELS...
  • Page 22 WIRING DIAGRAM — IN-LINE MODELS...
  • Page 23 WIRING DIAGRAM — IN-LINE EXPORT MODEL...
  • Page 24 WIRING DIAGRAM — STEP-UP MODEL Rear Warmer Plate #3 120V 100 Watt White #11 120 Volt 1500 Watt Inlet Tank Heater Valve Brown #1 Orange #7 Red #6 Line Load Gate Triac White #11 White #11 Front Warmer Plate #2 Blue #4 120V 100 Watt...
  • Page 25 WIRING DIAGRAM — STEP-UP EXPORT MODEL...
  • Page 26 Bloomfield Industries proudly supports CFESA Commercial Food Equipment Service Association Bloomfield Industries, Inc. Division of Carrier Refrigeration In US PO Box 280, Verdi, NV 89439 Telephone: 775-345-0444 Service: 888-492-2782 Fax: 888-792-2783 website: www.wellsbloomfield.com In Canada Telephone: 877-507-1700 Service: 905-507-1700 Fax: 905-507-1777...
