73574
p/n
Rev. S
ECN-12817

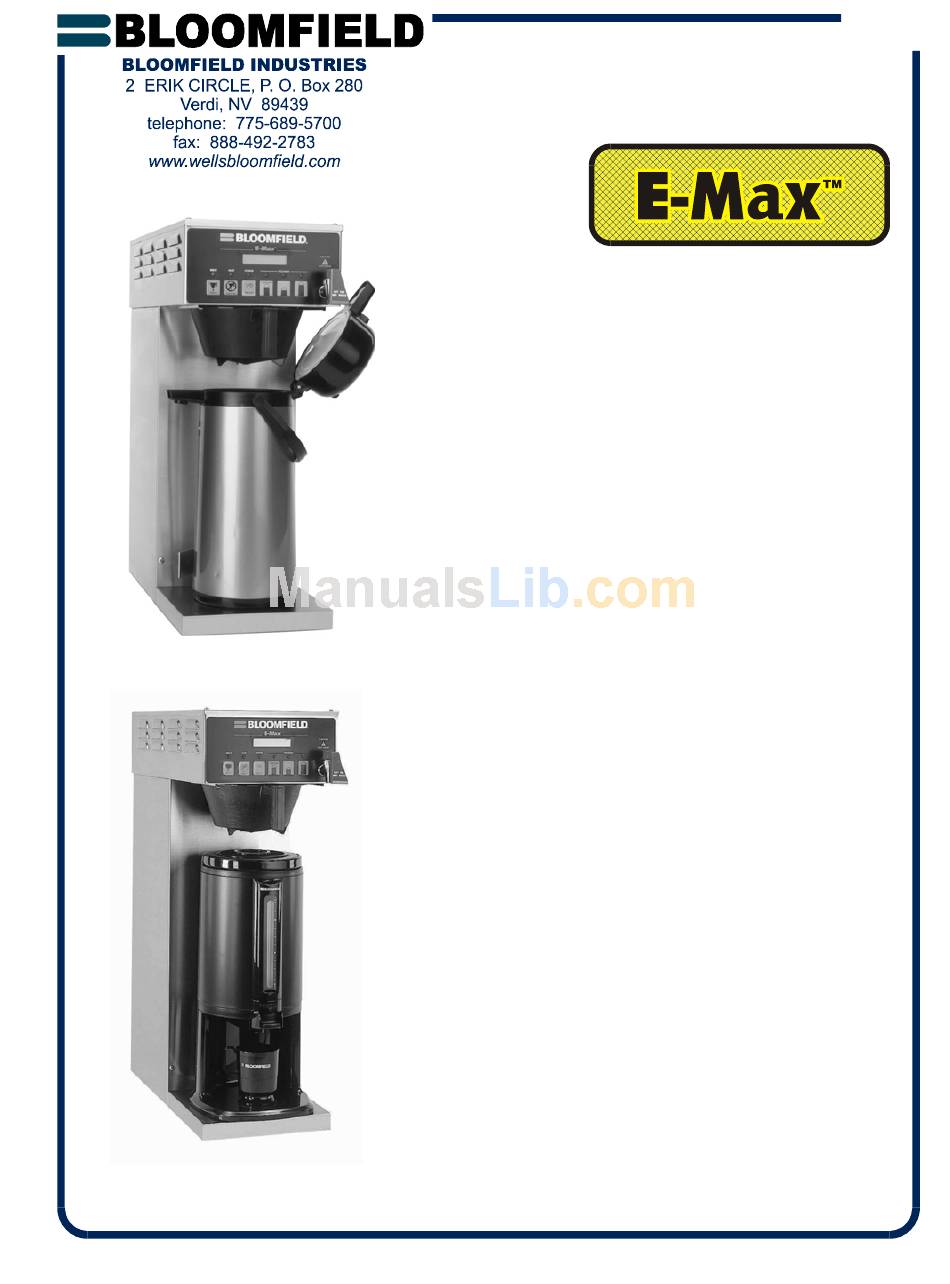

Model 2082
Airpot Brewer
with optional
7759 Airpot
Model 2080
Thermal Brewer
with optional
7754 Thermal Server
PRINTED IN UNITED STATES OF AMERICA
OWNERS MANUAL
for
E-Max™
AIRPOT and THERMAL
COFFEE BREWERS
MODELS
2080
2086
2088
Includes:
Installation
Operation
Use & Care
Servicing Instructions
E-Max BREWERS are covered under
U. S. Patents #5704275, 5862738, 6095031.
Other U.S. Patents and Canadian Patents Pending
652
2082
2086EX
2088EX
05
M652
0208 cps
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Bloomfield 2080
Summary of Contents for Bloomfield 2080
- Page 1 73574 Rev. S ECN-12817 Model 2082 Airpot Brewer with optional 7759 Airpot Model 2080 Thermal Brewer with optional 7754 Thermal Server Other U.S. Patents and Canadian Patents Pending PRINTED IN UNITED STATES OF AMERICA OWNERS MANUAL E-Max™ AIRPOT and THERMAL...
-
Page 2: Warranty Statement
It also does not apply if the serial nameplate has been removed or unauthorized service personnel perform service. The prices charged by Bloomfield Industries for its products are based upon the limitations in this warranty. obligation under this warranty is limited to the repair of defects without charge by a Bloomfield Industries Authorized Service Agency or one of its sub-agencies. -
Page 3: Table Of Contents
OPERATION CLEANING INSTRUCTIONS SERVICING INSTRUCTIONS PLUMBING ELECTRICAL DELIMING WATER TANK TROUBLESHOOTING SUGGESTIONS EXPLODED VIEWS AND PART LISTS WIRING DIAGRAMS MODEL 2080 Thermal 2082 Airpot (incl 2082SNB) 2086 Thermal 2088 Airpot 2086EX 2088EX 1500 watts in Canada SPECIFICATIONS ELECTRICAL SPECIFICATIONS VOLTS... -
Page 4: Features & Operating Controls
FEATURES AND OPERATING CONTROLS... -
Page 5: Precautions & General Information
WARNING: Electric Shock Hazard All servicing requiring access to non-insulated components must be performed by qualified service personnel. Do not open any access panels which require the use of tools. Failure to heed this warning can result in electrical shock. WARNING: Injury Hazard All installation procedures must be performed by qualified personnel with full knowledge of all applicable electrical and plumbing codes. -
Page 6: Installation
NOTE: Water supply inlet line must meet certain minimum criteria to insure successful operation of the brewer. Bloomfield recommends 1/4" copper tubing for installation of less than 12 feet and 3/8" for more than 12 feet from a 1/2" water supply line. -
Page 7: Agency Listing Information
Check the nameplate to determine correct electrical service required for the Brewer to be installed. NOTE: Models 2080 & 2082 require a 115 - 125 V 15A circuit (50/60 Hz, 2 wire plus earth ground, with NEMA 5-15R or 5-20R Receptacle) Models 2086 &... -
Page 8: Operation
OPERATION IMPORTANT: 1. Energizing the Brewer: When electricity has been connected to All E-Max™ brewers are tested and set at the factory. If programming adjust- ments are necessary, refer to the E-Max™ Programming Manual (p/n/73674). To over-ride the Brew Wait mode, press and hold the BREW key for 2. - Page 9 1. Remove the brew chamber from under the spray head. Place one (1) genuine Bloomfield paper filter into the brew chamber. Add your choice of pre-measured ground coffee. Shake the brew chamber gently to level the coffee. Slide the brew chamber back into place.
- Page 10 OPERATION (continued) PROGRAMMING FEATURES AND OPTIONS 1. View Water Temperature in Tank: To view the water temperature on the screen, the E-Max™ brewer must be ON, and not brewing or in the filling mode. Press and hold the 4th key, and depress the 6th key.
- Page 11 8. Clock A. Time – Battery Backup. The E-Max™ has a battery backup system which will maintain the proper time during power failures, or when the brewer is unplugged (even for very prolonged periods of time). Normally there will not be a need to set the time except for Daylight Saving Time changes, or moving the brewer to different time zones.
- Page 12 OPERATION (continued) 12. View Filter Statistics: To view filter statistics, turn the brewer off. Press and hold the 1st key (Brew), and depress the 3rd (ON/OFF) key. Total water volume will be displayed (TotalVol.). Press the 3rd key to view the Filter Life (FltrLife:). Press the 3rd key to view the percentage of the filter that has been used.
-
Page 13: Cleaning Instructions
PROCEDURE: Clean Coffee Brewer PRECAUTIONS: Disconnect brewer from electric power. Allow brewer to cool. FREQUENCY: Daily TOOLS: Mild Detergent, Clean Soft Cloth or Sponge Bristle Brush 1. Disconnect brewer from electric power. Allow brewer to cool before cleaning. 2. Remove airpot or thermal server. 3. -
Page 14: Plumbing
SERVICING INSTRUCTIONS — PLUMBING FILL PORT VENT PORT BREW PORT FAUCET PORT HEATER PORTS WATER TANK TANK LID GASKET FUNCTION 1. Water enters at the inlet fitting of the fill solenoid (32). The solenoid admits water via a command from the controller. NOTE: The solenoid has an internal strainer. -
Page 15: Servicing Instructions
SERVICING INSTRUCTIONS — PLUMBING (continued) ITEM DESCRIPTION FAUCET, HOT WATER ASSEMBLY, WATER TANK (120V) ASSEMBLY, WATER TANK (240V) ASSEMBLY, WATER TANK (DUAL VOLTAGE) GASKET, TANK LID TANK LID RETAINING CLIP, TANK LID HOSE, OVERFLOW (2 pc SILICONE 4.5” LONG) HOSE, FAUCET SUPPLY (SILICONE, 10” LONG) TUBE, VENT (METAL, 2.3”... -
Page 16: Electrical
SERVICING INSTRUCTIONS - ELECTRICAL WARNING: RISK OF INJURY The following servicing sections are for operator reference only. All servicing and/or repairs must be performed by a qualified technician Reset Hi-Limit Thermostat 240 V & Dual Voltage Units FUNCTION 1. Pressing the POWER key energizes the unit. The POWER LED will glow whenever the unit is ON. - Page 17 POWER CORD (120V) STRAIN RELIEF, POWER CORD OVERLAY DECAL, KEYPAD TERMINAL STRIP, 4-POLE SWITCH ROCKER ON-OFF PART N0. USED ON 83480 83949 2080, 2082 8552-50 ALL except 2080, 2082 84063 83521 83532 83518 2080, 2082 83747 2080CA, 2082CA 83748 2086, 2088 DUAL...
-
Page 18: Deliming Water Tank
NOTE: Normally, silicone hoses do not need to be de-limed. Should de-liming hoses become necessary, Bloomfield Industries recommends replacing the hoses. 1. Disconnect brewer form the electrical supply. Turn off the water supply and disconnect water supply from the brewer inlet fitting. -
Page 19: Troubleshooting Suggestions
If the E-Max™ goes into the error diagnostic mode as outlined below, it will likely be necessary to reset the brewer in order to test individual components. Note the reset procedure below: For the first four error modes, press and hold CANCEL for 3 seconds, or RE-ENERGIZE the brewer by disconnecting from electric power for 5 seconds, then reconnecting. -
Page 20: Exploded Views And Part Lists
EXPLODED VIEW & PARTS LIST AIRPOT BREWER MODELS: 2082, 2083, 2088... - Page 21 ITEM PART # DESCRIPTION 8763-1 FAUCET HOT WATER 83500 TANK ASST 8 QT 83753 TANK ASSY 8 QT 240V 84010 TANK ASSY 8 QT DUAL VOLTAGE 83480 THERMISTOR 5-1/2" 83949 THERMO HI-LIMIT CERAMIC 120V 8552-50 THERMO HI-LIMIT RESET 240V 84713 THERMO HI-LIMIT 25A SCREW TERM 84063 GROMMET .510 x .250 id...
- Page 22 EXPLODED VIEW & PARTS LIST (continued) THERMAL BREWER MODELS: 2080, 2085, 2086...
- Page 23 ITEM PART # DESCRIPTION 8763-1 FAUCET HOT WATER 83500 TANK ASST 8 QT 83753 TANK ASSY 8 QT 240V 84010 TANK ASSY 8 QT DUAL VOLTAGE 83480 THERMISTOR 5-1/2" 83949 THERMO HI-LIMIT CERAMIC 120V 8552-50 THERMO HI-LIMIT RESET 240V 84713 THERMO HI-LIMIT 25A SCREW TERM 84063 GROMMET .510 x .250 id...
-
Page 24: Wiring Diagrams
WIRING DIAGRAMS 120 VOLT BREWERS AIRPOT and THERMAL MODEL 2080 & 2082 White #8 Tank Heater 120 Volt 1200 Watts/ 1500 Watts Brown #1 14 ga. Orange/ Black #4 Black #7 White #9 Blue #2 Orange/ Black #5 Red #3... - Page 25 120/240 VOLT BREWERS AIRPOT and THERMAL MODEL 2086 & 2088 Tank Heater 3200 Watt 240 Volt Red #10 Black #13 Black #6 Black #12 White #7 Red #11 White #8 White #9 Blue #2 Brown #1 Red #3 Green #14 WIRING DIAGRAMS (continued) 120/240 Single Phase...
- Page 26 WIRING DIAGRAMS (continued) 240 VOLT BREWERS AIRPOT and THERMAL MODEL 2086EX & 2088EX...
- Page 27 NOTES...
- Page 28 Bloomfield Industries proudly supports CFESA Commercial Food Equipment Service Association Bloomfield Industries, Inc. Division of Carrier Commercial Refrigeration In US and Canada Telephone: 775-689-5700 Fax: 888-492-2783 Fax: 800-356-5142 ( for orders only website: www.wellsbloomfield.com PRINTED IN UNITED STATES OF AMERICA...
