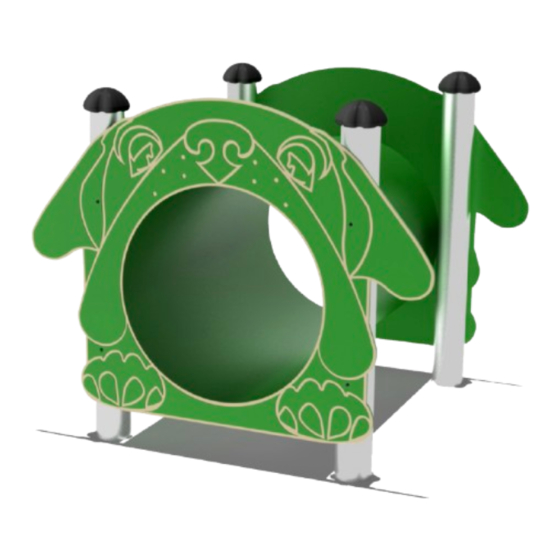

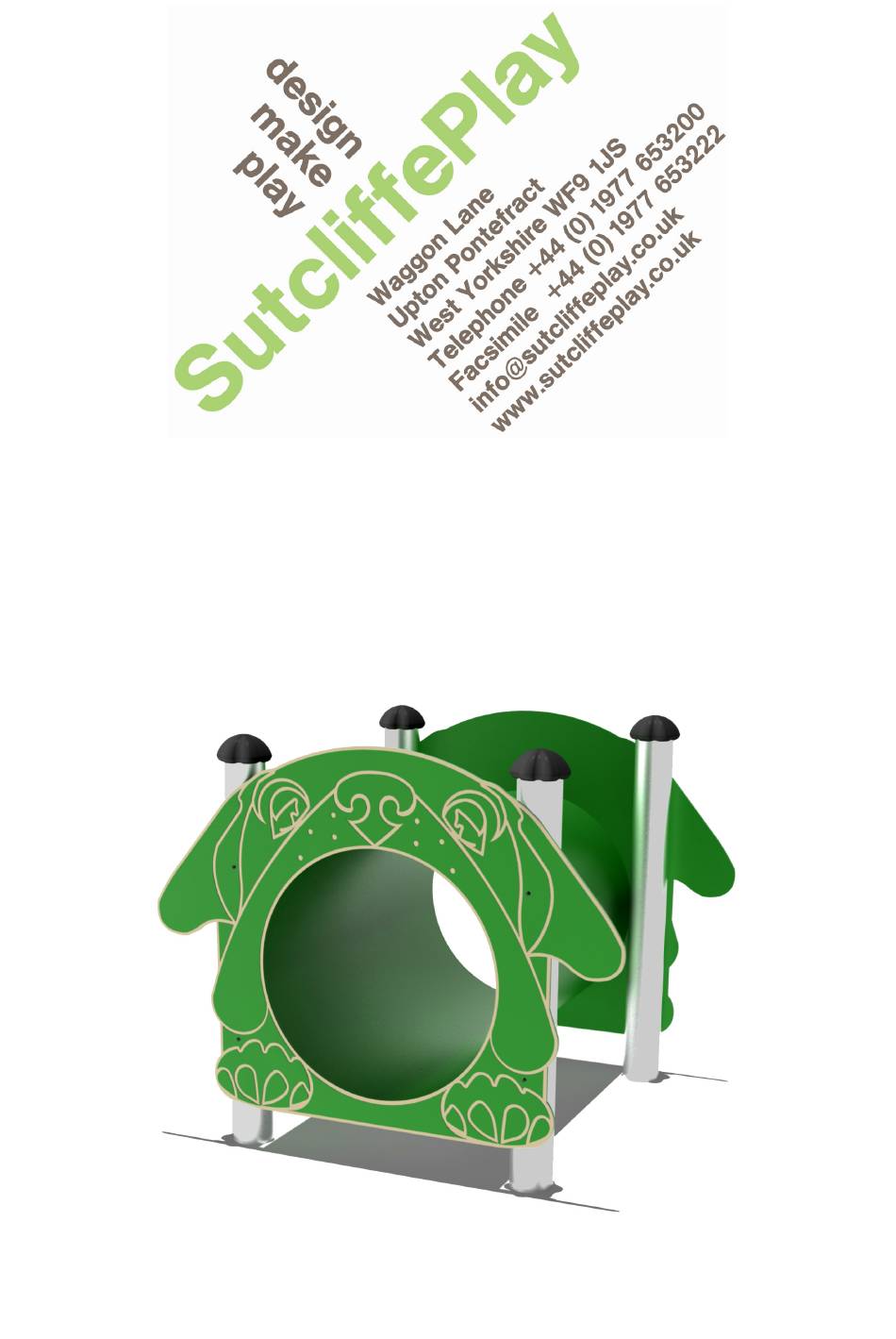

- Page 1 BARK PARK WUF004 Crawl Through Installation Instructions...
- Page 2 WUF004 Crawl Through Installation Procedure Check using the Parts List that none of the components are missing. Plan the final position of the Crawl Through ensuring there is sufficient space.* Sort and identify parts before assembly. All four posts are identical.
- Page 3 Page 3...
- Page 4 WUF004 Crawl Through Fixings and Foundation Plan 1113mm TITLE REVISION DESCRIPTION DRAWN BY CHECKED SCALE DATE WUF014 TUNNEL DZS009 M10 STEP WASHER HSS514 M10 x 40 HEX SET SCREW DZS005 M10 BLACK NUT COVER Page 4...
- Page 5 WUF004 Crawl Through Maintenance Instructions Recommended Regular Inspection and Maintenance Interval Days Check stability of structure, tighten connections if required. Check all uprights at ground level for corrosion and/or rot. Replace any defective parts. Check all painted elements for damage, rub down and repaint or replace as required.
