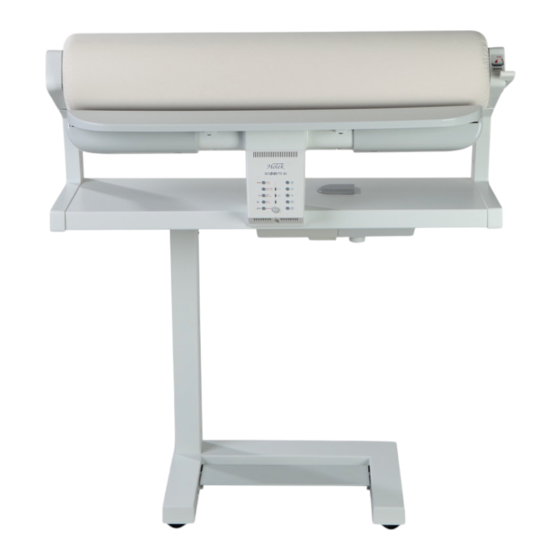

Rotary steam iron
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
ROTARY STEAM IRON
INSTRUCTION MANUAL
ROTARY STEAM IRON
ROULEAU DE REPASSAGE À LA VAPEUR
MANUEL D'INSTRUCTION
PLANCHA DE RODILLO CON VAPOR
MANUAL DE INSTRUCCIONES
(ENGLISH) . . . . . . . . . . . . . . . . . . 1
INSTRUCTION MANUAL
(FRANÇAIS) . . . . . . . . . . . . . . . 25
Model 560, 580
(ESPAÑOL) . . . . . . . . . . . . 49

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 560 AUS and is the answer not in the manual?

Questions and answers

Related Manuals for Singer 560 AUS

Summary of Contents for Singer 560 AUS

  • Page 1 ROTARY STEAM IRON INSTRUCTION MANUAL (ENGLISH) ....1 ROTARY STEAM IRON ROULEAU DE REPASSAGE À LA VAPEUR INSTRUCTION MANUAL MANUEL D’INSTRUCTION (FRANÇAIS) ....25 PLANCHA DE RODILLO CON VAPOR Model 560, 580 MANUAL DE INSTRUCCIONES...

  • Page 2: Introduction

    Rotary Steam Iron! You have acquired an extremely user-friendly, quality product off ering unique advantages for ironing. Your new SINGER® Rotary Steam Iron enables you to iron when sea- ted, without exertion. You will experience top-class ironing comfort! Take time to read your Instruction Manual thoroughly. It will help you get to know all the features and how to fully use them.

  • Page 3: Table Of Contents

    TABLE OF CONTENTS CARE & MAINTENANCE • Introduction • Part list for the rotary steam iron • General Care • Important safety instructions • Replacing or Renewing the Ironing Roller Covers FUNCTIONS • Unwinding the Ironing Covers • Setting Up the Rotary Steam Iron •...

  • Page 4: Part List For The Rotary Steam Iron

    PARTS LIST FOR THE ROTARY STEAM IRON Ironing roller Heating shoe with steam slot Operator’s console control buttons Filler opening with lime descaling cartridge Support plate Manual release lever Free heating shoe ends Bolt for unfolding Water tank 10 Drain plug 11 Collecting table 12 Foot pedal 13 Power button...

  • Page 5: Important Safety Instructions

    IMPORTANT SAFETY INSTRUCTION 1. Read all instructions. 12. If an extension cord is absolutely necessary, be sure the cord has an ampere rating in accordance with the 2. Use appliance only for its intended use. ampere rating of the Rotary Steam Iron. Cords rated for 3.

  • Page 6: Functions

    Functions SETTING UP THE ROTARY STEAM IRON 1. To set up your Rotary Steam Iron, fi rst unhook the power cable. With your left hand, tightly grip the Connecting Rod (A) in the lower third area. With your right hand, push the Locking Lever forward and hold it pressed.

  • Page 7: Using The Foot Pedal

    USING THE FOOT PEDAL The Foot Pedal is used to control the raising and lowering of Note: The SINGER® Rotary Steam Iron is fi tted with an the ironing roller, as well as its speed. There are 3 positions: energy-saving circuit. If the foot pedal is not operated for up A, B and C.

  • Page 8: Manual Release Lever

    Functions MANUAL RELEASE LEVER Your Rotary Steam Iron is equipped with a manual lever. Use it only when needed and according to the instructions. The manual lever has two functions: Manual Release Manual release lever is used in the event of an unexpected interruption of the ironing roller, for example, if there is a power failure.

  • Page 10: Preparing For Steam Generation

    The SINGER® Rotary Steam Iron can be operated without water, but for a crease-free result, the steam should be switched on. The steam is applied from below and ensures complete steam penetration of the items being ironed.

  • Page 11: General Information On Descaling Granulate

    CHECKING DESCALING CARTRIDGE PLACEMENT FOR INITIAL MACHINE USE The SINGER® Rotary Steam Iron is supplied with a lime descaling cartridge inserted in the water tank. The cartridge is placed below the cap of the fi ller. 1. Switch off the power and unplug the Rotary Steam Iron before removing/re- placing the cartridge.

  • Page 12: Functions & Settings For Ironing

    Functions & Settings FUNCTIONS & SETTINGS FOR IRONING This chapter provides information on all the electronic functions of your SINGER® Rotary Steam Iron, as well as recommended settings for ironing various garments and other items. Heat Settings buttons The red LED of the preselected Heat Setting (14) fl ashes when the Rotary Steam Iron is switched on.

  • Page 13: Ironing Settings

    Functions & Settings IRONING SETTINGS is now switched off but your Rotary Steam Iron remains ready Ironing without Steam for used. Immediately after the Power Switch is switched on, the green (Illustration 2 – heating shoe will be cooling off but the roller LED Power On illuminates.

  • Page 14: How To Use

    How to use HOW TO USE This chapter contains step-by-step instructions on how to iron various types of garments and home décor items with your SINGER® Rotary Steam Iron. GENERAL INFORMATION Before ironing with your Rotary Steam Iron, check the care pressing or ironing is not recommended.

  • Page 15: Ironing Larger Flat Items

    How to use IRONING LARGE FLAT ITEMS To iron larger, fl at items such as tablecloths, the center 3. Softly fold the tablecloth in half and place the tablecloth section of the fabric is pressed fi rst, then the sides of the so that the ironed part hangs over at one end of the tablecloth are pressed.

  • Page 16: Ironing T-Shirts And Knit Tops

    How to use IRONING T-SHIRTS OR KNIT TOPS 1. When ironing T-shirts or other types of knit tops, begin 4. Now pull the T-shirt over one end of the heating shoe, with the sleeves. Insert the sleeve of the T-shirt at a slant fi rst iron the back, then the side seam.

  • Page 17: Ironing Shirts Or Blouses

    How to use IRONING SHIRTS OR BLOUSES 1. Place the cuff on the end of the heating shoe and iron it. Repeat the process for the second cuff . 2. Now insert the sleeve of the shirt to elbow height and iron it, while maintaining a slight pull, from the center of the sleeve up to the cuff , making sure that the cuff opening is facing upwards.
  • Page 18 How to use IRONING SHIRTS OR BLOUSES 5. Pull the shirt outwards and iron over the side seam to approximately 6 inches (15cm) into the back. Repeat the process for the other front. 6. Place the hem of the back on the heating shoe and iron the back up to the start of the sleeve.

  • Page 19: Ironing Trousers

    How to use IRONING TROUSERS 1. Iron the legs separately on both sides from the bottom up to the crotch seam. 2. Pull the top part of the trousers over one free end of the heating shoe. Make sure that the zipper is facing upwards toward the iron roller.

  • Page 20: Care And Maintenance

    CARE & MAINTENANCE This chapter contains information with regard to the care and maintenance of your SINGER® Rotary Steam Iron. For your own safety, always switch off the power switch of the Rotary Steam Iron and unplug when servicing the machine.

  • Page 21: Winding The Ironing Covers

    Care & Maintenance WINDING THE IRONING COVERS Note: All layers must project evenly and be centered at both sides of the ironing roller so that the roller remains open for ventilation. 1. Unwind the jute cover (C) approximately 10 inches (25cm).
  • Page 22 Care & Maintenance WINDING THE IRONING COVERS 5. After the tenth turn, the end of the padding cover must lie on the top of the ironing roller. As pictured, place the ironing cloth (A) on the padding cover with the wrong side upwards making sure that the cord ends project evenly.

  • Page 23: Empty The Water Tank

    Care & Maintenance EMPTY THE WATER TANK Switch off the power and unplug. After use, the water tank should be emptied. Do this before folding and storing the Rotary Steam Iron. 1. Place a bucket under the water tank. Using a suitable coin, undo the drain plug and unscrew it completely.

  • Page 24: Technical Specs & Warranty Information

    If you have questions regarding the warranty, please contact us at: talktous@singerco.com, call 1-800-474-6437, or visit the Customer Service area of our website at www.singerco.com. TECHNICAL SPECIFICATIONS strana 24 Model 560 AUS Model 580 AUS TECHNICAL SPECIFICATIONS TECHNICAL SPECIFICATIONS Dimensions, Working PosiZon...
