FUTABA 2PL Instruction Manual

FUTABA 2PL Instruction Manual

2-channel digital proportional r/c system for cars, boats, yachts and other models
Hide thumbs Also See for 2PL:

Advertisement

2PL
I
M
NSTRUCTION
ANUAL
1M23N12402
R

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 2PL and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for FUTABA 2PL

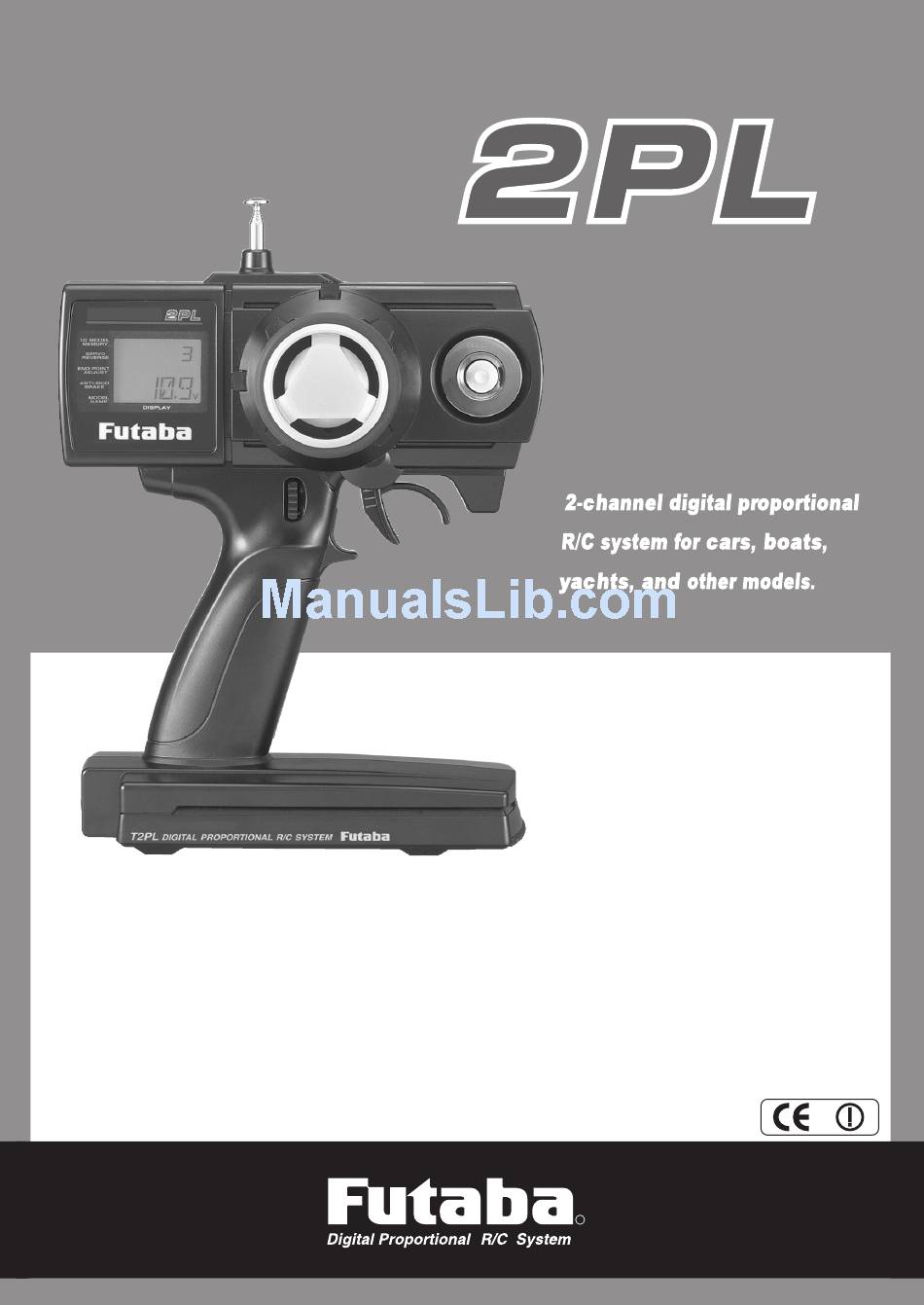

  • Page 1 NSTRUCTION ANUAL 1M23N12402...
  • Page 2 •No part of this manual may be reproduced in any form without prior permission. •The contents of this manual are subject to change without prior notice. •This manual has been carefully written. Please write to Futaba if you feel that any corrections or clarifications should be made.
  • Page 3: Table Of Contents

    Throttle End Point Adjustment (EPA-CH2) ..............14 ABS function (ABS-CH2) ....................14 Model Name (NAME) ......................14 MC230CR/MC330CR......................15 Flow Chart of 2PL Functions ........... 16 *Each function is easily selected with the SELECT key and set with the digital trim DT1/DT2. Reference ................... 18 Ratings ..........................
  • Page 4: Safety Precautions

    Safety Precautions For your safety as well as that of others, please read this manual thoroughly prior to instal- lation and operation of your digital proportional R/C system. Definition of Symbols The following defines the symbols used in this manual. Explanation of Symbols Procedures which may lead to a dangerous condition and cause Danger...
  • Page 5: Running Safety Precautions

    Running (Sailing) Safety Precautions Warning Conduct Tests Prior to operation always perform a range test. Even one abnormality in the R/C system may cause loss of control. [Range Test Procedure] Have a friend hold the model, or place on a stand where the wheels or prop can not come in contact with any object.
  • Page 6: Storage And Disposal Safety Precautions

    Prohibited Do not operate when you are tired, not feeling well or under the influence of alcohol or drugs. Your judgment is impaired and could result in a dangerous situation that may cause serious injury to yourself and others. Before you turn on the power switch on the transmitter, always check to see that the trigger is at the neutral position.
  • Page 7: Other Safety Precautions

    Always use only genuine Futaba receivers, servos, and electronic speed controls, along with other optional parts and components. Futaba will not be held responsible for damages caused by other than genuine Futaba parts and components. Use only genuine Futaba parts and components listed in the instruction manual and catalog.
  • Page 8: Before Operation

    Before Operation System Contents After opening the container, check the contents for the following items. The contents will vary with the system purchased. System with System with System with E.S.C. and 2 Servos 1 Servo Servo Transmitter T2PL (x1) R142JE (x1) Receiver S3003 (x2) Servo...
  • Page 9: Nomenclature / Handling

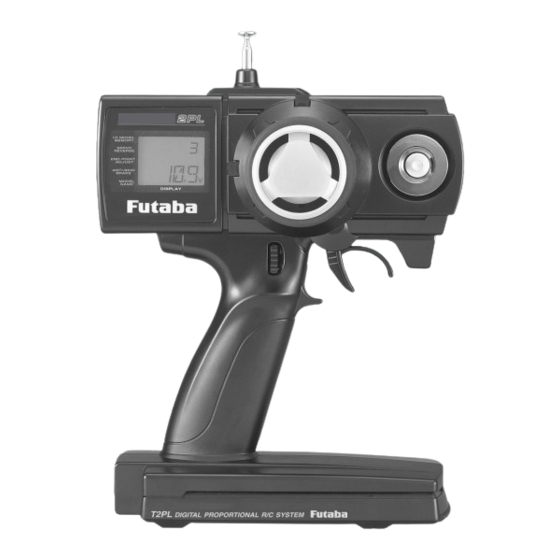

    Nomenclature / Handling Transmitter T2PL Antenna (*1) (*1) Throttle Trim Lever (DT2) Steering Trim Lever (DT1) Adjusts the throttle in small increments so the Adjusts the steering in small increments so model will not move at neutral. the model will run straight. Select Button (SELECT) Press the Select button to select the Power Switch...
  • Page 10 Handling Procedure for Bat- Caution teries (8 AA Size Batteries) Always be sure you reinsert the bat- (Battery Replacement Method) teries in the correct polarity order. If the batteries are loaded incorrectly , the Remove the battery cover from the transmitter may be damaged.
  • Page 11: Assembly / Adjustment

    Assembly / Adjustment Receiver and Servo Connection As you connect the receiver, servos and other components, do so in accordance with the "Assembly Precautions". Connections when a E.S.C. MC230CR or MC330CR are used. Connects to Motor Connects to Battery E.S.C. Power Switch Steering Servo Receiver...
  • Page 12 Use only genuine Futaba crystal sets as specified in this instruction manual. The use of other than Futaba crystal sets will result in decrease of range as well as loss of control. There are separate crystals for the Transmitter and Receiver. There are also crystal sets for AM, FM and Dual Conversion FM.
  • Page 13: Transmitter Set-Up Procedures

    Transmitter Set-Up Procedures *When making these settings adjustments, do so with the motor disconnected or the engine not running. (Preparations) Model Selection Model Reset Push the DT2 lever up or down for about one second. Model number All data stored in the current 1 - 0 selected model memory is erased.
  • Page 14: Description Of 2Pl Functions

    Description of 2PL Functions Steering Trim (TRM-CH1) Steering neutral adjustments can be made by moving the Steer- Steering Trim ing trim knob to the left or right. Racers Tip When you install a servo, always check to be sure the L25 - 0 - R25 servo is at its neutral position.
  • Page 15: Steering Dual Rates (D/R-Ch1)

    Steering Dual Rates (D/R-CH1) Use this function to adjust the steering travel of your model. Steering D/R If the model understeers (push) while cornering, add steering by pressing the upper side of the D/R button. When the model oversteers (loose), take away steering by pressing the 30 - 100% lower side of the D/R button.
  • Page 16: Steering End Point Adjustment (Epa-Ch1)

    Steering End Point Adjustment (EPA-CH1) Use this function to limit the servo Steering EPA movement to the left or right. The servo travel to each side can be in- Range: 0 - 120% dependently adjusted. This feature (Left side) (Right side) will compensate for any difference Adjust the travel of the servo in right or left turning angles or ra-...
  • Page 17: Mc230Cr/Mc330Cr

    MC230CR / MC330CR CANCELLING THE REVERSE FUNCTION The amp reverse function can be cancelled by the following method so that the model can be used even in races that prohibit reverse running. (Brake operation only) MC230CR / MC330CR (Pushbutton switch operation) (Power switch) * When desired, you can enable the cancelled reverse function by repeating the operation shown at the left.
  • Page 18: Flow Chart Of 2Pl Functions

    Flow Chart of 2PL Functions Power switch turned on Digital trim DT1, DT2, and D/R display The current position is displayed on the LCD screen for about two seconds when each digital trim is operated. Steering Trim Throttle Trim Steering D/R...
  • Page 19 Steering EPA Range: 0 - 120% (Left side) (Right side) Adjust the travel of the servo while operating the steering wheel each way. Throttle EPA Range: 0 - 120% Adjust the travel of the servo (Brake side) (Forward side) while operating the throttle trigger each way.
  • Page 20: Reference

    Reference *Specifications and ratings are subject to change without prior notice. Ratings T2PL S3003 Transmitter Servo (2 channels, AM transmitter) (standard servo) Transmitting frequency: Power requirement: 27, 29, 40, 41, 72 or 75 MHz 4.8V or 6V (common with receiver) Modulation method: AM Current drain: 8mA (at 6V / Idle) Power requirement:...
  • Page 21: Troubleshooting

    If your digital proportional R/C set does not operate, its range is short, it intermit- tently stops operating, or it operates erroneously, take the action shown in the table below. If this does not correct the trouble, please contact a Futaba dealer. Check point...
