Summary of Contents for Podab TS 62

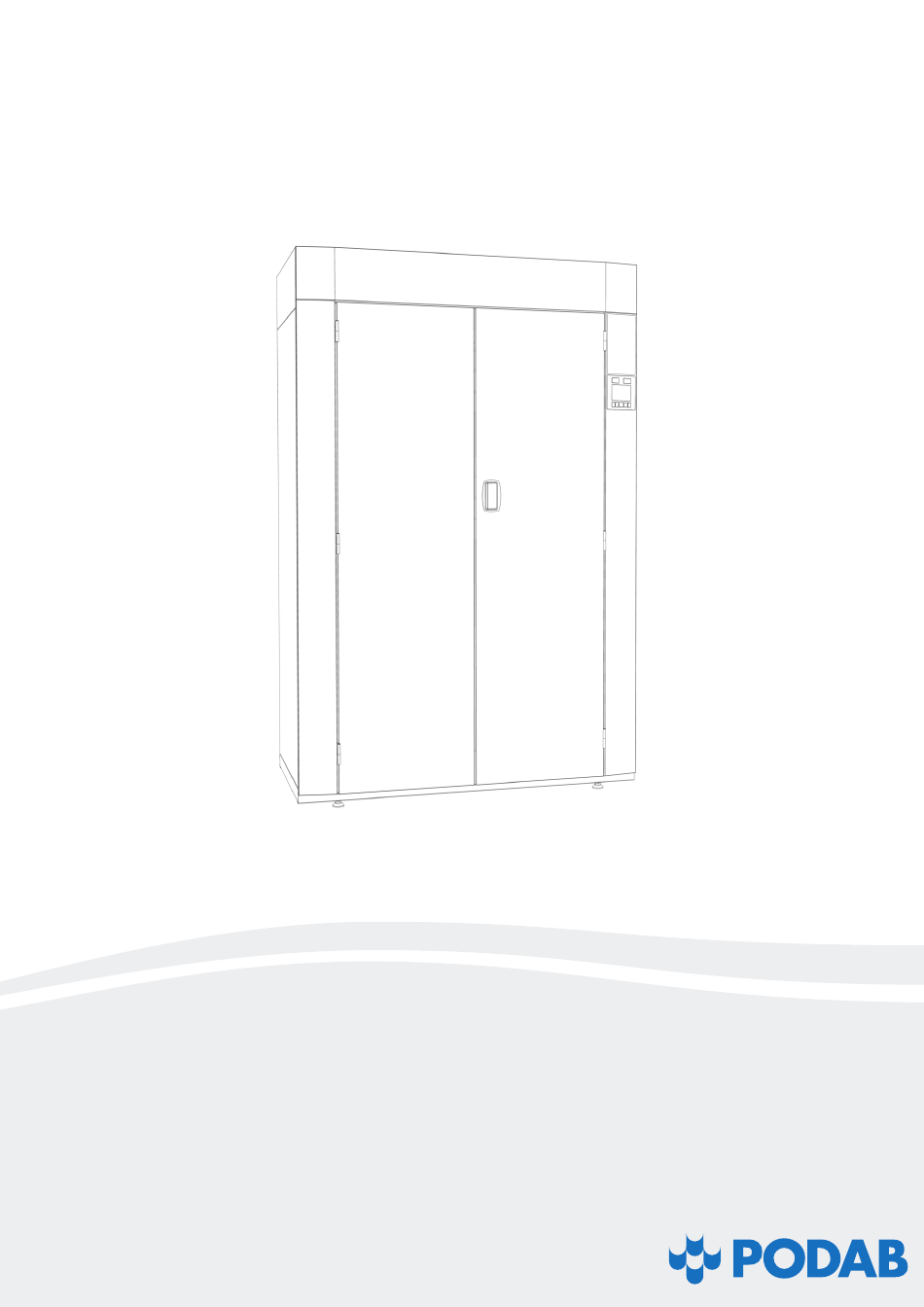

- Page 1 Installation and operation manual Drying cabinet TS 62...
- Page 2 Thank you for choosing this drying cabinet TS 62 from PODAB. We hope that it will be of great use for you and ask you kindly to read the instructions carefully. IMPORTANT! FOR YOUR SAFETY, the information in this manual must be followed to prevent property damage and personal injury.
-
Page 3: Table Of Contents
Turn the hanging frame Requirements for ventilation Ventilation channel – choice of material Requirements for incoming air Ventilation channel – design Evacuated amount of air and pressure fall User manual Manual programme mode Automatic programme mode Maintenance Notes ©PODAB 2011... -
Page 4: Safety Regulations
IMPORTANT: to inform the reader of special steps that must be taken in order to prevent injuries on the cabinet. NOTE: to inform what is important to know, but it cannot cause personal injuries or injury on the cabinet. ©PODAB 2011... -
Page 5: Important Safety Instructions
Never try to manipulate or connect past any safety func- tions. If the cabinet isn’t assembled after the manufacturer’s in- structions, there is a risk that the cabinet can cause per- sonal injuries or injuries on property. ©PODAB 2011... -
Page 6: Specification
Specification Dimensions 1200 1855 A = Electrical connection B= Exhaust ©PODAB 2011... -
Page 7: Technical Information
Energy consumption, kWh/kg (kWh/lb)* 0,55 (0,48) Part No 131025 *Drying of 6 kg (13,2 lb) cotton (dry weight), washed and high-spinned to 53% residual moisture. The cabinet works another 15 minutes with cool-down after the textiles are dry. ©PODAB 2011... -
Page 8: Assembly Instructions
You need the following tools to easily install the drying cabinet: (If the cabinet is already assembled please go to page 20) • Cordless screwdriver • Wrench • Hex key 3 and 5 mm • Level • Torx screwdriver bit no. 25 ©PODAB 2011... - Page 9 ©PODAB 2011...
- Page 10 Note! Only for cabinets with hang- ing frame. ©PODAB 2011...
- Page 11 Note! Only for cabinets with hanging frame ©PODAB 2011...
- Page 12 ©PODAB 2011...
- Page 13 Note! Only for cabinets with hanging frame ©PODAB 2011...
- Page 14 ©PODAB 2011...
- Page 15 ©PODAB 2011...
- Page 16 Connect the cables Keypad The side with hole pattern to the left. Lights Door switch ©PODAB 2011...
- Page 17 Note! Only for cabinets with hanging frame ©PODAB 2011...
- Page 18 Note! Only for cabinets with hanging frame Note! Only for cabinets with single rack bar Note! Only for cabinets with single rack bar ©PODAB 2011...
- Page 19 Note! Only for cabinets with single rack bar ©PODAB 2011...
-
Page 20: Installation Of The Cabinet
Loosen the two screws which hold the front panel of the top. Lift the top off. CAUTION There must be two persons to lift the top in a safe way. Don’t Push the panel upwards. try to do it on your own, the weight is 30 kg! ©PODAB 2011... -
Page 21: Step 2: Fasten The Cabinet To The Wall
The condensation makes dust and dirt get stuck in the channel. NOTE: If the cabinet is not connected according to these recommendations, the warranty is no longer valid. NOTE: Please control that the cabinet is leveled and cannot be tilted. ©PODAB 2011... -
Page 22: Step 4: Connect The Drying Cabinet To The Main Switch
To prevent personal injuries, the cabinet shall always be con- nected permanently through an all pole main switch. Always ground the cabinet. Also check that the connecting cable has a strain relief bush- ing. If not, there is a risk that the cabinet will be live. ©PODAB 2011... -
Page 23: Turn The Hanging Frame
Loosen the three bolts, the upper stearing tap and nut and the five torx screws which hold the plate and which support the stop plate. The drawings below shows where these parts are. Stop plate Stearing tap ©PODAB 2011... - Page 24 Lower the pole so that it fits to the lower stearing tap. Fasten the Hex Key bolt on the upper hanging level. Control that the frame can be turned and that the stop function works properly also in the outer positions. ©PODAB 2011...
-
Page 25: Requirements For Ventilation
In order to make the cabinet work properly, the incoming air- flow must be enough. The amount of evacuated air per hour is depending on how high the pressure fall in the ventilation channel is. ©PODAB 2011... -
Page 26: Evacuated Amount Of Air And Pressure Fall
NOTE: If the highest allowed level of air pressure is exceed- ed an external fan could be needed. Otherwise the drying result is effected negatively. TS 62 is prepared for an ex- ternal fan. Contact your local dealer or PODAB for more information. -
Page 27: User Manual
Set the temperature Increase or reduce the temperature with the arrow buttons 3 and 4. The cabinet has two automatic programmes; wardrobe dry and iron dry. By choosing either of those programmes, the drying time is adjusted automatically. ©PODAB 2011... - Page 28 During cool down the clothes are reconditioned and the drying cabinet is cooled downed. CAUTION If a program is interrupted before the cool down has finished, the ceiling of the cabinet could be very hot. ©PODAB 2011...
-
Page 29: Maintenance
Keep your cabinet efficient and economical • The ventilation channels shall be as short as possible. • If possible, dry the same type of textiles at the same time. • Do not dry with maximum temperature if you do not need to. ©PODAB 2011... -
Page 30: Notes
Notes ©PODAB 2011... - Page 31 ©PODAB 2011...
- Page 32 SERVICE/SUPPORT Phone +46 31-752 01 00 +46 31-752 01 50 E-mail parts@podab.se www.podab.com AB PODAB, Ekonomivägen 9, 436 33 Askim, SWEDEN Tel +46 (0)31-752 01 00, Fax +46 (0) 31-752 01 50 E-mail: sales@podab.se, www.podab.com ©PODAB 2011-01-21...
