Service manual and spare parts list

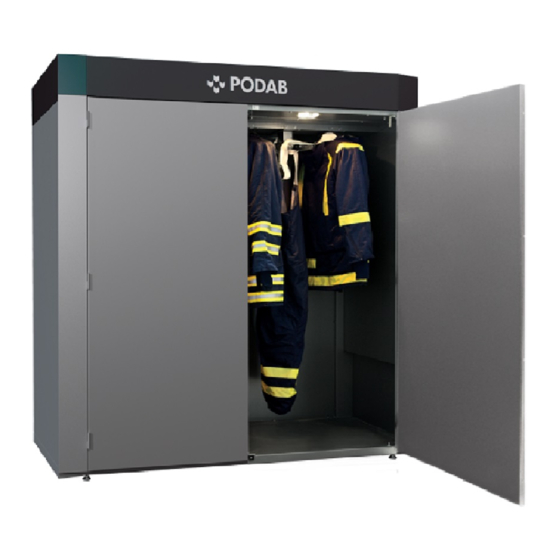

Drying cabinet ProLine FC 20

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the ProLine FC 20 and is the answer not in the manual?

Questions and answers

Related Manuals for Podab ProLine FC 20

Summary of Contents for Podab ProLine FC 20

  • Page 1 Service manual and spare parts list Drying cabinet ProLine FC 20...
  • Page 2 Thank you for choosing drying cabinet FC 20. We hope that it will be of great use for you. ©PODAB 2015...

  • Page 3: Table Of Contents

    Contents Specification Dimensions Technical information Main control board Setup menu Parameter list Explanation of parameters Error codes Spare parts list Cabinet Electrical drawing ®PODAB 2015...

  • Page 4: Specification

    Energy consumption, kWh/kg 0,98 0,34 Part No 131035 *Drying of 20 kg fire suits (dry weight) washed and high-spinned to 50 % residual moisture for membrane suits and 15 % for cotton wool suits. Dried to 4 % residual moisture. ©PODAB 2015...

  • Page 5: Main Control Board

    The ”+” button increases a numeric value and is used for togg- ling ON/OFF functions. The hidden button between the ”P” but- ton and the ”+” button can be used to decrease numeric values. Leave the setup menu To leave the menu, push the ”START” button. ®PODAB 2015...

  • Page 6: Parameter List

    MEMBRANE PR1 Turns the MEMBRANE program ON/OFF in user mode. WITHOUT MEMBRANE PR2 Turns the WITHOUT MEMBRANE program ON/OFF in user mode. STATIONWEAR PR3 Turns the STATIONWEAR program ON/OFF in user mode. ©PODAB 2015...
  • Page 7 SOUND In mode “ON” there is a beep sound every time an active button is pushed or when a drying program is finished. LOGOTYPE Turns the PODAB-logo, shown on the welcome screen, ON/ OFF. LANGUAGE The cabinet has seven languages.

  • Page 8: Error Codes

    HUMIDITY SENSOR Control board gets no signal from the temperature sensor. Con- trol that the sensor is connected correctly on the main control board and that the cable from the sensor to the board is intact ©PODAB 2015...

  • Page 9: Spare Parts List

    TS 61086 Handle TS61055 Hanger frame left Detailed view A TS61056 Hanger frame right TS61057 Hanger TS61058 Service door (middle fan) TS 61081 Lamp 70107001 Door switch 011071 Sticker user instructions 0110166 Keypad 0110161 Display control board TS61094 Foot ®PODAB 2015...

  • Page 11: Electrical Drawing

    Electrical drawing ®PODAB 2015...

  • Page 12: Podab

    AB PODAB, Ekonomivägen 9, SE - 436 33 Askim, SWEDEN AB PODAB, Ekonomivägen 9, 436 33 Askim, SWEDEN Tel +46 (0)31-752 01 00, Fax +46 (0) 31-752 01 50 E-mail: client@podab.com, www.podab.com Tel +46 (0)31-752 01 00, Fax +46 (0) 31-752 01 50 E-mail: sales@podab.se, www.podab.com ©PODAB 2013-09-12...
