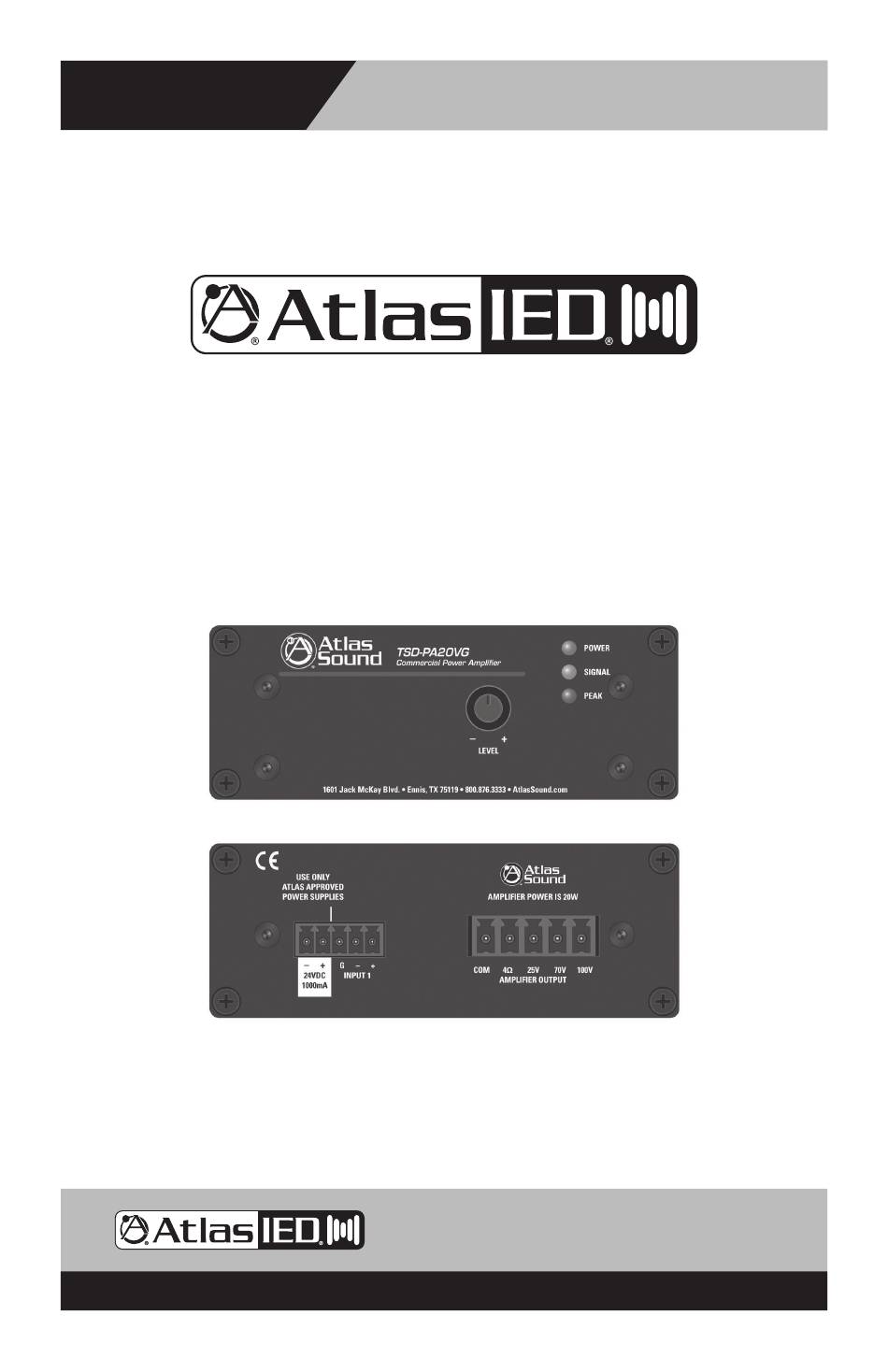

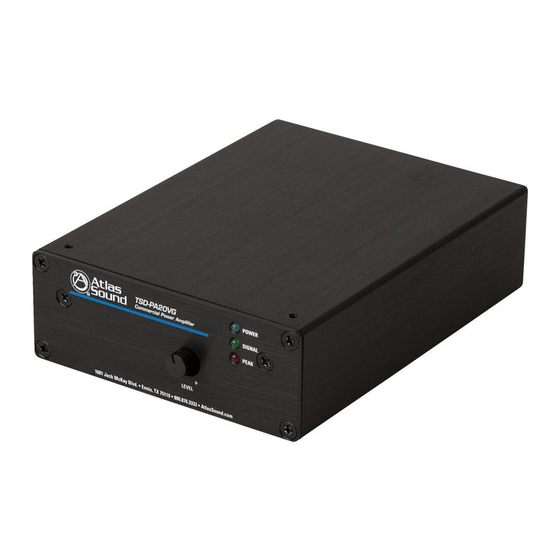

- Page 1 TSD-PA20VG Owner’s Manual 1x20W Global Commercial Amplifier TSD-PA20VG Mono 20W Power Amplifier 1601 Jack McKay Blvd. • Ennis, Texas 75119 U.S.A. Telephone: 800.876.3333 • Fax: 800.765.3435 – 1 – AtlasIED.com Specifications are subject to change without notice. https://manual-hub.com/...
-
Page 2: Audio Applications
(16) 25/70/100V ceiling speakers (tapped at 1W each), plus the extremely small footprint allows for easy mounting. For sound masking applications the TSD-PA20VG has the capacity to drive up to 34 masking speakers tapped at .5W each on a 70.7V line. -
Page 3: Front Panel Description
TSD-PA20VG Owner’s Manual 1x20W Global Commercial Amplifier Front Panel Description 1. Input Level Control - Determines the output level at the loudspeakers on the PA20VG. Turn clockwise to increase the signal level and counter-clockwise to decrease the level. Note: The Input Level Control knob can be removed and replaced with a supplied security cover to prevent unauthorized adjustment. -
Page 4: Rear Panel Description
TSD-PA20VG Owner’s Manual 1x20W Global Commercial Amplifier Rear Panel Description TSD Input/Output connections are removable for easy system wiring. The connectors have a 3.5mm pitch between pins. 1. DC Power Input - Each TSD that requires DC power comes with a 2 position connector for an external 24VDC power supply (sold separately). -
Page 5: Cable Management
TSD-PA20VG Owner’s Manual 1x20W Global Commercial Amplifier Cable Management Knob and Security Cover All front panel level controls feature a removable knob that can be replaced with an included security cover. Follow these steps to prevent potentiometer damage or unwanted changes. - Page 6 TSD-PA20VG Owner’s Manual 1x20W Global Commercial Amplifier Mounting Listed below are the ways to mount the TSD and the optional accessories that can be purchased. 1. Velcro™ - Each unit includes two 2" x 2" pieces of industrial-grade Velcro™ with adhesive backing to adhere to any flat surface.
-
Page 7: Optional Mounting Accessories
TSD-PA20VG Owner’s Manual 1x20W Global Commercial Amplifier Optional Mounting Accessories 1. TSD-RMK 19" Width Rack Mount Kit - For 19" rack mounting, AtlasIED offers an optional rack mount kit, the TSD-RMK. This rack mount kit can support up to four TSD units. The kit includes three blank panels designed to fill any unused slots. - Page 8 TSD-PA20VG Owner’s Manual 1x20W Global Commercial Amplifier 3. TSD-RRMK Rear Rack Mounting Kit - For complete flexibility in mounting a TSD or TSD external power supplies the optional TSD-RRMK is available. The TSD-RRMK can support mounting of either two larger TSDs with external power supplies or up to 4 TSD models. Note: Only use the included M3 x 4mm screws as other screws may be too long and will cause internal damage to the TSD.
-
Page 9: Block Diagram
TSD-PA20VG Owner’s Manual 1x20W Global Commercial Amplifier Block Diagram INPUT SIGNAL PEAK LEVEL AMP 20W 100V 4 ohm DC24V IN DC OUT POWER LED 1601 Jack McKay Blvd. • Ennis, Texas 75119 U.S.A. Telephone: 800.876.3333 • Fax: 800.765.3435 – 9 –... -
Page 10: Specifications
TSD-PA20VG Owner’s Manual 1x20W Global Commercial Amplifier Specifications Description 1 x 20W Global Commercial Amplifier Chassis Color Black Chassis Material Aluminum Power Output 20W @ 4Ω, 10W @ 8Ω, 20W @ 25/70.7/100V Loads Input Type Qty 1, Balanced Line Connection Removable 3 Position Captive Screw 3.5mm Spacing... - Page 11 TSD-PA20VG Owner’s Manual 1x20W Global Commercial Amplifier Included Accessories Velcro™ Industrial-Grade Multi-Mount Plate Qty 1, Includes Two (2) M3 x 4mm Screws Cable Retainers Qty 2 Level Control Knob Qty 1 Level Control Security Cover Qty 1 Optional Accessories TSD 24VDC...
-
Page 12: Limited Warranty
TSD-PA20VG Owner’s Manual 1x20W Global Commercial Amplifier Limited Warranty All products manufactured by AtlasIED are warranted to the original dealer/installer, industrial or commercial purchaser to be free from defects in material and workmanship and to be in compliance with our published specifications, if any. This warranty shall extend from the date of purchase for a period of three years on all AtlasIED products, including SOUNDOLIER brand, and ATLAS SOUND brand products except as follows: one year on electronics and control systems;...
