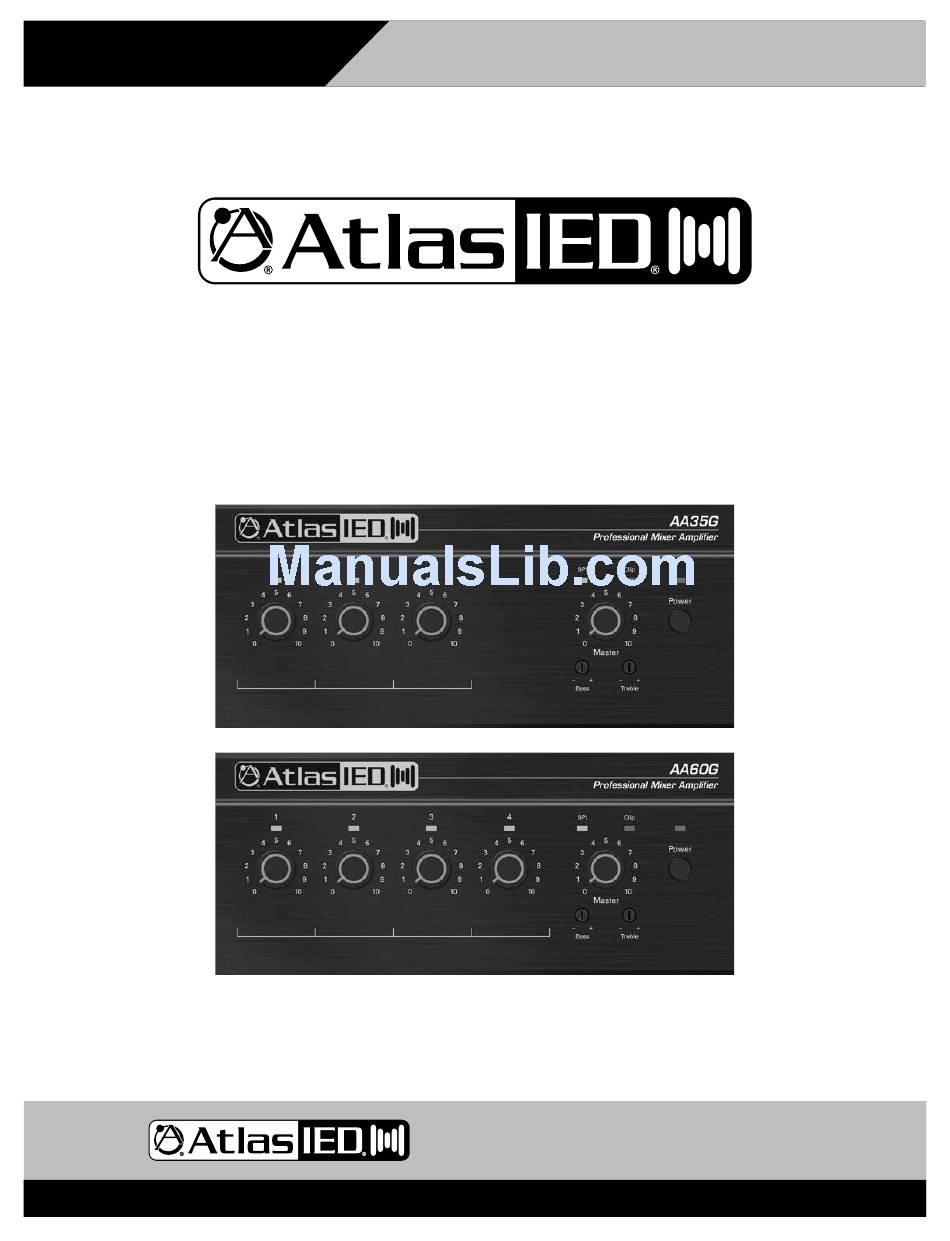

- Page 1 AA35G & AA60G Owner’s Manual Commercial Mixer Amplifier AA35G & AA60G Commercial Mixer Amplifier 1601 Jack McKay Blvd. • Ennis, Texas 75119 U.S.A. Telephone: 800.876.3333 • Fax: 800.765.3435 – 1 – AtlasIED.com Specifications are subject to change without notice.
-
Page 2: Table Of Contents
AA35G & AA60G Owner’s Manual Commercial Mixer Amplifier Table of Contents Important Safety Instructions ........................3 Introduction ............................5 Key Features ............................5 Applications ............................5 Front Panel Description ........................... 6 Rear Panel Description ..........................7 Installation ............................... 8 Rack Mounting ............................8 Input Wire and Connections ........................ -
Page 3: Important Safety Instructions
AA35G & AA60G Owner’s Manual Commercial Mixer Amplifier Important Safety Instructions The lightning flash with arrowhead symbol within an equilateral triangle, is intended to alert the user to the presence of uninsulated “dangerous voltage “ within the product’s enclosure that may be of sufficient magnitude to constitute a risk of electric shock to persons. - Page 4 AA35G & AA60G Owner’s Manual Commercial Mixer Amplifier WARNING - When The Device Is In Use • WARNING: For the terminals marked with symbol of may be of sufficient magnitude to constitute a risk of electric shock. The external wiring connected to the terminals requires installation by an instructed person or the used of ready-made leads or cords.
-
Page 5: Introduction
Signal presence LED indicators Applications The AtlasIED AA35G/AA60G are the perfect choice for distributed business paging and background music (BGM) systems, small to medium speech privacy systems, and in applications where music on hold (MOH) plus paging is required. 1601 Jack McKay Blvd. • Ennis, Texas 75119 U.S.A. -

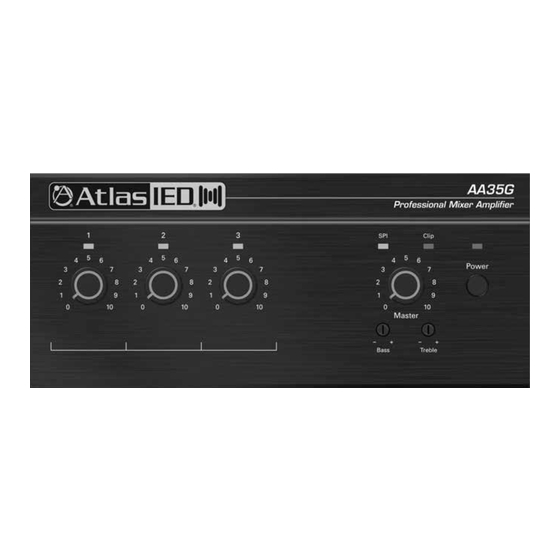

Page 6: Front Panel Description
6. Input Level Controls The rotary control varies the amplitude of the signal fed to the amplifier input. Turn clockwise to increase and counter-clockwise to decrease the signal level. Four controls in AA60G; three controls in AA35G. 7. Tone Controls Bass and Treble nondetented recessed potentiometers under master level control. -
Page 7: Rear Panel Description
3. Amp Configuration DIP Switch Understanding the functionality of the DIP switches is key to maximizing the versatility of the AA35G/AA60G. When a switch is in the up position, the function is “ON”and when a switch is in the down position, the function is “OFF” . -
Page 8: Installation
AA35G & AA60G Owner’s Manual Commercial Mixer Amplifier 5. Line Output Connector 3-Pin Balanced Euroblock connector. Line level output is Pre Master Level control. Use this output to connect signal to a secondary amplifier. 6. Zone 2 Level Control Potentiometer adjusts level for both Zone 2 outputs. -
Page 9: Input Wire And Connections
The AA35G and AA60G have two types of input connectors: Euroblock and RCA. • Mic / Line Connector (CH1): 5-pin Euroblock, balanced, pins 3, 4 and 5 (Figure 2.3). -
Page 10: Output Wire Connections
Zone 2 Connections If an external music source is connected to the AA35G or AA60G, its music can play over a phone line while the caller is on hold. Use the connection shown in Figure 2.7 (either 8Ω or 600Ω) to connect the mixer amplifier to the Music-On-Hold input on the telephone system interface/PBX. -
Page 11: Wiring The System
AA35G & AA60G Owner’s Manual Commercial Mixer Amplifier Wire the System Typical input and output wiring is shown in Figure 2.8. INPUTS: For Input 1, connect a microphone or balanced line-level signal to the Input 1 balanced input. Set the Mic/Line switch (DIP switch #1) accordingly. -
Page 12: Operation
Priority Muting Follow this procedure to allow the microphone’s push-to-talk switch to mute the background music or other input signals. On the back of the AA35G or AA60G: 1. Turn DIP switch 2 “Off” Turn DIP switch 3 “On” . -
Page 13: Troubleshooting
AA35G & AA60G Owner’s Manual Commercial Mixer Amplifier Troubleshooting CONDITION: No power to the mixer amplifier. POSSIBLE REASON: • The mixer amplifier’s power switch is Off. • The mixer amplifier is not plugged into the AC power receptacle. • The mixer amplifier’s high-voltage power supply circuit breaker has tripped. -
Page 14: Specifications
AA35G & AA60G Owner’s Manual Commercial Mixer Amplifier Specifications AA35G AA60G Electrical Specifications Power into 8Ω or 70V/100V Output (1kHz with 0.5% THD) Frequency Response (at 1 Watt from 8Ω Tap) 50Hz - 20kHz ±1 dB Technical Data Signal to Noise Ratio (Ref. to Rated Power, Master Volume at Minimum) Mic: >... - Page 15 AA35G & AA60G Owner’s Manual Commercial Mixer Amplifier Notes: 1601 Jack McKay Blvd. • Ennis, Texas 75119 U.S.A. Telephone: 800.876.3333 • Fax: 800.765.3435 – 15 – AtlasIED.com Specifications are subject to change without notice.
-
Page 16: Warranty
AA35G & AA60G Owner’s Manual Commercial Mixer Amplifier Limited Warranty All products manufactured by AtlasIED are warranted to the original dealer/installer, industrial or commercial purchaser to be free from defects in material and workmanship and to be in compliance with our published specifications, if any. This warranty shall extend from the date of purchase for a period of three years on all AtlasIED products, including SOUNDOLIER brand, and ATLAS SOUND brand products except as follows: one year on electronics and control systems;...
