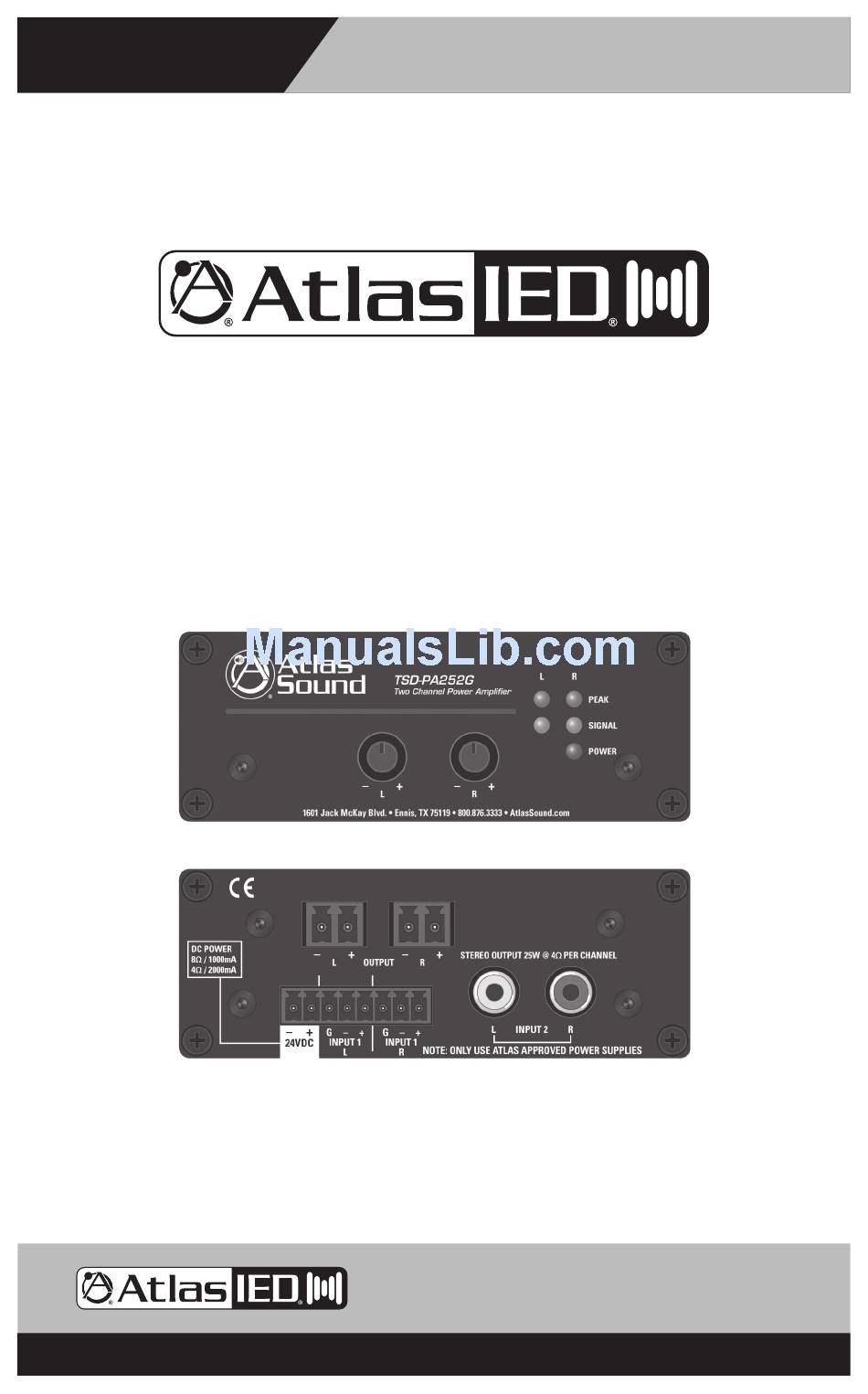

- Page 1 TSD-PA252G Owner’s Manual 2x25W Global Audio Amplifier TSD-PA252G 2x25W Global Audio Amplifier 1601 Jack McKay Blvd. • Ennis, Texas 75119 U.S.A. Telephone: 800.876.3333 • Fax: 800.765.3435 – 1 – AtlasIED.com Specifications are subject to change without notice.
-
Page 2: Audio Applications
The TSD-PA252G is part of a full line of AtlasIED Time Saving Devices. These compact (1.5" x 4" x 5.2") units are designed to solve some of the common audio system problems in the easiest, most efficient, and cost-effective way. -
Page 3: Front Panel Description
TSD-PA252G Owner’s Manual 2x25W Global Audio Amplifier Front Panel Description 1. Input Level Controls L & R - Adjusts the gain of the source audio signal of both the left and right channels. Turn clockwise to increase the signal level and counter-clockwise to decrease the level. -
Page 4: Rear Panel Description
TSD-PA252G Owner’s Manual 2x25W Global Audio Amplifier Rear Panel Description TSD Input/Output connections are removable for easy system wiring. The connectors have a 3.5mm pitch between pins. 1. DC Power Input - Each TSD that requires DC power comes with a 2 position connector for an external 24VDC power supply (sold separately). -
Page 5: Cable Management
TSD-PA252G Owner’s Manual 2x25W Global Audio Amplifier Cable Management Knob and Security Cover All front panel level controls feature a removable knob that can be replaced with an included security cover. Follow these steps to prevent potentiometer damage or unwanted changes. - Page 6 TSD-PA252G Owner’s Manual 2x25W Global Audio Amplifier Mounting Listed below are the ways to mount the TSD and the optional accessories that can be purchased. 1. Velcro™ - Each unit includes two 2" x 2" pieces of industrial-grade Velcro™ with adhesive backing to adhere to any flat surface.
-
Page 7: Optional Mounting Accessories
TSD-PA252G Owner’s Manual 2x25W Global Audio Amplifier Optional Mounting Accessories 1. TSD-RMK 19" Width Rack Mount Kit - For 19" rack mounting, AtlasIED offers an optional rack mount kit, the TSD-RMK. This rack mount kit can support up to four TSD units. The kit includes three blank panels designed to fill any unused slots. - Page 8 TSD-PA252G Owner’s Manual 2x25W Global Audio Amplifier 3. TSD-RRMK Rear Rack Mounting Kit - For complete flexibility in mounting a TSD or TSD external power supplies the optional TSD-RRMK is available. The TSD-RRMK can support mounting of either two larger TSDs with external power supplies or up to 4 TSD models. Note: Only use the included M3 x 4mm screws as other screws may be too long and will cause internal damage to the TSD.
-
Page 9: Block Diagram
TSD-PA252G Owner’s Manual 2x25W Global Audio Amplifier Block Diagram RCA INPUT 2 PEAK R IN – R CH LEVEL R OUT 12W 4 ohm CLASS D SIGNAL BRIDGE OUT 24W 8ohm BRIDGE IN L IN – L CH LEVEL L OUT... -
Page 10: Specifications
TSD-PA252G Owner’s Manual 2x25W Global Audio Amplifier Specifications Description Two Channel Amplifier Load Rating 8Ω - 12W x 2 CH 4Ω - 25W x 2 CH Chassis Color Black Chassis Material Aluminum Inputs Type Qty 2, Unbalanced Connection RCA Left and Right Impedance 10KΩ... - Page 11 TSD-PA252G Owner’s Manual 2x25W Global Audio Amplifier Power Requirements Note: All Current and Watt data is based on AC power consumption using the TSD-PS24V2500mA Power Supply. Average Power is Based On 50% Duty Cycle 8Ω 4Ω Voltage 24VDC 1000mA 24VDC 2000mA...
-
Page 12: Limited Warranty
TSD-PA252G Owner’s Manual 2x25W Global Audio Amplifier Limited Warranty All products manufactured by AtlasIED are warranted to the original dealer/installer, industrial or commercial purchaser to be free from defects in material and workmanship and to be in compliance with our published specifications, if any. This warranty shall extend from the date of purchase for a period of three years on all AtlasIED products, including SOUNDOLIER brand, and ATLAS SOUND brand products except as follows: one year on electronics and control systems;...
