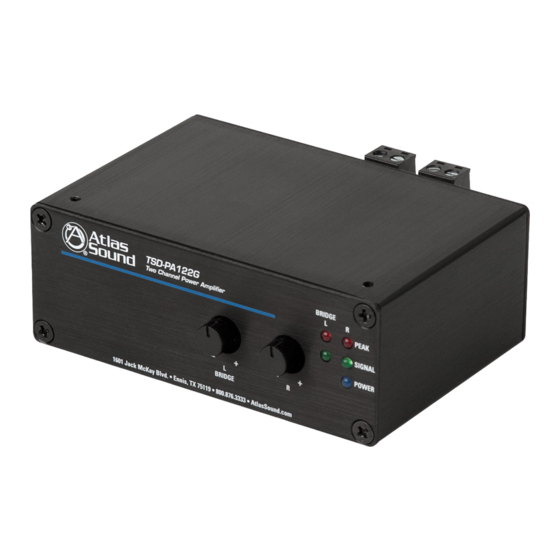

Atlas IED TSD-PA122G Owner's Manual

2x12w global audio amplifier
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

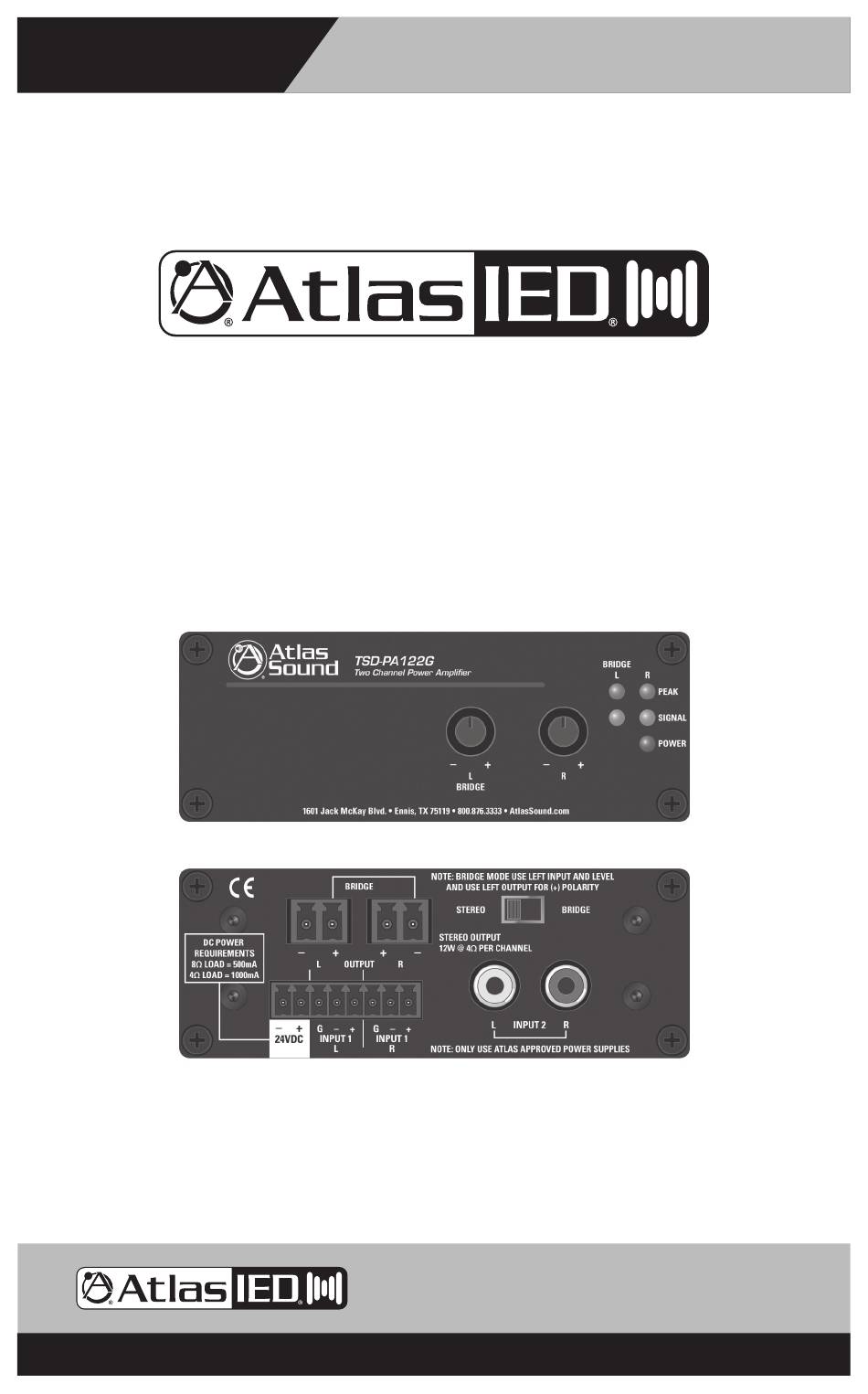

TSD-PA122G
Owner's Manual
2x12W Global Audio Amplifier
TSD-PA122G
2x12W Global Audio Amplifier
1601 Jack McKay Blvd. • Ennis, Texas 75119 U.S.A.
Telephone: 800.876.3333 • Fax: 800.765.3435
– 1 –
AtlasIED.com
Specifications are subject to change without notice.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the TSD-PA122G and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Atlas IED TSD-PA122G

Summary of Contents for Atlas IED TSD-PA122G

  • Page 1 TSD-PA122G Owner’s Manual 2x12W Global Audio Amplifier TSD-PA122G 2x12W Global Audio Amplifier 1601 Jack McKay Blvd. • Ennis, Texas 75119 U.S.A. Telephone: 800.876.3333 • Fax: 800.765.3435 – 1 – AtlasIED.com Specifications are subject to change without notice.

  • Page 2: Audio Applications

    The TSD-PA122G is part of a full line of AtlasIED Time Saving Devices. These compact (1.5" x 4" x 2.75") units are designed to solve some of the common audio system problems in the easiest, most efficient, and cost-effective way.

  • Page 3: Front Panel Description

    TSD-PA122G Owner’s Manual 2x12W Global Audio Amplifier Front Panel Description 1. Input Level Controls L & R - Adjusts the gain of the source audio signal of both the left and right channels. Turn clockwise to increase the signal level and counter-clockwise to decrease the level.

  • Page 4: Rear Panel Description

    TSD-PA122G Owner’s Manual 2x12W Global Audio Amplifier Rear Panel Description TSD Input/Output connections are removable for easy system wiring. The connectors have a 3.5mm pitch between pins. 1. DC Power Input - Each TSD that requires DC power comes with a 2 position connector for an external 24VDC power supply (sold separately).
  • Page 5 TSD-PA122G Owner’s Manual 2x12W Global Audio Amplifier 6. Cable Management Retainer Points - Each TSD includes two cable retainer straps for securing the included cable management retainers. Remove one of the rear panel screws, align the panel hole with a retainer and firmly tighten the screws.

  • Page 6: Cable Management

    TSD-PA122G Owner’s Manual 2x12W Global Audio Amplifier Cable Management Knob and Security Cover All front panel level controls feature a removable knob that can be replaced with an included security cover. Follow these steps to prevent potentiometer damage or unwanted changes.
  • Page 7 TSD-PA122G Owner’s Manual 2x12W Global Audio Amplifier Mounting Listed below are the ways to mount the TSD and the optional accessories that can be purchased. 1. Velcro™ - Each unit includes two 2" x 2" pieces of industrial-grade Velcro™ with adhesive backing to adhere to any flat surface.

  • Page 8: Optional Mounting Accessories

    TSD-PA122G Owner’s Manual 2x12W Global Audio Amplifier Optional Mounting Accessories 1. TSD-RMK 19" Width Rack Mount Kit - For 19" rack mounting, AtlasIED offers an optional rack mount kit, the TSD-RMK. This rack mount kit can support up to four TSD units. The kit includes three blank panels designed to fill any unused slots.
  • Page 9 TSD-PA122G Owner’s Manual 2x12W Global Audio Amplifier 3. TSD-RRMK Rear Rack Mounting Kit - For complete flexibility in mounting a TSD or TSD external power supplies the optional TSD-RRMK is available. The TSD-RRMK can support mounting of either two larger TSDs with external power supplies or up to 4 TSD models. Note: Only use the included M3 x 4mm screws as other screws may be too long and will cause internal damage to the TSD.

  • Page 10: Block Diagram

    TSD-PA122G Owner’s Manual 2x12W Global Audio Amplifier Block Diagram RCA INPUT 2 BRIDGE SWITCH PEAK R IN – R CH LEVEL R OUT 12W 4 ohm STEREO/BRIDGE SW CLASS D BRIDGE OUT 24W 8ohm SIGNAL BRIDGE IN L IN –...
  • Page 11 TSD-PA122G Owner’s Manual 2x12W Global Audio Amplifier Controls Level Control Qty 2, Removable Knob with Security Cover Operation Mode Switch Stereo or Bridge Indicators Input Signal Green, 25mV On Threshold, Qty 2 Peak Red, -3dB Before Clip, Qty 2 Power...

  • Page 12: Limited Warranty

    TSD-PA122G Owner’s Manual 2x12W Global Audio Amplifier Limited Warranty All products manufactured by AtlasIED are warranted to the original dealer/installer, industrial or commercial purchaser to be free from defects in material and workmanship and to be in compliance with our published specifications, if any. This warranty shall extend from the date of purchase for a period of three years on all AtlasIED products, including SOUNDOLIER brand, and ATLAS SOUND brand products except as follows: one year on electronics and control systems;...
