Summary of Contents for Atlas IED TSD-PA10VG

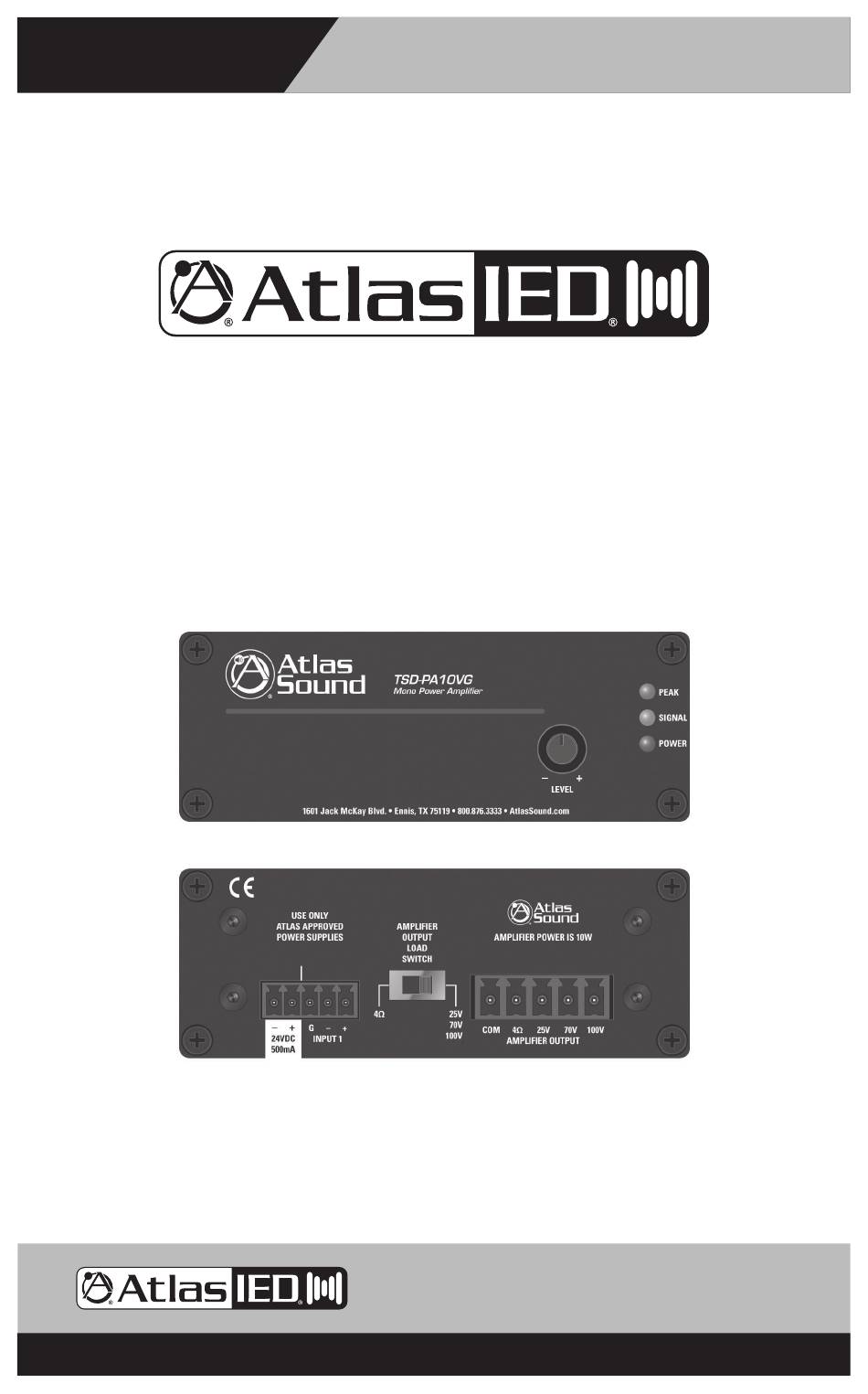

- Page 1 TSD-PA10VG Owner’s Manual Mono Commercial Power Amplifier TSD-PA10VG Mono 10W Power Amplifier 1601 Jack McKay Blvd. • Ennis, Texas 75119 U.S.A. Telephone: 800.876.3333 • Fax: 800.765.3435 – 1 – AtlasIED.com Specifications are subject to change without notice.
-
Page 2: Audio Applications
Mono Commercial Power Amplifier Description The AtlasIED TSD-PA10VG is a single channel global amplifier that can deliver up to 10W into a 4Ω, 8Ω, 25V, 70V, or 100V speaker load with a balanced mono phoenix style input. The Atlas PA10VG only draws 2.8W when in idle and is over 70% efficient to meet most energy power consumption... -
Page 3: Front Panel Description
TSD-PA10VG Owner’s Manual Mono Commercial Power Amplifier Front Panel Description 1. Input Level Control - Determines the output level at the loudspeakers on the PA10VG. Turn clockwise to increase the signal level and counter-clockwise to decrease the level. Note: The Input Level Control knob can be removed and replaced with a supplied security cover to prevent unauthorized adjustment. -
Page 4: Rear Panel Description
TSD-PA10VG Owner’s Manual Mono Commercial Power Amplifier Rear Panel Description TSD Input/Output connections are removable for easy system wiring. The connectors have a 3.5mm pitch between pins. 1. DC Power Input - Each TSD that requires DC power comes with a 2 position connector for an external 24VDC power supply (sold separately). -
Page 5: Cable Management
TSD-PA10VG Owner’s Manual Mono Commercial Power Amplifier Cable Management Knob and Security Cover All front panel level controls feature a removable knob that can be replaced with an included security cover. Follow these steps to prevent potentiometer damage or unwanted changes. - Page 6 TSD-PA10VG Owner’s Manual Mono Commercial Power Amplifier Mounting Listed below are the ways to mount the TSD and the optional accessories that can be purchased. 1. Velcro™ - Each unit includes two 2" x 2" pieces of industrial-grade Velcro™ with adhesive backing to adhere to any flat surface.
-
Page 7: Optional Mounting Accessories
TSD-PA10VG Owner’s Manual Mono Commercial Power Amplifier Optional Mounting Accessories 1. TSD-RMK 19" Width Rack Mount Kit - For 19" rack mounting, AtlasIED offers an optional rack mount kit, the TSD-RMK. This rack mount kit can support up to four TSD units. The kit includes three blank panels designed to fill any unused slots. - Page 8 TSD-PA10VG Owner’s Manual Mono Commercial Power Amplifier 3. TSD-RRMK Rear Rack Mounting Kit - For complete flexibility in mounting a TSD or TSD external power supplies the optional TSD-RRMK is available. The TSD-RRMK can support mounting of either two larger TSDs with external power supplies or up to 4 TSD models. Note: Only use the included M3 x 4mm screws as other screws may be too long and will cause internal damage to the TSD.
-
Page 9: Block Diagram
TSD-PA10VG Owner’s Manual Mono Commercial Power Amplifier Block Diagram INPUT SIGNAL PEAK LEVEL AMP 10W 100V 4 ohm DC24V IN DC OUT OUTPUT SELECT SWITCH 4 ohm TO OT POWER LED 1601 Jack McKay Blvd. • Ennis, Texas 75119 U.S.A. -
Page 10: Specifications
TSD-PA10VG Owner’s Manual Mono Commercial Power Amplifier Specifications Description Mono Commercial Power Amplifier Chassis Color Black Chassis Material Aluminum Power Output 5W @ 8Ω, 10W @ 4Ω, 10W @ 25V = 62Ω, 70V = 490Ω, 100V = 1000Ω Loads Inputs... - Page 11 TSD-PA10VG Owner’s Manual Mono Commercial Power Amplifier Included Accessories Velcro™ Industrial-Grade Multi-Mount Plate Qty 1, Includes Two (2) M3 x 4mm Screws Cable Retainers Qty 2 Level Control Knob Qty 1 Level Control Security Cover Qty 1 Optional Accessories TSD 24VDC...
-
Page 12: Limited Warranty
TSD-PA10VG Owner’s Manual Mono Commercial Power Amplifier Limited Warranty All products manufactured by AtlasIED are warranted to the original dealer/installer, industrial or commercial purchaser to be free from defects in material and workmanship and to be in compliance with our published specifications, if any. This warranty shall extend from the date of purchase for a period of three years on all AtlasIED products, including SOUNDOLIER brand, and ATLAS SOUND brand products except as follows: one year on electronics and control systems;...
