Atlas IED AAGRMK2 Install Sheet

Safety Instructions

Please read carefully before installing or operating.
• Read all instructions carefully
• Heed all warnings
• Always assure amplifier power is Off before making any connections, or mounting
• Ensure that all electrical equipment is properly grounded
• Keep instructions for future reference
• Should any questions arise after reading this document, please call AtlasIED Tech Support at 800-876-3333

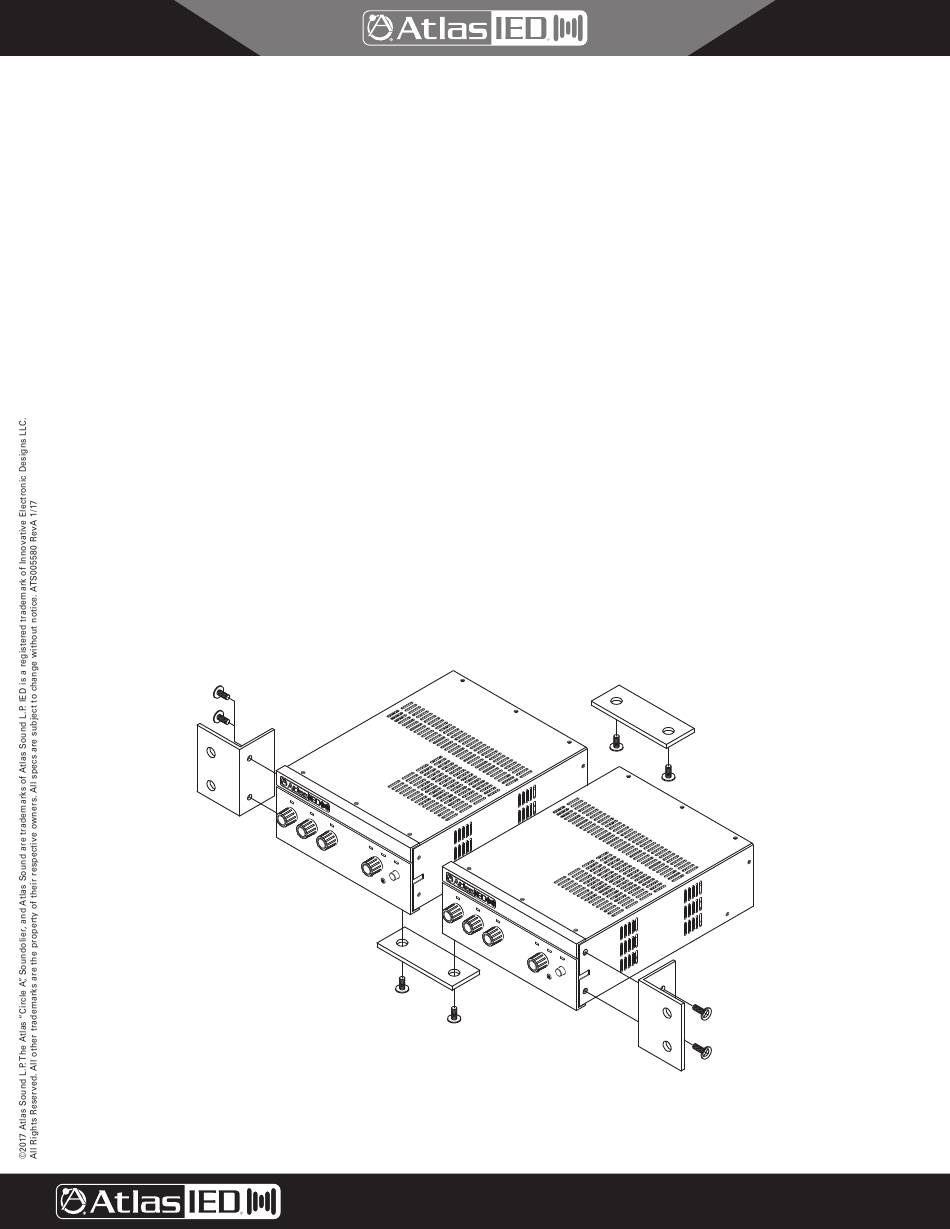

Configuration 1 - Mounting two AA35G or AA60G Amplifiers, or one AA35G with one AA60G
1. Disconnect the amplifiers from the electrical source.
2. Remove the four feet from the bottom of each unit.
3. Remove the four side panel screws from the inside panels of each unit.
4. Align and secure the two joiner plates to the bottom of the units with the enclosed screws. Note: Both plates must be attached, one towards the
front and one towards the back.
5. Remove the front two screws from the outside panels of each unit.
6. Align the enclosed rack ears to the chassis holes.
7. Use the enclosed chassis screws to attach the rack ears to the outside panels of each unit. Secure firmly, do not over tighten.
8. Install the amplifiers into the rack using rack rail screws and washers.
9. Disregard any additional pieces.
