Summary of Contents for Atlas IED HPA Series

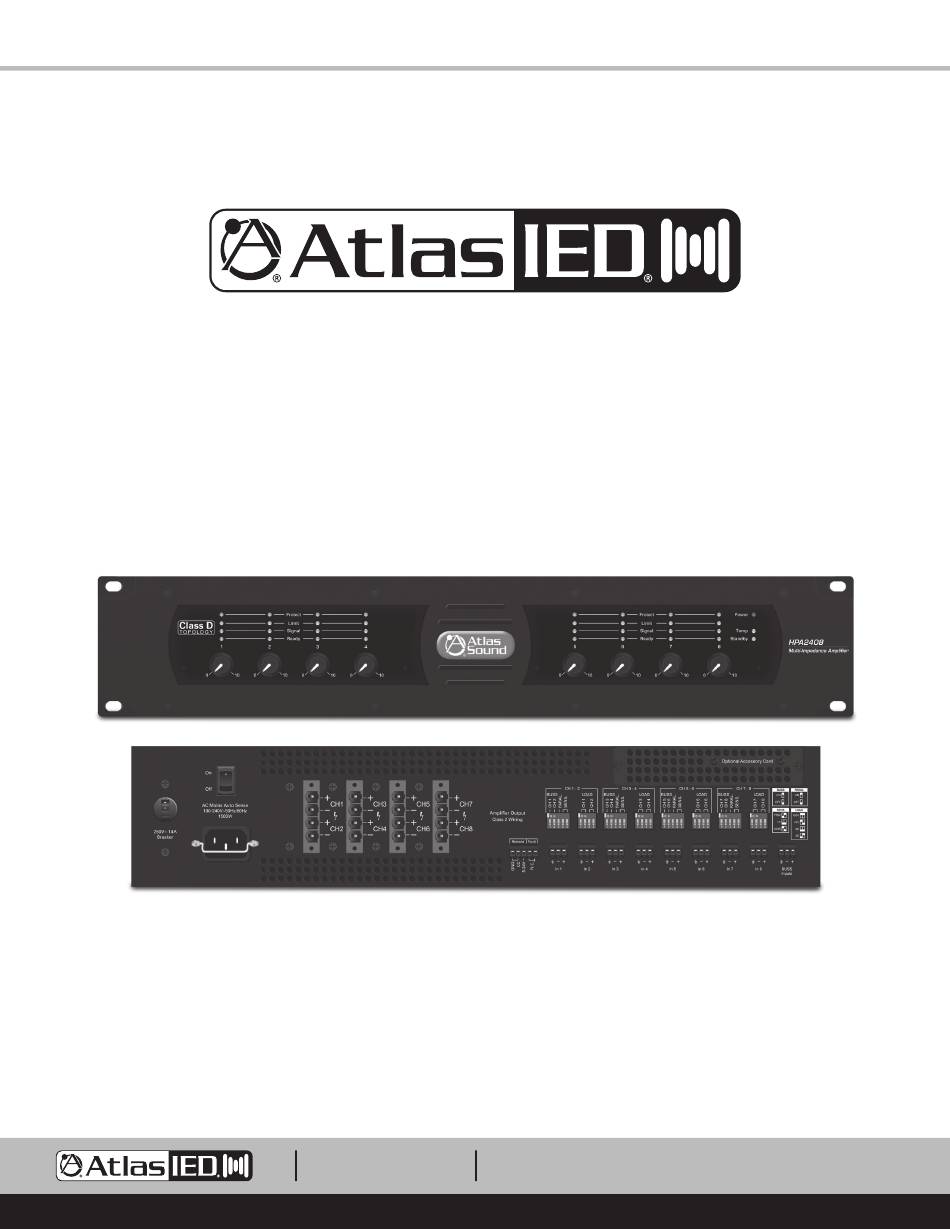

- Page 1 HPA2408 Multi-Impedance High Power Amplifier 1601 JACK MCKAY BLVD. TELEPHONE: (800) 876-3333 AtlasIED.com ENNIS, TEXAS 75119 U.S.A. SUPPORT@ATLASIED.COM – 1 –...
-
Page 2: Table Of Contents
HPA Series Owner’s Manual Table of Contents Important Safety Instructions ....................................3 Introduction ........................................... 5 Key Features .......................................... 5 Front Panel Description ......................................6 Tamper Proof Security Cover ....................................6 Rear Panel Description ......................................8 Rear Panel Input and Output Switch Configurations .............................. 9 Remote Turn On ........................................10... -
Page 3: Important Safety Instructions
HPA Series Owner’s Manual Important Safety Instructions The lightning flash with arrowhead symbol within an equilateral triangle, is intended to alert the user to the presence of uninsulated “dangerous voltage “ within the product’s enclosure that may be of sufficient magnitude to constitute a risk of electric shock to persons. - Page 4 HPA Series Owner’s Manual WARNING - When The Device Is In Use • WARNING: For the terminals marked with symbol of may be of sufficient magnitude to constitute a risk of electric shock. The external wiring connected to the terminals requires installation by an instructed person or the used of ready-made leads or cords.
-
Page 5: Introduction
Introduction Thank you for purchasing the AtlasIED HPA Series amplifier. The AtlasIED high power amplifier, “HPA” Series, is designed for use in either commercial 25V / 70V / 100V distributed systems or low impedance 8 or 4 ohm applications that require amplifiers to handle multiple impedance loads. The HPA2408 is compact and lightweight in comparison to other models delivering similar performance. -
Page 6: Front Panel Description
2. Level Control Security Cover The HPA Series comes with two tamper-proof level control security covers. There are two screws that hold each security cover in place covering the four level controls on each side. 3. Ventilation The HPA2408 amplifier features a multistage fan assist cooling system that draws cool air in from the rear of the amp and exhausts the hot air out the front panel. - Page 7 HPA Series Owner’s Manual Front Panel D. Ready - The Ready LED will illuminate green when the amplifier channels are stable and ready for use. Signal - The Signal LED will illuminate green when the amplifier output signal produces at least 1-watt output.
-
Page 8: Rear Panel Description
It has an IEC-600320-C14 receptacle with retainer clip and is provided with a removable 1.8 meter 14 gauge NEMA 5-15 power cord. Insert the IEC connector of the power cord into the IEC receptacle of the HPA Series amplifier making sure it is properly secured using the retainer clip. For non North American applications, refer to local electrical code requirements to select the proper mating power cord. -
Page 9: Rear Panel Input And Output Switch Configurations
HPA Series Owner’s Manual Rear Panel 6. DIP Switches for Input Sensitivity, Select 2-Channel or Parallel Mode, Assign BUSS The HPA2408’s 8 channels are controlled in groups of paired channels, 1 & 2, 3 & 4, 5 & 6, 7 & 8. Each pair of channels has a switch to assign the amplifier’s channel gain (input sensitivity) and the input’s wiring mode of parallel or 2-channel amplifier load configuration. -
Page 10: Remote Turn On
HPA Series Owner’s Manual Rear Panel 8. Remote Turn ON Terminals The HPA amplifier can be turned on or activated from a remote location. Note: In order for the amplifier to go from Standby mode to Active mode, the amplifier switch must be in the Up (On) position, with either the Contact Closure in place or DC voltage (5-24VDC) present. One of these two must be active to turn on the amplifier’s power supply. - Page 11 10. Loudspeaker Connections The HPA Series amplifiers ship with a protective plate covering the loudspeaker terminal pins. This is required by safety approval agencies due to the high voltage levels produced. Remove this cover and install the Euro Block type connector to connect loudspeakers to the amplifier. Any connections to the Euro Block type connector are to be made by a qualified electrical technician.
-
Page 12: Placement Of The Amp
HPA Series Owner’s Manual Placement of the Amp Turn off all equipment before making connections. Install the amplifier in a standard-width 19” rack. It can be mounted above or below anything that does not generate excessive heat. Although the unit’s chassis is shielded against radio frequency and electromagnetic interference, extremely high fields of RF and EMI should be avoided. -
Page 13: Connecting The Hpa Amplifier To Ac Mains
Never plug an HPA Series amplifier into a circuit without knowing what other products are connected to the same circuit. 2. Never plug an HPA Series amplifier into a power strip. Always connect directly to a dedicated circuit wall receptacle. Power strips are not designed to deliver high amounts of continuous or peak current. -
Page 14: Optional Dante™ Input Card
HPA Series Owner’s Manual HPA Amplifier Dante™ Accessory Card Installation The HPA amplifier series allows for an optional HPA-DAC8 8-Channel Dante™ receiver card to be installed into the HPA amplifier. Contact AtlasIED for a list of accessory cards. Note: Accessory card installation must be done by a qualified technician. -
Page 15: Specifications
HPA Series Owner’s Manual System Type Power Amplifier, 8 Channel Power Supply Type Switch Mode Amp Topology Class D - Gen 2 Design Number of Fixed Inputs Accessory Inputs DSP Internal Network Optional Card Slot Output Power (Note 1) 100V x 8 CH 8 x 300W 70.7V x 8 CH... - Page 16 HPA Series Owner’s Manual Configuration Settings (Rear Panel) Input Sensitivity 0.775V, 1V, 32dB per CH Parallel Inputs Yes (Y Input) Bridge Output Terminals (Speaker) Output Connectors Type Removable Euro Block, 7 .62mm Pitch, Locking Output Connectors Number of Terminals Qty 4, 4 Position...
- Page 17 HPA Series Owner’s Manual Cooling Cooling System Fan Assist (Activated by Temperature) Air Inlet Filter Yes, Rear, Washable, Qty 3 Cooling Air Flow Direction Rear to Front Dimensions and Weight Rack Mount Requirements 2 RU, 19" Dimensions - Unit 19" W x 3.5" H x 15" D (483mm x 89mm x 381mm) Dimensions - Shipping 23"...
- Page 18 HPA Series Owner’s Manual Dimensional Drawings 19.00" Protect Protect Power Limit Limit Signal Signal Temp Ready Ready Standby HPA2408 Multi-Impedance Amplifier FRONT " 19.00" Protect Power Limit Signal Temp Protect Protect Power Ready Standby HPA2408 Limit Limit Multi-Impedance Amplifier Signal...
- Page 19 HPA Series Owner’s Manual Notes 1601 JACK MCKAY BLVD. TELEPHONE: (800) 876-3333 AtlasIED.com ENNIS, TEXAS 75119 U.S.A. SUPPORT@ATLASIED.COM – 19 –...
-
Page 20: Warranty
Limited Warranty All products manufactured by AtlasIED are warranted to the original dealer / installer, industrial or commercial purchaser to be free from defects in material and workmanship and to be in compliance with our published specifications, if any. This warranty shall extend from the date of purchase for a period of three years on all AtlasIED products, including SOUNDOLIER brand, and ATLAS SOUND brand products except as follows: one year on electronics and control systems;...
