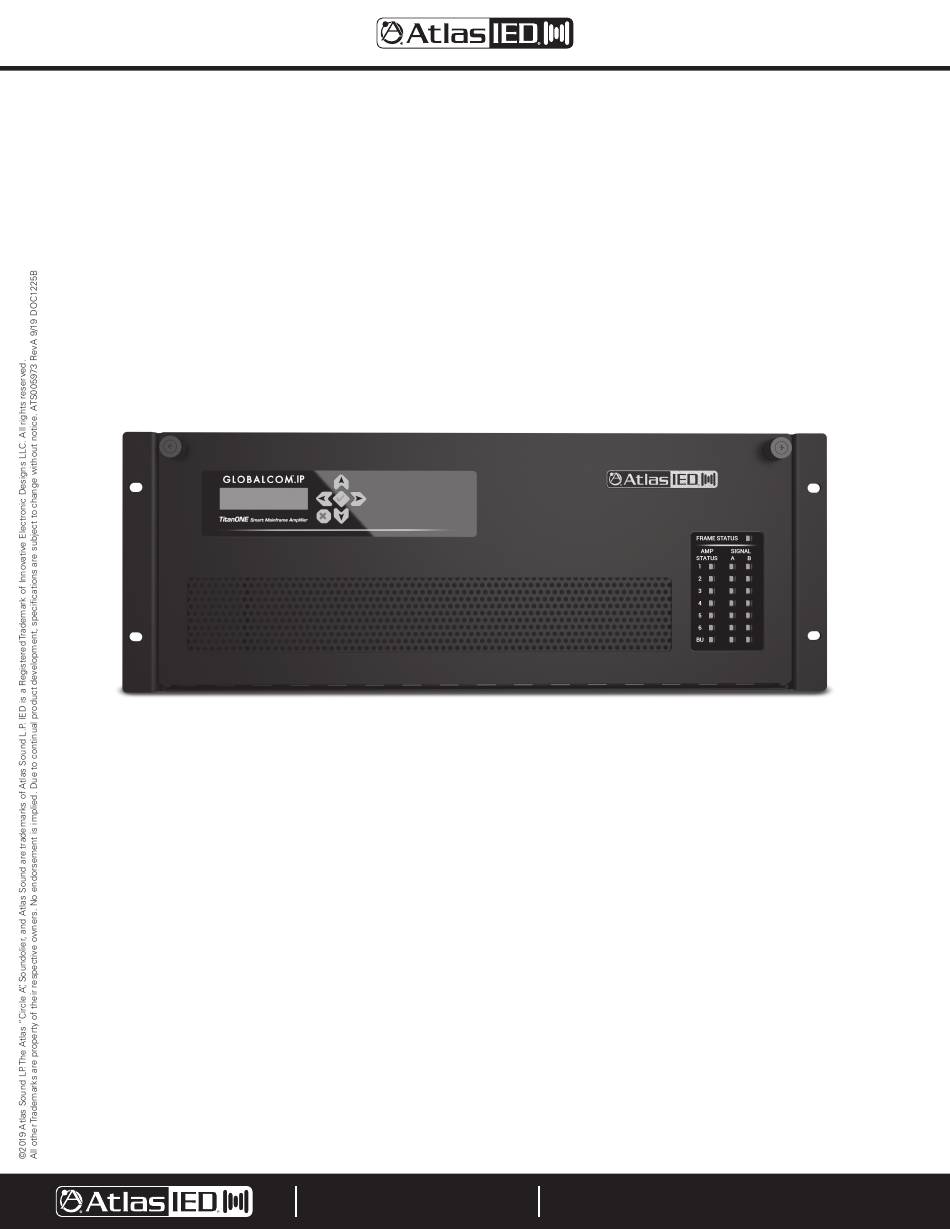

- Page 1 T112 / T112C TitanONE Smart Mainframe Power Amplifier Installation Manual Version: 2.0 5 April 2019 Document: 1225B 9701 TAYLORSVILLE ROAD TELEPHONE: (502) 267-7436 AtlasIED.com LOUISVILLE, KENTUCKY 40299 U.S.A. SUPPORT@ATLASIED.COM...
-
Page 2: Table Of Contents
Table of Contents Important Safety Instructions ....................................3 Safety Symbols ......................................... 3 Safety Considerations ......................................4 Safety Precautions ......................................4 General Precautions ......................................5 Preliminary Precautions ....................................5 Precautions When Measuring High Voltage Potentials ............................. 6 Precautions When Working on Energized Equipment ............................6 AC Power Circuits ...................................... -
Page 3: Important Safety Instructions
Important Safety Instructions Labeling on products and the Installation Instructions & User Manual may use safety related graphical symbols as shown below to note safety requirements. Lightning Bolt: The lightning flash with arrowhead symbol, within an equilateral triangle, WARNING symbol, is intended to alert the user to the presence of un-insulated dangerous voltage within the product’s enclosure that may be sufficient in magnitude to constitute a risk of electric shock to persons or domestic animals. -
Page 4: Safety Considerations
WARNING: To reduce the risk of fire or electric shock, do not expose this apparatus to rain, moisture, dripping, splashing, or place objects filled with liquids on the equipment. AVERTISSEMENT: Afin de réduire le risque d’incendie ou de choc électrique, n’exposez pas cet appareil à la pluie, à l’humidité, à l’égouttement, aux éclaboussures, et ne posez pas des objets remplis de liquide sur l’appareil WARNING: If apparatus is equipped with Class I grounding plugs for safety purposes, it must be connected to MAINS that employ a protective earth ground connection. -
Page 5: General Precautions
General Precautions Changes, modifications, or additions in connection with the AtlasIED system equipment shall not be made without explicit authorization of AtlasIED. Safety devices found on mechanical, and electrical and electronic equipment are put there for the protection of personnel and equipment. These devices must be maintained in good working order and operative at all times. -
Page 6: Precautions When Measuring High Voltage Potentials
Precautions When Measuring High Voltage Potentials Observe the following precautions when measurements must be performed on circuits with potentials over 48 volts. A. Do not measure potentials over 48 volts without the presence or assistance of a person who is capable of rendering aid, and who is familiar with the procedure for emergency shutdown of the equipment. -
Page 7: Introduction
Introduction The T112 Intelligent Amplified Digital Signal Processing System is designed to house, supply power to, and cool up to seven (7) Titan-One Series power amplifier cards. In addition, the mainframe provides digital audio network connections from an AtlasIED audio network controller such as a GLOBALCOM .IP IP100 series ACS. -
Page 8: Front Panel Description
Front Panel Overall Status Indicator - This is a tri-color LED that indicates the following conditions: • Slow Flash Green - The unit is powered up and operating normally. • Quick Flash Green - The unit is powered up, but in power save mode, i.e., the CPU is running, but the amplifiers are powered off in between announcements and supervision checks. -
Page 9: Rear Panel Description
Rear Panel Speaker Connections - The connections to field wiring for the distributed speakers are at a maximum of either 70V or 100V RMS depending on the model of amplifiers inserted into the frame. If wiring Class B speaker circuits and full supervision is needed, install a single end-of-line (EOL) module at the far end of each speaker line for best compliance with code standards. - Page 10 Rear Panel 6. Monitor / Test Input / Output Connections - The four connections available in this section may be used for the following: • Test In - Input to be tested. The signal may come from an external monitor / test point selector such as a T9032MT frame from AtlasIED. •...
-
Page 11: Installing The T112
Installing the T112 Unpacking and Preparing the Unit Unpack the unit from its shipping carton and identify any accompanying components that may have been included. The unit comes with rack ears for easy mounting into a 19" rack. Installing the Unit into a Rack The T112 requires four rack units (4 RUs) of available space and a recommended mounting depth of 22"... -
Page 12: Insert The Cpu Card
Insert the CPU Card Standard packaging is to ship the CPU card not installed, but in a separate box nestled into the foam atop the frame. One needs to carefully install the CPU card into the frame once it is mounted into the rack. This is done by first opening the front of the T112. Unscrew the two screws in the upper right and upper left corners, and then lower the front of the unit. -
Page 13: Insert The Amplifier Cards
Insert the Amplifier Cards Amplifier cards (or line driver cards) are inserted into the frame from the front. To insert an amplifier card, start by opening the front of the T112 by unscrewing the two screws in the upper right and upper left corners, and then lowering the front of the unit. Amplifier slot #1 is on the far left when facing the unit. -
Page 14: Wiring Diagram
Wiring Diagram The wiring connections to the T112 are all made on the rear as shown in the diagram below. Specifics of each of these connections are detailed in the sections which follow. Note: For Class B supervision, on each output, speaker circuit must be one continuous run with no branching with an EOL Device at the end. -
Page 15: Connect Speaker Field Wiring
Connect Speaker Field Wiring Speaker connections on the rear are grouped by amplifier card, channels A and B. When looking at the rear of the frame, connections for amplifier card 1 are on your right. Connections are made by inserting a properly sized mating captive screw connector into each speaker wiring plug as shown in the figure. -
Page 16: Connect Logic Inputs
Connect Logic Inputs Dry contact closures may be connected to logic inputs of the T112. These logic inputs may be supervised or not. When supervised, the T112 will be able to tell if the wire connecting to the remote device is open or shorted. In order to be supervised, the input must be configured with two 10kΩ resistors are shown in the figure below. - Page 17 The numbers provided assume that amplifiers are turned up to their maximum levels for announcements, speaker lines have the maximum loads for each model of amplifier, and that announcements are a mix of tone and voice averaging power. There are three states of the amplifier frame: •...
-
Page 18: Complete Unit Configuration
Complete Unit Configuration Once the unit is booted up, complete the system configuration using the supplied configuration software that comes with the public address control system (GLOBALCOM.IP System Management Center. Refer to the appropriate user guide for guidance on completing the unit setup. When installing the T112 as part of a life safety or mass notification system that must comply to a standard such as UL 2572, some care should be taken in configuring features of the T112. - Page 19 Notes: 9701 TAYLORSVILLE ROAD TELEPHONE: (502) 267-7436 AtlasIED.com LOUISVILLE, KENTUCKY 40299 U.S.A. SUPPORT@ATLASIED.COM...
-
Page 20: Warranty
Limited Warranty All products manufactured by AtlasIED are warranted to the original dealer/installer, industrial or commercial purchaser to be free from defects in material and workmanship and to be in compliance with our published specifications, if any. This warranty shall extend from the date of purchase for a period of three years on all AtlasIED products, including SOUNDOLIER brand, and ATLAS SOUND brand products except as follows: one year on electronics and control systems;... -
Page 21: Operating Instructions
Local Service Representative (fill in before posting these instructions) Name: ___________________________________________________________________________________________________________ Address: _________________________________________________________________________________________________________ Phone: ___________________________________________________________________________________________________________ Operating Instructions The T112 is primarily controlled from the public address system controller. However, there are a few functions that can be done from the front panel LCD panel and navigation buttons. - Page 22 Summary Screen Main Menu Login / Logout [Password Prompt] or [ACK Prompt to logout] Inputs [Logic Input Display] Faults If logged out, skips to view View [list of faults] Clear All [ACK Prompt] System If logged out, skips to view Information [List of information in rotation] Restart...
- Page 23 Login / Logout This option is used to login for Level 2 access or logout, depending on whether the user is currently logged out or in. The LCD menu indicates whether currently logged in or not by showing an asterisk (*) in the top right corner when logged in, e.g., Main Menu Faults If logging in, the user will be presented with the Enter Password prompt such as shown below left.
- Page 24 Network On the Network Menu, the options that may be selected are: • Information - View the IP address, subnet mask, gateway and MAC address of the T112 controller and Audio device. The user is logged out, the display immediately goes to showing the network information. These options appear such as in the examples below. I P Addre ss Subnet Ma sk Gateway...
