FEATURES
EV-ADF4030SD1Z evaluation board including the ADF4030 10-
►
channel precision synchronizer, Arduino interface, and voltage
regulators
Allows multiple ways to provide a reference clock to the
►
ADF4030
Single-ended from a signal generator
►
Differential from another device or additional ADF4030 devi-
►
ces
Gives access to all 10 ADF4030 BSYNC bidirectional I/O lines
►
using twinax and SMA connectors
Facilitates interfacing the ADF4030 clocks with an oscilloscope
►
or other boards using an interposer board
SDP-K1 controller board functions as an interface between a PC
►
and the evaluation board
Up to 16 EV-ADF4030SD1Z evaluation boards can be stacked
►
up using the Arduino connector
®
Windows
-based software allows control of all ADF4030 func-
►
tions from a PC
EVALUATION BOARD KIT CONTENTS
EV-ADF4030SD1Z evaluation board
►
Interposer board
►
One SDK-K1 controller kit
►
One 12 V, 24 W AC/DC external wall mount (Class II) adapter
►
One twinax cable
►
EQUIPMENT NEEDED
Windows-based PC with USB 2.0 port for evaluation software
►
PLEASE SEE THE LAST PAGE FOR AN IMPORTANT
WARNING AND LEGAL TERMS AND CONDITIONS.
Evaluating the ADF4030 10-Channel Precision Synchronizer
Figure 1. EV-ADF4030SD1Z Plugged into SDP K1 Controller Board
User Guide | EVAL-ADF4030
Reference clock source
►
Oscilloscope with SMA cables (optional)
►
REQUIRED SOFTWARE
ACE
software, Version 1.30 or higher
►
ADF4030 plugin, Version 1.2024.26400-dev0030 or higher
►
GENERAL DESCRIPTION
The EV-ADF4030SD1Z evaluates the performance of the ADF4030
10-channel precision synchronizer. The SDP-K1 controller board
must be connected to the EV-ADF4030SD1Z using the Ardu-
ino connector underneath the evaluation board. Multiple EV-
ADF4030SD1Z evaluation boards can be stacked up onto the
SDP-K1 controller board using the Arduino connector.

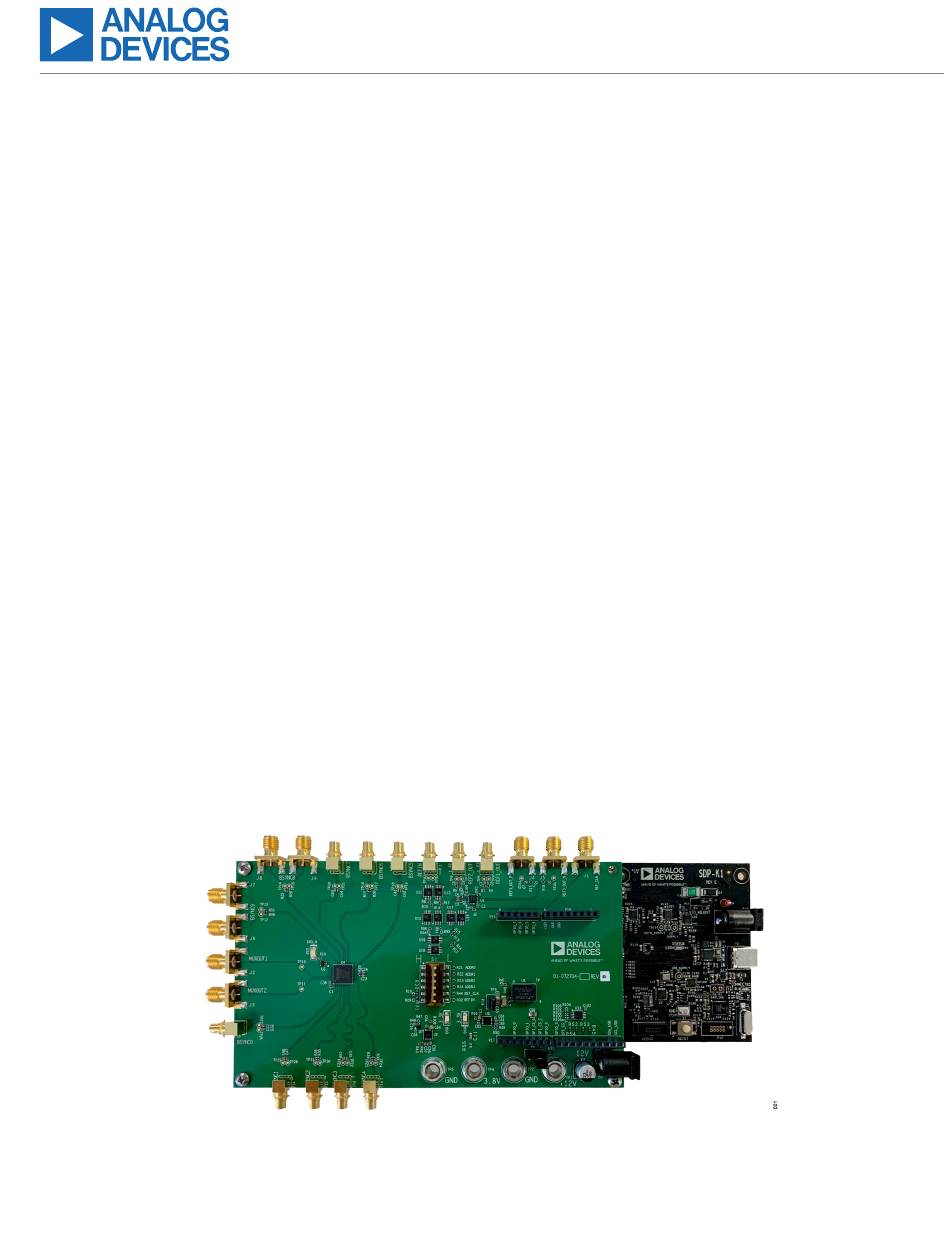

A photograph of the evaluation board with the SDP-K1 controller
board is shown in
Figure
1. The evaluation board contains the
ADF4030 10-channel precision synchronizer, the power supply
connectors, and the Arduino connector used to connect to the SDP
K1 board. This combination allows software programming of the
evaluation board using ACE software.
Full specifications for the ADF4030 precision synchronizer are
available in the product data sheet, which must be consulted in
conjunction with this user guide when working with the evaluation
board.
EVALUATION BOARD PHOTOGRAPH
UG-2284
Rev. 0 | 1 of 32
