WoMaster IDS208G Quick Installation Manual

Quick Installation Guide
Slim 8-port Giga Din-rail Switch
IDS208G
Slim 8-port Giga PoE Din-rail Switch
IDP208G-8GP
www.womaster.eu
・Overview
The IDS208G is engineered with a rugged mechanical design to ensure
durability and reliability in challenging industrial environments.Enhanced
protection features include anti-static (ESD) protection up to ±15KV air
and ±8KV contact, along with lightning surge protection for the power
supply rated at 5000A (8/20 μs waveform).
The IDP208G-8GP features 8 10/100/1000Base-T PoE electrical ports
with support for IEEE802.3af (15.4W) and IEEE802.3at (30W)
standards, ensuring seamless connectivity for high-power devices. With
anti-static protection up to ±15KV air and ±8KV contact, and network
port lightning protection up to ±4kV common mode and ±2kV
differential mode, the IDP208G-8GP ensures stable and secure
operation in industrial environments.
Model Name Description
IDS208G Din-rail 8-Port Giga Ethernet Switch
IDP208G-8GP Din-rail 8-port Giga PoE+ Switch
・Package Checklist
✓
1 x Product Unit
✓
1 x 6-pin Removable Terminal Connector
✓
1 x Attached Din Clip
✓
1 x Quick Installation Guide

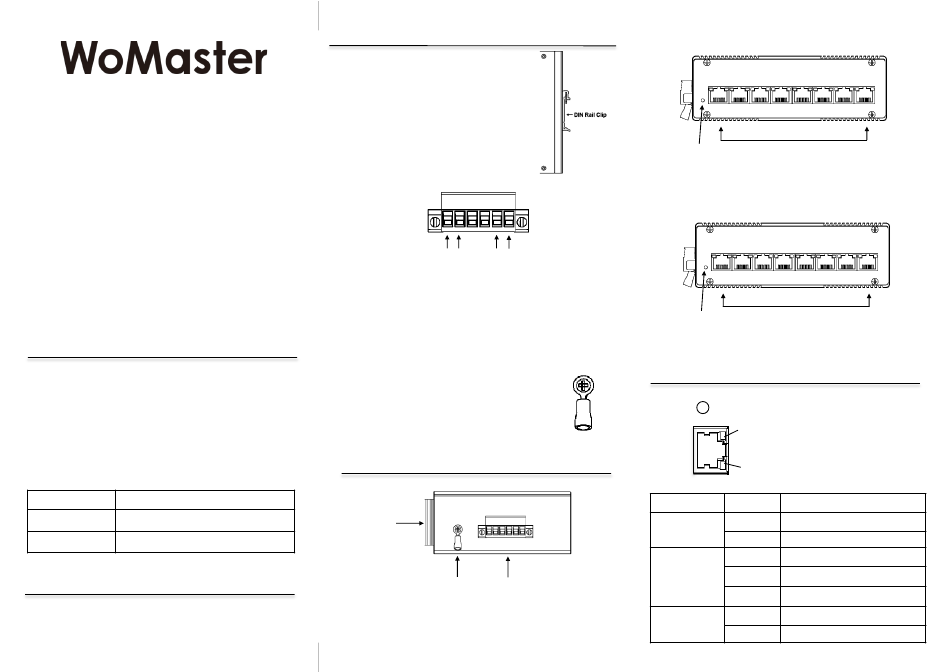

・Installation
DIN Rail mount
To mount the switch on the DIN Rail
track, insert the upper end of the
DIN-Rail clip into the back of the DIN-
Rail track from its upper side and
lightly push the bottom of the DIN-
Rail clip into the track. The DIN Rail
should comply with DIN EN50022
standard. Using wrong DIN rail may
cause unsafe installation.
PWR1 PWR2
V+ V- V+ V-
Wiring the Power Input
1) Insert the positive and negative wires into the V+ and V- contact
on the terminal block connector.
2) Tighten the screw after the wire is connected.
3) IDS208G support DC12V-52V, IDP208G-8GP support DC48V-
57V. All meet the requirements of dual power redundancy backup.
*Pin3 and Pin4: Reserved
Grounding Screw
For avoiding system damage by noise or electric shock,
establish a direct connection between the ground
screw and the grounding surface prior to connecting
devices.
・Appearance
Din Clip
Power Connector
Grounding Screw
・1 x 6 pin terminal block
4 pin for power input
IDS208G
Power LED Gigabit Ethernet
• 8-port 100/1000MBase-T
IDP208G-8GP
Power LED Gigabit Ethernet with PoE
• 8-port 100/1000MBase-TIEEE
802.3 af/at PoE
・LED Indication
PWR
LINK/ACT
PoE ON/OFF
LED Status
Red On
PWR
Off No Power in DC-IN
Yellow On Links established
Ethernet LED Yellow
Packets transmitting/receiving
(Port1~8) Blinking
Off Link is inactive
Green On PoE delivering in progress
PoE LED 1~8
Off PoE is not delivering
Description
Power is On
