WoMaster DP208 Quick Installation Manual

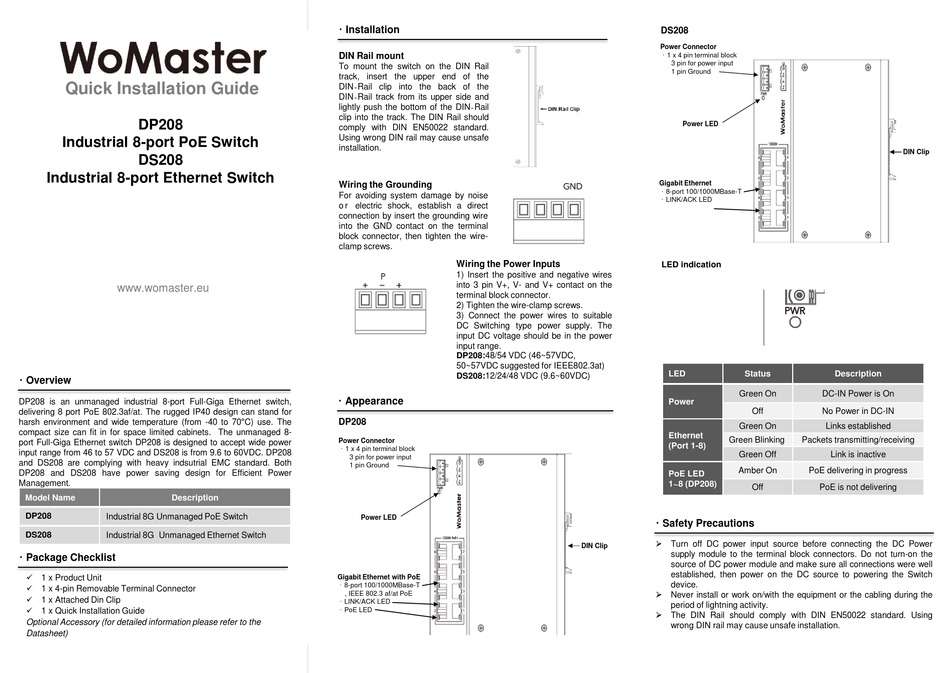

Quick Installation Guide
DP208
Industrial 8-port PoE Switch
DS208
Industrial 8-port Ethernet Switch
www.womaster.eu
・Overview
DP208 is an unmanaged industrial 8-port Full-Giga Ethernet switch,
delivering 8 port PoE 802.3af/at. The rugged IP40 design can stand for
harsh environment and wide temperature (from -40 to 70°C) use. The
compact size can fit in for space limited cabinets. The unmanaged 8-
port Full-Giga Ethernet switch DP208 is designed to accept wide power
input range from 46 to 57 VDC and DS208 is from 9.6 to 60VDC. DP208
and DS208 are complying with heavy indsutrial EMC standard. Both
DP208 and DS208 have power saving design for Efficient Power
Management.
Model Name Description
DP208
Industrial 8G Unmanaged PoE Switch
DS208 Industrial 8G Unmanaged Ethernet Switch
・Package Checklist
 1 x Product Unit

1 x 4-pin Removable Terminal Connector

1 x Attached Din Clip

1 x Quick Installation Guide
Optional Accessory (for detailed information please refer to the
Datasheet)
・Installation

DIN Rail mount

To mount the switch on the DIN Rail
track, insert the upper end of the
DIN‐Rail clip into the back of the
DIN‐Rail track from its upper side and
lightly push the bottom of the DIN‐Rail
clip into the track. The DIN Rail should
comply with DIN EN50022 standard.
Using wrong DIN rail may cause unsafe

installation.

Wiring the Grounding

For avoiding system damage by noise
o r electric shock, establish a direct
connection by insert the grounding wire
into the GND contact on the terminal
block connector, then tighten the wire-
clamp screws.

Wiring the Power Inputs

1) Insert the positive and negative wires
into 3 pin V+, V- and V+ contact on the
terminal block connector.
2) Tighten the wire-clamp screws.
3) Connect the power wires to suitable
DC Switching type power supply. The
input DC voltage should be in the power
input range.
DP208:48/54 VDC (46~57VDC,
50~57VDC suggested for IEEE802.3at)
DS208:12/24/48 VDC (9.6~60VDC)

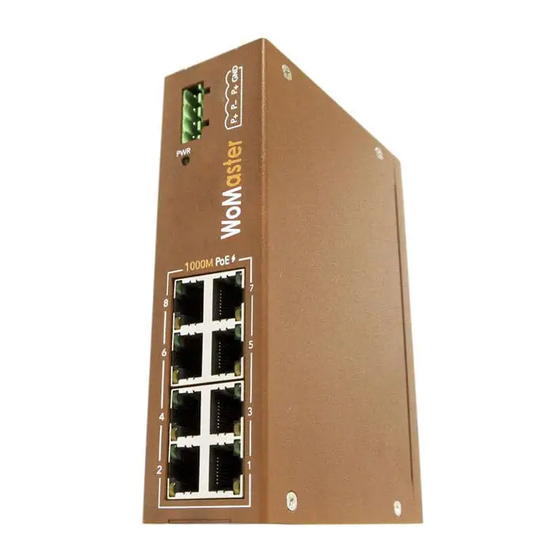

・Appearance
DP208
Power Connector
・1 x 4 pin terminal block
3 pin for power input
1 pin Ground
Power LED
Gigabit Ethernet with PoE
・8-port 100/1000MBase-T
, IEEE 802.3 af/at PoE
・LINK/ACK LED
・PoE LED
DS208
Power Connector
・1 x 4 pin terminal block
3 pin for power input
1 pin Ground
Power LED
Gigabit Ethernet
・8-port 100/1000MBase-T
・LINK/ACK LED

LED indication

LED Status
Green On
Power
Off
Green On
Ethernet
Green Blinking
(Port 1-8)
Green Off
Amber On
PoE LED
1~8 (DP208)
Off
・Safety Precautions
 Turn off DC power input source before connecting the DC Power
DIN Clip
supply module to the terminal block connectors. Do not turn-on the
source of DC power module and make sure all connections were well
established, then power on the DC source to powering the Switch
device.
 Never install or work on/with the equipment or the cabling during the
period of lightning activity.
 The DIN Rail should comply with DIN EN50022 standard. Using
wrong DIN rail may cause unsafe installation.
DIN Clip
Description
DC-IN Power is On
No Power in DC-IN
Links established
Packets transmitting/receiving
Link is inactive
PoE delivering in progress
PoE is not delivering
