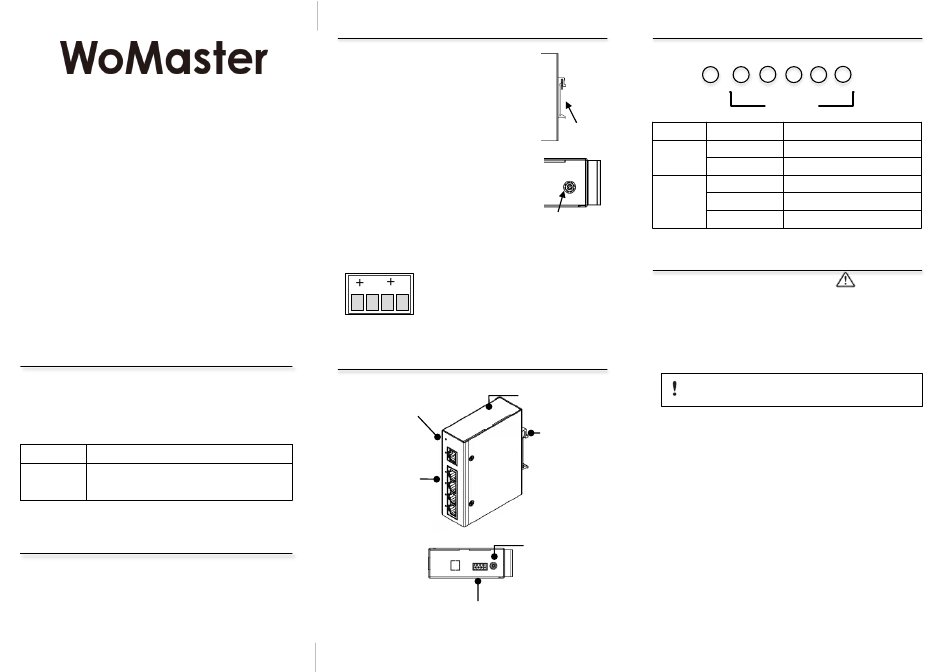

WoMaster DS205 Quick Installation Manual

Quick Installation Guide
Industrial 5-port Full-Giga
Ethernet Switch
DS205
www.womaster.eu
・Overview
The DS205 is designed to accept wide power input range from 9.6~
60VDC and complying with heavy indsutrial EMC standard. DS205
additionaly supports 18~30VAC input. The rugged IP31 design can
stand for harsh environment and wide temperature (from -40~70°C) use.
The compact size can fit in for space limited cabinets. DS205 has power
saving design for Efficient Power Management.
Model Name Description
Industrial 5-port Full-Giga Ethernet switch, 5 RJ-45,
DS205 Redudant Power, DC9.6~60V, AC18~30V,-
40~70°C
Note: The input voltage is measured at the terminal connector.
・Package Checklist
 1 x Product Unit

1 x 4-pin Removable Terminal Connector

1 x Attached DIN Clip

1 x Quick Installation Guide
Optional Accessory (for detailed information please refer to the
Datasheet)
・Installation
DIN Rail mount
To mount the switch on the DIN Rail track, insert
the upper end of the DIN‐Rail clip into the back
of the DIN‐Rail track from its upper side and
lightly push the bottom of the DIN‐Rail clip into
the track. The DIN Rail should comply with DIN
EN50022 standard. Using wrong DIN rail may
cause unsafe installation.
Grounding Screw
For avoiding system damage by noise o r
electric shock, establish a direct connection by
insert the grounding wire into the GND contact
on the terminal block connector, then tighten the
wire-clamp screws. It is located at the bottom of
the device.
Wiring the Power Input
1) Insert the positive and negative wires into the
L1/N1 (+,-) or L2/N2 (+,-) contact on the
L1/N1 L2/N2
terminal connector. (it also supports polarity
-
- reverse function)
2) Tighten the wire-clamp screws.
3) Connect the power wires to suitable DC
Switching type power supply. The input DC
voltage should be in the range of 9.6VDC to
60VDC (Typical DC24V). It also supports low
voltage AC input (18-30V) (+ /L, -/N)
・Appearance
System LED
• 1x Power
• 5x Internal Port LNK/ACT LED
Ethernet Network
• 5 x 10/100/1000Base-
TX RJ-45
L1/N1 L2/N2
+/ - +/ -
Power Input
• 4-Pin Removable Terminal Connector
• Dual Power Input
• DC 9.6~60V, or AC 18~30V
・LED Indicator
PWR
DIN Rail Clip
LED
PWR
LNK/ACT
(Port 1~5)
Grounding Screw
・Safety Precautions
 Statement regarding restricted access:
intended to be used in a restricted access location. Access should
only be given to skilled person or instructed person who has been
instructed in the operation of the equipment.
 Only operate the device at the specified ambient temperature
and humidity.
 Power Specification: Follow the power installing instruction of the
user manual, it indicates the available input voltage range, V+/V-
pin assignment, power consumption and other notice.
Connecting power with reverse polarity or using the wrong type of power
supply may damage the equipment. Make sure that the power supply is
Steel Metal, IP31
connected correctly and of the recommended type.
 Switch ON Notice: Only switch on the supply voltage while the
DIN Rail Clip
housing is closed, the input voltage is correct and the terminal
blocks are wired correctly.
 Wiring: The connection cables used are permitted for the specified
electronic voltage, current, wire diameter and temperature range.
The quality of the RJ45 connector is also very important. In harsh
environment, inferior quality RJ45 plug may also cause damage,
short or fault communication.
 Grounding: The well grounding is important for EMC protection
and make sure everything is done correctly before power on the
system. To avoid system damage, the equipment should be
connected to Earth Ground.
Chassis
 NOT allow to open the housing: Only technicians authorized by
Grounding
Screw the manufacturer are permitted to open the housing.
 Please always read the latest version User Manual to know the
product specification, installation steps and notice.
5 4 3 2 1
LNK/ACT
Status Description
Green On Power On
Off Not Receiving Power
Green On Link Speed 10/100/1000Mbps
Green Blinking Packets transmitting/receiving
Off No Link
The equipment is
