WoMaster DS410F User Manual

Industrial 10-port full gigabit l2 managed fiber/ethernet switch
Hide thumbs
Table of Contents

Advertisement

Quick Links

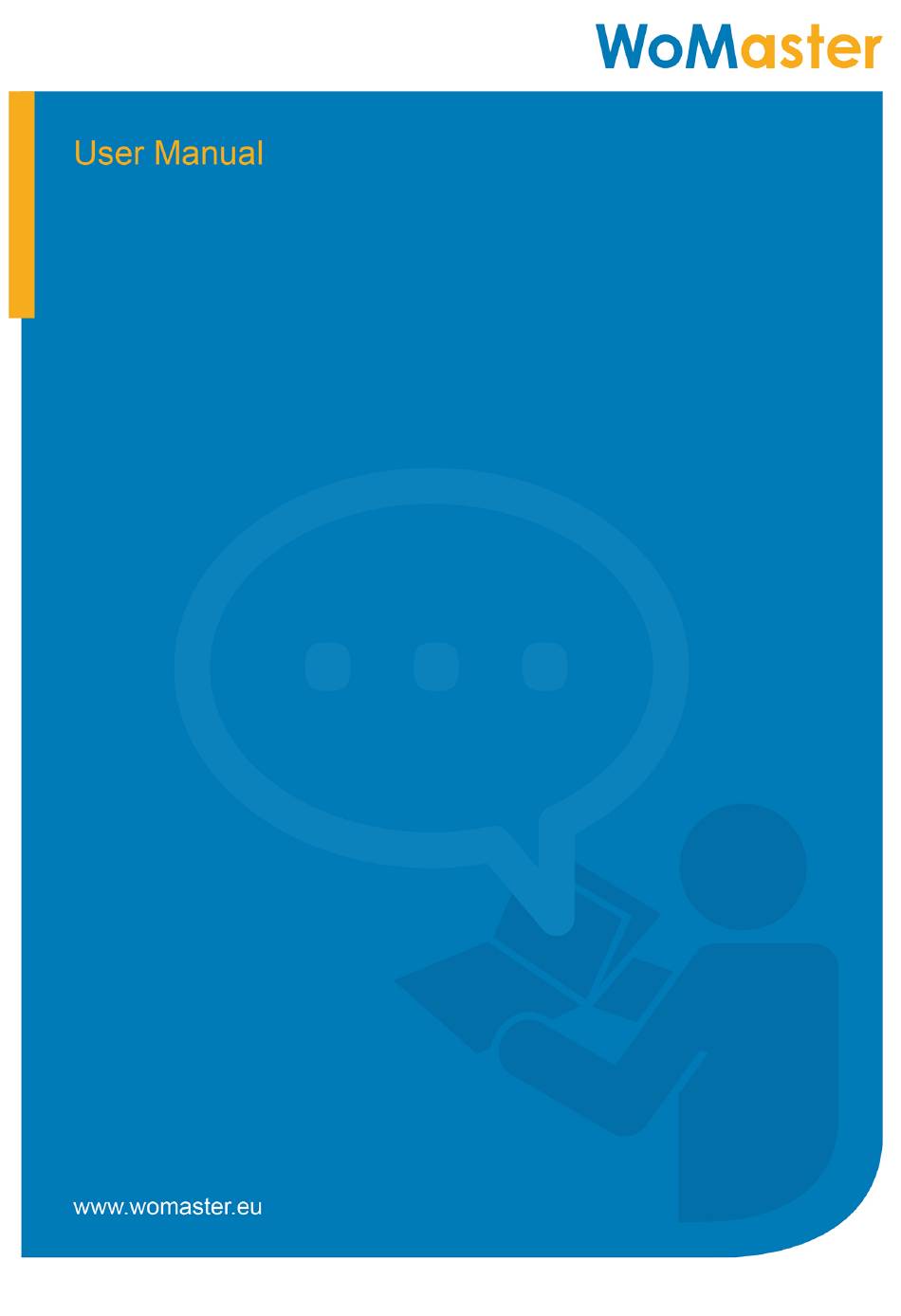

COVER

DS410F
Industrial 10-port Full Gigabit L2 Managed Fiber/Ethernet Switch
Nov.23.2018 V.1.0
WOM ASIA Co., Ltd
1F., No.185-3, Kewang Rd., Longtan Dist., Taoyuan 325, Taiwan

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the DS410F and is the answer not in the manual?

Questions and answers

Related Manuals for WoMaster DS410F

Summary of Contents for WoMaster DS410F

  • Page 1: Cover

    COVER DS410F Industrial 10-port Full Gigabit L2 Managed Fiber/Ethernet Switch Nov.23.2018 V.1.0 WOM ASIA Co., Ltd 1F., No.185-3, Kewang Rd., Longtan Dist., Taoyuan 325, Taiwan...
  • Page 2 Disclaimer WoMaster reserves the right to make changes to this Manual or to the product hardware at any time without notice. Information provided here is intended to be accurate and reliable. However, it might not cover all details and variations in the equipment and does not claim to provide for every possible contingency met in the process of installation, operation, or maintenance.

  • Page 3: Table Of Contents

    TABLE OF CONTENTS COVER ..................................1 TABLE OF CONTENTS ..............................3 1. INTRODUCTION ..............................5 1.1 OVERVIEW ..............................5 1.2 MAJOR FEATURES ............................6 2. HARDWARE INSTALLATION............................ 7 2.1HARDWARE DIMENSION ..........................7 2.2WIRING THE POWER INPUTS..........................9 2.3WIRING THE ALARM RELAY OUTPUT (DO) ...................... 10 2.4WIRING THE DIGITAL INPUT (DI) ........................
  • Page 4 3.1.14.7 INGRESS MAP ..............................85 3.1.14.8 EGRESS MAP ..............................85 3.1.15 MIRRORING ............................113 3.2 MONITOR ..............................116 3.2.1 SYSTEM ............................... 116 3.2.2 GREEN ETHERNET ..........................123 3.2.3 THERMAL PROTECTION ........................124 3.2.4 PORTS ..............................125 3.2.5 SECURITY ............................130 3.2.6 AGGREGATION ............................

  • Page 5: Introduction

    LACP, VLAN, QinQ, QoS, IGMP snooping v2, and etc. In order to uplink connection, the DS410F provides 2 RJ45/SFP Gigabit Ethernet combo ports that can prioritize stream, such as video and also optimize VoIP. Gigabit Ethernet combo ports provides high speed uplink connection to higher level backbone switches with Ring Network Redundancy technology ensures the reliability of high-quality video transfer.

  • Page 6: Major Features

    1.2 MAJOR FEATURES Below are the major features of DS410F Series Switch: 10-port Full Gigabit Ethernet, including 6 100/1000M SFP ports, 2 100/1000M SFP/RJ45 combo ports, and 2 RJ45 ports High flexibility of cable types and distances for system integrators...

  • Page 7: Hardware Installation

    2. HARDWARE INSTALLATION This chapter introduces hardware, and contains information on installation and configuration procedures. 2.1 HARDWARE DIMENSION Dimensions of DS410F/DS410: 65 x 155 x 120 (W x H x D) / without DIN Rail Clip...
  • Page 8 Front Panel Layout Below is the front panel from DS410F Series switches, for DS410F is included 6 ports 100/1000M SFP, 2 ports 100/1000M SFP/RJ45 Combo, 2 ports 10/100/1000M RJ45, and for DS410, it is included 6 ports 10/100/1000M SFP, 2...

  • Page 9: Wiring The Power Inputs

    2.2 WIRING THE POWER INPUTS Power Input port in the switch provides 2 sets of power input connections (P1 and P2) on the terminal block. x On the picture below is the power connector. Wiring the Power Input 1. Insert the positive and negative wires into the V+ and V- contact on the terminal block connector. 2.

  • Page 10: Wiring The Alarm Relay Output (Do)

    2.3 WIRING THE ALARM RELAY OUTPUT (DO) The relay output contacts are located on the front panel of the switch. The relay output consists of the 2-pin terminal block connector that used to detect user-configured events. The two wires attached to the fault contacts form a close circuit when a user-configured event is triggered.

  • Page 11: Wiring The Digital Input (Di)

    2.4 WIRING THE DIGITAL INPUT (DI) The Digital Input accepts one external DC type signal input that consists of two contacts on the terminal block connector on the switch’s top panel. And can be configured to send alert message through Ethernet when the signal is changed.

  • Page 12: Connecting The Grouding Screw

    2.5 CONNECTING THE GROUDING SCREW Grounding screw is located on the front side of the switch. Grounding Screw helps limit the effects of noise due to electromagnetic interference (EMI) such as lighting or surge protection. Run the ground connection from the ground screw to the grounding surface prior to connecting devices.

  • Page 13: Device Interface Management

    3. DEVICE INTERFACE MANAGEMENT To access the management interface, WoMaster has several ways access mode through a network; they are web management and console management. Web interface management is the most common way and the easiest way to manage a network, through web interface management, a switch interface offering status information and a subset of switch commands through a standard web browser.
  • Page 14 Login the switch. The default username: admin; password: admin. SSH (Secure Shell) WoMaster managed SWITCH also supports SSH console. User can remotely connect to the switch by command line interface. The SSH connection can secure all the configuration commands user sent to the switch.
  • Page 15 In the Session configuration, choose the Serial protocol then enter the Serial line and Speed. For the serial line, please check the device manager to make sure the serial line name. The speed should be 115200. Then click on Open to start the SSH session console. 2.
  • Page 16 For either type of connection, access to the command line interface is generally referred to as an EXEC session. There are some different command modes. Each command mode has its own access ability, available command lines and uses different command lines to enter and exit. Privileged EXEC mode: In this mode, the system allows User to view current configuration, reset default, reload SWITCH, show system information, save configuration and enter the global configuration mode.
  • Page 17 Global Configuration Mode: Type configure terminal in privileged EXEC mode. Then User can enter the Global Configuration mode. In Global Configuration mode, User can configure all the features that the system provides. Type exit to leave and press ? to see the command list. The command lists of global configuration mode.
  • Page 18 Interface Configuration: Many features are enabled for a particular interface. The Interface commands enable or modify the operation of an interface. In this mode, a physical port is set up for a specific logical connection operation. The Interface Configuration mode provides access to the router interface configuration commands. This section has three interface configuration, Port interface, LLAG interface, and VLAN interface.
  • Page 19 The second section is LLAG/VLAN interface, press interface LLAG (LLAG-ID)/VLAN (VLAN-ID) in global configuration mode. User can then enter the interface configuration mode. In this mode, User can configure the settings for the specific LLAG/VLAN. To leave this interface mode type exit. Press ? to see the available command list. The command lists of the LLAG/ VLAN interface configuration mode.
  • Page 20 (config)# interface ? All switches or All ports GigabitEthernet 1 Gigabit Ethernet Port llag Local link aggregation interface configuration vlan VLAN interface configurations (Character)? To see all the available commands starts from this character. (config)# a? Authentication, Authorization and Accounting access Access management access-list...
  • Page 21 In this Web management for Featured Configuration, user will see all of WoMaster Switch’s various configuration menus at the left side from the interface and a port state interface at the right side from the configuration page. Through this web management interface user can configure, monitoring, and set the administration functions. The whole information used web management interface to introduce the featured functions.

  • Page 22: Configuration

    3.1 CONFIGURATION When the user login to the switch, user will see the system section appear. This section provides all the basic setting and information or common setting from the switch that can be configured by the administrator. Following topics is included: 3.1.1 System 3.1.2 Green Ethernet 3.1.3 Thermal Protection...
  • Page 23 name. A domain name is a text string drawn from the alphabet (A-Z a-z), digits (0-9), minus sign (-). No space characters are permitted as part of a name. The first character must be an alpha character. And the first or last character must not be a minus sign. The allowed string length is 0 to 255. System Location The physical location of this node(e.g., telephone closet, 3rd floor).
  • Page 24 IP Interfaces Delete Select this option to delete an existing IP interface. VLAN The VLAN associated with the IP interface. Only ports in this VLAN will be able to access the IP interface. This field is only available for input when creating a new interface. IPv4 DHCP Enabled Enable the DHCPv4 client by checking this box.
  • Page 25 IPv4 Address The IPv4 address of the interface in dotted decimal notation. If DHCP is enabled, this field configures the fallback address. The field may be left blank if IPv4 operation on the interface is not desired - or no DHCP fallback address is desired.
  • Page 26 Submit: Click to submit changes. Reset: Click to undo any changes made locally and revert to previously saved values. System Log Configuration Configure System Log on this page. Server Mode Indicates the server mode operation. When the mode operation is enabled, the syslog message will send out to syslog server.
  • Page 27 RELAY OUTPUT This page allows the user to inspect the current Relay Output configurations, and possibly change them as well. Relay Output Configuration: Port Link Failure A check box is provided for each port of a Port Link Failure. When checked, port link failure will trigger relay status to "on". When unchecked, port link failure will not trigger relay status to "on".

  • Page 28: Green Ethernet

    3.1.2 GREEN ETHERNET PORT POWER SAVINGS What is EEE? EEE is a power saving option that reduces the power usage when there is low or no traffic utilization. EEE works by powering down circuits when there is no traffic. When a port gets data to be transmitted all circuits are powered up.
  • Page 29 Optimize EEE for The switch can be set to optimize EEE for either best power saving or least traffic latency. Port Configuration Port The switch port number of the logical port. ActiPHY Link down power savings enabled. ActiPHY works by lowering the power for a port when there is no link. The port is power up for short moment in order to determine if cable is inserted.

  • Page 30: Thermal Protection

    3.1.3 THERMAL PROTECTION This page allows the user to inspect and configure the current setting for controlling thermal protection. Thermal protection is used to protect the chip from getting overheated. When the temperature exceeds the configured thermal protection temperature, ports will be turned off in order to decrease the power consumption.

  • Page 31: Ports

    3.1.4 PORTS This page displays current port configurations. Ports can also be configured here. Port This is the logical port number for this row. Link The current link state is displayed graphically. Green indicates the link is up and red that it is down. Current Link Speed Provides the current link speed of the port.
  • Page 32 Flow Control When Auto Speed is selected on a port, this section indicates the flow control capability that is advertised to the link partner. When a fixed-speed setting is selected, that is what is used. The Current Rx column indicates whether pause frames on the port are obeyed, and the Current Tx column indicates whether pause frames on the port are transmitted.

  • Page 33: Security

    3.1.5 SECURITY Switch Password This page allows you to configure the system password required to access the web pages or log in from CLI. Old Password Enter the current system password. If this is incorrect, the new password will not be set. New Password The system password.
  • Page 34 database if none of the configured authentication servers are alive. Buttons Submit: Click to submit changes. Reset: Click to undo any changes made locally and revert to previously saved values. HTTPS This page allows you to configure the HTTPS settings and maintain the current certificate on the switch. Mode Indicate the HTTPS mode operation.
  • Page 35 Web Browser: Upload a certificate via Web browser. URL: Upload a certificate via URL, the supported protocols are HTTP, HTTPS, TFTP and FTP. The URL format is <protocol>://[<username>[:<password>]@]< host>[:<port>][/<path>]/<file_name>. For example, tftp://10.10.10.10/new_image_path/new_image.dat, http://username:password@10.10.10.10:80/new_image_path/new_image.dat. A valid file name is a text string drawn from alphabet (A-Za-z), digits (0-9), dot (.), hyphen (-), under score(_).
  • Page 36 Indicates that the host can access the switch from HTTP/HTTPS interface if the host IP address matches the IP address range provided in the entry. SNMP Indicates that the host can access the switch from SNMP interface if the host IP address matches the IP address range provided in the entry.
  • Page 37 SNMP Trap Configure SNMP trap on this page. Trap Destination Configurations Configure trap destinations on this page. Name Indicates the trap Configuration's name. Indicates the trap destination's name. Enable Indicates the trap destination mode operation. Possible modes are: Enabled: Enable SNMP trap mode operation. Disabled: Disable SNMP trap mode operation.
  • Page 38 Trap Source Configurations This page provides SNMP trap source configurations. A trap is sent for the given trap source if at least one filter with filter type included matches the filter, and no filters with filter type excluded matches. Delete Check to delete the entry.
  • Page 39 agent. The allowed string length is 1 to 32, and the allowed content is ASCII characters from 33 to 126. Source IP Indicates the SNMP access source address. A particular range of source addresses can be used to restrict source subnet when combined with source prefix. Source Prefix Indicates the SNMP access source address prefix.
  • Page 40 that the value is set correctly. Authentication Protocol Indicates the authentication protocol that this entry should belong to. Possible authentication protocols are: None: No authentication protocol. MD5: An optional flag to indicate that this user uses MD5 authentication protocol. SHA: An optional flag to indicate that this user uses SHA authentication protocol. The value of security level cannot be modified if entry already exists.
  • Page 41 Security Model Indicates the security model that this entry should belong to. Possible security models are: v1: Reserved for SNMPv1. v2c: Reserved for SNMPv2c. usm: User-based Security Model (USM). Security Name A string identifying the security name that this entry should belong to. The allowed string length is 1 to 32, and the allowed content is ASCII characters from 33 to 126.
  • Page 42 Buttons Add New Entry: Click to add a new view entry. Submit: Click to submit changes. Reset: Click to undo any changes made locally and revert to previously saved values. Access SNMPv3 Access Configuration Configure SNMPv3 access table on this page. The entry index keys are Group Name, Security Model and Security Level.
  • Page 43 Reset: Click to undo any changes made locally and revert to previously saved values.
  • Page 44 NETWORKS Port Security This page allows you to configure the Port Security global and per-port settings. Port Security allows for limiting the number of users on a given port. A user is identified by a MAC address and VLAN ID. If Port Security is enabled on a port, the limit specifies the maximum number of users on the port.
  • Page 45 enabled). Port Configuration The table has one row for each port on the switch and a number of columns, which are: Port The port number to which the configuration below applies. Mode Controls whether Port Security is enabled on this port. Notice that other modules may still use the underlying port security features without enabling Port Security on a given port.
  • Page 46 This page allows you to configure the IEEE 802.1X and MAC-based authentication system and port settings. The IEEE 802.1X standard defines a port-based access control procedure that prevents unauthorized access to a network by requiring users to first submit credentials for authentication. One or more central servers, the backend servers, determine whether the user is allowed access to the network.
  • Page 47 EAPOL Timeout Determines the time for retransmission of Request Identity EAPOL frames. Valid values are in the range 1 to 65535 seconds. This has no effect for MAC-based ports. Aging Period This setting applies to the following modes, i.e. modes using the Port Security functionality to secure MAC addresses: •...
  • Page 48 encapsulates the EAP part of the frame into the relevant type (EAPOL or RADIUS) and forwards it. When authentication is complete, the RADIUS server sends a special packet containing a success or failure indication. Besides forwarding this decision to the supplicant, the switch uses it to open up or block traffic on the switch port connected to the supplicant.
  • Page 49 Buttons Refresh: Click to refresh the page. Submit: Click to submit changes. Reset: Click to undo any changes made locally and revert to previously saved values. Ports Configure the ACL parameters (ACE) of each switch port. These parameters will affect frames received on a port unless the frame matches a specific ACE.
  • Page 50 Disabled: Frames received on the port are not mirrored. The default value is "Disabled". Logging Specify the logging operation of this port. Notice that the logging message doesn't include the 4 bytes CRC. The allowed values are: Enabled: Frames received on the port are stored in the System Log. Disabled: Frames received on the port are not logged.
  • Page 51 Rate Limiter Configure the rate limiter for the ACL of the switch. Rate Limiter ID The rate limiter ID for the settings contained in the same row and its range is 1 to 16. Rate The valid rate is 0 - 99, 100, 200, 300, ...,1092000 in pps or 0, 100, 200, 300, ..., 1000000 in kbps.
  • Page 52 Click on the lowest plus sign to add a new ACE to the list. The reserved ACEs used for internal protocol, cannot be edited or deleted, the order sequence cannot be changed and the priority is highest. Indicates the ACE ID. Ingress Port Indicates the ingress port of the ACE.
  • Page 53 You can modify each ACE (Access Control Entry) in the table using the following buttons: : Inserts a new ACE before the current row. : Edits the ACE row. : Moves the ACE up the list. : Moves the ACE down the list. : Deletes the ACE.
  • Page 54 Policy Value When "Specific" is selected for the policy filter, you can enter a specific policy value. The allowed range is 0 to 63. Policy Bitmask When "Specific" is selected for the policy filter, you can enter a specific policy bitmask. The allowed range is 0x0 to 0x3f.
  • Page 55 Disabled: Port shut down is disabled for the ACE. Note: The shutdown feature only works when the packet length is less than 1518(without VLAN tags). Counter The counter indicates the number of times the ACE was hit by a frame. MAC Parameters SMAC Filter (Only displayed when the frame type is Ethernet Type or ARP.)
  • Page 56 Tag Priority Specify the tag priority for this ACE. A frame that hits this ACE matches this tag priority. The allowed number range is 0 to 7 or range 0-1, 2-3, 4-5, 6-7, 0-3 and 4-7. The value Any means that no tag priority is specified (tag priority is "don't-care".) ARP Parameters The ARP parameters can be configured when Frame Type "ARP"...
  • Page 57 ARP Sender MAC Match Specify whether frames can hit the action according to their sender hardware address field (SHA) settings. 0: ARP frames where SHA is not equal to the SMAC address. 1: ARP frames where SHA is equal to the SMAC address. Any: Any value is allowed ("don't-care").
  • Page 58 IP TTL Specify the Time-to-Live settings for this ACE. zero: IPv4 frames with a Time-to-Live field greater than zero must not be able to match this entry. non-zero: IPv4 frames with a Time-to-Live field greater than zero must be able to match this entry. Any: Any value is allowed ("don't-care").
  • Page 59 IPv6 Parameters The IPv6 parameters can be configured when Frame Type "IPv6" is selected. Next Header Filter Specify the IPv6 next header filter for this ACE. Any: No IPv6 next header filter is specified ("don't-care"). Specific: If you want to filter a specific IPv6 next header filter with this ACE, choose this value. A field for entering an IPv6 next header filter appears.
  • Page 60 ICMP Code Filter Specify the ICMP code filter for this ACE. Any: No ICMP code filter is specified (ICMP code filter status is "don't-care"). Specific: If you want to filter a specific ICMP code filter with this ACE, you can enter a specific ICMP code value.
  • Page 61 TCP SYN Specify the TCP "Synchronize sequence numbers" (SYN) value for this ACE. 0: TCP frames where the SYN field is set must not be able to match this entry. 1: TCP frames where the SYN field is set must be able to match this entry. Any: Any value is allowed ("don't-care").
  • Page 62 This page allows you to configure up to 5 RADIUS servers. Global Configuration These setting are common for all of the RADIUS servers. Timeout Timeout is the number of seconds, in the range 1 to 1000, to wait for a reply from a RADIUS server before retransmitting the request.

  • Page 63: Aggregation

    This document provides examples on how to configure Link Aggregation Control Protocol (LACP)/AGGR using the Command Line Interface (CLI). The commands apply to an enhanced version of the LACP. The examples used in this document pertain to WoMaster switches. LACP ENHANCEMENT FEATURES The following sections describe various LACP enhancement features.
  • Page 64 The CLI syntax (for configuration and status) follows the Cisco IOS port-channel style. Port-channel is called aggregation in WoMaster terms. ICLI Commands The following sections describe the implementation of the preciously discussed LACP features through ICLI commands.
  • Page 65 # show lacp internal Port State Priority ---------- -------- ---- -------- Gi 1/1 Down 32768 Gi 1/2 Down 32768 Where, Port—is the local port. State—indicates if a partner is seen and an aggregation created. Key—is used as a term in the 802.1D standard. Here it equals the group id. Priority—is used for active/standby purpose.
  • Page 66 Group LACP Commands The following snippet shows how to perform an additional configuration of LACP based groups. # conf t (config)# interface llag 1 (config-llag)# lacp ? failover max-bundle failover—revertive (default) /non-revertive max-bundle—max size of the aggregation (1-max). All the default ports in the group can aggregate. Forwarding Mode of the Aggregation The forwarding distribution of the traffic can be affected by changing the aggregation mode.

  • Page 67: Loop Protection

    3.1.7 LOOP PROTECTION Since firmware of WoMaster switch supports loop elimination function that is based on per port or system configure. It prevents any communicate looping caused by RSTP and Ring when ring topology changes. The following figure shows the Loop Protection page.

  • Page 68: Spanning Tree

    Buttons Submit: Click to submit changes. Reset: Click to undo any changes made locally and revert to previously saved values. 3.1.8 SPANNING TREE This page allows you to configure STP system settings. The settings are used by all STP Bridge instances in the Switch.
  • Page 69 This defines the initial value of remaining Hops for MSTI information generated at the boundary of an MSTI region. It defines how many bridges a root bridge can distribute its BPDU information to. Valid values are in the range 6 to 40 hops. Transmit Hold Count The number of BPDU's a bridge port can send per second.
  • Page 70 Port The switch port number of the logical STP port. STP Enabled Controls whether STP is enabled on this switch port. Path Cost Controls the path cost incurred by the port. The Autosetting will set the path cost as appropriate by the physical link speed, using the 802.1D recommended values.

  • Page 71: Ipmc

    A port entering error-disabled state due to this setting is subject to the bridge Port Error Recovery setting as well. Point-to-Point Controls whether the port connects to a point-to-point LAN rather than to a shared medium. This can be automatically determined, or forced either true or false. Transition to the forwarding state is faster for point-to-point LANs than for shared media.
  • Page 72 Buttons Submit: Click to submit changes. Reset: Click to undo any changes made locally and revert to previously saved values. VLAN Configuration Navigating the IGMP Snooping VLANTable Each page shows up to 99 entries from the VLAN table, default being 20, selected through the "entries per page" input field.

  • Page 73: Lldp

    3.1.10 LLDP This page allows the user to inspect and configure the current LLDP interface settings. LLDP Parameters Tx Interval The switch periodically transmits LLDP frames to its neighbors for having the network discovery information up-to-date. The interval between each LLDP frame is determined by the Tx Interval value. Valid values are restricted to 5 - 32768 seconds.
  • Page 74 Select LLDP mode. Rx only The switch will not send out LLDP information, but LLDP information from neighbor units is analyzed. Tx only The switch will drop LLDP information received from neighbors, but will send out LLDP information. Disabled The switch will not send out LLDP information, and will drop LLDP information received from neighbors.

  • Page 75: Mac Table

    3.1.11 MAC TABLE The MAC Address Table is configured on this page. Set timeouts for entries in the dynamic MAC Table and configure the static MAC table here. Aging Configuration By default, dynamic entries are removed from the MAC table after 300 seconds. This removal is also called aging. Configure aging time by entering a value here in seconds;...
  • Page 76 VLAN Learning Configuration Learning-disabled VLANs This field shows the Learning-disabled VLANs. When a NEW MAC arrives into a learning-disabled VLAN, the MAC won't be learnt. By the default, the field is empty. More VLANs may be created by using a list syntax where the individual elements are separated by commas.

  • Page 77: Vlan

    3.1.12 VLAN This page allows for controlling VLAN configuration on the switch. The page is divided into a global section and Configuration a per-port configuration section. Global VLAN Configuration Allowed Access VLANs This field shows the allowed Access VLANs, i.e. it only affects ports configured as Access ports. Ports in other modes are members of the VLANs specified in the Allowed VLANs field.
  • Page 78 • Accepts untagged and C-tagged frames • Discards all frames not classified to the Access VLAN • On egress all frames are transmitted untagged Trunk: Trunk ports can carry traffic on multiple VLANs simultaneously, and are normally used to connect to other switches.
  • Page 79 Notice: If the S-port is configured to accept Tagged and Untaggedframes (see Ingress Acceptance below), frames with a C-tag are treated like frames with an S-tag. If the S-port is configured to accept Untagged Only frames, S-tagged frames will be discarded (except for priority S-tagged frames).
  • Page 80 All frames, whether classified to the Port VLAN or not, are transmitted with a tag. Untag All All frames, whether classified to the Port VLAN or not, are transmitted without a tag. This option is only available for ports in Hybrid mode. Allowed VLANs Ports in Trunk and Hybrid mode may control which VLANs they are allowed to become members of.
  • Page 81 List of VLANs mapped into FID. The syntax is as follows: Individual VLANs are separated by commas. Ranges are specified with a dash separating the lower and upper bound. The following example will map VLANs 1, 10, 11, 12, 13, 200, and 300: 1,10-13,200,300. Spaces are allowed in between the delimiters.

  • Page 82: Private Vlans

    3.1.13 PRIVATE VLANS This switch also has private VLAN functions; it helps to resolve the primary VLAN ID shortage, client ports’ isolation and network security issues. A private VLAN partitions the Layer 2 broadcast domain of a VLAN into subdomains, allowing User to isolate the ports on the switch from each other.

  • Page 83: Qos

    Buttons Auto-refresh: Check this box to refresh the page automatically. Automatic refresh occurs every 3 seconds. Refresh: Click to refresh the page immediately. Submit: Click to submit changes. Reset: Click to undo any changes made locally and revert to previously saved values. Port Isolation This page is used for enabling or disabling port isolation on ports in a Private VLAN.

  • Page 84: Qos Classification

    3.1.14.1 QOS CLASSIFICATION QoS is classified as: Basic QoS - This enables predefined schemes for handling CoS, Drop Precedence Level (DPL), Priority Code Points • (PCP), Drop Eligible Indicator (DEI), Class of Service ID (CoSID), and Differentiated Service Code Points (DSCP): CoS and DPL classification based on PCP and DEI for tagged frames.

  • Page 85: Storm Policing

    3.1.14.6 STORM POLICING Storm policers restrict the amount of flooded frames (frames coming with SMAC which are not learnt earlier) entering the device. The configurations are global per-device and not per-port. Storm policers can be applied separately on Unicast, Multicast, or Broadcast packets. It is also possible to configure per-port storm policers.
  • Page 86 The equivalent ICLI commands are: # configure terminal (config)# interface GigabitEthernet 1/1 ! Set CoS to 2 and PCP to 1 (config-if)# qos cos 2 (config-if)# qos pcp 1 (config-if)# end Basic QoS: Tagged Frame Classification per Port Ingress port tag classification can be done based on the PCP and DEI values received on the incoming packets. This is done by enabling tag classification for that port.
  • Page 87 The equivalent ICLI commands are: # configure terminal (config)# interface GigabitEthernet 1/2 ! Enable Tag Classification (config-if)# qos trust tag ! Map PCP 0 and DEI 0 to CoS 2 and DPL 0 (config-if)# qos map tag-cos pcp 0 dei 0 cos 2 dpl 0 ! Map PCP 0 and DEL 1 to CoS 3 and DPL 1 (config-if)# qos map tag-cos pcp 0 dei 1 cos 3 dpl 1 (config-if)# end...
  • Page 88 Set Up PCP and DEI for Default Tag Remarking The equivalent ICLI commands are: # configure terminal (config)# interface GigabitEthernet 1/3 ! Set Default PCP to 5 and DEI to 0 (config-if)# qos tag-remark pcp 5 dei 0 (config-if)# end Example: Map CoS 2 and DPL 0 to PCP 3 and DEI 0.
  • Page 89 Basic QoS: DSCP Configuration The following DSCP Configuration settings are present per port for both the ingress and egress. DSCP-based QoS classification • Selection of trusted DSCP values used for QoS Classification • DSCP translation: DSCP translation is done based on the DSCP Translation table •...
  • Page 90 Map Trusted DSCP for Ingress Traffic The equivalent ICLI commands are: # configure terminal ! Enable DSCP Trust for DSCP at Port 2. (config)# interface GigabitEthernet 1/2 (config-if)# qos trust dscp (config-if)# exit ! Map DSCP Values 4 and 5 to QoS Class 6. (config)# qos map dscp-cos 4 cos 6 dpl 0 (config)# qos map dscp-cos 5 cos 6 dpl 0 (config)# end...
  • Page 91 Translating DSCP at Ingress Using WebGUI To translate DSCP at Ingress on Port 2 and rewrite enabled on Port 3, perform the following steps. Click Configuration > QoS > Port Classification, and select the DSCP Based options as shown in the following illustration.
  • Page 92 (config-if)# qos trust dscp (config-if)# qos dscp-remark rewrite (config-if)# exit ! Create Ingress DSCP Translation Map (config)# qos map dscp-ingress-translation 1 to 5 (config)# qos map dscp-ingress-translation 2 to 6 (config)# end Example: Classify only DSCP as 0 at ingress on Port 2 and rewrite enabled on Port 3. Configuring DSCP Classification at Ingress Using WebGUI To classify only DSCP as 0 at ingress on Port 2 and rewrite enabled on Port 3, perform the following steps.
  • Page 93 Set Up Ingress Translation Map for DSCP 0 The equivalent ICLI commands are: # configure terminal ! Enable DSCP=0 Classification and Translation at ingress on Port 2 (config)# interface GigabitEthernet 1/2 (config-if)# qos trust dscp (config-if)# qos dscp-classify zero (config-if)# qos dscp-translate (config-if)# exit ! Create Ingress DSCP Translation Map.
  • Page 94 Classifying Selected DSCP at Ingress Using WebGUI To classify selected DSCP at ingress on Port 2, and DSCP rewrite enabled on Port 3, perform the following steps. Click Configuration > QoS > Port Classification, and select the DSCP Based option. Enable Selected DSCP Classification and DSCP Rewrite Click Configuration >...
  • Page 95 (config)# qos map dscp-ingress-translation 1 to 5 (config)# qos map dscp-ingress-translation 2 to 8 ! Enable DSCP Remark at egress on Port 3 (config)# interface GigabitEthernet 1/3 (config-if)# qos trust dscp (config-if)# qos dscp-remark rewrite (config-if)# exit (config-if)# end Example: Classify all DSCP values at ingress on Port 2, rewrite enabled on Port 3. Classifying All DSCP at Ingress Using WebGUI To classify all DSCP values at ingress on Port 2, rewrite enabled on Port 3, perform the following steps.
  • Page 96 (config-if)# qos trust dscp (config-if)# qos dscp-remark rewrite (config-if)# exit (config)# end Example: QoS/DP to DSCP Classification enabled. Rewrite DSCP at egress on Port 3. Enabling QoS/DP to DSCP Classification Using WebGUI To enable QoS/DP to DSCP Classification and rewrite DSCP at egress on Port 3, perform the following steps. 1.
  • Page 97 Remap DSCP from Ingress to Egress The equivalent ICLI commands are: # configure terminal ! Enable DSCP Classification on all DSCP values on port 2. (config)# interface GigabitEthernet 1/2 (config-if)# qos trust dscp (config-if)# qos dscp-classify any (config-if)# exit ! Map QoS Class 5, DP 0 to DSCP 4, QoS Class 5, DP 1..3 to DSCP 5 (config)# qos map cos-dscp 5 dpl 0 dscp 4 (config)# qos map cos-dscp 5 dpl 1 dscp 5 (config)# qos map cos-dscp 5 dpl 2 dscp 5...
  • Page 98 The equivalent ICLI commands are: # configure terminal ! Create QCL rule for matching particular destination MAC on Port 2 (config)# qos qce 1 interface GigabitEthernet 1/2 dmac 00-00-00-00-00-23 action cos 5 (config-if)# end Example: Match on a particular VLAN Tag and PCP range on Port 2 and map these to CoS = 6. Also, map these frames to PCP = 6 and DEI = 0.
  • Page 99 The equivalent ICLI commands are: # configure terminal ! Create QCL rule for matching particular VLAN ID and range of PCP values. (config)# qos qce 1 interface GigabitEthernet 1/2 tag vid 10 pcp 4-5 action cos 6 pcp-dei 6 0 (config)# end Example: Map on specific Dest MAC, Source IP, UDP Sport number on Port 2.
  • Page 100 Policers Port Policers Enable policing at port level on a particular port. Example: Enable policer on Port 2 and set the policer rate to 2 Mbps. For better performance, we can optionally enable Flow control as well if the policed traffic is TCP traffic. Configuring Policer Rate (Mbps) on a Port Using WebGUI To configure policer on Port 2 and set the policer rate to 2 Mbps, perform the following step.
  • Page 101 Queue Policers Example: Enable policer on Queue 2 at Port 2. Set the policing rate to 20 Mbps. Configuring Queue Policer on a Port Using WebGUI To configure Queue Policer on Queue 2 at Port 2 and set the policing rate to 20 Mbps, perform the following steps.
  • Page 102 Set Up Port Shaper Rate in Mbps Throughput The equivalent ICLI commands are: # configure terminal ! Enable Shaper on Port 3 and set the rate to 4 Mbps (config)# interface GigabitEthernet 1/3 (config-if)# qos shaper 4 mbps (config-if)# end Queue Shapers Example: Enable shaping on Queue 3 and Queue 4 at different rates on Port 3 and configure queue shapers to measure the data rate instead of the line rate.
  • Page 103 Multiple Queues with Different Queue Shaper Rates The equivalent ICLI commands are: # configure terminal ! Enable Queue Shaper on Queues 3 and 4 on Port 3 and set the rate to 4 and 8 ! Mbps. Use data rate. (config)# interface GigabitEthernet 1/3 (config-if)# qos queue-shaper queue 3 4 mbps rate-type data (config-if)# qos queue-shaper queue 4 8 mbps rate-type data (config-if)# end...
  • Page 104 Set Up Scheduler Mode and Corresponding Queue Scheduler Weight The equivalent ICLI commands are: # configure terminal ! Set Scheduler mode to DWRR Priority on Port 3 (config)# interface GigabitEthernet 1/3 (config-if)# qos wrr 40 40 20 20 20 20 (config-if)# end Weighted Random Early Detection (WRED) Example: Configure WRED on Group 1, Queue 4, and DPL 1 with a Minimum Threshold of 10% and Maximum Threshold of 50%.
  • Page 105 Set Up WRED Group with Drop Probability Threshold The equivalent ICLI commands are: # configure terminal !Set Minimum threshold as 10 and Maximum Threshold as 50 on Queue 4. (config)# qos wred group 1 queue 4 dpl 1 min-fl 10 max 50 Note: Please note that ports are in WRED Group 1 by default.
  • Page 106 The equivalent ICLI commands are: # configure terminal !Set Minimum threshold as 10 and Maximum Threshold as 90 on Queue 5. (config)# qos wred group 2 queue 5 dpl 1 min-fl 10 max 90 fill-level (config)# interface GigabitEthernet 1/1-2 (config-if)# qos wred-group 2 Storm Policing Example: Apply a global storm policer of 1 Kfps on a Unicast frame type.
  • Page 107 Ingress Map Example: Create Ingress Map 20 with required properties. Tagged frames with PCP 0-3 are mapped to CoS 0 and CoSID 0 (default mapping). Tagged frames with PCP 4-7 are mapped to CoS 1 and CoSID 1. Configuring Ingress Map 20 Using WebGUI To configure Ingress Map 20 with the following properties, perform the following steps.
  • Page 108 Expand QoS Ingress Map PCP Entry and Rule Setup 5. Associate Ports 1 and 2 with Ingress Map 20. Associate PCP QoS Ingress Map with Port 6. Create a new QCE with ID 123 (for more information, see Advanced QoS: QCLs, page 14) that matches all packets from all ports where the destination MAC address is multicast;...
  • Page 109 (config-qos-map-ingress)# map pcp 5 to class 1 cos 1 (config-qos-map-ingress)# map pcp 6 to class 1 cos 1 (config-qos-map-ingress)# map pcp 7 to class 1 cos 1 (config-qos-map-ingress)# end !Associate port 1 and 2 with Ingress Map 20. # configure terminal (config)# interface GigabitEthernet 1/1-2 (config-if)# qos ingress-map 20 (config-if)# end...
  • Page 110 Click Submit. QoS Ingress Map DSCP Key-Type Summary Click the Map ID 21 link and add these DSCP entries by clicking the Add New Map icon. Expand QoS Ingress Map DSCP Entry and Rule Setup Associate Ports 3 and 4 with Ingress Map 21. Associate DSCP QoS Ingress Map with Port The equivalent ICLI commands are: #configure terminal.
  • Page 111 Configuring Egress Map 40 Using WebGUI To configure Egress Map 40 with the following properties, perform the following steps. Set PCP to 7 and DSCP to 46 on frames classified to CoSID 1. • Set PCP and DSCP to 0 on frames classified to all other CoSID values (default mapping). •...
  • Page 112 • Associate CoSID QoS Egress Map with Port The equivalent ICLI commands are: #Configure terminal (config)# qos map egress (config-qos-map-ingress)# action dscp pcp (config-qos-map-ingress)# map class 1 to dscp 46 pcp 7 (config-qos-map-ingress)# end !Associate port 1 and 2 with Egress Map 40. # configure terminal (config)# interface GigabitEthernet 1/1-2 (config-if)# qos egress-map 40 (config-if)# end...

  • Page 113: Mirroring

    3.1.15 MIRRORING Mirroring is a feature for switched port analyzer. The administrator can use the Mirroring to debug network problems. The selected traffic can be mirrored or copied on a destination port where a network analyzer can be attached to analyze the network traffic.
  • Page 114 The destination port(s) is located on this switch. VLAN ID The VLAN ID points out where the monitor packet will copy to. The default VLAN ID is 200. Reflector Port The reflector port is a method to redirect the traffic to Remote Mirroring VLAN. Any device connected to a port set as a reflector port loses connectivity until the Remote Mirroring is disabled.
  • Page 115 Configuration Guideline for All Features When the switch is running on Remote Mirroring mode, the administrator also needs to check whether or not other features are enabled or disabled. For example, the administrator is not disabled the MSTP on reflector port. All monitor traffic will be blocked on reflector port.

  • Page 116: Monitor

    3.2 MONITOR 3.2.1 SYSTEM INFORMATION Port Settings section allows users to enable or disable each port function; state the speed/duplex of each port; and enable or disable the flow control of the port. The switch system information is provided here. Contact The system contact configured in Configuration | System | Information | System Contact.
  • Page 117 LED STATUS The switch system LED status is provided here. Clear Type The types of system LED status clearing. Possible values are: All: Clear all error status of the system LED and back to normal indication. Fatal: Clear fatal error status of the system LED. Software: Clear generic software error status of the system LED.
  • Page 118 information on browser support. Specifically, at the time of writing, Microsoft Internet Explorer will need to have a plugin installed to support SVG. Buttons Auto-refresh: Check this box to refresh the page automatically. Automatic refresh occurs every 3 seconds. IP STATUS This page displays the status of the IP protocol layer.
  • Page 119 Neighbor cache IP Address The IP address of the entry. Link Address The Link (MAC) address for which a binding to the IP address given exist. Buttons Refresh: Click to refresh the page immediately. Auto-refresh: Check this box to refresh the page automatically. Automatic refresh occurs every second. ROUTING INFORMATION BASE This is IPv4 route entry table.
  • Page 120 Distance The distance of the route. Metric The metric of the route. Interface The interface where the ip packet is outgoing. Uptime (hh:ss:mm) The time till the route is created. The unit is second. State Indicate if the destination network is reachable or not. Buttons Refresh: Click to refresh the page immediately.
  • Page 121 Navigating the System Log Information Table Each page shows up to 999 table entries, selected through the "entries per page" input field. When first visited, the web page will show the beginning entries of this table. The "Level" input field is used to filter the display system log entries. The "Clear Level"...
  • Page 122 DETAIL SYSTEM LOG INFORMATION The switch system detailed log information is provided here. Level The severity level of the system log entry. The ID (>= 1) of the system log entry. Message The detailed message of the system log entry. Buttons Refresh: Updates the system log entry to the current entry ID.

  • Page 123: Green Ethernet

    Buttons Refresh: Click to refresh the page immediately. Auto-refresh: Check this box to enable an automatic refresh of the page at regular intervals. 3.2.2 GREEN ETHERNET This page provides the current status for EEE. Local Port This is the logical port number for this row. Link Shows if the link is up for the port (green = link up, red = link down).

  • Page 124: Thermal Protection

    3.2.3 THERMAL PROTECTION This page allows the user to inspect status information related to thermal protection. Port The switch port number. Temperature Shows the current chip temperature in degrees Celsius. Port Status Shows if the port is thermally protected (link is down) or if the port is operating normally.

  • Page 125: Ports

    3.2.4 PORTS STATE This page provides an overview of the current switch port states. The port states are illustrated as follows: RJ45 ports SFP ports State Disabled Down Link PORT STATISTICS OVERVIEW This page provides an overview of general traffic statistics for all switch ports. The displayed counters are: Port The logical port for the settings contained in the same row.
  • Page 126 Buttons Refresh: Click to refresh the page immediately. Clear: Clears the counters for all ports. Auto-refresh: Check this box to refresh the page automatically. Automatic refresh occurs every 3 seconds. QoS STATISTICS This page provides statistics for the different queues for all switch ports. The displayed counters are: Port The logical port for the settings contained in the same row.
  • Page 127 Indicates the QCE id. Port Indicates the list of ports configured with the QCE. Frame Type Indicates the type of frame. Possible values are: Any: Match any frame type. Ethernet: Match EtherType frames. LLC: Match (LLC) frames. SNAP: Match (SNAP) frames. IPv4: Match IPv4 frames.
  • Page 128 DETAILED STATISTICS This page provides detailed traffic statistics for a specific switch port. Use the port select box to select which switch port details to display. The displayed counters are the totals for receive and transmit, the size counters for receive and transmit, and the error counters for receive and transmit.
  • Page 129 Receive and Transmit Size Counters The number of received and transmitted (good and bad) packets split into categories based on their respective frame sizes. Receive and Transmit Queue Counters The number of received and transmitted packets per input and output queue. Receive Error Counters Rx Drops The number of frames dropped due to lack of receive buffers or egress congestion.

  • Page 130: Security

    Buttons The port select box determines which port is affected by clicking the buttons. Refresh: Click to refresh the page immediately. Clear: Clears the counters for the selected port. Auto-refresh: Check this box to refresh the page automatically. Automatic refresh occurs every 3 seconds. 3.2.5 SECURITY ACCESS MANAGEMENT STATISTICS This page provides statistics for access management.

  • Page 131: Aggregation

    3.2.6 AGGREGATION This page is used to see the status of ports in Aggregation group. Aggregation Group Status Aggr ID The Aggregation ID associated with this aggregation instance. Name Name of the Aggregation group ID. Type Type of the Aggregation group(Static or LACP). Speed Speed of the Aggregation group.

  • Page 132: Loop Protection

    3.2.7 LOOP PROTECTION This page displays the loop protection port status the ports of the switch. Port The switch port number of the logical port. Action The currently configured port action. Transmit The currently configured port transmit mode. Loops The number of loops detected on this port. Status The current loop protection status of the port.

  • Page 133: Spanning Tree

    3.2.8 SPANNING TREE Bridge Status This page provides detailed information on a single STP bridge instance, along with port state for all active ports associated. The page contains two tables with the following information: STP Bridge Status Bridge Instance The Bridge instance - CIST, MST1, ... Bridge ID The Bridge ID of this Bridge instance.
  • Page 134 Topology Change Count The number of times where the topology change flag has been set (during a one-second interval). Topology Change Last The time passed since the Topology Flag was last set. CIST Ports & Aggregations State Port The switch port number of the logical STP port. Port ID The port id as used by the STP protocol.
  • Page 135 Port Status This page displays the STP CIST port status for physical ports of the switch. Port The switch port number of the logical STP port. CIST Role The current STP port role of the CIST port. The port role can be one of the following values: AlternatePortBackupPort RootPort DesignatedPortDisabled.
  • Page 136 The number of legacy STP Configuration BPDU's received/transmitted on the port. The number of (legacy) Topology Change Notification BPDU's received/transmitted on the port. Discarded Unknown The number of unknown Spanning Tree BPDU's received (and discarded) on the port. Discarded Illegal The number of illegal Spanning Tree BPDU's received (and discarded) on the port.

  • Page 137: Ipmc

    3.2.9 IPMC IGMP Snooping Status This page provides IGMP Snooping status. VLAN ID The VLAN ID of the entry. Querier Version Working Querier Version currently. Host Version Working Host Version currently. Querier Status Shows the Querier status is "ACTIVE" or "IDLE". "DISABLE" denotes the specific interface is administratively disabled.
  • Page 138 The number of Received V2 Leaves. Router Port Display which ports act as router ports. A router port is a port on the Ethernet switch that leads towards the Layer 3 multicast device or IGMP querier. Static denotes the specific port is configured to be a router port. Dynamic denotes the specific port is learnt to be a router port.

  • Page 139: Lldp

    IGMP Group Table Columns VLAN ID VLAN ID of the group. Groups Group address of the group displayed. Port Members Ports under this group. Buttons Auto-refresh: Automatic refresh occurs every 3 seconds. Refresh: Refreshes the displayed table starting from the input fields. |<<: Updates the table, starting with the first entry in the IGMP Group Table.
  • Page 140 Chassis ID The Chassis ID is the identification of the neighbor's LLDP frames. Port ID The Port ID is the identification of the neighbor port. Port Description Port Description is the port description advertised by the neighbor unit. System Name System Name is the name advertised by the neighbor unit.
  • Page 141 and rx "wakeup time ", as a way to agree upon the minimum wakeup time they need. This page provides an overview of EEE information exchanged by LLDP. LLDP Neighbors EEE Information The displayed table contains a row for each interface. If the interface does not support EEE, then it displays as "EEE not supported for this interface".
  • Page 142 Echo Rx Tw The link partner's Echo Rx Tw value. Resolved Tx Tw The resolved Tx Tw for this link. Note: NOT the link partner The resolved value that is the actual "tx wakeup time" used for this link (based on EEE information exchanged via LLDP).
  • Page 143 Global Counters Clear global counters If checked the global counters are cleared when Clear is pressed. Neighbor entries were last changed It shows the time when the last entry was last deleted or added. It also shows the time elapsed since the last change was detected.
  • Page 144 TLVs Discarded Each LLDP frame can contain multiple pieces of information, known as TLVs (TLV is short for "Type Length Value"). If a TLV is malformed, it is counted and discarded. TLVs Unrecognized The number of well-formed TLVs, but with an unknown type value. Org.

  • Page 145: Mac Address

    3.2.11 MAC ADDRESS Switching of frames is based upon the DMAC address contained in the frame. The switch builds up a table that maps MAC addresses to switch ports for knowing which ports the frames should go to (based upon the DMAC address in the frame ).

  • Page 146: Vlans

    MAC address The MAC address of the entry. VLAN The VLAN ID of the entry. Port Members The ports those are members of the entry. Buttons Auto-refresh: Automatic refresh occurs every 3 seconds. Refresh: Refreshes the displayed table starting from the "Start from MAC address" and "VLAN" input fields. Clear: Flushes all dynamic entries.
  • Page 147 Navigating the VLAN Membership Status page Each page shows up to 99 entries from the VLAN table (default being 20), selected through the "entries per page" input field. When first visited, the web page will show the first 20 entries from the beginning of the VLAN Table. The first displayed will be the one with the lowest VLAN ID found in the VLAN Table.
  • Page 148 port. The field is empty if not overridden by the selected user. Ingress Filtering Shows whether a given user wants ingress filtering enabled or not. The field is empty if not overridden by the selected user. Frame Type Shows the acceptable frame types (All, Tagged, Untagged) that a given user wants to configure on the port. The field is empty if not overridden by the selected user.

  • Page 149: Diagnostics

    3.3 DIAGNOSTICS WoMaster Switch provides several types of features for User to monitor the status of the switch or diagnostic for User to check the problem when encountering problems related to the switch. Following commands are included in this group: 3.3.1 Ping (IPv4)
  • Page 150 TTL Value Determines the Time-To-Live /TTL) field value in the IPv4 header. The default value is 64. The valid range is 1-255. VID for Source Interface This field can be used to force the test to use a specific local VLAN interface as the source interface. Leave this field empty for automatic selection based on routing configuration.

  • Page 151: Traceroute (Ipv4)

    3.3.2 TRACEROUTE (IPv4) This page allows you to perform a traceroute test over IPv4 towards a remote host. traceroute is a diagnostic tool for displaying the route and measuring transit delays of packets across an IPv4 network. You can configure the following parameters for the test: Hostname or IP Address The destination IP Address.
  • Page 152 automatic selection based on routing configuration. Note: You may only specify either the VID or the IP Address for the source interface. Use ICMP instead of UDP By default the traceroute command will use UDP datagrams. Selecting this option forces it to use ICMP ECHO packets instead.

  • Page 153: Veryphy

    By default the traceroute command will print out hop information using a reverse DNS lookup for the acquired host ip addresses. This may slow down the display if the DNS information is not available. Selecting this option will prevent the reverse DNS lookup and force the traceroute command to print numeric IP addresses instead.

  • Page 154: Restart

    3.4.1 RESTART This function allows user to restart the device. Click on Restart from the menus. Restart device main screen, to do confirmation request. Click Yes, then the switch will restart immediately. After user clicks Yes then the restart process is executed. 3.4.2 FACTORY DEFAULT User can reset the configuration of the switch on this page.

  • Page 155: Software

    3.4.3 SOFTWARE Upload This page facilitates an update of the firmware controlling the switch. Click Choose File to the location of a software image and click Upload. After the software image is uploaded, a page announces that the firmware update is initiated. After about a minute, the firmware is updated and the switch restarts.

  • Page 156: Configuration

    Image Information Image The file name of the firmware image, from when the image was last updated. Version The version of the firmware image. Date The date where the firmware was produced. Buttons Activate Alternate Image: Click to use the alternate image. This button may be disabled depending on system state. Cancel: Cancel activating the backup image.
  • Page 157 Download It is possible to download any of the files on the switch to the web browser. Select the file and click Download Configuration. Download of running-config may take a little while to complete, as the file must be prepared for download.
  • Page 158 Activate It is possible to activate any of the configuration files present on the switch, except for running-config which represents the currently active configuration. Select the file to activate and click Activate Configuration. This will initiate the process of completely replacing the existing configuration with that of the selected file. Delete It is possible to delete any of the writable files stored in flash, including startup-config.

  • Page 159: Front Panel

    3.5 FRONT PANEL Front Panel commands allow user to see the port status of the switch. Shown as below. Click Refresh to refresh the Port State, user can check the Auto-refresh to refresh the page automatically. HOME LOGOUT HELP This help button provide the general information for the configuration page.

This manual is also suitable for:

Ds410

Table of Contents
