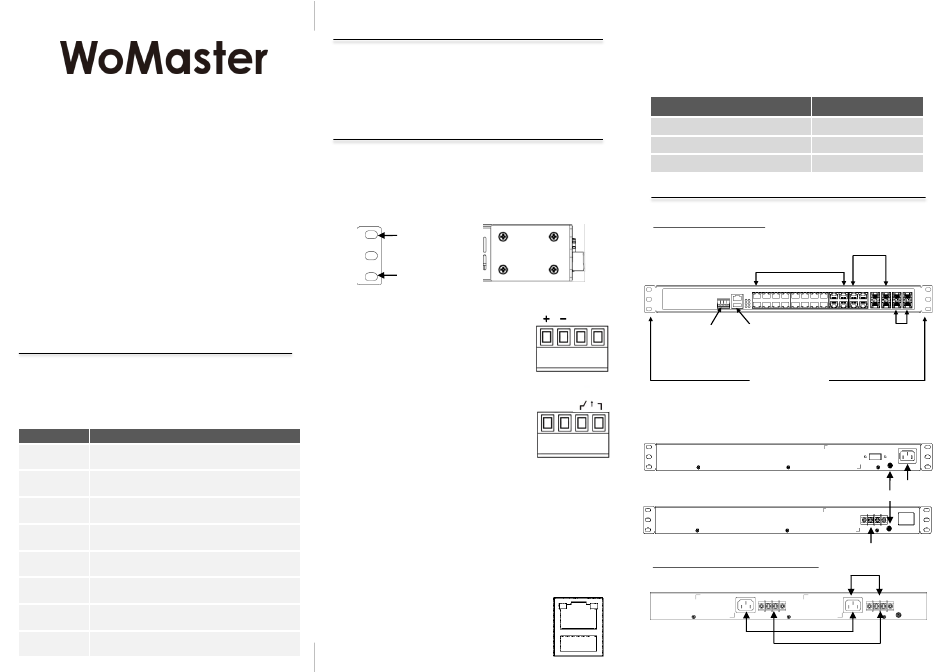

WoMaster RS428 Quick Installation Manual

Quick Installation Guide
Industrial 28G L2+/L3 Rackmount
Managed Ethernet Switch
RS428/RS628
www.womaster.eu
・Overview

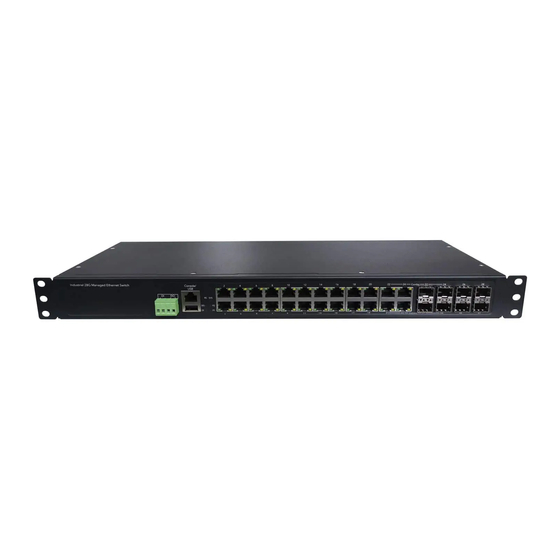

RS428/RS628 is an industrial grade rackmount 28G switch with 20
Giga copper ports, 4 Giga combo ports and 4 100M/1G fiber SFP
slots. Rugged design, cyber security features and high EMC
immunity makes the RS428/RS628 an ideal solution for industrial
control room, roadside traffic control, industrial IoT, industrial
Surveillance applications.
Model Name Description
Industrial 28G L2+ Managed Ethernet Switch,
RS428
20GT+4Gc+4GF, AC110/220V input
Industrial 28G L2+ Managed Ethernet Switch,
RS428-DC
20GT+4Gc+4GF, DC24(18-72)V input
Industrial 28G L2+ Managed Ethernet Switch,
RS428-2AC
20GT+4Gc+4GF, 2x AC110/220V input
Industrial 28G L2+ Managed Ethernet Switch,
RS428-AC+DC
20GT+4Gc+4GF, AC110/220V+DC24(18-72)V input
Industrial 28G L3 Managed Ethernet Switch,
RS628
20GT+4Gc+4GF, AC110/220V input
Industrial 28G L3 Managed Ethernet Switch,
RS628-DC
20GT+4Gc+4GF, DC24(18-72)V input
Industrial 28G L3 Managed Ethernet Switch,
RS628-2AC
20GT+4Gc+4GF, AC110/220V input
Industrial 28G L3 Managed Ethernet Switch,
RS628-AC+DC
20GT+4Gc+4GF, AC110/220V+DC24(18-72)V input
・Package Checklist
•
1 x Product Unit
•
1 or 2 x Power Cord (AC model only, EU or US type)
•
1 x Quick Installation Guide
Optional Accessory (for detailed information please refer to the
Datasheet):
•
1 Gbps SFP Transceiver
・Installation Procedure
Installing in a Rack
Refer to the illustrations below; user can install the device in most
standard 19-inch (48.3-cm) racks. For RS628/428 2 power series,
user should use the 4 of supplied screws to attach a mounting bracket
on each side of device first.
•
Insert and tighten two screws through each of the mounting
brackets.
Mounting Bracket Hole
Mounting Bracket Hole
Mounting ear and screws for
RS628/428 2 Power series
Wiring the Digital Input
To wire the DI on the Terminal block, use
screwdriver to loosen screws, insert the positive
and negative wires into the DI+ and DI- contact
and then tighten screws after the DI wire is
connected. High: 11~30V, Low: 0~10V.
Wiring the Relay Output (Alarm)
The relay output of the 2-pin terminal block
connector are used to detect user-configured
events. The two wires attached to the fault
contacts form a close circuit when a user-
configured event is triggered. If a user-configured
event does not occur, the fault circuit remains
open. The spec. of DO is 0.5A/24VDC.
Wiring the Power Input
Connect the attached power to the AC or DC power input connector, the
available AC power input range is from 90-264 VAC while the DC power
18~72VDC.
input range is
Grounding Screw
For avoiding system damage by noise or electric shock, establish a direct
connection between the ground screw and the grounding surface prior to
connecting devices. At the AC power input, the 3 pin include V+, V- and
GND. For DC version, the grounding screw is on the right side of DC
power connector. The GND pin must be connected to the earth ground.
USB Port
Use the USB port in order to save or restore
the configuration and upload the firmware
upgrade file.
For further configurations, please refer to User
Manual.
Combo Port Mode
The device supports 4 Combo ports and allow user to configure 3 types
of port modes in the following path.
Ethernet Port -> Port Setting -> Port Mode
Select the Port Mode type and press "Submit". After submitted, Reboot
the system to activate the new setting.
For further configurations, please refer to User Manual.
20GbE Copper + 8 GbE Fiber (Default)
24GbE Copper + 4 GbE Fiber
22GbE Copper + 6 GbE Fiber
・Appearance
Front Panel Side
RS628/428, RS628/428-DC
System LED
• 2 x Power
• 1 x System Status
• 1 x DI
• 1 x Alarm
• 1 x Ring Status
DI
Integrated DI/DO Connector
• 1 x 4 pin terminal block
2 pin for DI
2 pin for DO
DO
Back Panel Side
RS628/ RS428
RS628-DC/ RS428-DC
RS628/428-AC+DC, RS628/428-2AC/DC
Console
115,200,
N,8,1
2 AC Power for
RS628/428-2AC
USB
Port Mode COMBO Port 21-24
4 x Fiber
4 x Copper
2 x Copper+2 x Fiber
• 4-port 100/1000M
RJ45/SFP combo
(configured by UI)
• 20-port 100/1000MBase-T
Easy System Management
SFP Port
• USB for
• 4-port
Configuration/Firmware
100M/1G
update
SFP
• RS232 Console
Mounting Bracket
• Only for RS628/428-
AC/DC model
• 2 power model series will
be as accessory
Grounding Screw
DC Power
AC Power & DC Power
for RS628/428-AC+DC
2 DC Power for
RS628/428-2DC
AC Power
