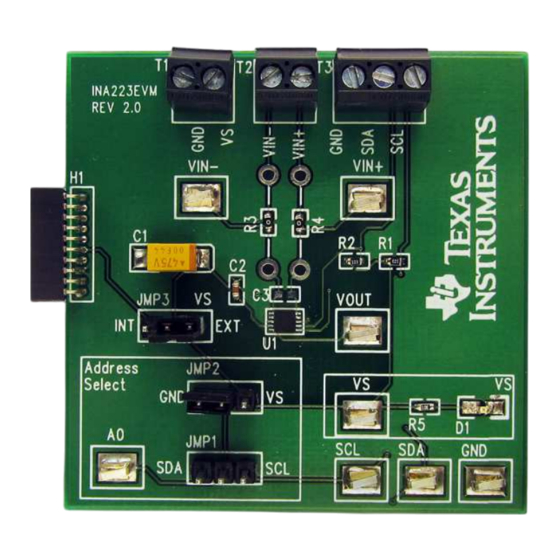

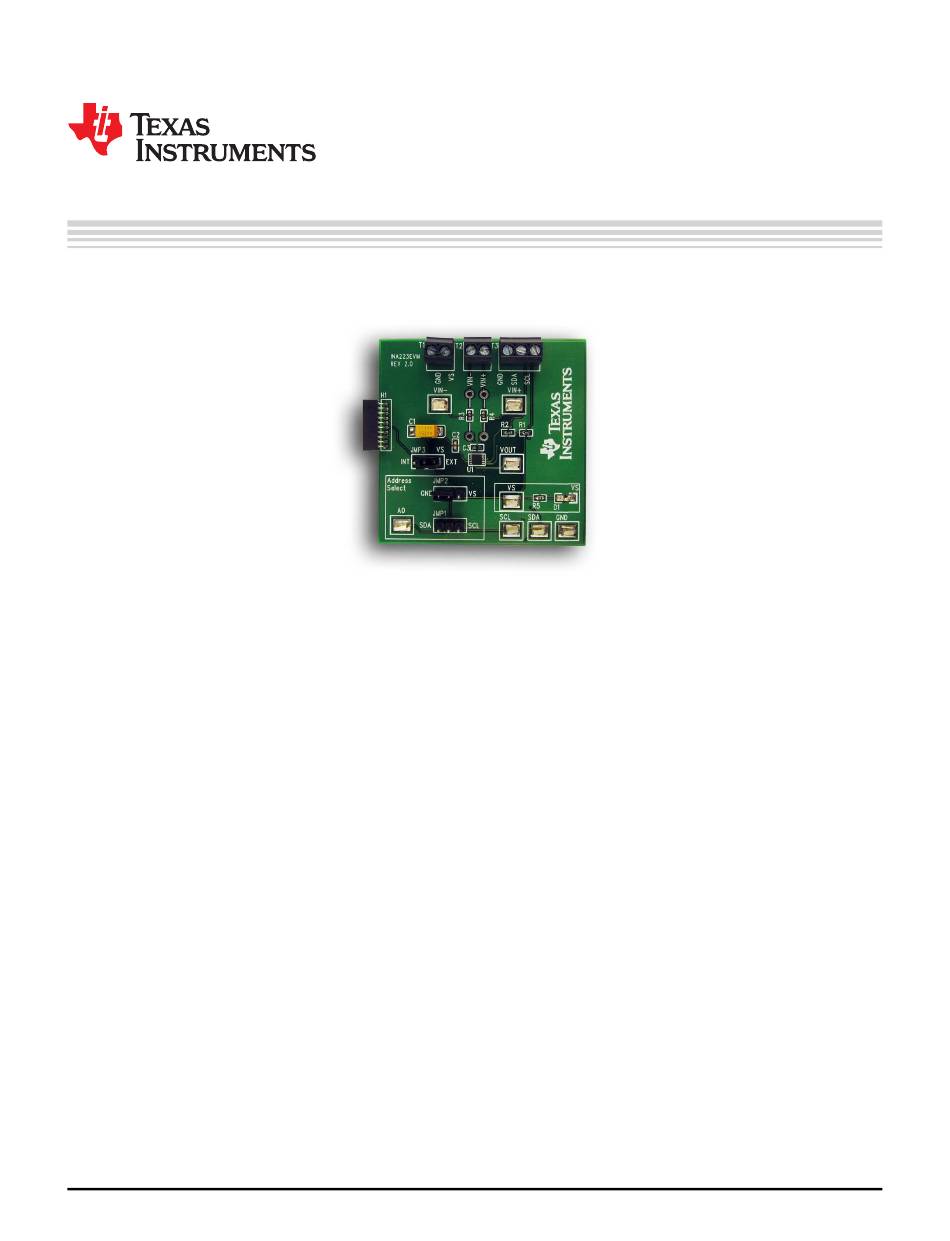

INA223EVM User's Guide and Software Tutorial
This user's guide describes the characteristics, operation, and use of the INA223EVM evaluation board. It
discusses how to set up and configure the software and hardware, and reviews various aspects of the
program operation. This user's guide also includes information regarding operating procedures and
input/output connections, an electrical schematic, printed circuit board (PCB) layout drawings, and a parts
list for the EVM.
Throughout this document, the terms evaluation board, evaluation module, and EVM are synonymous with
the INA223EVM.
Microsoft, Windows are registered trademarks of Microsoft Corporation.
SPI is a trademark of Motorola Inc,.
2
I
C is a trademark of NXP Semiconductors.
SBOU125 – June 2012
Submit Documentation Feedback
INA223EVM
Copyright © 2012, Texas Instruments Incorporated
INA223EVM User's Guide and Software Tutorial
User's Guide
SBOU125 – June 2012
1
Advertisement
Table of Contents
Related Manuals for Texas Instruments INA223
Summary of Contents for Texas Instruments INA223
- Page 1 Microsoft, Windows are registered trademarks of Microsoft Corporation. SPI is a trademark of Motorola Inc,. C is a trademark of NXP Semiconductors. SBOU125 – June 2012 INA223EVM User’s Guide and Software Tutorial Submit Documentation Feedback Copyright © 2012, Texas Instruments Incorporated...
-
Page 2: Table Of Contents
List of Figures ................. Hardware Included with INA223EVM Kit ......................Hardware Setup ..................INA223 Test Board Block Diagram ................... SM-USB-DIG Platform Block Diagram .............. Typical Hardware Test Connections on the INA223EVM ............. Connecting the USB Cable to the SM-USB-DIG Platform ............. -
Page 3: Ina223Evm (Continued)
Overview The INA223 is a voltage output device that monitors current, bus voltage, and power of a supply line by sensing a voltage drop across a shunt. The INA223EVM is a platform for evaluating the performance of the INA223 under various signal, shunt, and supply conditions. This document gives a general overview of the INA223EVM, and provides a general description of the features and functions to be considered while using this evaluation module. -
Page 4: Ina223Evm Hardware Setup
SM-USB-DIG Platform. This platform generates the analog and digital signals used to communicate with the INA223 board. Connectors on the INA223 allow the user to connect to the system under test conditions where the power, current, and voltage are monitored. -
Page 5: Supply Voltage
10-pin connector socket used to communicate between the INA223EVM and the SM-USB-DIG. It should be noted that to issue commands to the INA223 chip, the INA223EVM only uses H1 connnector pins 1 and 3 (I C communication lines), pin 6 (VDUT), and pin 8 (GND). -
Page 6: Sm-Usb-Dig Platform Block Diagram
SM-USB-DIG Platform. This platform is a general-purpose data acquisition system that is used on several different Texas Instruments evaluation modules. The details of its operation are included in a separate document (SBOU098). The block diagram shown in Figure 4 given as a brief overview of the SM-USB-DIG Platform. -
Page 7: Ina223Evm Hardware Overview
EVM, including the use of a grounded wrist strap at an approved ESD workstation. Connecting the Hardware To connect the INA223 test board and the SM-USB-DIG Platform together, gently slide the male and female ends of the 10-pin connectors together. Make sure that the two connectors are completely pushed together;... -
Page 8: Connecting The Usb Cable To The Sm-Usb-Dig Platform
Figure 7. This pop-up indicates that the device is ready to be used. Figure 7. Confirmation of SM-USB-DIG Platform Driver Installation INA223EVM User’s Guide and Software Tutorial SBOU125 – June 2012 Submit Documentation Feedback Copyright © 2012, Texas Instruments Incorporated... -
Page 9: Ina223Evm Default Jumpers
SCL, or SDA. Make sure to connect only one jumper at a time for the address control (for example, if JMP1 is connected, do not connect JMP2, and vice versa). Failure to properly connect jumpers can cause shorts or interruptions in the communication lines. For more information on the INA223 addressing, consult the INA223 data sheet (SBOS528). - Page 10 SM-USB-DIG Platform and terminal block T3. If external signals separate from the SM-USB- DIG are to be used, simply disconnect the SM-USB-DIG from the INA223 board and connect to external SDA, SCL, and GND lines. Also, remember to apply an external V that is compatible with the I communication device being used.
-
Page 11: Typical Filter Setup
V Input Filter (R4, R3, and C3) IN– The INA223EVM has an optional input filter located between the terminal block T2 and the INA223 input pins. This filter helps to remove high-frequency noise from the V and V inputs. The EVM ships with IN–... -
Page 12: Ina223Evm Software Setup
After the files are extracted, navigate to the INA223EVM folder you created on your hard drive. Locate the setup.exe file and run it to start the installation. The INA223 software installer file opens to begin the installation process, as shown in Figure Figure 11. -
Page 13: Software License Agreement
Figure Figure 12. Software License Agreement After accepting the Texas Instruments and National Instruments license agreements, the progress bar opens and shows the installation of the software, as shown in Figure 13. -
Page 14: Ina223Evm Software Overview
This section describes how to use the INA223EVM software. The software operation contains a two-step process: configuration and operation. Starting the INA223EVM Software To start the INA223 software, go to the Windows Start menu, select All Programs, and then select the INA223EVM program. Figure 14 illustrates how the software should appear if the INA223EVM is functioning properly. -
Page 15: Setting The A0 Address
C address configuration that allows for multiple devices to be on the same I lines. By moving the A0 address on jumpers JMP1 and JMP2 to either GND, VS, SDA or SCL, the INA223 can be changed to four different I... -
Page 16: Configuring The Output Mode
The Load Power option operates in a similar manner to the Supply Power option, except that the V measurement is taken internally at the VIN– pin of the INA223. The power being consumeed by the load is found by taking the V measurement from the VIN–... -
Page 17: Power Gain Values
INA223EVM Software Overview www.ti.com It is important to note that valid bus voltage and shunt voltage measurements must be within the linear range of the device in order for the INA223 to correctly calculate power using Equation POWER = V / Power ×... -
Page 18: Configuring The Bus Voltage Gain
Figure 19. Configuring the Current Shunt Voltage Gain INA223EVM User’s Guide and Software Tutorial SBOU125 – June 2012 Submit Documentation Feedback Copyright © 2012, Texas Instruments Incorporated... -
Page 19: Register Table
20) contains information on the internal registers of the INA223 registers. Each register can be changed on a bit-by-bit basis to allow the user to have total control of the part, outside the general functionality of the graphical user interface (GUI). Most of this functionality is displayed in the Configuration Register;... -
Page 20: Auto-Write, Power, And Voltage Controls
Write all Reg button serves little purpose, and is only used as an alternative for when this button is disabled. INA223EVM User’s Guide and Software Tutorial SBOU125 – June 2012 Submit Documentation Feedback Copyright © 2012, Texas Instruments Incorporated... -
Page 21: Example Hardware Calculator
Figure 22. Example Hardware Calculator SBOU125 – June 2012 INA223EVM User’s Guide and Software Tutorial Submit Documentation Feedback Copyright © 2012, Texas Instruments Incorporated... -
Page 22: Ina223Evm Documentation
INA223EVM. Documentation information for the SM-USB-DIG Platform can be found in the SM-USB-DIG Platform User’s Guide (SBOU058), available at the TI web site at http://www.ti.com. Bill of Materials Table 6 lists the bill of materials for the INA223 Test Board. Table 6. Bill of Materials Digikey Manufacturer... -
Page 23: Ina223Evm Board Schematic
$<& ! =; & $$ ' ; $! ' 336 1 &; &' "# $ % Figure 23. INA223EVM Board Schematic SBOU125 – June 2012 INA223EVM User’s Guide and Software Tutorial Submit Documentation Feedback Copyright © 2012, Texas Instruments Incorporated... -
Page 24: Ina223Evm Pcb Component Layout
PCB Component Layout Figure 24 shows the layout of the components for the INA223EVM PCB. Figure 24. INA223EVM PCB Component Layout INA223EVM User’s Guide and Software Tutorial SBOU125 – June 2012 Submit Documentation Feedback Copyright © 2012, Texas Instruments Incorporated... -
Page 25: Evaluation Board/Kit Important Notice
Evaluation Board/Kit Important Notice Texas Instruments (TI) provides the enclosed product(s) under the following conditions: This evaluation board/kit is intended for use for ENGINEERING DEVELOPMENT, DEMONSTRATION, OR EVALUATION PURPOSES ONLY and is not considered by TI to be a finished end-product fit for general consumer use. Persons handling the product(s) must have electronics training and observe good engineering practice standards. -
Page 26: Regulatory Compliance Information
Any exceptions to this are strictly prohibited and unauthorized by Texas Instruments unless user has obtained appropriate experimental/development licenses from local regulatory authorities, which is responsibility of user including its acceptable authorization. - Page 27 FCC Interference Statement for Class B EVM devices This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications.
- Page 28 Also, please do not transfer this product, unless you give the same notice above to the transferee. Please note that if you could not follow the instructions above, you will be subject to penalties of Radio Law of Japan. Texas Instruments Japan Limited (address) 24-1, Nishi-Shinjuku 6 chome, Shinjuku-ku, Tokyo, Japan http://www.tij.co.jp...
- Page 29 FDA Class III or similar classification, then you must specifically notify TI of such intent and enter into a separate Assurance and Indemnity Agreement. Mailing Address: Texas Instruments, Post Office Box 655303, Dallas, Texas 75265 Copyright © 2012, Texas Instruments Incorporated...
-
Page 30: Important Notice
IMPORTANT NOTICE Texas Instruments Incorporated and its subsidiaries (TI) reserve the right to make corrections, enhancements, improvements and other changes to its semiconductor products and services per JESD46, latest issue, and to discontinue any product or service per JESD48, latest issue. -
Page 31: Texas Instruments
