SDC LR100FAK Installation Instructions

SECURITY DOOR CONTROLS ■ WWW.SDCSECURITY.COM
[t] 800.413.8783 ■ 805.494.0622 ■ E-mail: service@sdcsecurity.com ■ 801 Avenida Acaso, Camarillo, CA 93012 ■ PO Box 3670, Camarillo, CA 93011

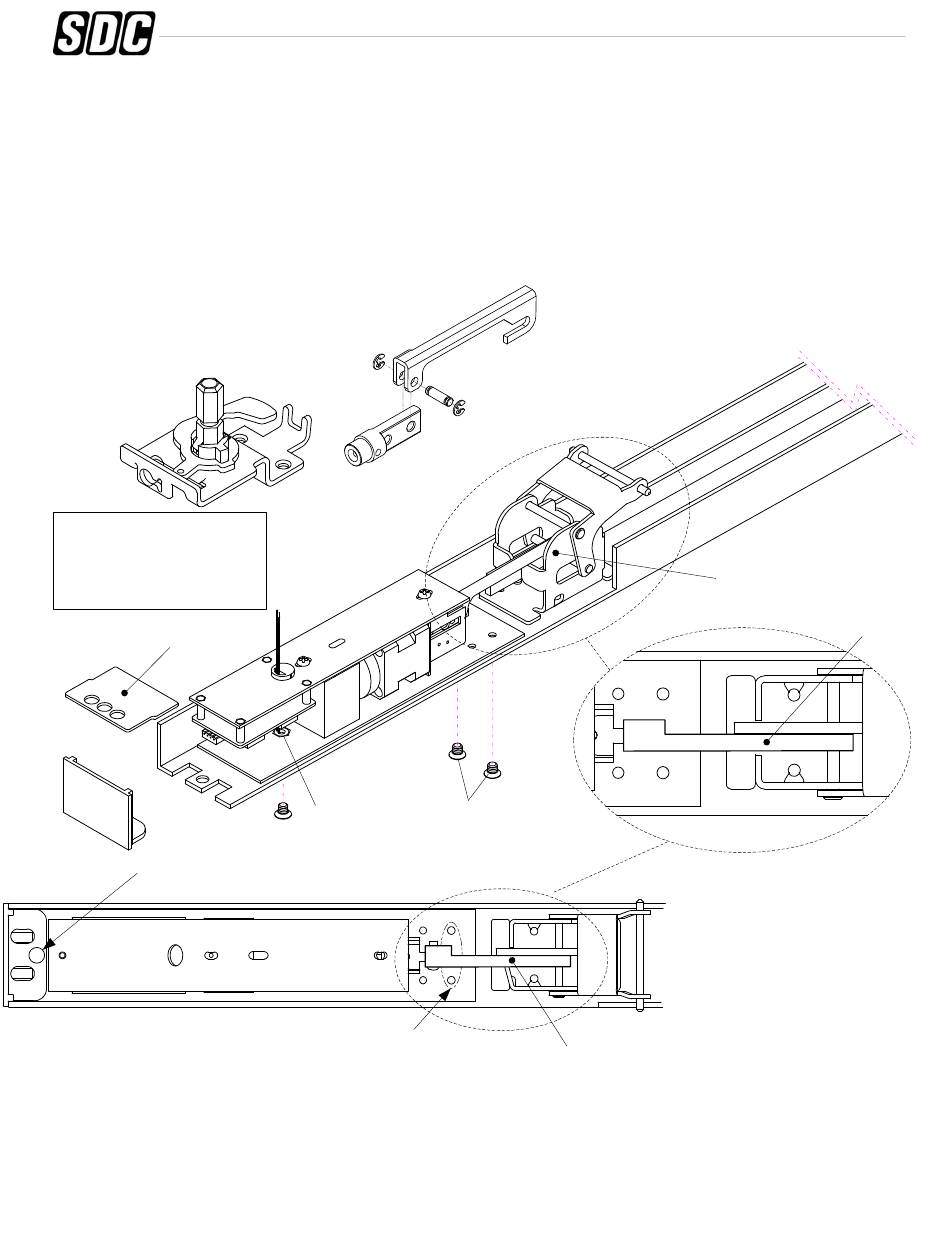

Remove Push Bar. Remove Dogging Assembly. Slide the ELR unit into the device base. Align the first set of two
holes over the two base unit holes and attach with the two #10-32 flat head screws supplied. Attach the Linkage to
the device as shown. Re-attach the Push Bar.
Dogging
Assembly
ELECTRICAL DATA
24VDC @ 1A
RED (+)
PATENT #8,851,530
Use supplied mounting plate to
secure 36" devices
END
CAP
DRILL .250 DIAMETER HOLE THROUGH
END CAP & UNIT BASE FOR WIRE RUN
When retrofitting to existing vertical rod devices, adjustment of the rods is required for proper
operation of the Electric Latch Retractor. Once the unit is properly installed, energize it so the push
pad is dogged down, then reconnect the vertical rods to the device and make the proper adjustments.
P:\INST INSTRUCTIONS\ELR KITS\INST-LR100FCK_FAK
INSTALLATION INSTRUCTIONS
LR100FAK FALCON (Dor-O-Matic)
ELECTRIC LATCH RETRACTION KIT
BLK (-)
#10-32 Flat Head
Screws Supplied
Mark & drill hole
Align holes with Base and attach
with #10-32 flat head screws.
REV D
MODELS: 1690 & 1790
Retraction Arm
RETRACTION ARM TO
THE FRONT HOLE ON
THE CLEVIS AS
Clevis
Mount to
existing holes
05-21 Pg. 2
ATTACH THE
SHOWN
Push Bar
Spring Box
Retrofit Installation Note: 42" or
48" exit devices that have been
modified to fit a 36" or smaller
opening, may not have the
required space to fit the standard
E. L. R. assembly. Always verify
the distance from the end of the
touchpad to the end rail, and if
necessary, consult with the factory
Linkage
for appropriate selection.
Any suggestions or comments to this instruction or
product are welcome. Please contact us through
our website or email engineer@sdcsecurity.com
Linkage
