801 Avenida Acaso, Camarillo, Ca. 93012 • (805) 494-0622 • Fax: (805) 494-8861
www.sdcsecurity.com • E-mail: service@sdcsecurity.com
Parts Included:
Cabinet Lock w/ key cylinder and spindle
Lock mounting screw & lock washer (x 2)
Cam, cam mounting screw & lock washer
Keys (x2)
Installation instructions & template
Replacing an existing cam lock with the Cabinet Lock:
1. Remove existing cam lock.
2.
Place supplied template over the existing hole. Align the 15/16" spindle hole on the template with the hole left by cam lock. Mark
the upper & lower mounting holes.
3.
Drill the two 3/16" mounting holes.
4. Mount the cabinet lock to the door using the supplied lock washer & mounting screws.
5. From the inside of the door select and attach the appropriate cam using the supplied cam mounting screw & washer.
6.
Before closing and locking the door, test the operation of the lock using the default Master and User Codes (See Basic
Operation on page 2).
7.
It is recommended that the default Master and User Codes be changed at this time (See Quick Start Programming on page 2).
New installations:
1. Place the supplied template on door.
NOTE: Before drilling fixing holes, verify that the position of the Cabinet Lock when fitted will allow enough clearance for the cam to
work.
2.
Continue the installation from steps 3 though 7 above.
P:\INSTALLATION INST\Access Controls\INST-295\INST-295.vsd

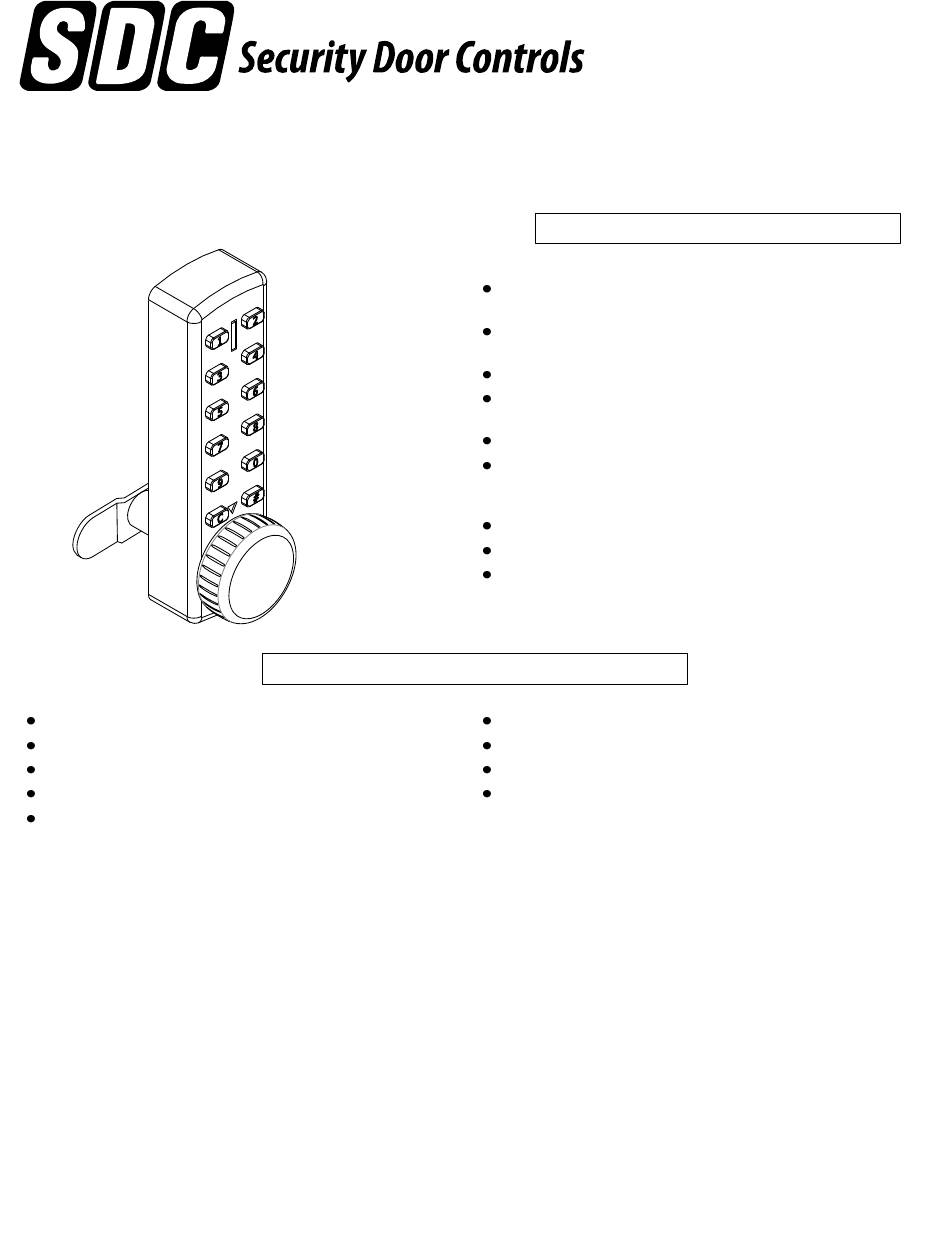

INSTALLATION INSTRUCTIONS

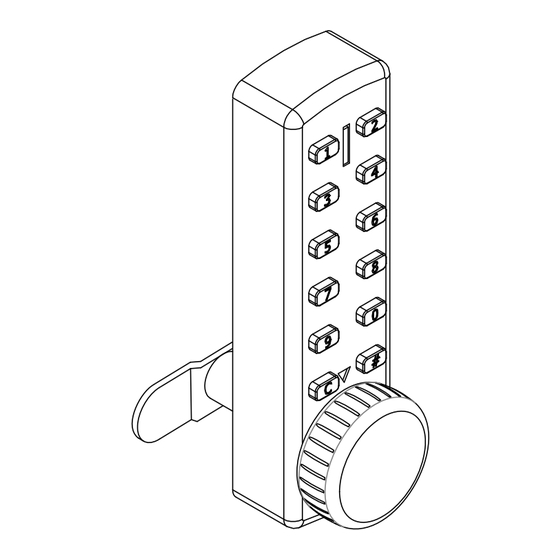

Model 295 – Programmable Cabinet Lock
Installation
REV F
09-16
Features & Applications
Ideal for new installations, or a quick retrofit for keyed cam
locks
Suitable applications include: cabinets, cupboards, medical
carts, lockers, etc.
Keypad with 12 individual buttons (0-9, C, #)
Easily programmable codes:
1 Master Code, 1 Sub-master Code, & 30 User Codes
Configurable code length – 4 to 6 digits
Three Operation Modes available:
Multiple User mode, Code Free mode, &
Single Use mode (locker mode)
15,000 operations on 2 x AAA batteries (included)
Non-volatile memory
Battery failure override using a 9V battery and Master Code
Technical Information:
Door Thickness: up to 3/4"
Cam mounting: 5/16" square spindle
Hole required for spindle: 15/16" diameter
Batteries: 2 x AAA Alkaline (included)
Page 1
Any suggestions or comments to this instruction or
product are welcome. Please contact us through
our website or email engineer@sdcsecurity.com
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for SDC 295
Summary of Contents for SDC 295
- Page 1 801 Avenida Acaso, Camarillo, Ca. 93012 • (805) 494-0622 • Fax: (805) 494-8861 www.sdcsecurity.com • E-mail: service@sdcsecurity.com INSTALLATION INSTRUCTIONS Model 295 – Programmable Cabinet Lock Features & Applications Ideal for new installations, or a quick retrofit for keyed cam locks Suitable applications include: cabinets, cupboards, medical carts, lockers, etc.
- Page 2 Operational Notes The 295 can store 1 Master Code, 1 Sub-Master Code, and up to 30 User Codes (ID Number 01 through 30). Codes may be 4, 5, or 6 digits long. The length of the Sub-Master Code and User Codes must be the same length as the Master Code.
- Page 3 {All authorized user codes are suspended} Press 08 Master & Sub-Master Codes are not affected. Function 09: Restore ALL Authorized User Codes {All authorized users are restored access} Press 09 P:\INSTALLATION INST\Access Controls\INST-295\INST-295.vsd REV F 09-16 Page 3...
- Page 4 Press 80 Default Settings The 295 Cabinet Lock comes pre-programmed with the following default settings. Pressing any of the default codes will unlock the unit: Master Code = 12345 {Required for programming mode. This code may be changed, but not deleted}.
- Page 5 Installation Model 295 – Programmable Cabinet Lock Mounting Template 2X 3/16" diameter M4*10, SCREW *2 pcs (To fix lock to the door) 4-13/32 M4*20, 2 pcs (Optional screw length) 15/16" diameter 11/16" Allen Key To remove and change key cylinder...
