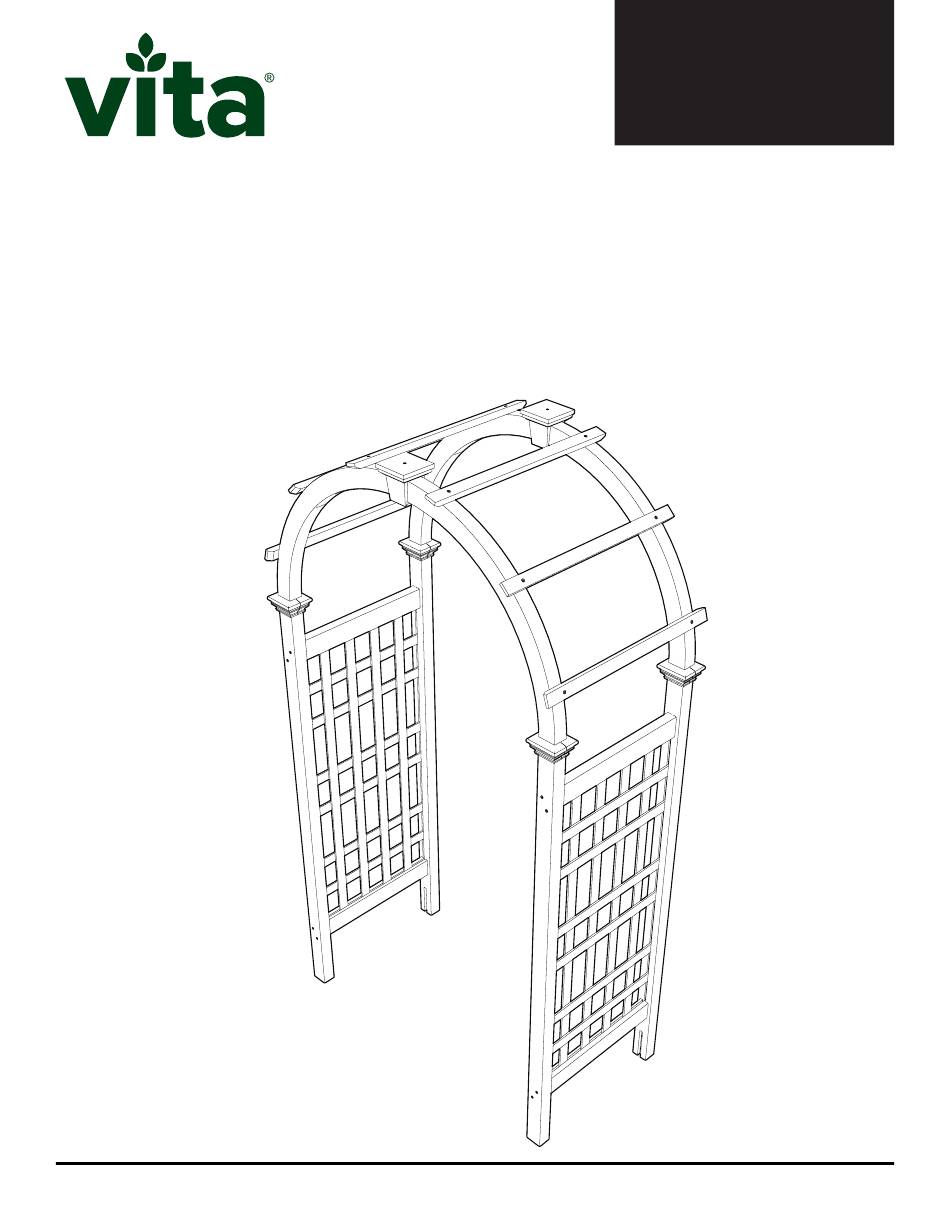

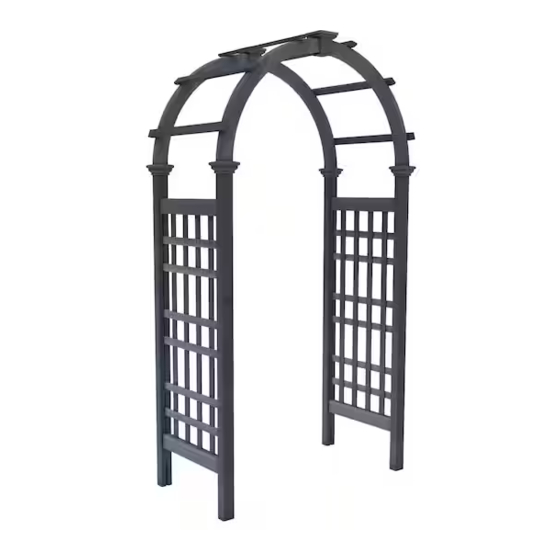

- Page 1 ASSEMBLY GUIDE Rosewood Arbor VA68894 / VA68904 NATURAL CHARCOAL VER 3.0 SEP 12-2024...
- Page 2 1-800-282-9346 hello@wearevita.com 8:00 AM - 5:00 PM EST WEAREVITA.COM...
-
Page 3: In This Guide
IN THIS GUIDE PARTS LIST TOOLS YOU WILL NEED - PRODUCT DIMENSIONS STEP 1 AND 2 STEP 3 AND 4 STEP 5 AND 6 STEP 7 AND 8 STEP 9 AND 10 (TEMPORARY INSTALLATION) STEP 11 (PERMANENT INSTALLATION) -
Page 4: Parts List
PARTS LIST PRE-ASSEMBLED SIDE PANEL - 12004 / 12057 - X2 POST TRIM ARCH KEYSTONE 12001 / 12053 - X4 12000 / 12012 - X2 RIGHT ARCH LEFT ARCH 12002 / 12054 - X2 12043 / 12058 - X2 ARCH RAFTER - 12003 / 12056 - X6 WOOD BLOCK - X1 METAL GROUND STAKES - 12006 - X4 20071 / 20049 - SCREW A - 1 3/8IN (3.5CM) - X8 - TO SECURE POST TRIM CAPS TO ARBOR POSTS... -
Page 5: Tools You Will Need
TOOLS YOU WILL NEED PRODUCT DIMENSIONS 26.5IN (67.3CM) 88.7 84.5IN (225.3CM) (214.6CM) 42IN (106.7CM) 20IN (50.8CM) 47IN 24IN (119.4CM) (60.9CM) - Page 6 12002 / 12054 - x2 12043 / 12058 - x2 12043 / 12058 12000 / 12012 - x2 12002 / 12054 x 2 20067 / 20079 - x 4 E...
- Page 7 20063 / 20074- x2 Align central trim at arch marking 20063 / 20074 - x12 12003 / 12056 - x6 Stapled side of arches have to face each other, space between arches is 20 in (50.8cm)
- Page 8 12001 / 12053 - x4 Screw holes to face inside of arbor...
- Page 9 20065 / 20078 - x8 D 20071 / 20049 - x8 Use wood block provided to help you hold post trim in place! Repeat for each trim...
- Page 10 20064 x8 12006 - x4 Temporary Installation Carefully push arbor stakes into desired ground area...
- Page 11 Permanent Installation For a permanent installation, measure four 8in (20.3cm) holes in diameter, 44 1/2in (113cm) apart by 22in apart (56cm), from center to center. Dig each hole 14in (36cm) deep. Fill excavated holes with mixed concrete 44 1/2in and carefully lift arbor (113cm) 22in (56cm) into place.
