vita VA84250 Assembly Instructions Manual

A S S E M B LY I N S T R U C T I O N S
The Nantucket Legacy Arbor / Arch
*Nantucket Legacy with Trim Kit Shown Above.
Please read through before starting assembly.
IMPORTANT: CHECK THE INSIDE OF YOUR POSTS FOR ALL MATERIALS.
Check Box for These Contents
In the event of missing or defective parts please call our customer service dept. at 1 800 282 9346 (Mon. to Fri. 8:00 AM to 5:00 PM EST).

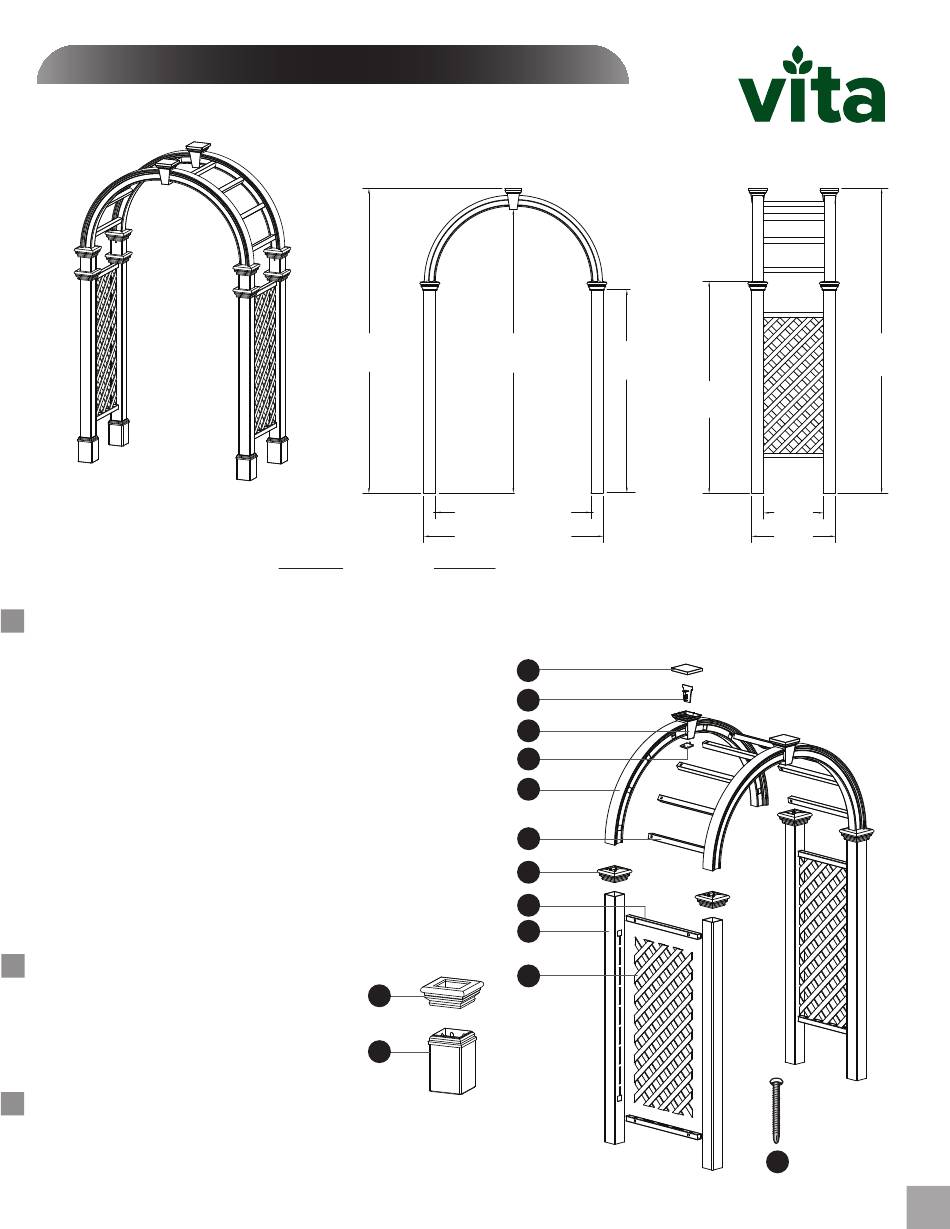

1. Keystone Top Lid (2) - 10710-1
2. Keystone Internal Connectors (2) - 10711-1
3. Arch Keystones (2) - 10684-1
4. Keystone Bottom Plate (2) - 10712-1
5. Arches (4) - 10687-1
6. Arch Rafters (8) 1 1/2" x 1 1/2" x 25.9" [3.8 x 3.8 x 65.8 cm] - 10778
7. Post Caps (4) - 10728-1
8. Side Panel Horizontal Rails (4) 1 1/2" x 1 1/2" x 27.7" [3.8 x 3.8 x 70.4 cm] - 10777
9. Posts (4) 4'x4'x70.5" [10.2 x 10.2 x 179.1 cm] - 10775
10. Side Panel Diamond Lattice (2) - 10776
11. #8 x 1 1/2 in. (3.8 cm.) Stainless Steel Screws (for Keystone and Arch to Post
Connection) (24) - 20005
If you purchased the arbor / arch along with our decorative trim kit (BP80001),
there will be a separate box with the following contents;
12. Post Trim Caps (4)
13. Base Molds (4)
Tools You Will Need
• Hammer
• Tape Measure
• Level
• Stool or Short Ladder
• Shovel or Auger
• Cordless Drill
General Information
• Read Instructions through carefully before beginning assembly.
• When assembling components, place on a non-abrasive surface
(i.e. shipping box) to avoid scratching.
• We recommend an area approx 10'x 8' (3 m x 2.4 m) for unobstructed
assembling.
• You should not need to use excessive force when assembling components.
102.25 in
95 in
259.7 cm
241.3 cm
52 in / 132.1 cm
60 in / 152.4 cm
12
13
68 in
172.7 cm
71 in
180.3 cm
1
2
3
4
5
6
7
8
9
10
