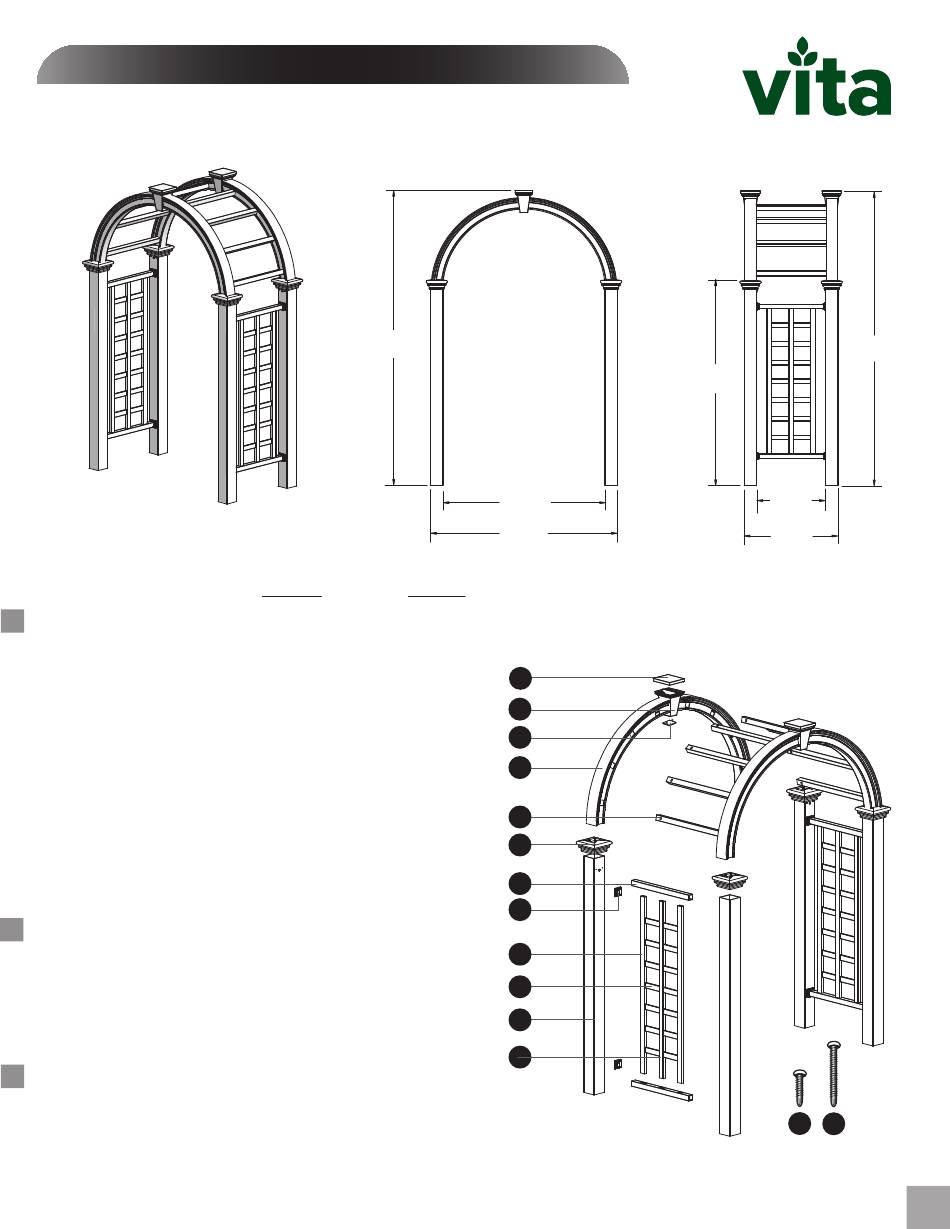

vita The Nantucket Deluxe Assembly Instructions

A S S E M B LY I N S T R U C T I O N S

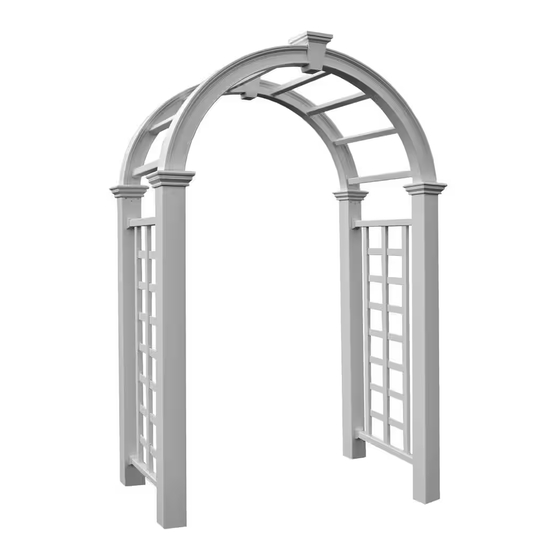

VA84240 The Nantucket Deluxe Arbor
Please read through before starting assembly.
IMPORTANT: CHECK THE INSIDE OF YOUR POSTS FOR ALL MATERIALS.

Check Box for These Contents

In the event of missing or defective parts please call our customer service dept. at 1 800 282 9346 (Mon. to Fri. 8:00 AM to 5:00 PM EST).
1. Keystone Top Lid with Inserts (2) - 10710-1
2. Arch Keystones (2) - 10684-1
3. Keystone Bottom Plate (2) - 10712-1
4. Arches (4) - 10687-1
5. Arch Rafters (8) 1 1/2" x 1 1/2" x 27.9" - 10727-1
6. Post Caps (4) - 10728-1
7. Side Panel Horizontal Rails (4) 1 1/2" x 1 1/2" x 21.75" - 10729-1
8. Sur-Fit Bracket for Side Panel Horizontals (8) - 10730-1
9. Side Panel Vertical Spindles (4) 7/8" x 1 1/2" x 49" - 10731-1
10. Side Panel Horizontal Spindles (14) 1/4" x 1 1/2" x 15.25" - 10732-1
11. Posts (4) 4' x 4'x 65.5" - 10733-1
12. #8 x 1 1/2 in. (3.8 cm.) Stainless Steel Screws (for Sur-Fit Brackets)
(24) - 20005
13. #8 x 2 1/2 in. (6.4 cm.) Stainless Steel Screws (for Keystone and
Arch to Post Connection) (24) - 20007
14. Side Panel Vertical Center Spindle (2) 7/8 x 1 1/2" x 49" - 10275

Tools You Will Need

General Information

• Read Instructions through carefully before beginning assembly.
• When assembling components, place on a non-abrasive surface
(i.e. shipping box) to avoid scratching.
• We recommend an area approx 10'x 8' for unobstructed assembling.
• You should not need to use excessive force when assembling components.
94.1 in
• Hammer
• Tape Measure
• Level
• Stool or Short Ladder
• Shovel or Auger
• Cordless Drill
52 in
60 in
1
2
3
4
5
6
7
8
9
10
11
14
www.wearevita.com
94.1 in
65.6 in
22 in
30 in
12 13
(Not to scale)
V3.8/111120
