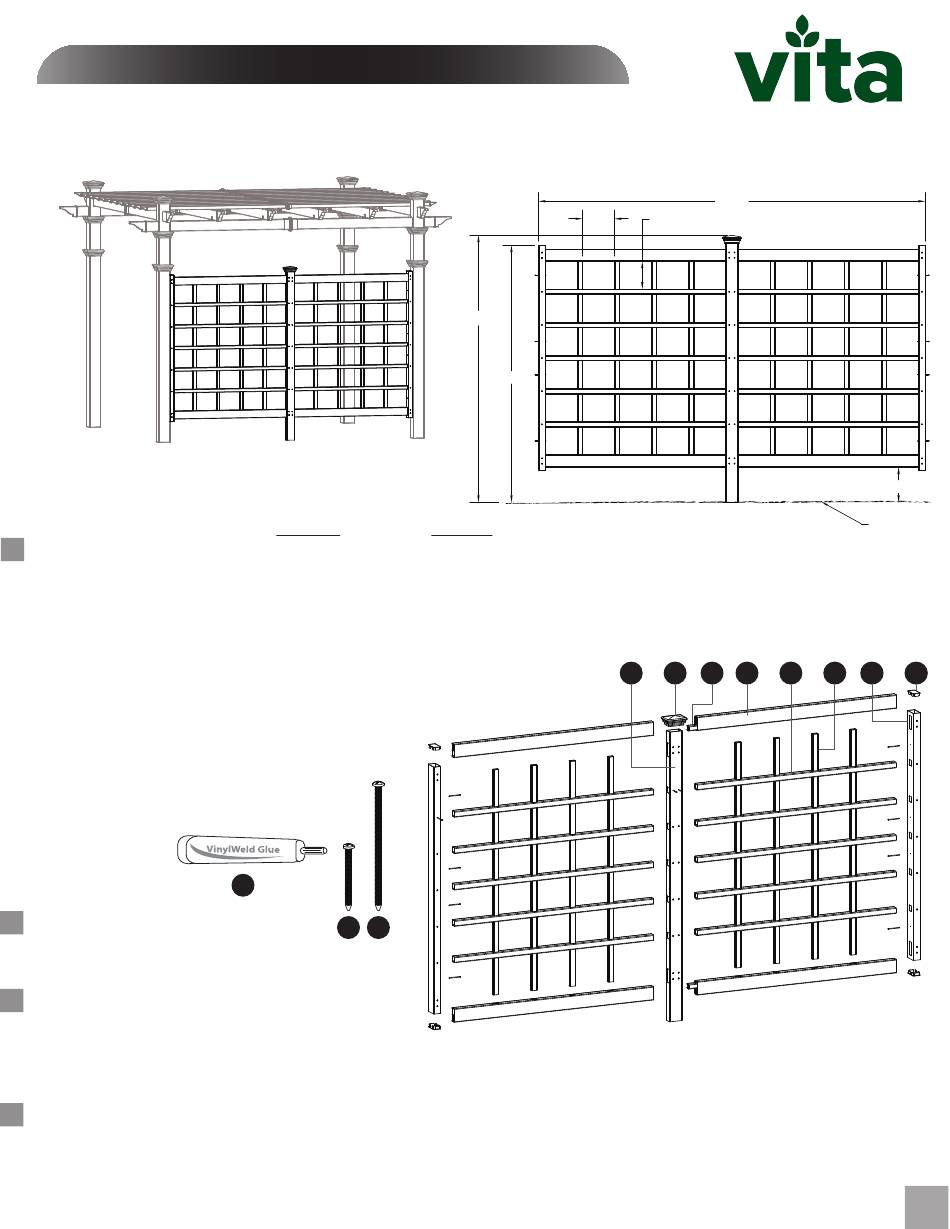

A S S E M B LY I N S T R U C T I O N S
10' Pergola Trellis
Please read through before starting assembly.
IMPORTANT: CHECK THE INSIDE OF YOUR POSTS FOR ALL MATERIALS.
Check Box for These Contents
In the event of missing or defective parts please call our customer service dept. at 1 800 282 9346 (Mon. to Fri. 8:00 AM to 5:00 PM EST).
1. Center Post (1) 2" x 3 1/2" x 75" - 11105
2. Pergola Posts (2) 2" x 3 1/2" x 64" - 11106
3. Post Cap (1) - 10611
4. Top and Bottom Rails (4) 1 1/2" x 3 1/2" x 54 7/8" - 11111
5. Rail Inserts (2) 1 1/4" x 1 1/4" x 20 1/2" - 11108
6. Horizontal Spindles (10) 1 1/2" X 1 1/2" X 54 3/4" - 11112
7. Vertical Spindles (8) 7/8" X 1 1/2" X 58 1/4" - 11110
8. 2" x 3 1/2" Flat top Caps (4) - 10615
9. 1 1/2" Self-Auguring Stainless Steel Screw (18) - 20005
10. 3" Self-Auguring Stainless Steel Screw (26) - 20007
11. Tube of Vinyl Glue (1) - 20000
Tools You Will Need
• Cordless Drill
• Level
Optional Materials
• See note on page 6
• Pressure treated wood 2x4x?" (To be modified)
• "L" Bracket (If securing center post to concrete)
• Wood screws for securing modified 2x4
General Information
• Read Instructions through carefully before beginning assembly.
• When assembling components, place on a non-abrasive surface (i.e. shipping box) to avoid scratching.
• We recommend an area approx 5'x 8' for unobstructed assembling.
• You should not need to use excessive force when assembling component.
11
9
10
Not to Scale
The 10' Pergola Trellis is designed to be installed with our
10' x 10' Pergola with an opening of 110" between the posts.
9 in
75 7/8 in
73 in
1
www.wearevita.com
110 in
7 7/8 in
3
5
4
6
V1.1/201020
10 in
Ground
7
2
8
1
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for vita Trellis
Summary of Contents for vita Trellis
- Page 1 A S S E M B LY I N S T R U C T I O N S 10’ Pergola Trellis www.wearevita.com The 10’ Pergola Trellis is designed to be installed with our 10’ x 10’ Pergola with an opening of 110” between the posts. 110 in...
- Page 2 Trellis Assembly One by one, insert the four vertical spindles through the routed holes on the five horizontal spindles as shown. Insert the top and bottom rails onto the trellis assembly as shown. Repeat for second trellis assembly. 10’ Pergola Trellis Instructions...
- Page 3 S T E P T W 0 Pergola Trellis Post Assembly Apply a small amount of glue on each of the tabs on the 2” x 3 1/2” flat top post cap as shown. Install the flat top post caps onto the ends of the pergola post as shown.
- Page 4 S T E P T H R E E Pergola Trellis Assembly Lay one of the trellis assemblies on the floor and insert the trellis assembly into the pergola post through the routed holes as shown. Make sure all the horizontal spindles and rails are bottomed out inside the pergola post.
- Page 5 Fasten the assembly together using 18, 1 1/2 in. screws through the pre-drilled holes on the center post as shown. Again, make sure all the screws are on the same side of the wall. 10’ Pergola Trellis Instructions...
- Page 6 The length of the modified 2x4 will vary, depending on one the following: With a helper, stand up and move the pergola trellis to its final location as shown. The pergola trellis should be • If the pergola trellis is being installed over ground, extend centered on the pergola main columns.
