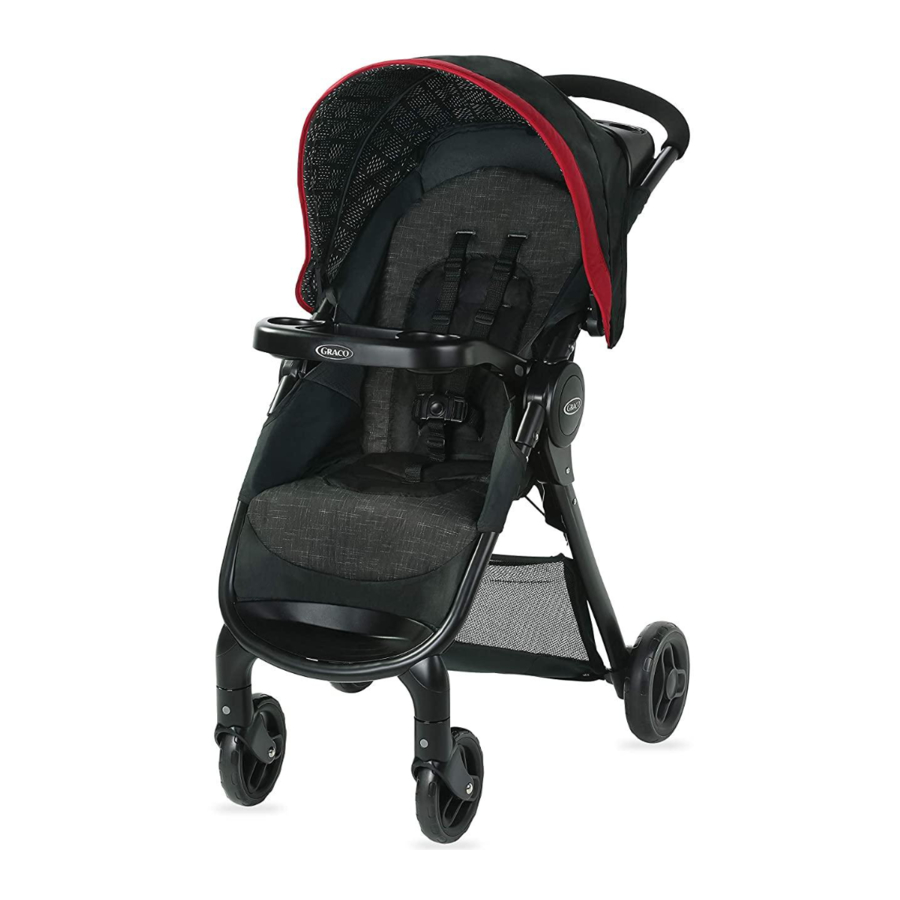

Graco FastAction SE Manual

Parts List

Check that you have all the parts for this model BEFORE assembling your product. If any parts are missing, call Customer Service. No tools required.

ALL MODELS

On certain models

Assembly

To Open Stroller

Before assembly be sure to place stroller on top of a piece of cardboard or other protective cover to prevent damage to floor surface.
FOLD/UNFOLD strap, located under this pocket.
To Open Stroller - Step 1

Pull strap and pull up on handle as shown.
CHECK that the stroller is completely latched open every time you open the stroller and before continuing with the rest of the assembly steps.

Canopy

Wrap elastic loops on canopy around each side of canopy wire.
Insert canopy wire into the canopy mounts on each side of the stroller as shown.

Front Wheels

Attach front wheels to front leg tubes as shown.
CHECK that wheels are securely attached by pulling on wheel assembly.
To remove, press button and pull wheel assembly off of stroller.

Rear Wheels

Brake levers point toward rear of stroller.

Insert axle rod through axle opening. Axle key must line up with key holes.

Place wheel on axle.

Push straight side of pin through axle hole. Pin will separate around the axle. Curved end of pin MUST face up as shown.

Snap hubcap over pin as shown.

Child's Tray

Always secure your child with the seat belt. The tray is not a restraint device. DO NOT lift the stroller by the child's tray. Use care when snapping the tray on the stroller with a child in the stroller.

Attach child's tray to mounts on insides of frame.
To remove child's tray, press buttons on sides of tray.

Use

To Secure Child

Fall Hazard: ALWAYS use the restraint system.

5 Point Harness

To open, press button on buckle to release the waist straps.
To close, slide shoulder strap connectors onto waist straps and insert into buckle.
Use slide adjuster at shoulder and waist for tighter adjustment. To change shoulder harness slots.

3 Point Buckle

To open, press button on buckle to release the waist straps.
Slide shoulder strap connectors off of waist straps.
Remove shoulder straps from stroller.
Attach waist straps to harness buckle as shown.
Use slide adjuster at waist for tighter adjustment.
To open, press button on buckle to release the waist straps.

Adjusting Shoulder Harness position

Push harness anchor through the front of the seat then re-insert through desired slots at the same height level. Use either shoulder harness anchor in the slots that are closest to child's shoulder height. Use slide adjuster for further adjustment.

Brakes

Always apply both brakes. CHECK that brakes are on by trying to push stroller.

Push down on both brakes to lock brakes.
Push up on both brakes to unlock brakes.

Canopy

Pull forward to open canopy.
Push backwards to close canopy.

On certain models

Pull flap forward to open and backwards to close canopy window.
Visor

To Recline Seat

When making adjustments to the stroller seat, make sure child's head, arms, and legs are clear of moving seat parts and stroller frame.

To recline push button down and pull seat towards the rear.
To raise, pull both straps up.

To Fold Stroller

DO NOT allow child to play with the fold handle.

FOLD/UNFOLD strap, located under this pocket.
To Fold Stroller - Step 1

Pull strap up.
Rotate handle down.

To Attach Graco ® Infant Car Seat

For models that do not come with an infant car seat one may be purchased separately.

Use only a Graco® SnugRide® Click Connect™ car seat with this stroller. This stroller is only compatible with Graco® SnugRide® infant car seats with Click Connect™. Only use with Graco® infant car seats that have the Click Connect™ logo. Improper use of this product with a car seat may result in serious injury or death. Read the manual provided with your Graco car seat before using it with your product.

Always secure your child with infant car seat harness when using the car seat in the product. If your child is already in the car seat, check that the child is secured with the harness.

Recline the stroller seat back to its lowest position. Locate the 2 Click Connect™ mounts.
Insert carseat into stroller and push down on car seat until the latches snap into the Click Connect™ mounts.
Check that infant car seat is securely attached by pulling up on it.
To remove car seat: squeeze release handle at back of car seat, and lift car seat out of the stroller.

Care and Maintenance

FROM TIME TO TIME CHECK YOUR STROLLER for loose screws, worn parts, torn material or stitching. Replace or repair the parts as needed. Use only Graco replacement parts.
TO CLEAN SEAT COVER, refer to your care tag on the seat pad for washing instructions. NO BLEACH.
TO CLEAN STROLLER FRAME, use only household soap and warm water. NO BLEACH OR DETERGENT.
EXCESSIVE EXPOSURE TO SUN OR HEAT could cause fading or warping of parts.
IF STROLLER BECOMES WET, open canopy and allow to dry thoroughly before storing.
WHEN USING YOUR STROLLER AT THE BEACH, completely clean your stroller afterward to remove sand and salt from mechanisms and wheel assemblies.

WARNING

Failure to follow these warnings and the assembly instructions could result in serious injury or death.
Only use product as instructed.
PLEASE SAVE OWNER'S MANUAL FOR FUTURE USE.
ADULT ASSEMBLY REQUIRED.
NEVER LEAVE child unattended. Always keep child in view while in stroller.
AVOID SERIOUS INJURY from falling or sliding out. Always use seat belt. After fastening buckles, adjust belts to get a snug fit around your child.
AVOID FINGER ENTRAPMENT:
Use care when folding and unfolding the stroller. Be certain the stroller is fully erected and latched before allowing your child near the stroller.
AVOID STRANGULATION:
DO NOT place items with a string around your child's neck, suspend strings from this product, or attach strings to toys.
NEVER USE STROLLER ON STAIRS or escalators. You may suddenly lose control of the stroller or your child may fall out. Also, use extra care when going up or down a step or curb.
STROLLER TO BE USED only at walking speed. Product not intended for use while jogging, skating, etc.
USE OF THE STROLLER with a child weighing more than 50 lb (22.7 kg) or taller than 45 in. (114.3 cm) will cause excessive wear and stress on the stroller. Use the stroller with only one child at a time.
TO PREVENT TIPPING, do not place more than 3 lb (1.4 kg) on the parent's tray.
TO AVOID BURNS, never put hot liquids in the parent's cupholder.
TO PREVENT A HAZARDOUS, UNSTABLE CONDITION, never place purses, shopping bags, parcels or accessory items on the handle or canopy.
TO PREVENT A HAZARDOUS, UNSTABLE CONDITION, do not place more than 10 lb (4.5 kg) in the storage basket.
DO NOT use storage basket as a child carrier.
NEVER ALLOW YOUR
STROLLER to be used as a toy.
NEVER PLACE child in the stroller with head toward front of stroller.
DISCONTINUE USING YOUR STROLLER should it become damaged or broken.

USING GRACO® INFANT CAR SEAT WITH STROLLER:

TO AVOID INJURY TO YOUR CHILD: THIS STROLLER IS ONLY COMPATIBLE WITH GRACO® SNUGRIDE® INFANT CAR SEATS WITH CLICK CONNECT™. Only use with Graco® infant car seats that have the Click Connect™ logo. Improper use of this stroller with other manufacturers' car seats may result in serious injury or death.
READ THE MANUAL provided with your Graco car seat before using it with your stroller.
ALWAYS SECURE your child with the car seat harness when using the car seat in the stroller. If your child is already in the car seat, check that the child is secured with the harness.
