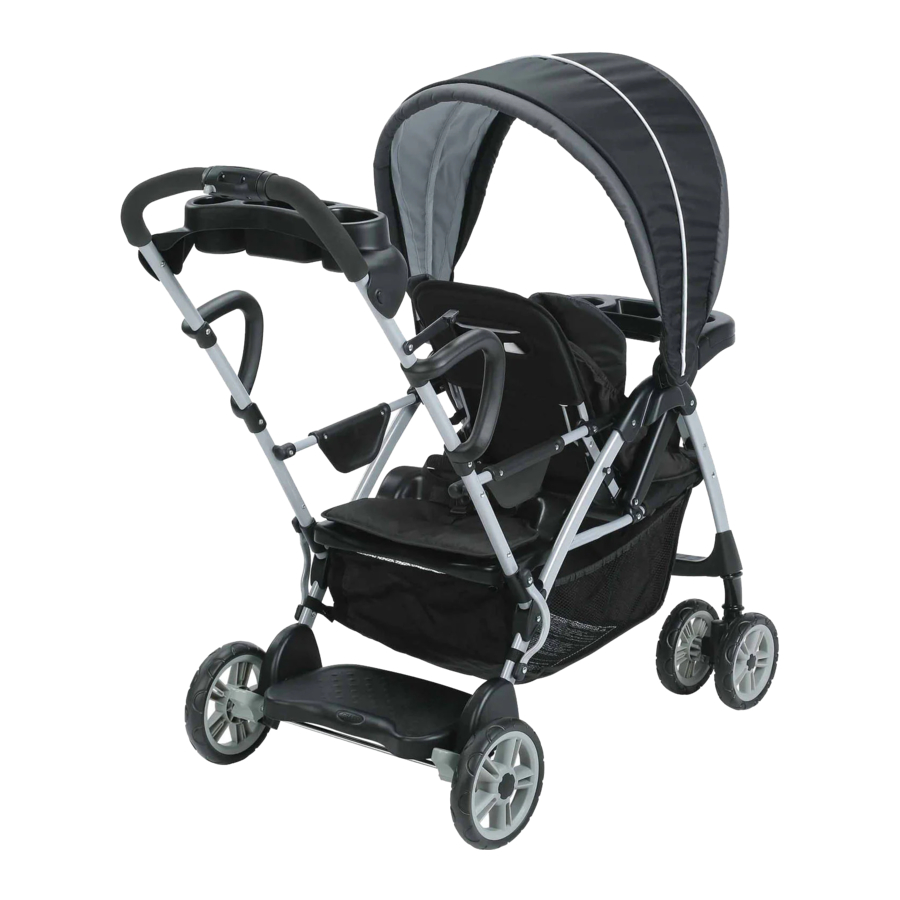

Graco ROOMFOR2 Manual

Part List

Check that you have all the parts for this model BEFORE assembling your product. If any parts are missing, call Customer Service.
No tools required.

ALL MODELS

ON CERTAIN MODELS

To Open Stroller

1. Be sure to place stroller on top of a piece of card board or some other protective cover to prevent any damage to floor.

2. CHECK that the stroller is completely latched open every time you open the stroller and before continuing with the rest of the assembly steps.

3. Push the platform down until it snaps into place.

4. Flip stroller upside down as shown, and make sure all 3 plastic tabs are snapped around the rear axle.


Rear Wheels

1. Break levers point toward rear of stroller.

2.

3. Insert axle rod through axle opening. Axle key must line up with key holes.

4. Place wheel on axle.

5. Push straight side of pin through axle hole. Pin will separate around the axle. Curved end of pin MUST face up as shown.

6. Snap hubcap over pin as shown. Repeat steps 4-6 (Rear Wheels ) on other side.


Front Wheels

1.

2. Check that wheels are securely attached by pulling on wheel assemblies.


Parents Tray

1.

2. Insert tray into slots, make sure parent tray is snapped securely onto pegs on each side of the frame.


To secure Child

5 Point Harness


Use slide adjuster at shoulder and waist for tighter adjustment.

3 Point Buckle

Use either shoulder harness anchor in the slots that are closest to child's shoulder height. Use slide adjuster for further adjustment.

To Recline Front Seat

When making adjustments to the stroller seat, make sure child's head, arms, and legs are clear of moving seat parts and stroller frame.

1. To recline.

2. To raise.


Brakes

Always apply both brakes. CHECK that brakes are on by trying to push stroller.

Swivel Wheels

1. Front swivel wheels lock for use on uneven surfaces such as grass, stones or gravel.

2.


To Fold Stroller

Before folding stroller:

1. remove infant carrier if in use;

2. adjust seat back to upright position;

3. lock brakes.
4. fold canopy

To Attach Graco^® Infant Car Seat

For models that do not come with an infant car seat one may be purchased separately. You MUST use the stroller waist straps.

se only a Graco ® SnugRide ®, SnugRide ® 30, SnugRide ® 32, SnugRide ® 35, or Infant SafeSeat ™ car seat with this travel system. (Not intended for use with AUTOBABY (Europe only) and ASSURA infant car seats.) If unsure of the model or for more information please call Graco's customer service number: 1-800-345-4109. Improper use of this stroller with other manufacturers' car seats may result in serious injury or death. Read the manual provided with your Graco car seat before using it with your stroller.

• Always secure your child with the car seat harness when using the car seat in the stroller. If your child is already in the car seat, check that the child is secured with the harness.

1. Adjust seat back to upright position. Position mounting notches over tray. Push down on car seat until the attachment latch snaps onto tray.


2. Pull stroller waist straps through vehicle belt hook on both sides of the car seat. Check that infant car seat is securely attached by pulling up on it.

3. To remove car seat: remove seat waist straps from vehicle belt hook, squeeze release handle at back of car seat, and lift car seat out of the stroller.

4.


ROOMFOR2™ Use Positions

DO NOT allow child to stand on platform facing backwards. To avoid falling, child must hold onto stroller frame.

Care and Maintenance

• DO NOT MACHINE WASH SEAT. It should only be wiped with a mild soap, taking care not to soak the material. NO BLEACH.
• REMOVABLE SEAT PAD (if so equipped) may be machine washed in cold water on delicate cycle and drip-dried. NO BLEACH.
• TO CLEAN STROLLER FRAME, use only household soap and warm water. NO BLEACH or detergent.
• FROM TIME TO TIME CHECK YOUR STROLLER for loose screws, worn parts, torn material or stitching. Replace or repair the parts as needed. Use only Graco replacement parts.
• EXCESSIVE EXPOSURE TO SUN OR HEAT could cause fading or warping of parts.
• IF STROLLER BECOMES WET, open canopy and allow to dry thoroughly before storing.
• IF WHEEL SQUEAKS, use a light oil (e.g., WD-40, 3-in-1, or sewing machine oil). It is important to get the oil into the axle and wheel assembly as illustrated.

• WHEN USING YOUR STROLLER AT THE BEACH completely clean your stroller afterward to remove sand and salt from mechanisms and wheel assemblies.

Safety

Failure to follow these warnings and the assembly instructions could result in serious injury or death.

• PLEASE SAVE OWNER'S MANUAL FOR FUTURE USE.
• ADULT ASSEMBLY REQUIRED.
• NEVER LEAVE child unattended. Always keep child in view while in stroller.
• AVOID SERIOUS INJURY from falling or sliding out. Always use seat belt. After fastening buckles, adjust belts to get a snug fit around your child.
• AVOID FINGER ENTRAPMENT: Use care when folding and unfolding the stroller. Be certain the stroller is fully erected and latched before allowing your child near the stroller.
• AVOID STRANGULATION. DO NOT place items with a string around your child's neck, suspend strings from this product, or attach strings to toys.
• NEVER USE STROLLER ON STAIRS or escalators. You may suddenly lose control of the stroller or your child may fall out. Also, use extra care when going up or down a step or curb.
• STROLLER TO BE USED only at walking speed. Product not intended for use while jogging, skating, etc.
• USE OF THE front seat, bench seat or standing platform with a child weighing more than 50 lbs (22.7 kg) or taller than 45 in. (114.3 cm) will cause excessive wear and stress on the stroller.
• TIPPING HAZARD! DO NOT OVERLOAD BENCH SEAT, FRONT SEAT OR STANDING PLATFORM PAST THE MANUFACTURERS RECOMMENDED WEIGHT RATING.
• TO PREVENT TIPPING, do not place more than 3 lbs (1.4 kg) on the parent's tray.
• TO AVOID BURNS, never put hot liquids in the parent's tray.
• TO PREVENT A HAZARDOUS, UNSTABLE CONDITION, never place purses, shopping bags, parcels or accessory items on the handle or canopy.
• TO PREVENT A HAZARDOUS, UNSTABLE CONDITION, do not place more than 10 lbs (4.5 kg) in the storage basket. DO NOT use storage basket as a child carrier.
• NEVER ALLOW YOUR STROLLER to be used as a toy.
• DISCONTINUE USING YOUR STROLLER should it become damaged or broken.

USING GRACO^® INFANT CAR SEAT WITH STROLLER:

• USE ONLY A GRACO^® SNUGRIDE^®, SNUGRIDE^® 30, SNUGRIDE^® 32, SNUGRIDE^® 35, OR INFANT SAFESEAT^™ CAR SEAT with this travel system. (Not intended for use with AUTOBABY (Europe only) and ASSURA infant car seats.) Improper use of this stroller with other manufacturers' car seats may result in serious injury or death.
• READ THE MANUAL provided with your Graco car seat before using it with your stroller.
• Front trayMUST be installed in the front location to be used for the car seat.
• ALWAYS SECURE your child with the car seat harness when using the car seat in the stroller. If your child is already in the car seat, check that the child is secured with the harness.
