AVS Ventshade Manual

Contents

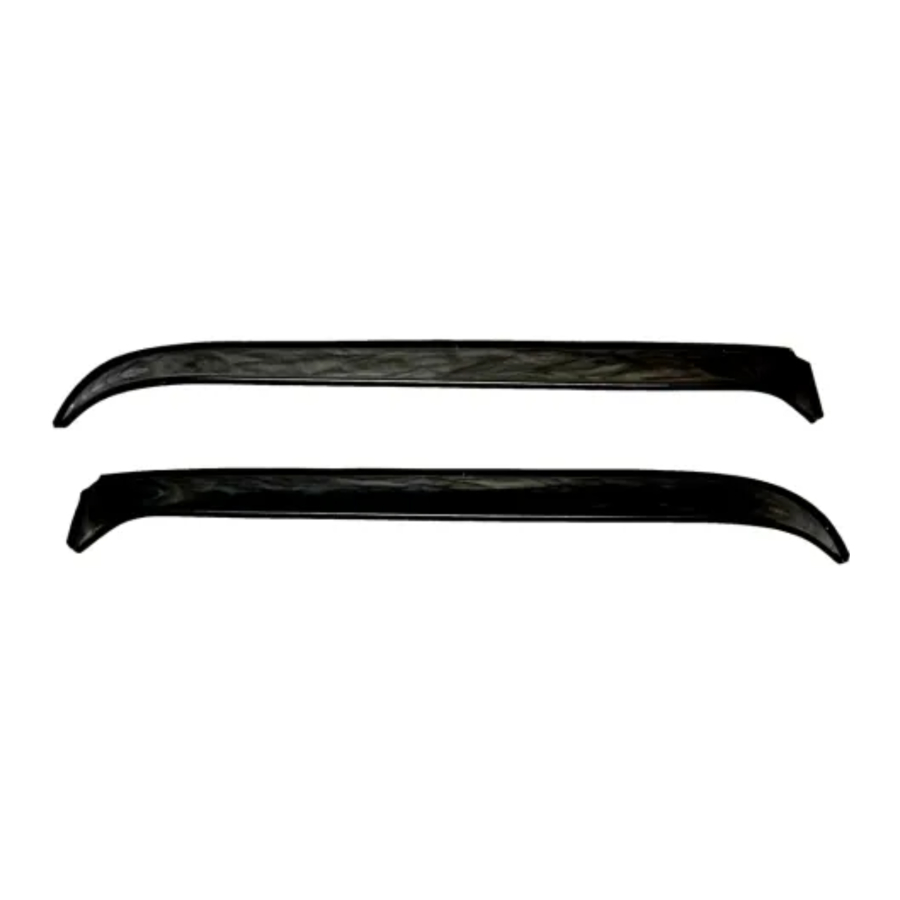

NOTE: Actual product may vary from illustration.

Tools Required

Preparation Before Painting / Installation

• A trial fit is recommended to ensure proper positioning and fit.
• Check fit of parts before painting as we will not accept the return of modified or painted parts.
• Wash and dry your vehicle to remove any debris and/or dirt from the installation area.

Installation Steps

NOTE: Actual application may vary slightly from illustrations.

1. Lower passenger side window. Grasp and pull down the rubber window weatherstrip from the window channel.

2. Clean with alcohol pad.

3. Remove the tape liner from the front & rear flanges. Peel back 2" of tape liner from each end of top flange.

4. Beginning at the rear, insert the visor flanges into the window channel.

5. Press visor firmly in place and verify position.

6. Remove tape liner by pulling on free ends. Apply pressure to all flange edges to ensure proper adhesion.

7. Beginning at the rear, use a putty knife to realign the weatherstrip back into the window channel.
   NOTE: Use caution not to cut or damage the weatherstrip!


8. Raise window slowly and leave up for 24 hours to secure visor to window channel.


Important Safety Information

•
  Before driving, ensure that the vent visor is properly secured to vehicle.
• Do not use automatic "brush-style" car washes.
• Do not use cleaning solvents of any kind.
• Periodically check all components for tightness.
