AVS Ventvisor Installation Instructions Manual

For proper installation and best possible fit, please read all instructions BEFORE you begin.
For technical assistance or to obtain missing parts, please call Customer Relations at 1-800-241-7219.
Important Safety Information
• CAUTION - Before driving, ensure that the vent visor is properly secured to vehicle.
• Do not use automatic "brush-style" car washes.
• Do not use cleaning solvents of any kind.
• Periodically check all components for tightness.
Contents - 2 Piece Set
Front Driver
Side Visor

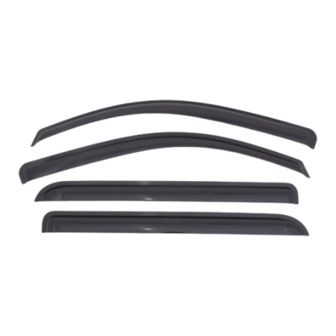

Contents - 4 Piece Set
Front Driver
Side Visor
Tools Required
Appropriate hand tools for loosening of side mirrors.
Preparation Before Painting / Installation
• A trial fit is recommended to ensure proper positioning and fit.
• Check fit of parts before painting as we will not accept the return of modified or painted parts.
• Wash and dry your vehicle to remove any debris and/or dirt from the installation area.
Installation Steps
Clean the window channel
with an alcohol pad.
1
Installation Instructions
Ventvisor
NOTE: Actual product may vary from illustration.
Front Passenger
Side Visor
NOTE: Actual application may vary slightly from illustrations.
Deflector
®
Front Passenger
Side Visor
Rear Driver
Side Visor
Some parts require trimming excess tape along
the window trim, see steps 11-12.
Utility Knife
Inside the vehicle, remove the plastic mirror
cap and loosen the mirror mounting hardware.
2
Page 1 of 3
I - Sheet Number VV47 Rev.B
Alcohol Pad x2
Rear Passenger Alcohol Pad x4
Side Visor
Safety Gloves
Loosen
